Key Cylinder Lamp: Testing and Inspection

INSPECTION

1. INSPECT IGNITION KEY CYLINDER LIGHT

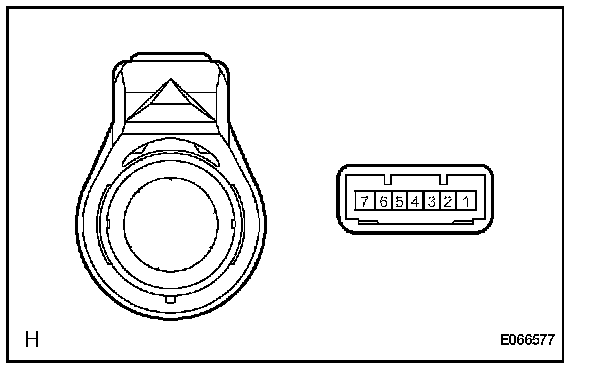

a. Remove the transponder key amplifier (ignition key cylinder light).




b. Connect the battery positive (+) lead to terminal 2 and negative (-) lead to terminal 6.
c. Check that the light comes on.

OK: Comes on

If the light does not come on, replace the transponder key amplifier (ignition key cylinder light).
