Tail Lamp: Testing and Inspection

ON-VEHICLE INSPECTION

1. INSPECT REAR COMBINATION LIGHT ASSEMBLY

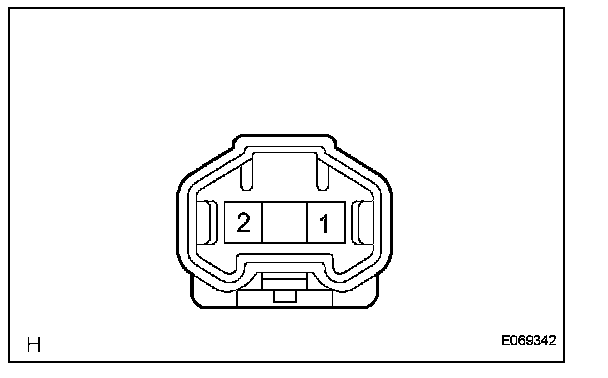

a. Disconnect the rear combination light assembly connector.




b. Measure the voltage according to the value(s) in the table.

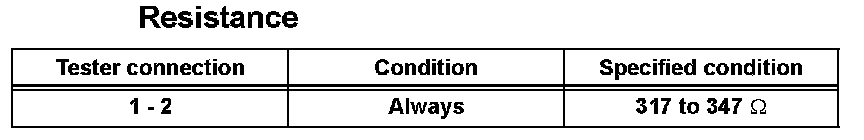

c. Measure the resistance of the rear combination light according to the value(s) in the table.

If the result is not as specified, replace the light.
