Pinout Values and Diagnostic Parameters

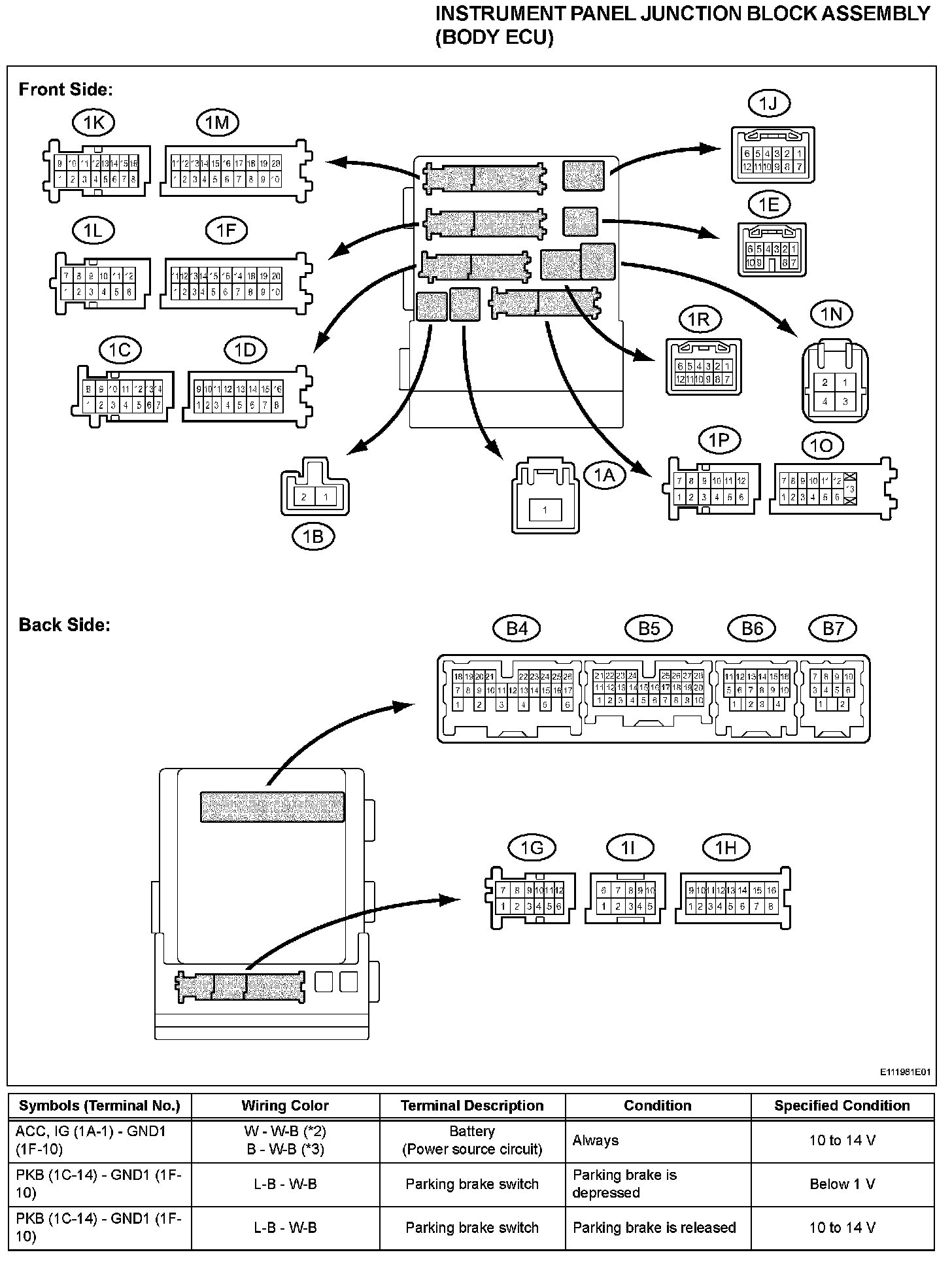

Terminals Of Control Module/ Pinouts (Instrument Panel Junction Block Assembly [Body ECU]) (Part 1):

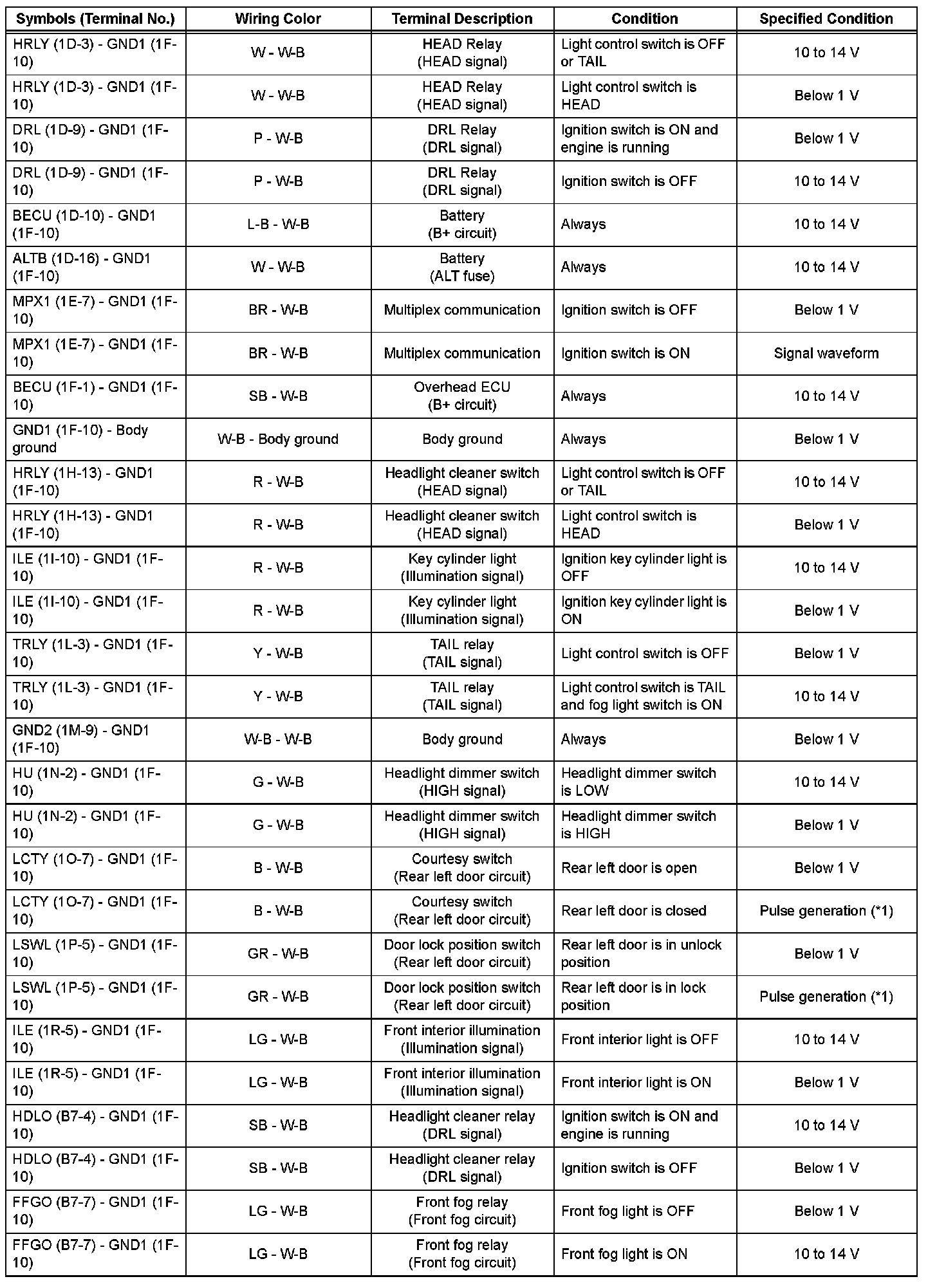

Terminals Of Control Module/ Pinouts (Instrument Panel Junction Block Assembly [Body ECU]) (Part 2):

Terminals Of Control Module/ Pinouts (Instrument Panel Junction Block Assembly [Body ECU]) (Part 3):

Terminals Of Control Module/ Pinouts (Instrument Panel Junction Block Assembly [Body ECU]) (Part 4):

Oscilloscope Waveform:

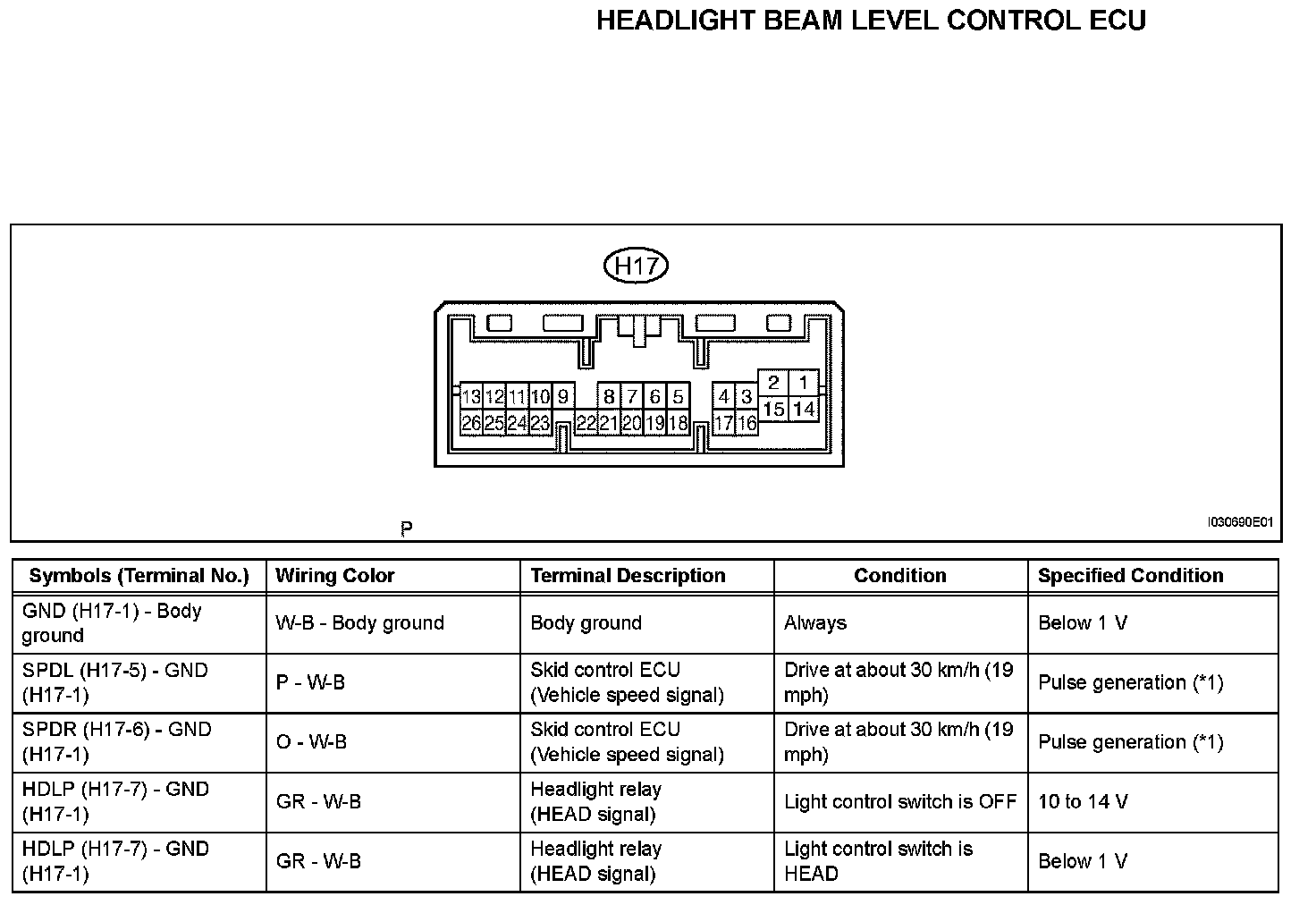

Terminals Of Control Module/Pinouts (Headlight Beam Level Control ECU) (Part 1):

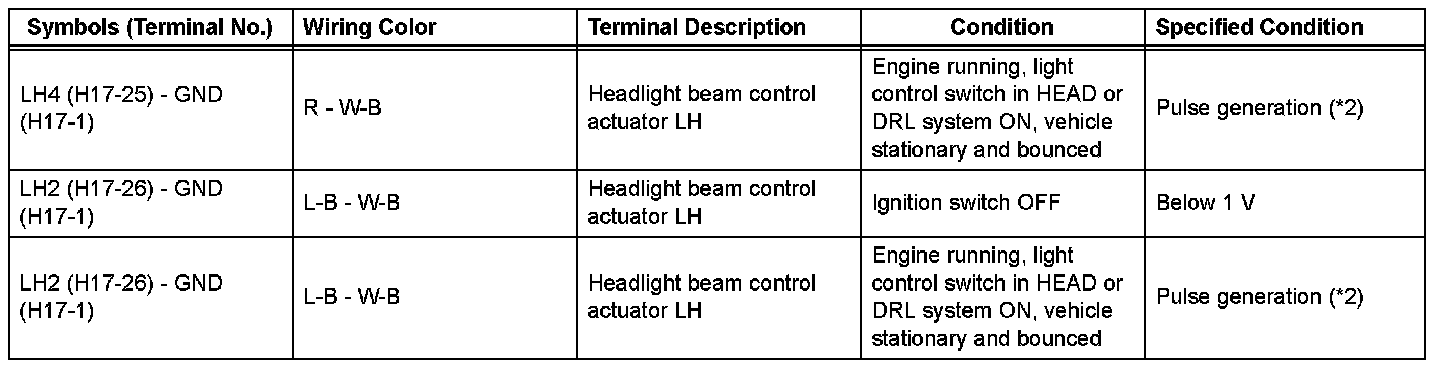

Terminals Of Control Module/Pinouts (Headlight Beam Level Control ECU) (Part 2):

Terminals Of Control Module/Pinouts (Headlight Beam Level Control ECU) (Part 3):

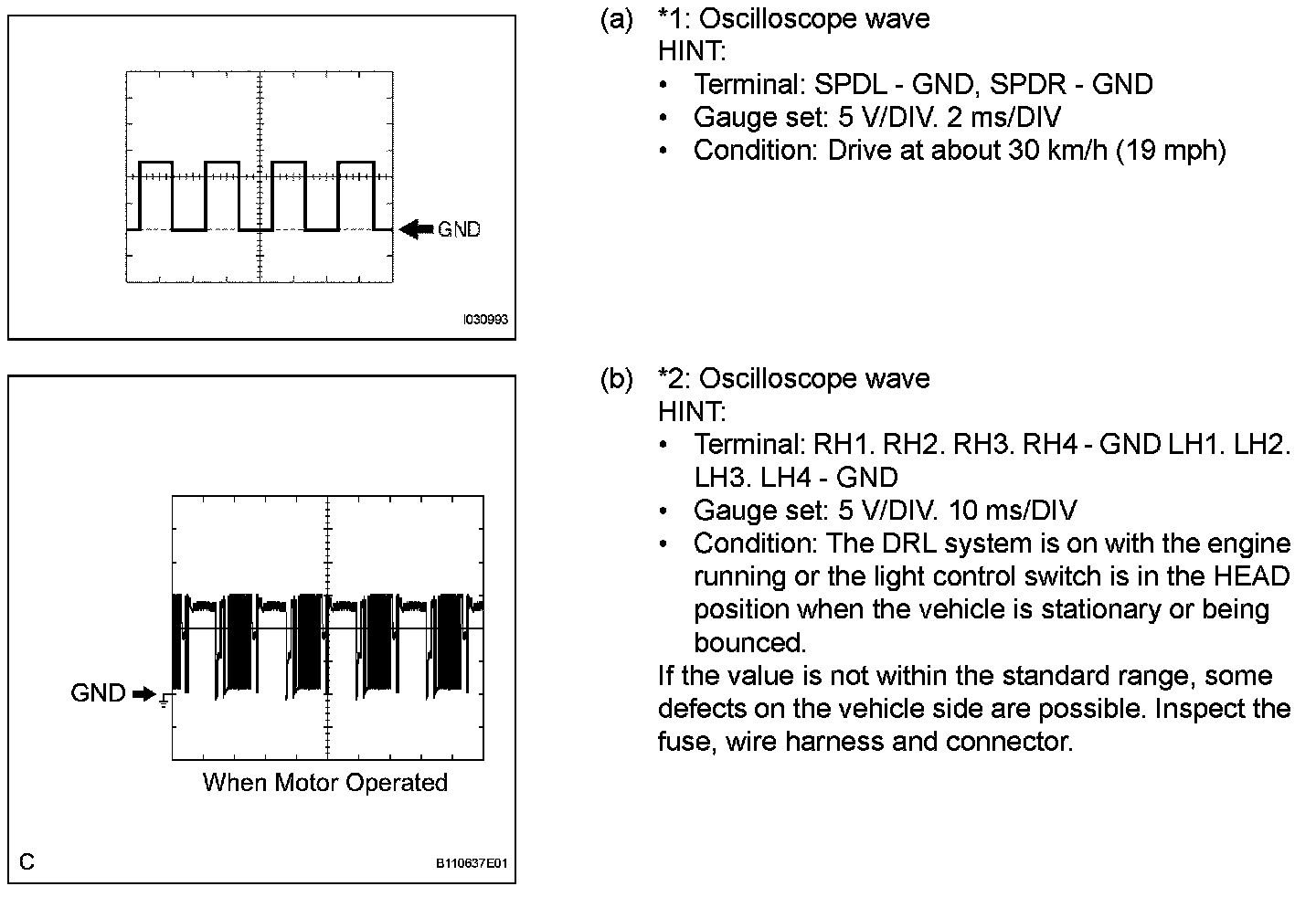

Oscilloscope Waveform:

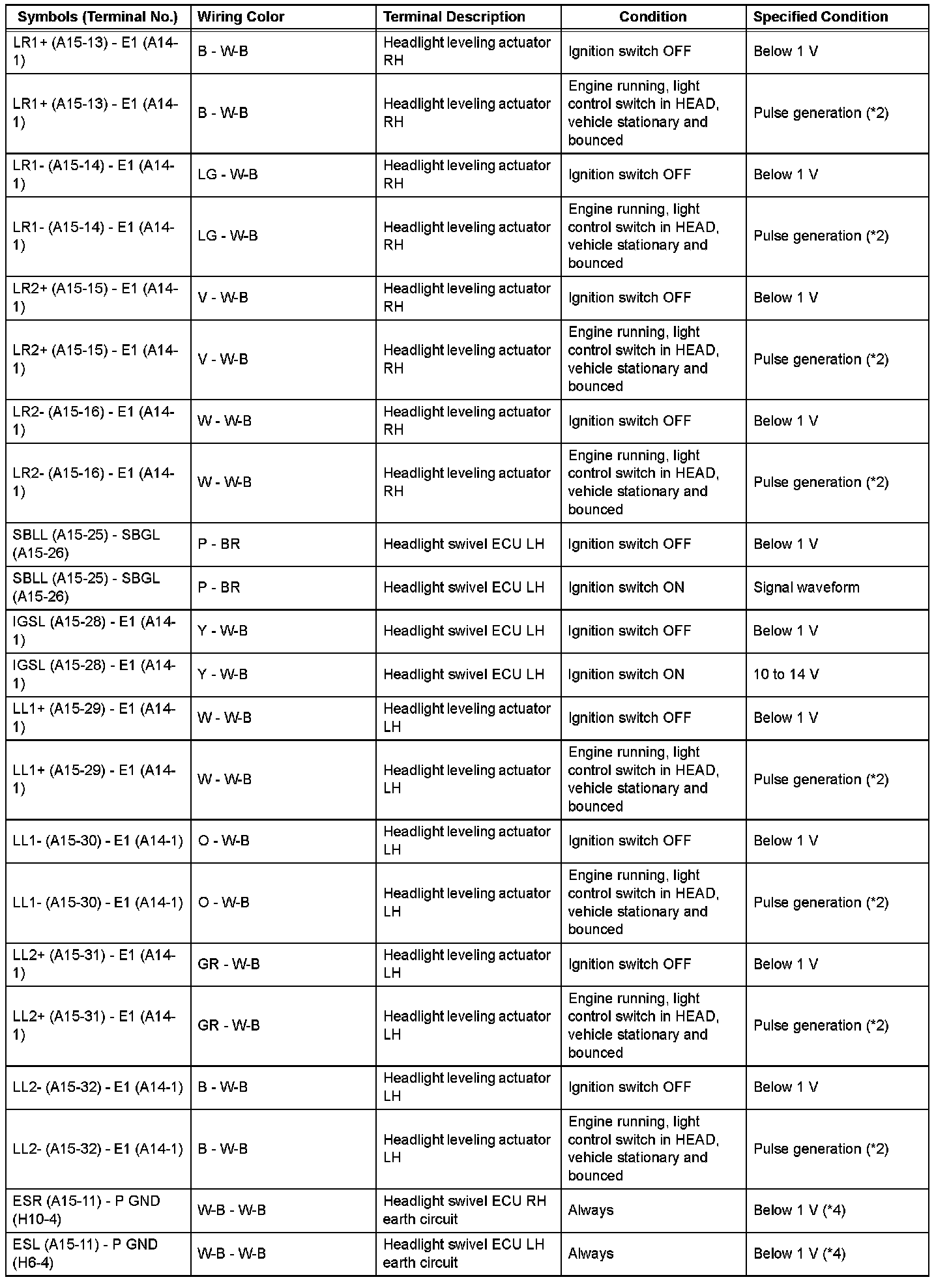

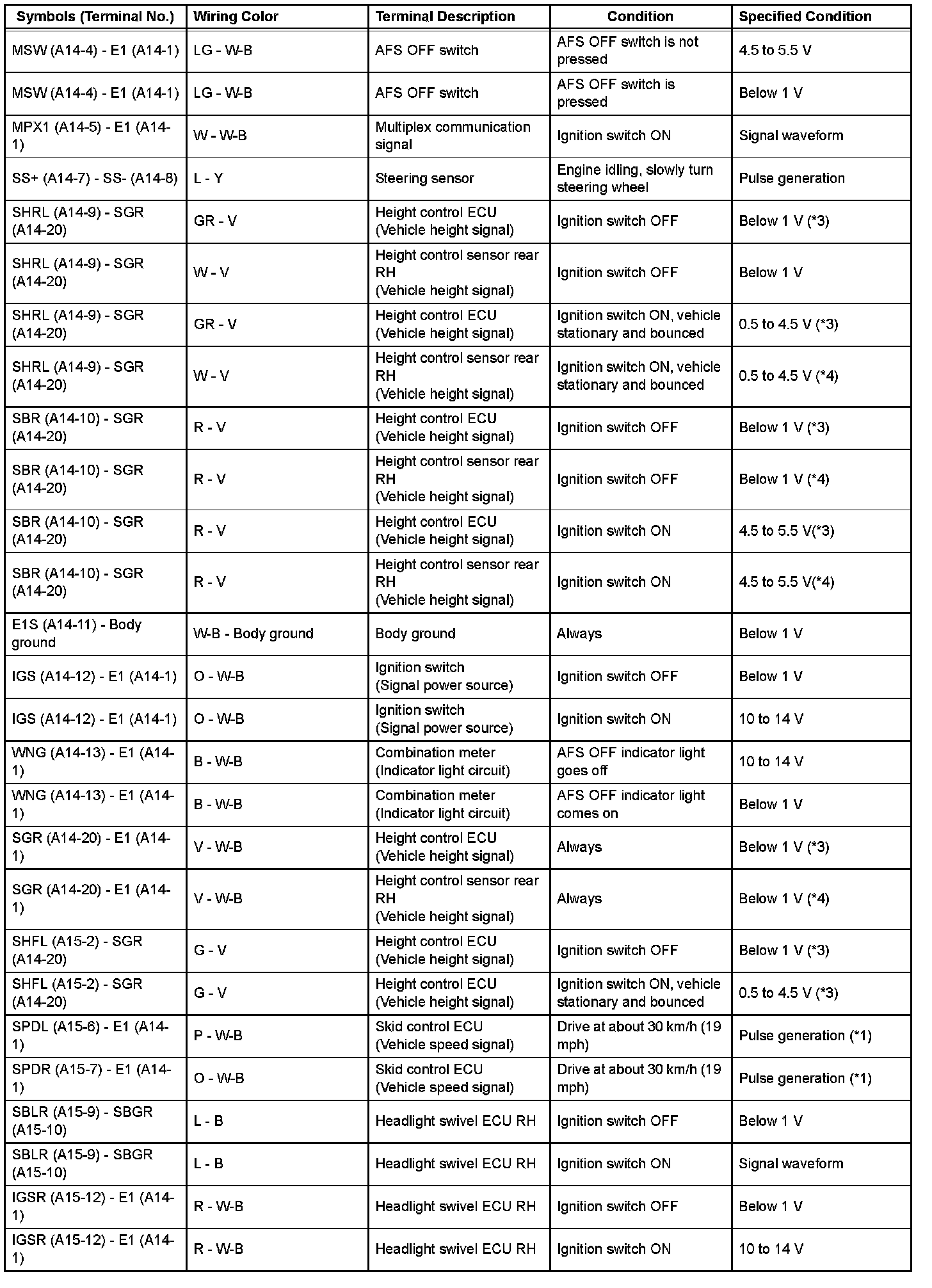

Terminals Of Control Module/ Pinouts (AFS ECU) (Part 1):

Terminals Of Control Module/ Pinouts (AFS ECU) (Part 2):

Terminals Of Control Module/ Pinouts (AFS ECU) (Part 3):

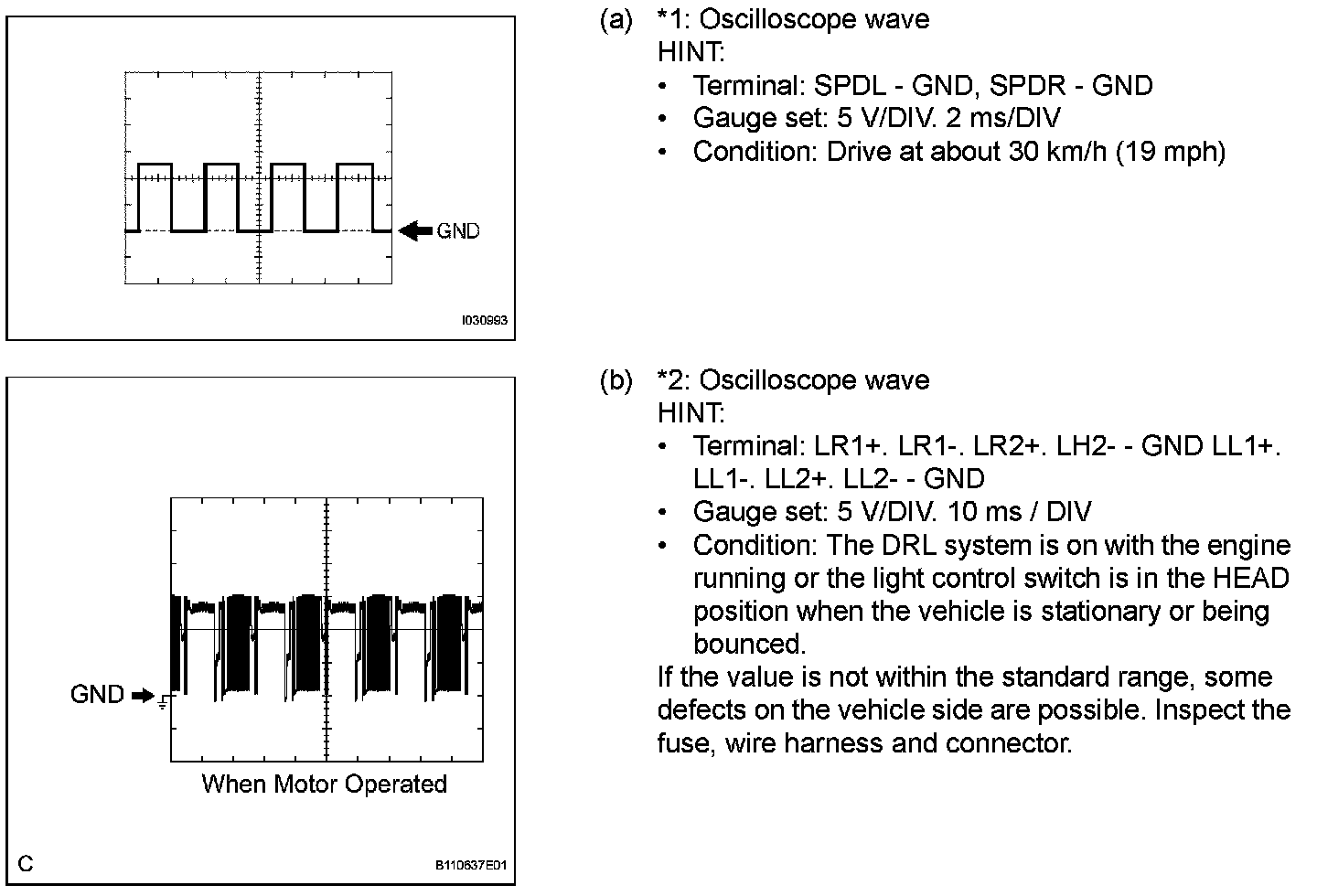

Oscilloscope Waveforms:
