WHEN SERVICING FULL-TIME 4WD VEHICLES




The full-time 4WD LEXUS RX350 is equipped with the open center differential system.

If incorrect preparations or test procedures are used, the test will not only be unsuccessful, but may be dangerous as well.

Therefore, before beginning any such servicing or test, be sure to check the following items:
- Whether wheels should be touching ground or jacked up
- Transaxle gear position
- Maximum testing vehicle speed
- Maximum testing time

CAUTION:
- Never accelerate or decelerate the vehicle suddenly.
- Observe the other cautions given for each individual test.

a. Before Beginning Test
This vehicle does not have a Center Diff. Lock Mode or 4WD (Normal) Mode to allow only the front or rear wheel to be rotated.

The test method for this vehicle is different from that for vehicles equipped with the Center Diff. Lock Mode or 4WD (Normal) Mode, so make sure to use the correct test method.

b. Braking Force Test

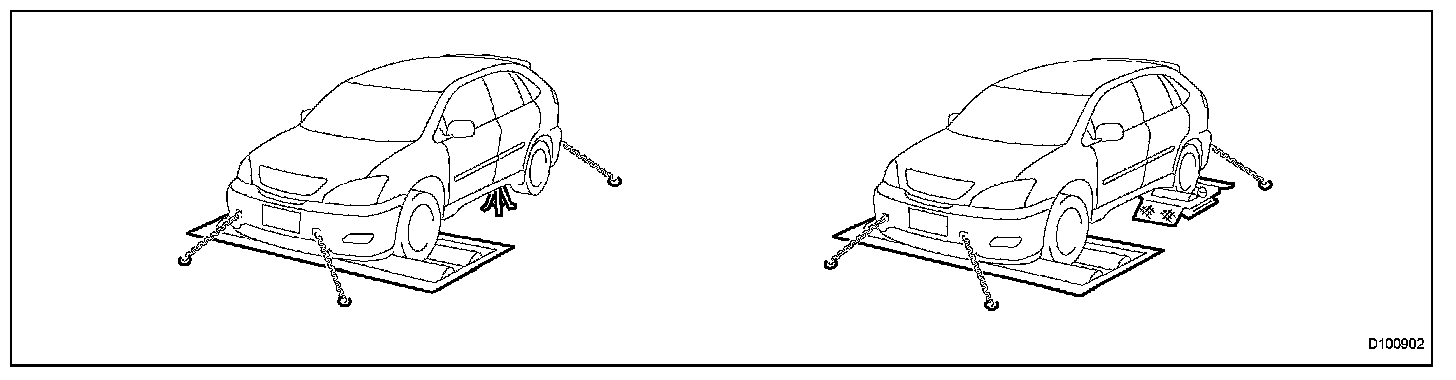

(Vehicle Speed: Below 0.5 km/h or 0.3 mph) When performing low-speed type brake tester measurements, observe the following instructions.
1. Position the wheels to be tested (front or rear) on the tester.
2. Shift the transaxle shift lever to "N" position.
3. Idle the engine, operate the brake booster and perform the test.







c. Speedometer Test or Other Tests

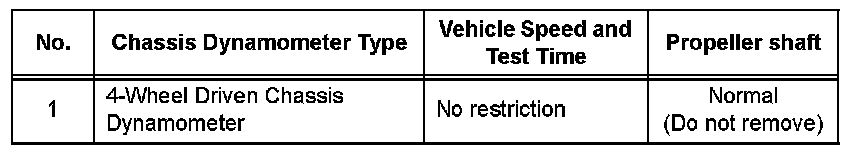

NOTE: If you do not observe the conditions for the test, there will be the cases where the 4WD functions will deteriorate; the parts in the drive-train system will have a malfunction; the vehicle will jump out. Therefore, do not conduct a test unless observing the following conditions.

HINT: When conducting a test with the vehicle highly loaded are driven with high speeds, observe the conditions.

*:This is to avoid damaging the center differential.

NOTE:
- Do not suddenly accelerate and do not suddenly apply brake.
- Confirm that the vehicle is securely immobilized.
- Never operate the brakes to drive the wheels or stop them suddenly.




d. On-Vehicle Wheel Balancing
When doing on-vehicle wheel balancing on a full-time 4WD vehicle, to prevent the wheels from rotating at different speeds in different directions from each other (which could damage the center differential), always be sure to observe the following precautions:
1. All 4 wheels should be jacked up, clearing the ground completely
2. The parking brake lever should be fully released.
3. None of the brakes should be allowed to drag.
4. The wheels should be driven on the wheel balancer with the engine running.

HINT: When doing this, be careful of the other wheels, which will rotate at the same time.

5. Avoid sudden acceleration, deceleration and braking.
6. Carry out wheel balancing with the transaxle in the D position.
