Body - Power Window Initialization Procedure

PRE-DELIVERY SERVICE
PD008-06

Title:
INITIALIZATION OF POWER WINDOW
DURING PDS

Models
'07 RX 350

February 6, 2006

Introduction

As a result of the removal of the Short Pin, the "one-touch open and close" and "jam protection" functions of the driver's door power window will be inoperative due to loss of the driver's door power window position memory.

Initialize the driver's door power window after installing the Short Pin into its original location during Pre-Delivery Service (PDS) at the dealership.

NOTE:
Any time the battery terminal has been disconnected, each door's power window must be re-initialized.

Applicable Vehicles

^ 2007 model year RX 350 vehicles.





Warranty Information

Initialization Procedure

1. Turn the ignition switch to the ~ON" position.

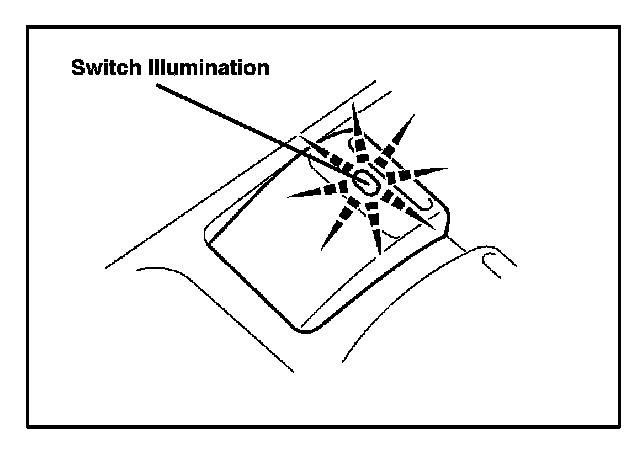

At this time, the driver's door power window switch illumination blinks.

2. Push the driver's door power window switch and lower the window halfway.





3. Pull up the driver's door power window switch until the window closes, and continue to hold it up for more than one second.

At this time, the driver's door power window switch changes from blinking to constant illumination.

NOTE:
Jam protection function is enabled through the above initialization procedure.

4. Check for the proper operation of the "one-touch open and close" function by fully pushing the switch "DOWN" once and fully pulling the switch "UP" once.

5. Repeat steps 2 - 4 on each door's power window switch.

6. Check that each door's power window switch illumination is constant.

NOTE:
Any time the battery terminal has been disconnected, each door's power window must be re-initialized.
