Canada - Body - Initialization Of Sliding Roof
BulletinTSB2213
Issue Date
February 09, 2006
Title
INITIALIZATION OF SLIDING ROOF DURING PDS
Component
GENERAL INFORMATION
Models
'07 RX350
INTRODUCTION:
As a result of the removal of the Short Pin, the "one-touch tilt up and down", "one-touch slide open and close", and "jam protection" functions of the sliding roof will be inoperative due to loss of the sliding roof position memory stored in the microcomputer.
Initialize the sliding roof after installing the Short Pin in its original location during Pre-Delivery Service (PDS) at the dealership.
NOTE:
Any time the battery terminal has been disconnected, initialize the sliding roof after reconnecting the battery terminal.
APPLICABLE VEHICLES:
- 2007 model year RX350 vehicles.

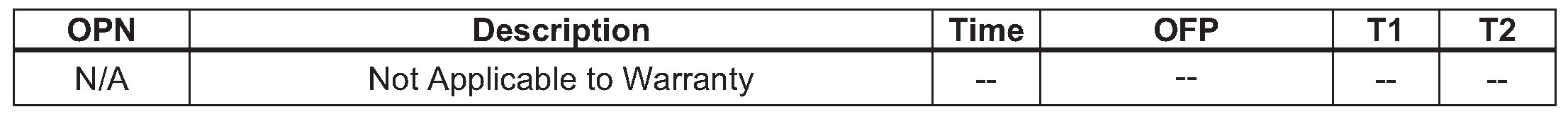

WARRANTY INFORMATION:
INITIALIZATION PROCEDURE:
Single-Panel Sliding Roof
1. Turn the ignition switch to the "ON" position.

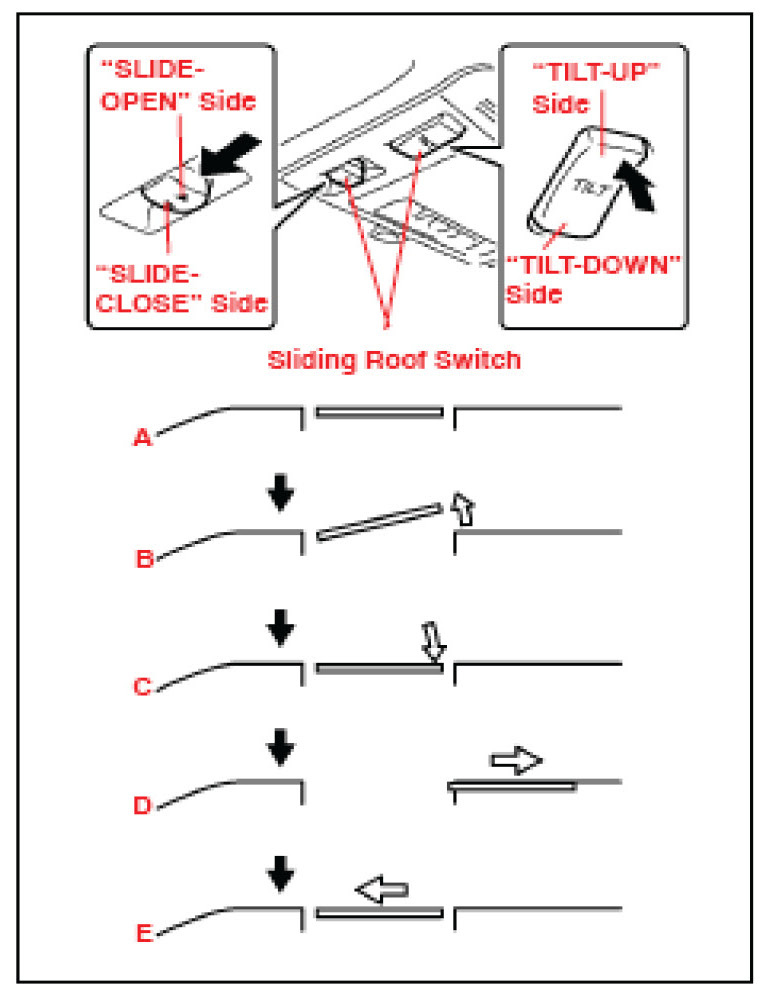

2. Push and hold the sliding roof switch to the "TILT-UP" side or "SLIDE-CLOSE" side until the following cycle of the sliding roof operation is completed:
A. Closed position
B. Fully tilt up
C. Fully tilt down
D. Fully slide open
E. Fully slide close
After the cycle of operation above is completed, initialization is complete.
Check for proper operation of the "one-touch slide open and close" and "one-touch tilt up and down" functions by pushing the switch briefly to the "SLIDE-OPEN" and "TILT-UP" positions.
NOTE:
Jam protection function is enabled through the above initialization procedure.
Multi-Panel Sliding Roof
1. Turn the ignition switch to the "ON" position.
2. Push and hold the sliding roof switch to the "TILT-DOWN" side or "SLIDE-CLOSE" side until the sliding roof closes, and hold it for approximately one second.
3. Check the "one-touch slide open and close" and "one-touch tilt up and down" functions by pushing the switch briefly to the "SLIDE-OPEN" and "TILT UP" sides.
NOTE:
Jam protection function is enabled through the above initialization procedure.
