Headlamp Washer Motor: Service and Repair

Headlight Cleaner Actuator:




HEADLIGHT CLEANER ACTUATOR

REMOVAL

1. REMOVE FRONT BUMPER ASSEMBLY

2. REMOVE HEADLIGHT CLEANER WASHER NOZZLE




a. Extend the headlight cleaner washer nozzle.
b. Disengage the 2 claws and remove the headlight cleaner washer nozzle.

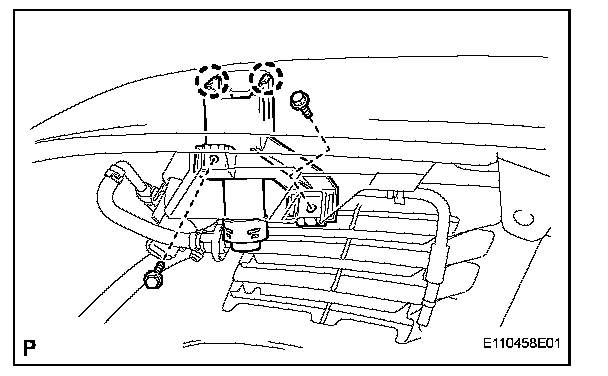

3. REMOVE HEADLIGHT WASHER ACTUATOR
a. Disconnect the headlight washer hose.




b. Remove the 2 bolts.
c. Disengage the 2 claws and remove the headlight cleaner washer actuator sub-assembly.

INSTALLATION

1. INSTALL HEADLIGHT WASHER ACTUATOR




a. Install the headlight washer actuator sub-assembly with the 2 bolts and the 2 claws.

Torque: 4.5 N.m (46 kgf.cm, 40 in.lbf)

b. Connect the headlight washer hose.

2. INSTALL HEADLIGHT CLEANER WASHER NOZZLE
3. INSTALL FRONT BUMPER ASSEMBLY
