Headlamp Washer Switch: Testing and Inspection

ON-VEHICLE INSPECTION

1. INSPECT HEADLIGHT CLEANER SWITCH ASSEMBLY

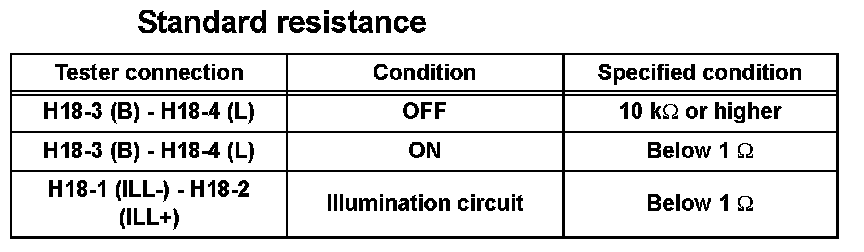

a. Measure the resistance according to the value(s) in the table.
b. Inspect illumination operation.
1. Connect the positive (+) lead from the battery to the terminal H18-2 and negative (-) lead to the terminal H18-1, then check that the illumination comes on.
