Front Pillar Upper Cover

Front Pillar Upper Cover:

REMOVAL

1. REMOVE FRONT PILLAR UPPER COVER

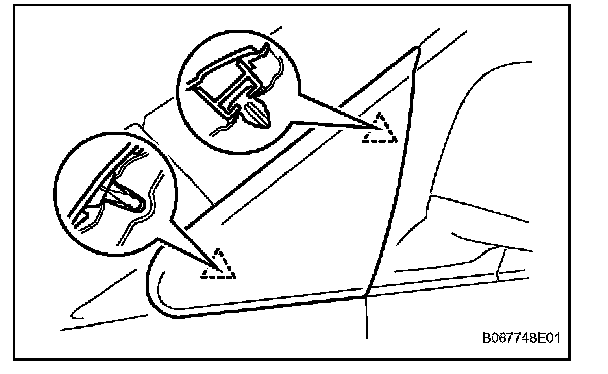

a. Using a screwdriver, disengage the 2 clips and remove the front pillar upper cover.

HINT: Tape the screwdriver tip before use.

INSTALLATION

1. INSTALL FRONT PILLAR UPPER COVER
