Dynamic Laser Cruise Control System

Terminals Of Control Module/Pinouts - Check Distance Control ECU:

Check Distance Control ECU - Oscilloscope Waveforms:

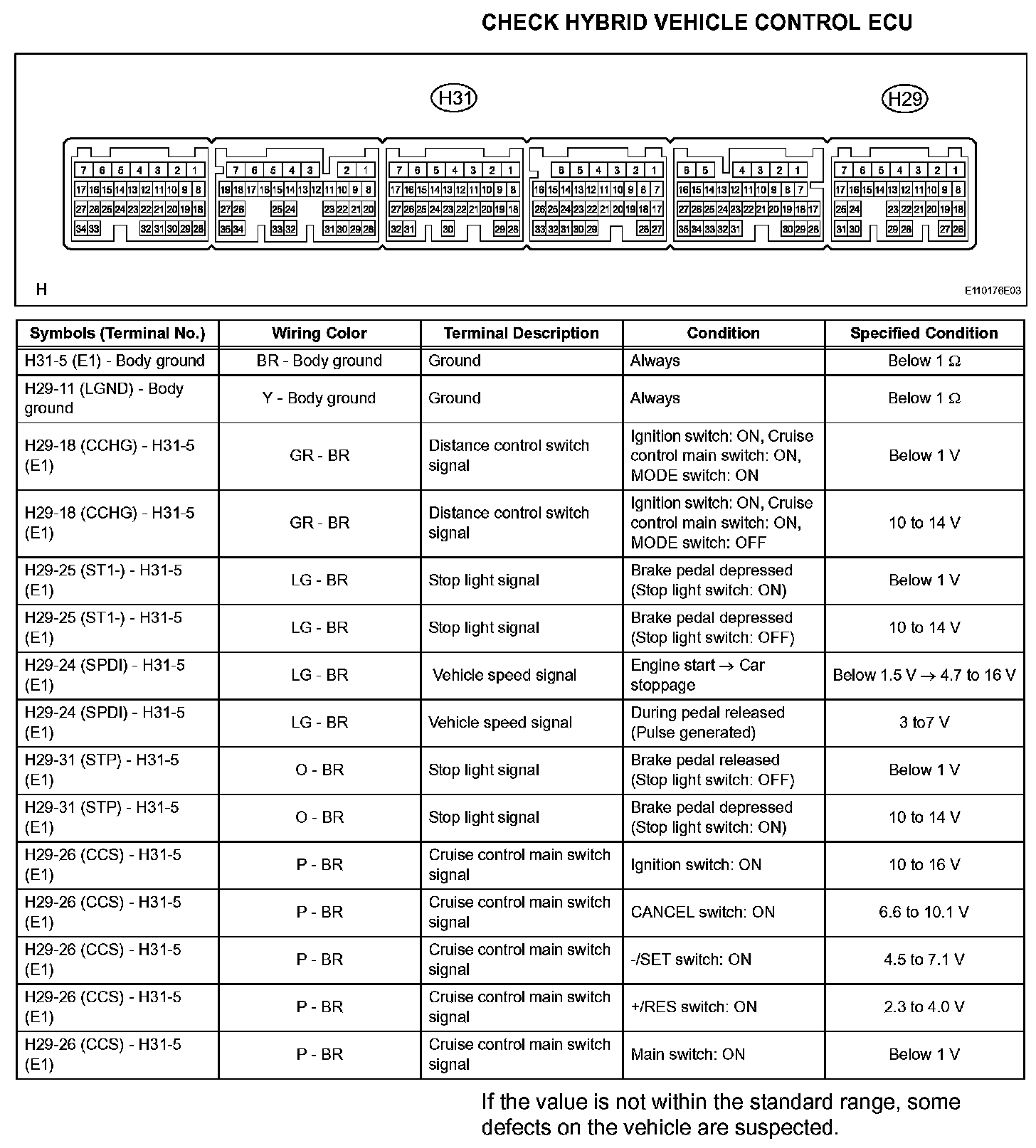

Terminals Of Control Module/Pinouts - Check Hybrid Vehicle Control ECU:

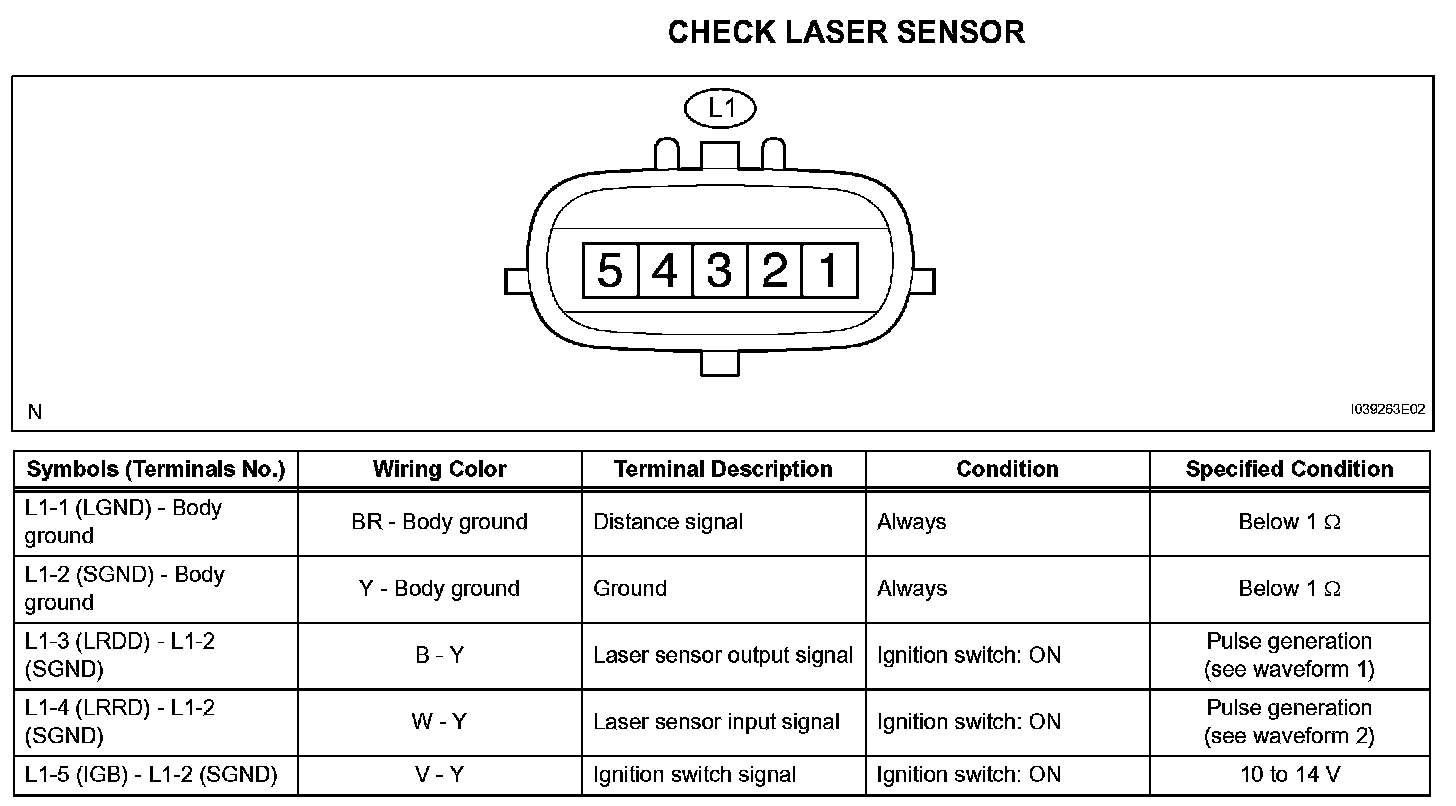

Terminals Of Control Module/Pinouts - Check Laser Sensor:

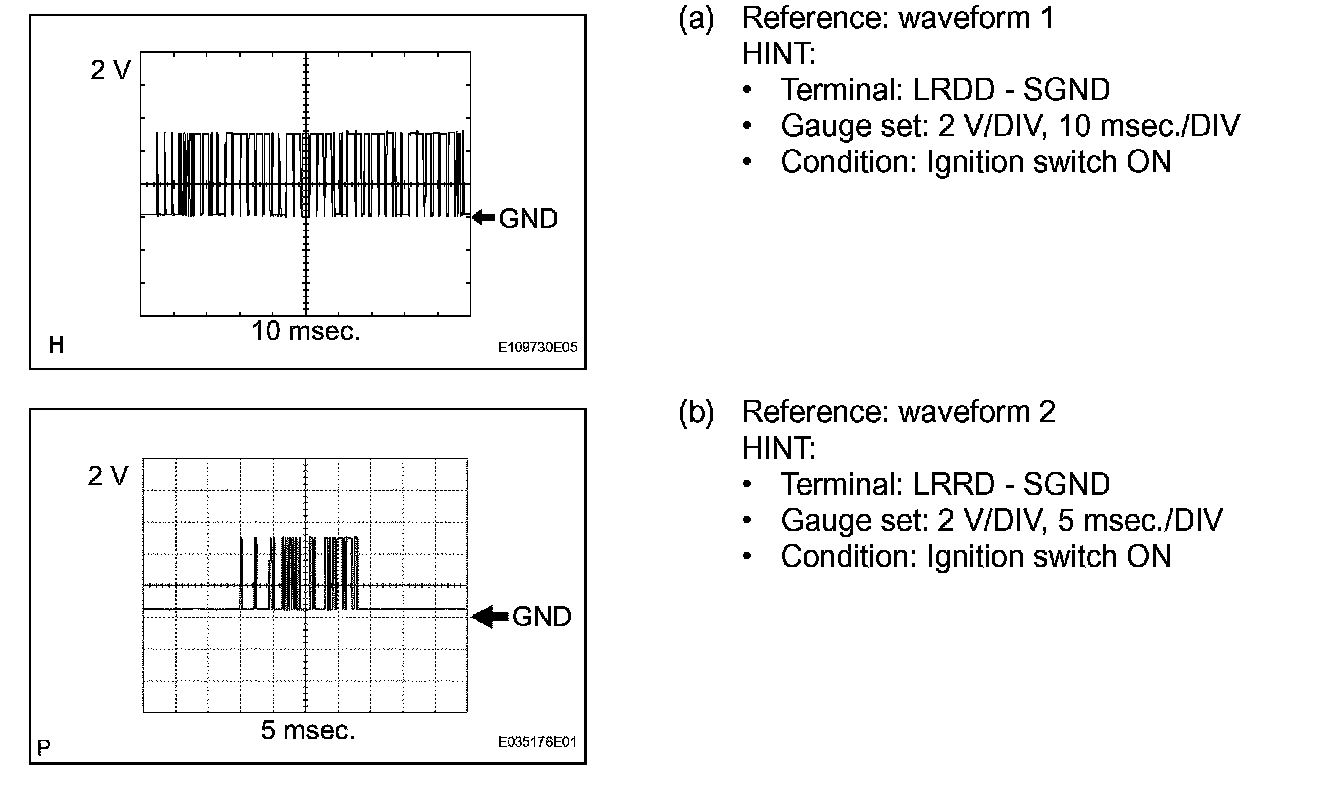

Check Laser Sensor - Oscilloscope Waveforms:
