Lexus Truck
>>
2007
>>
RX 400h AWD V6-3.3L (3MZ-FE) Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>

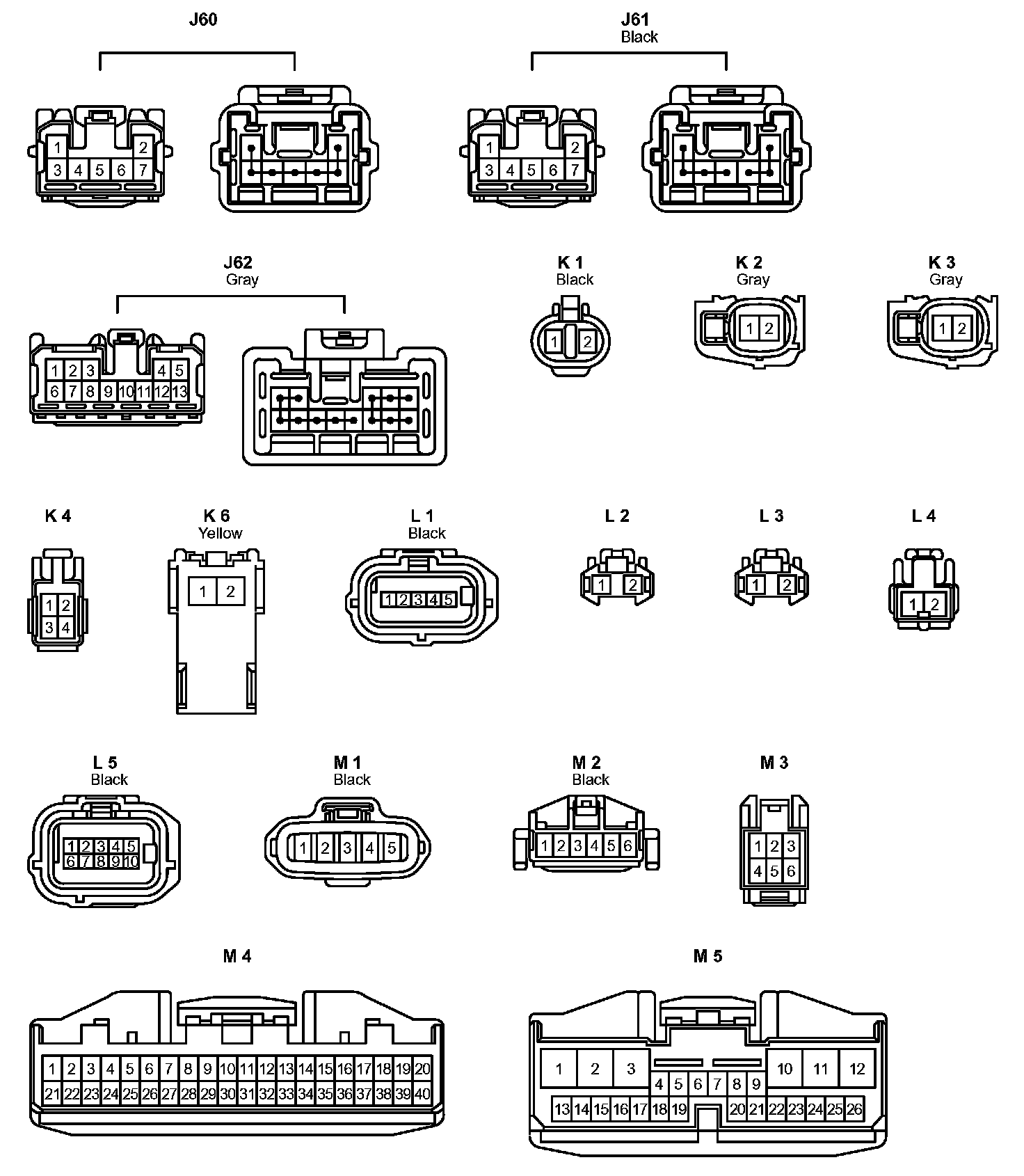

J60 - M5
J60 - M5
J60 - M5:
