Driver/Vehicle Information Display

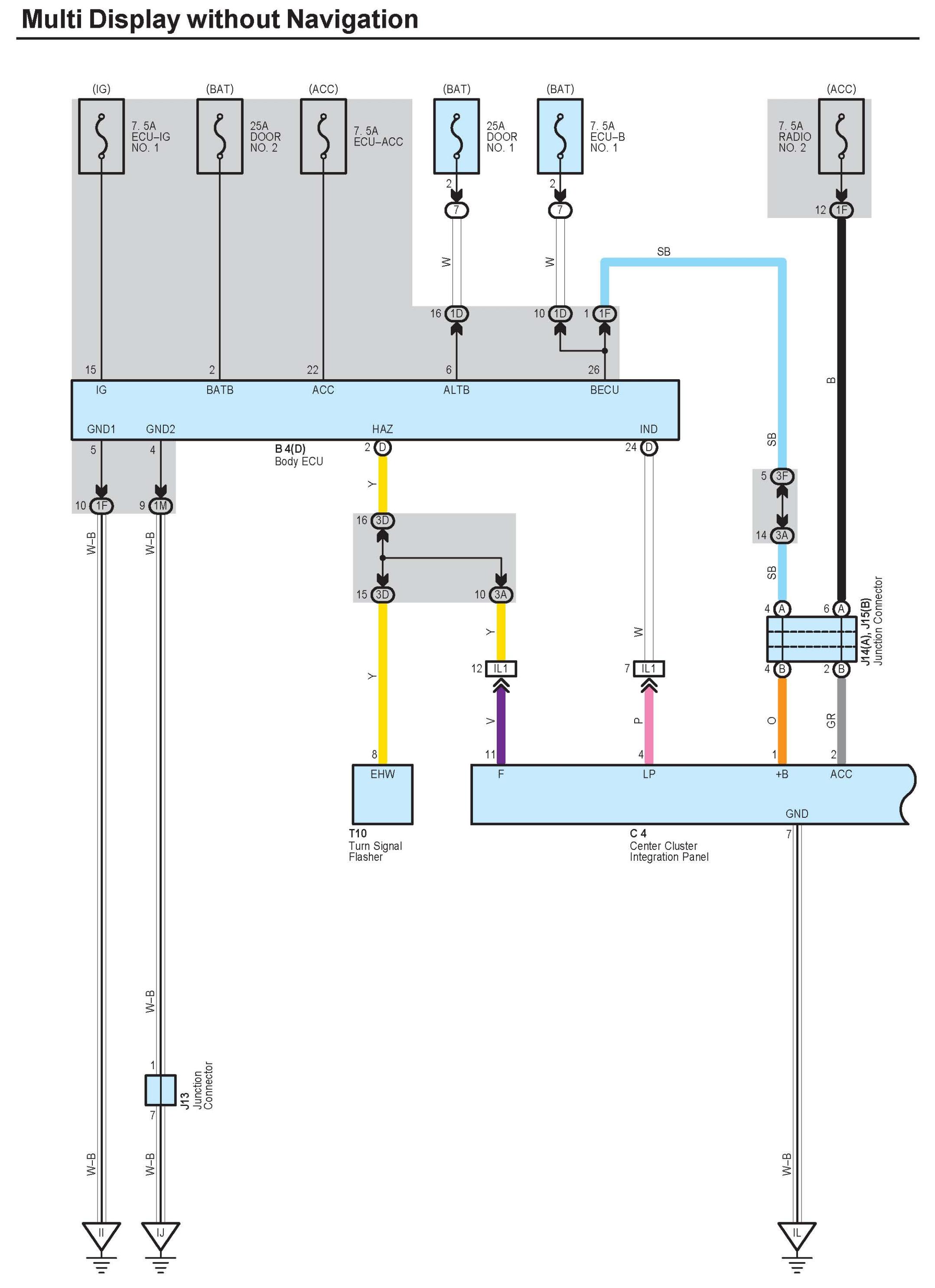

Multi Display Without Navigation Part 1:

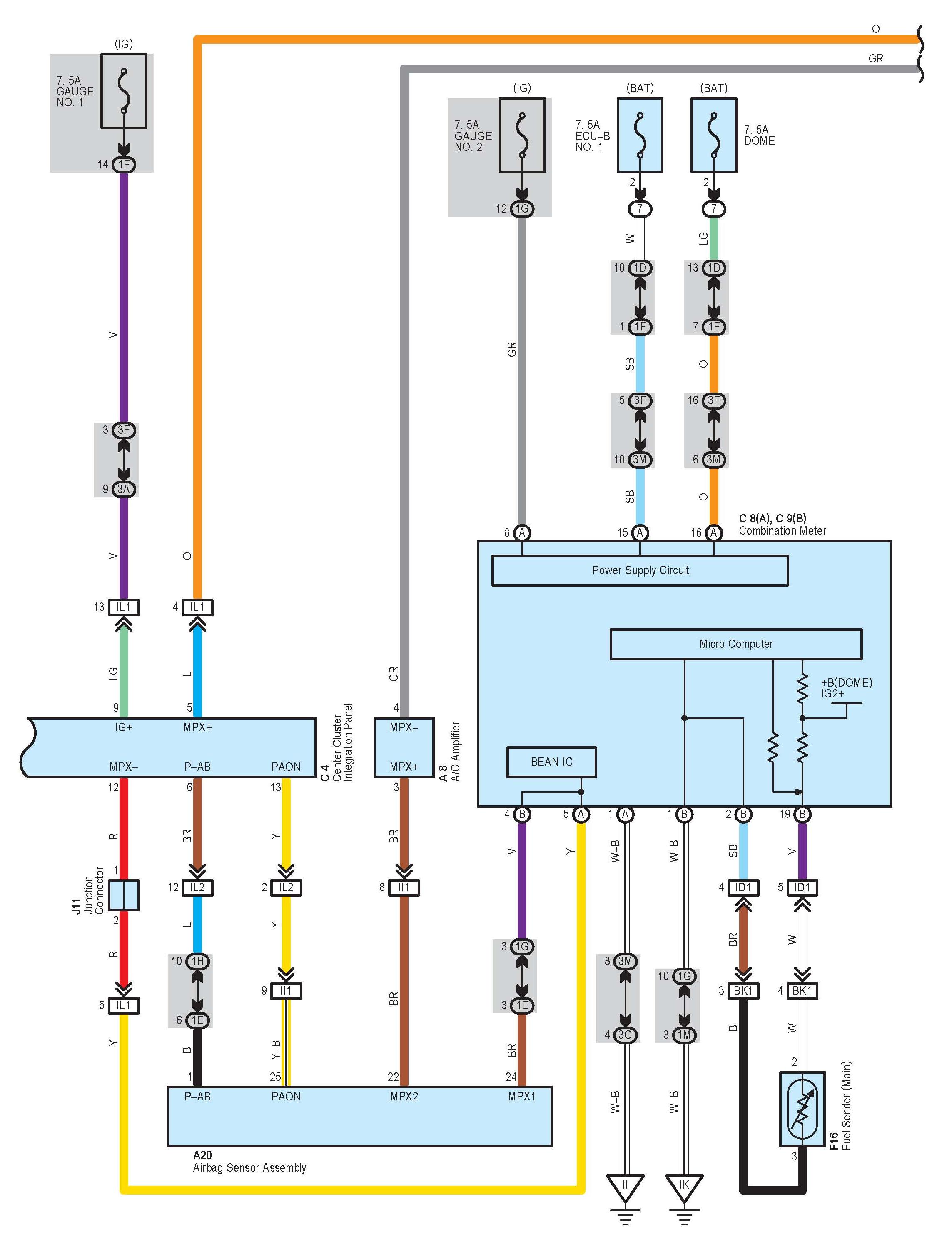

Multi Display Without Navigation Part 2:

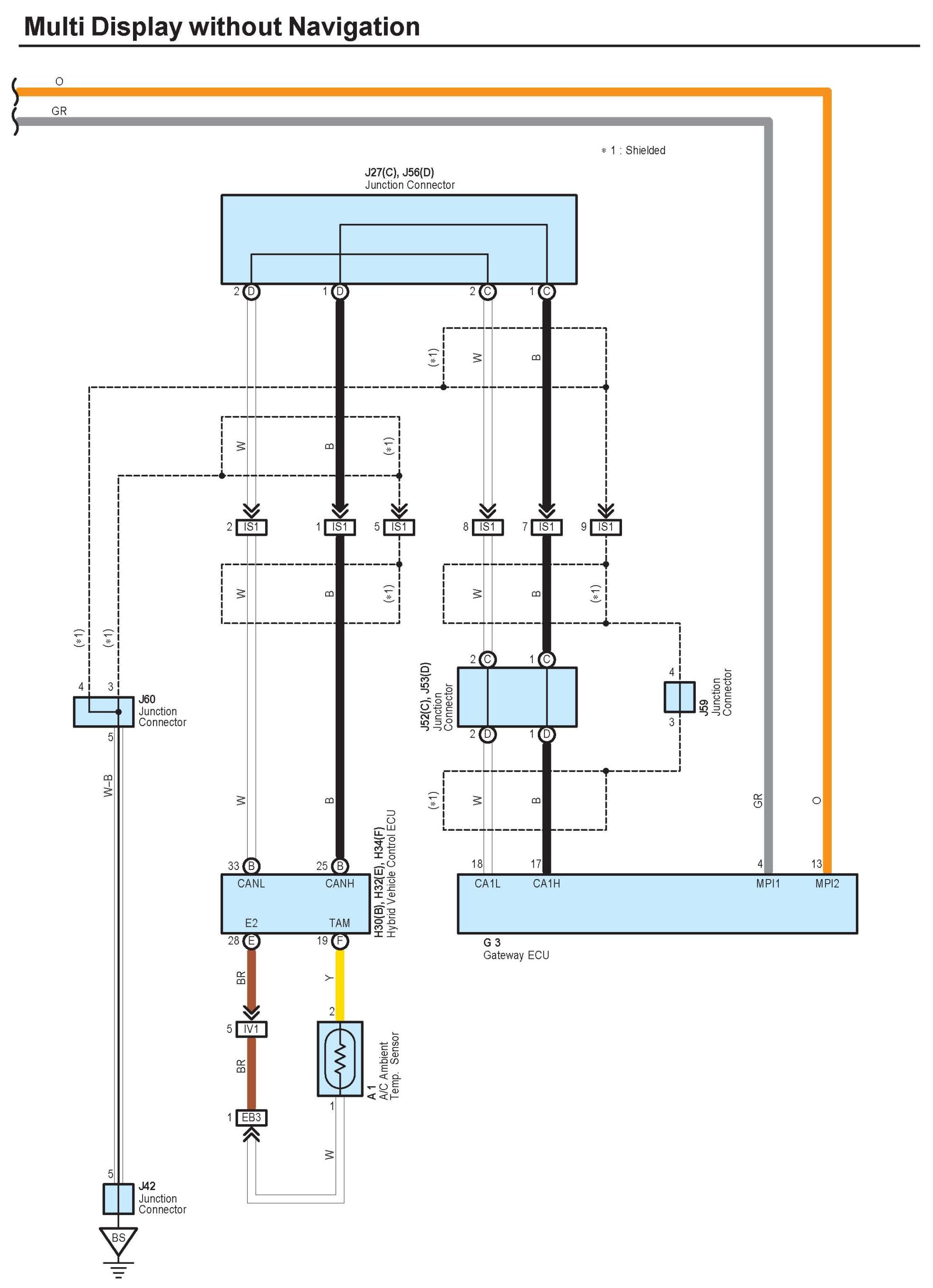

Multi Display Without Navigation Part 3:

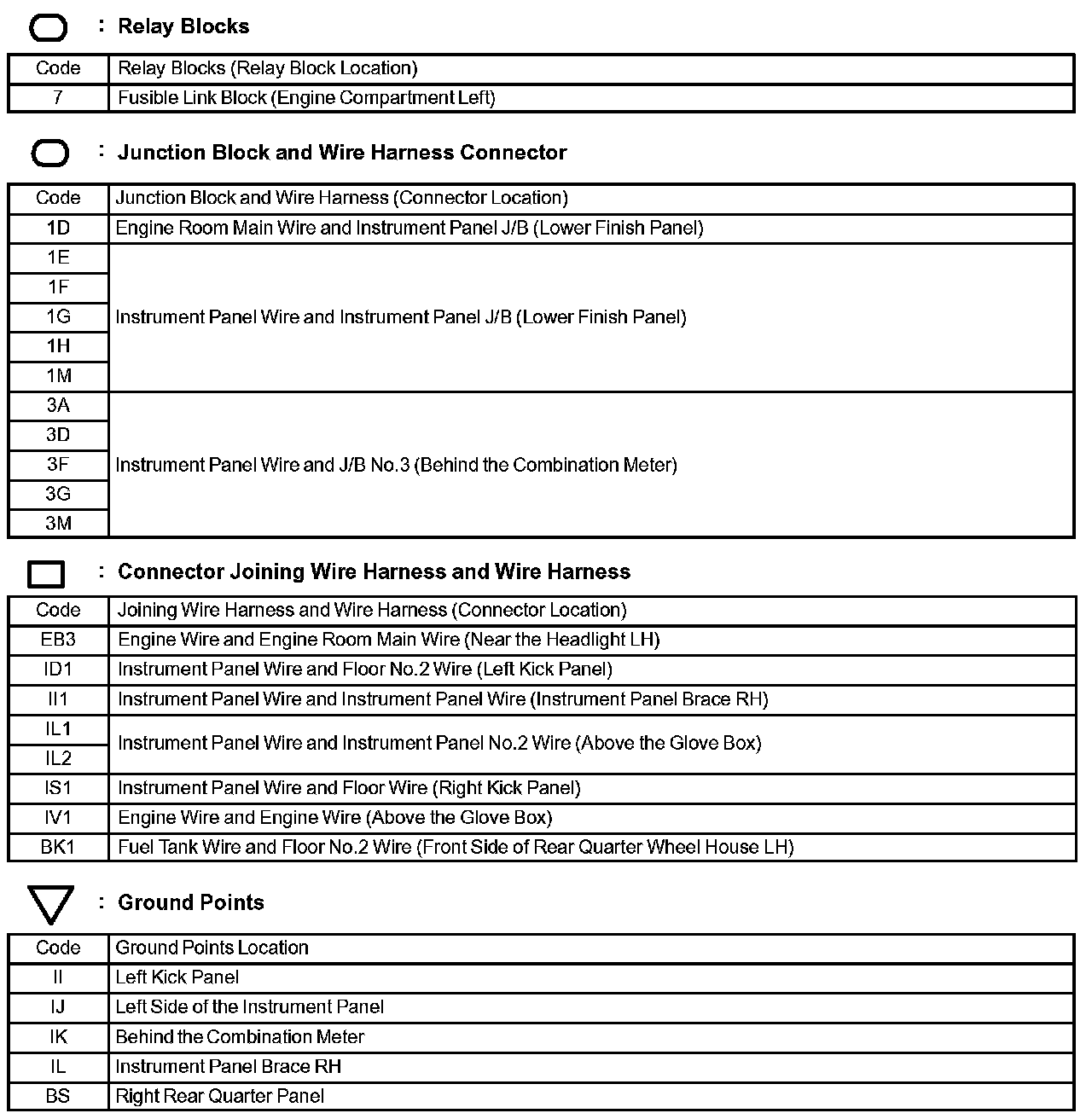

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
