Power Back Door

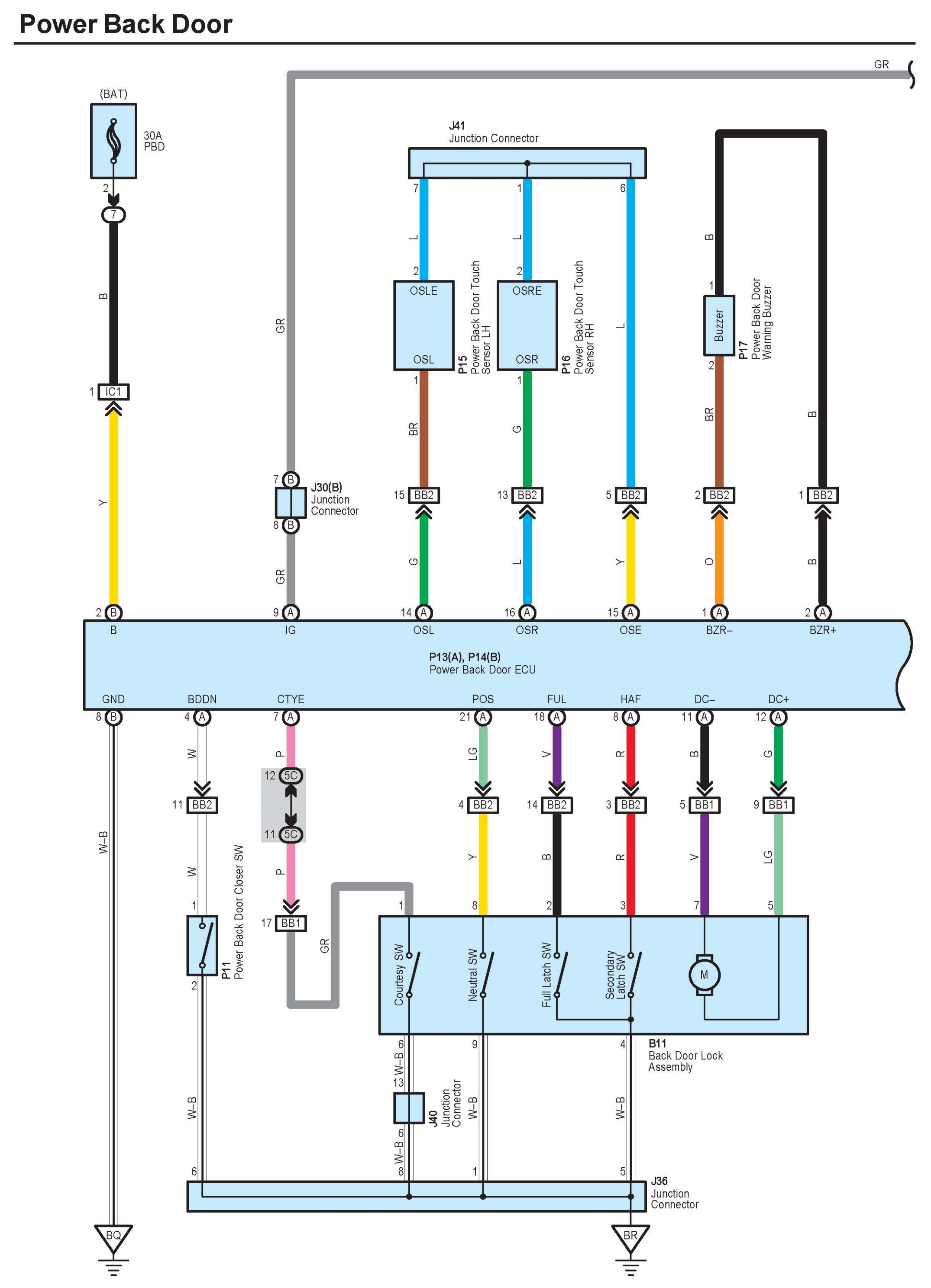

Power Back Door Part 1:

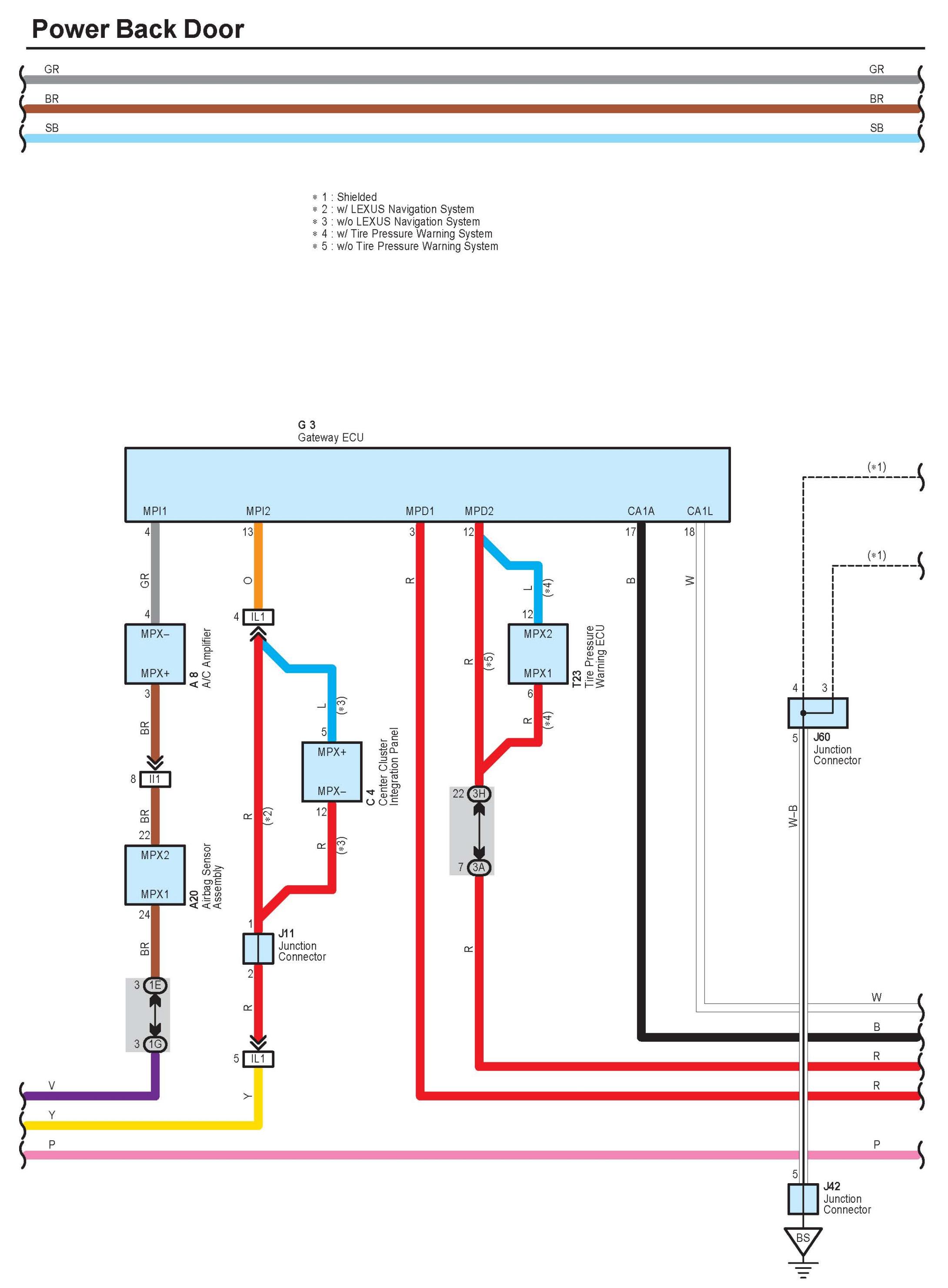

Power Back Door Part 2:

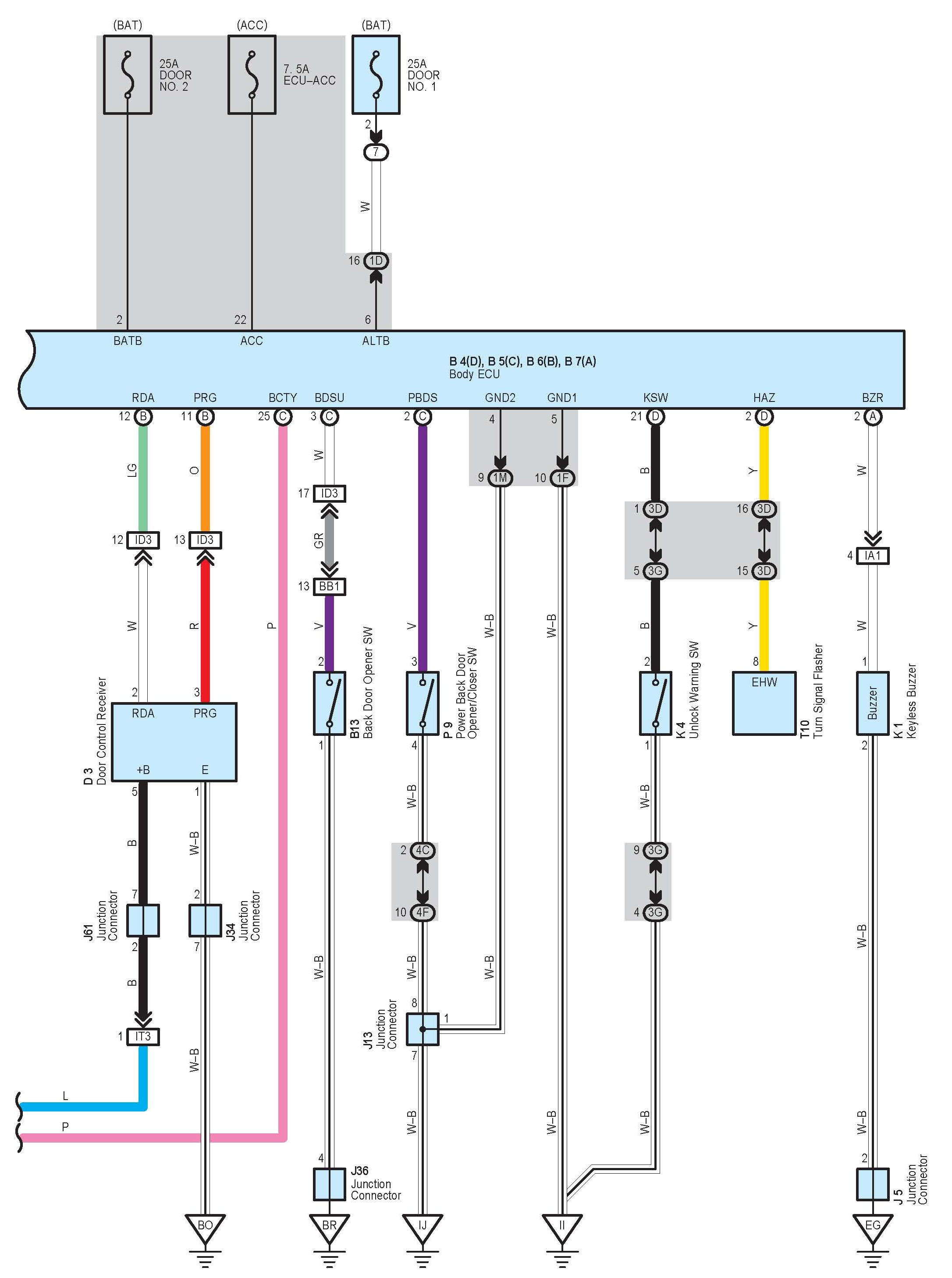

Power Back Door Part 3:

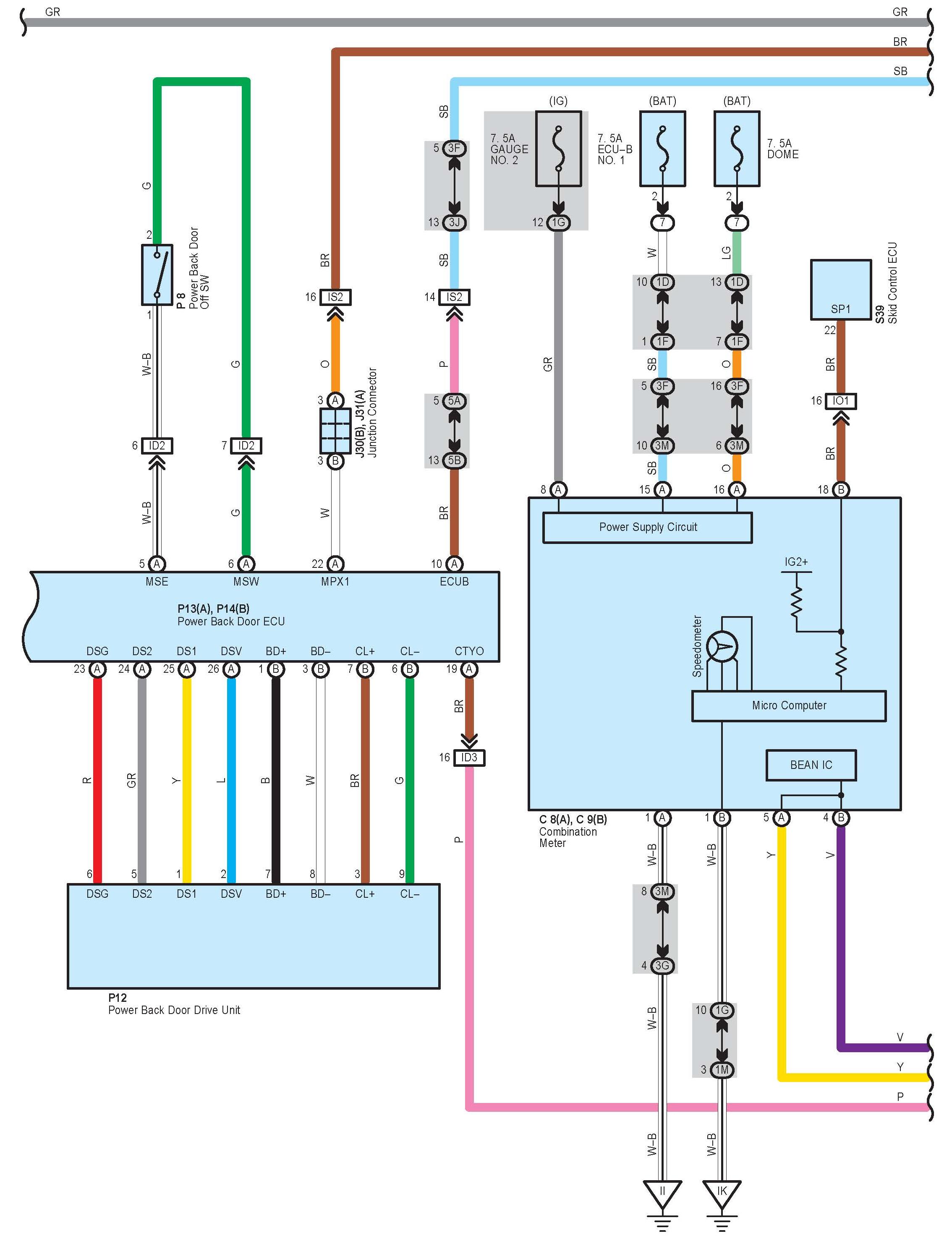

Power Back Door Part 4:

Power Back Door Part 5:

Power Back Door Part 6:

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
