Compressor HVAC: Testing and Inspection

INSPECTION

1. INSPECT ELECTRIC INVERTER COMPRESSOR

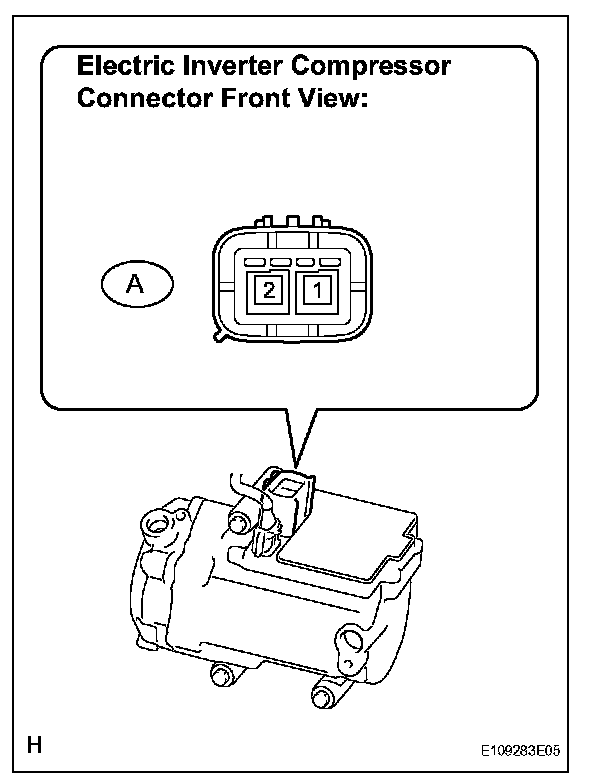

a. Disconnect the connector from the electric inverter compressor (A).

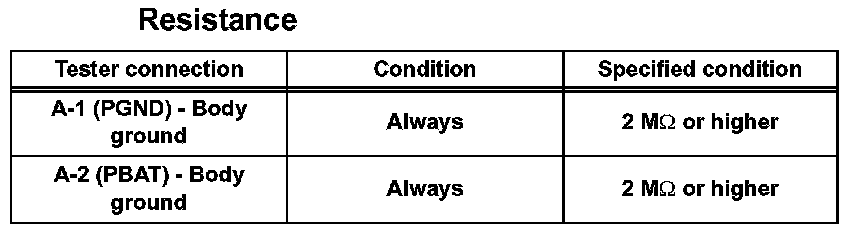

b. Using a megaohm tester, measure the resistance according to the value(s) in the table.
