Heater Relay Circuit
Heater Relay CircuitDESCRIPTION
The heater relay is turned on by signals from the A/C amplifier assembly. It supplies power to the blower motor controller.

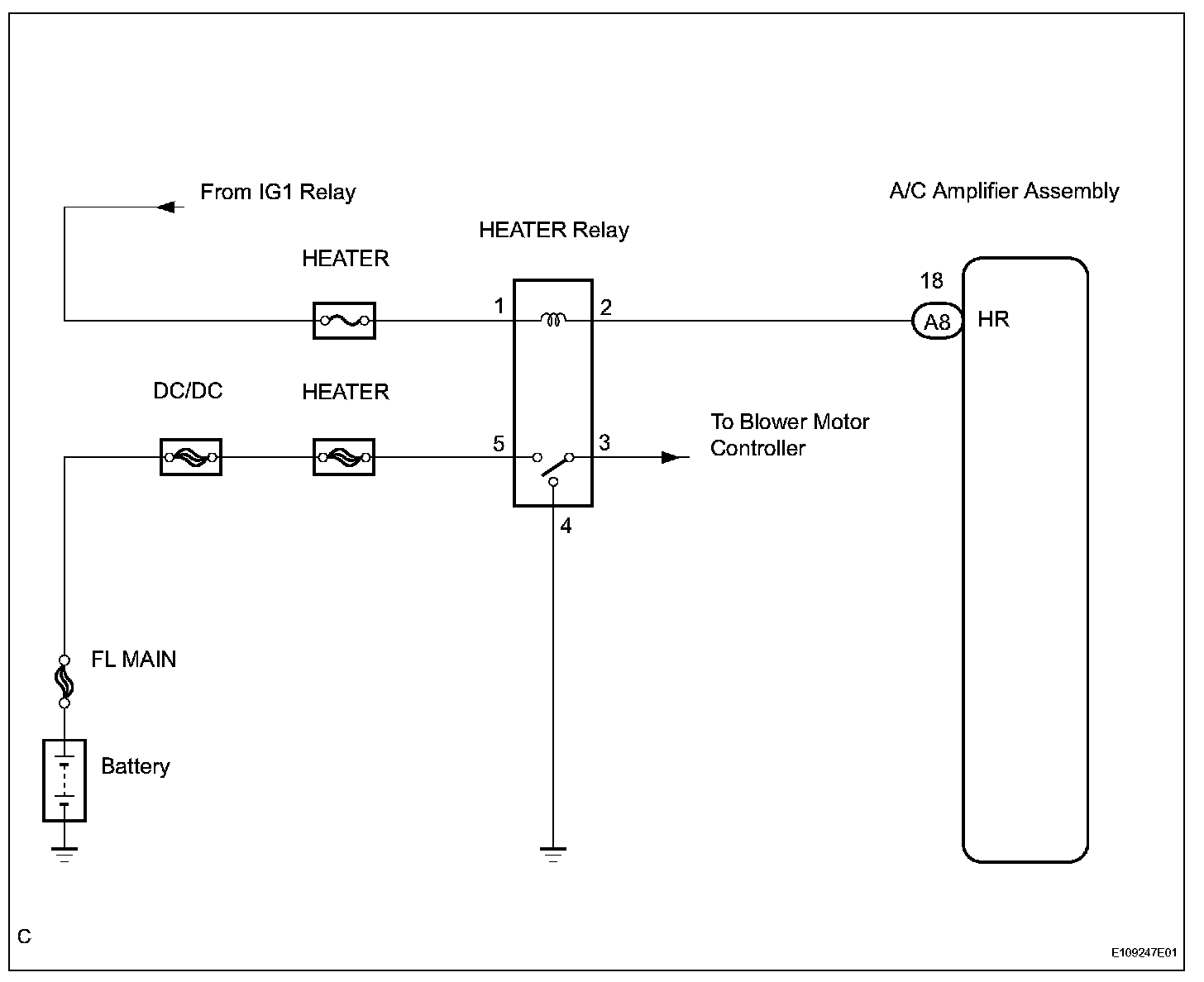

Wiring Diagram:

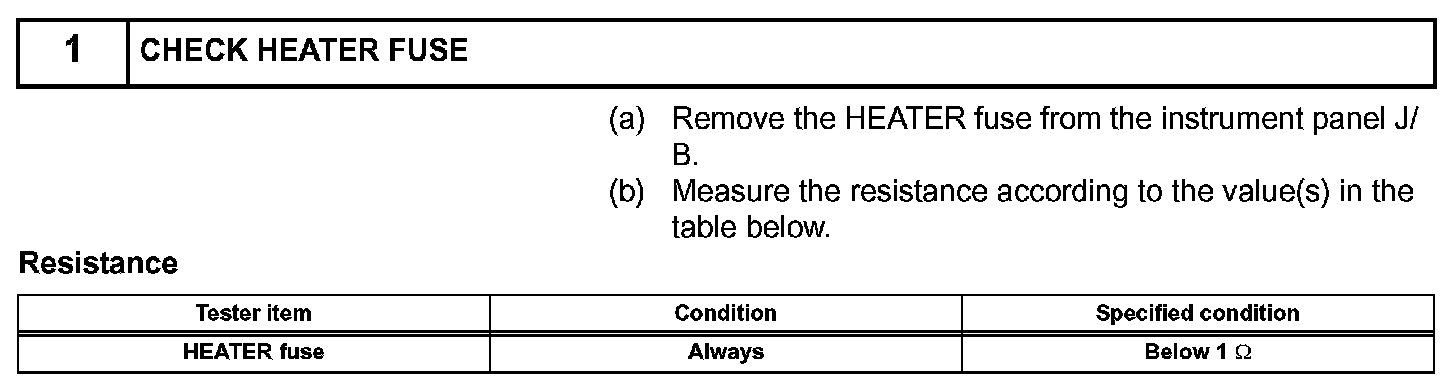

Step 1:
Step 1 (Continued)-3:
Step 3 (Continued):
INSPECTION PROCEDURE
