Pinout Values and Diagnostic Parameters

TERMINALS OF ECU

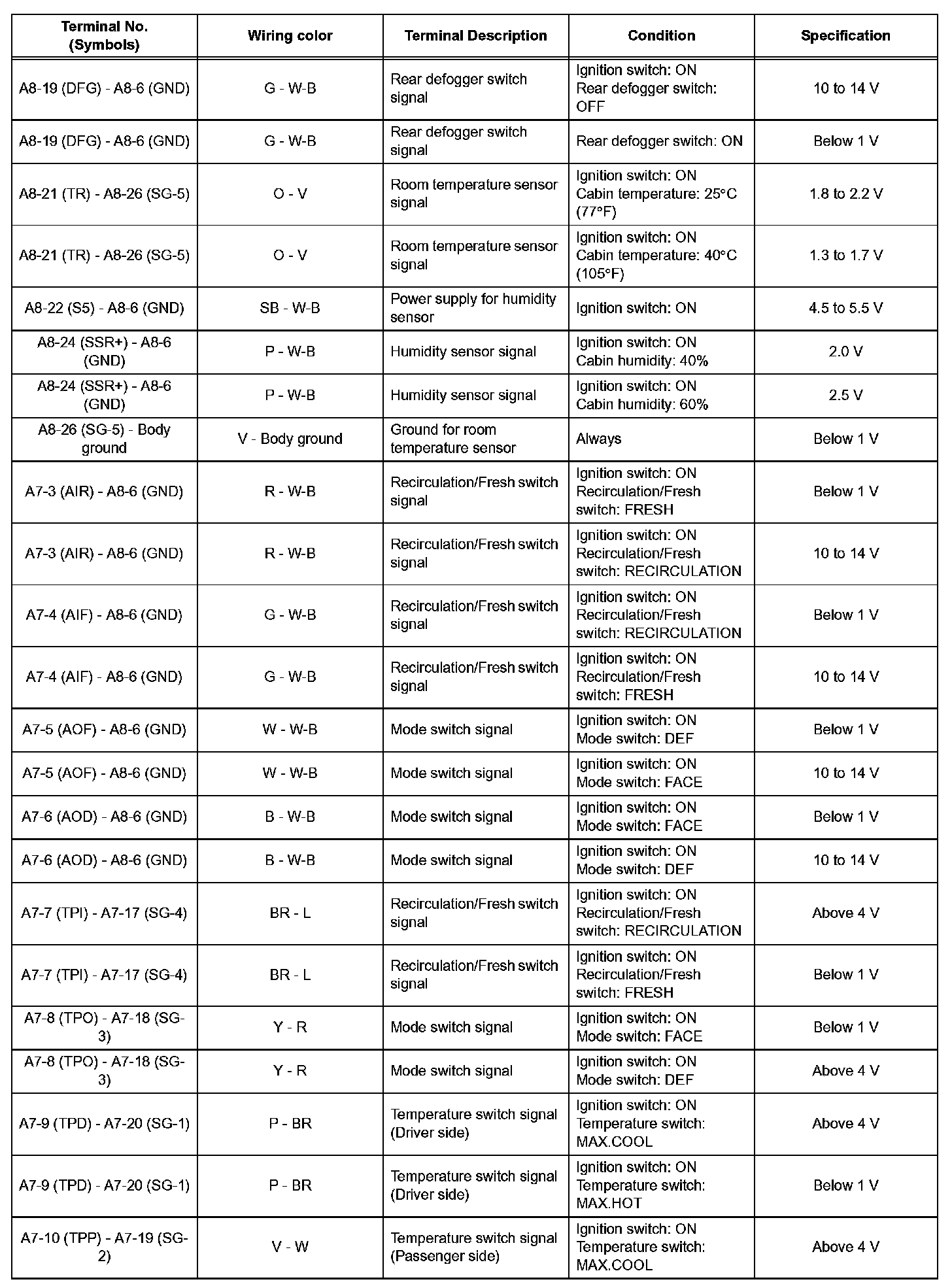

Terminals Of Control Module/Pinouts - Air Conditioning Amplifier (Part 1):

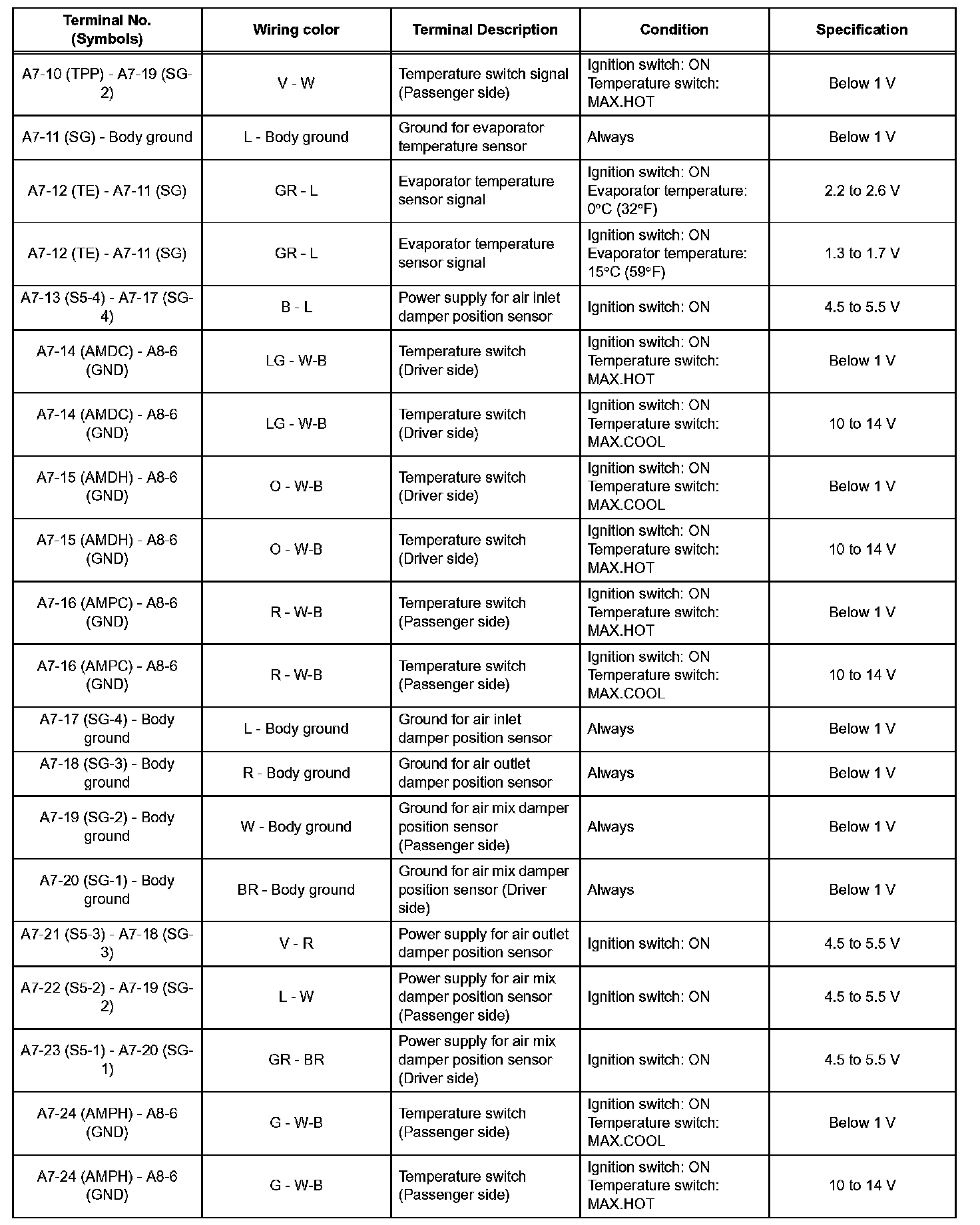

Terminals Of Control Module/Pinouts - Air Conditioning Amplifier (Part 2):

Terminals Of Control Module/Pinouts - Air Conditioning Amplifier (Part 3):

Air Conditioning Amplifier - Oscilloscope Waveform:

1. AIR CONDITIONING AMPLIFIER

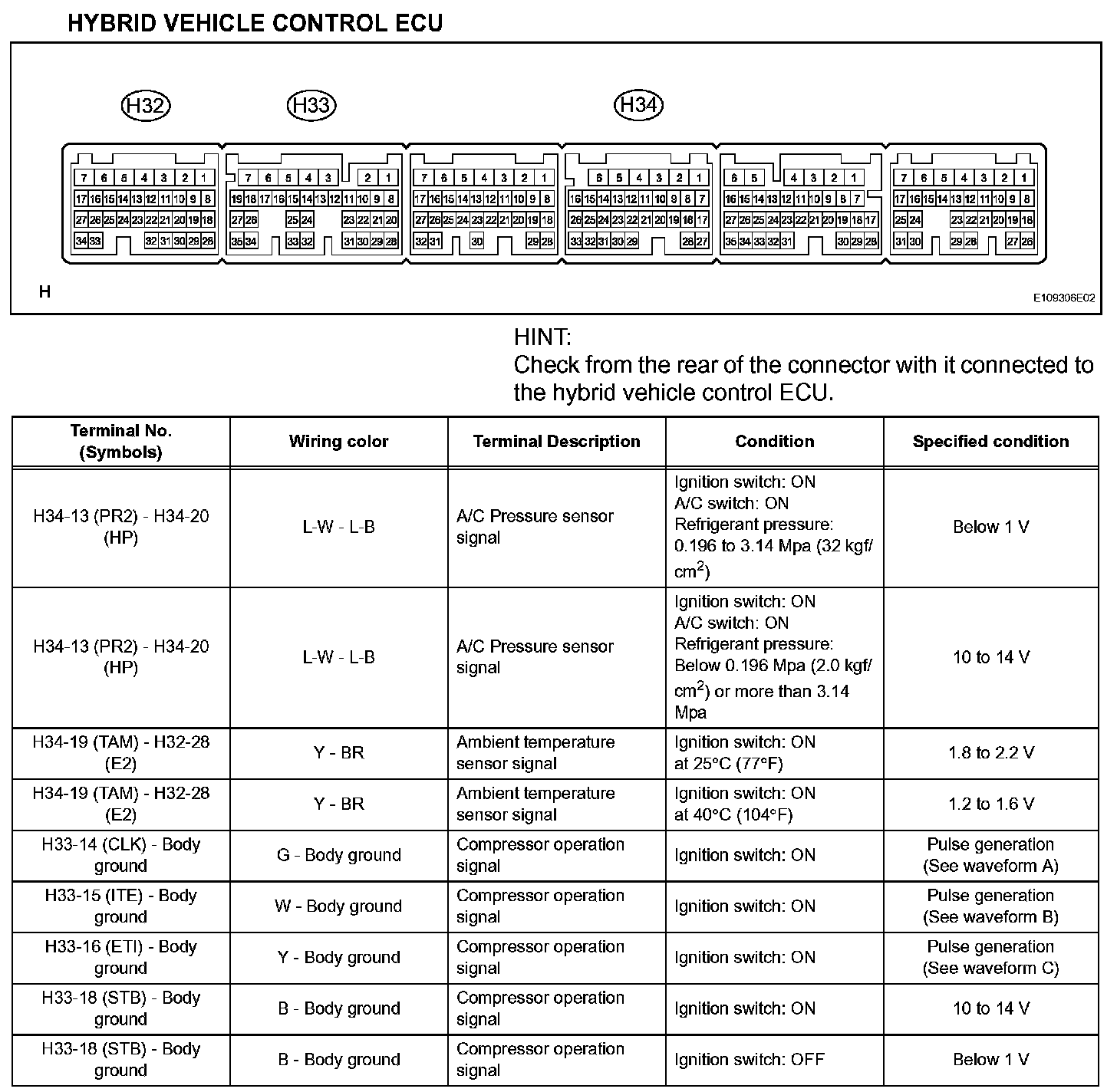

Terminals Of Control Module/Pinouts - Hybrid Vehicle Control ECU (Part 1):

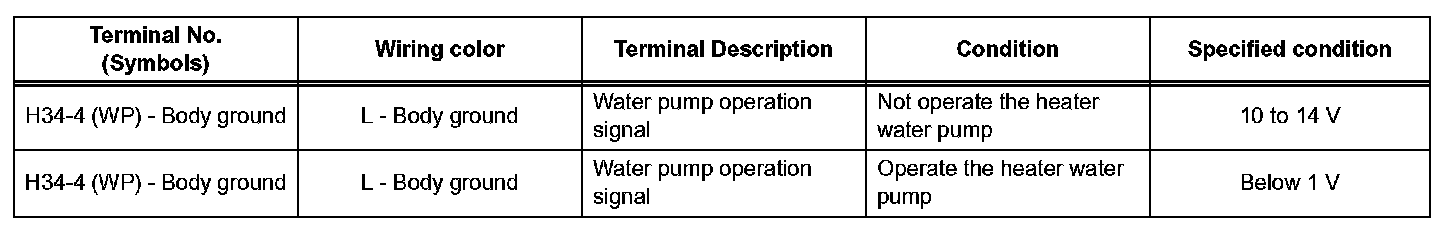

Terminals Of Control Module/Pinouts - Hybrid Vehicle Control ECU (Part 2):

Hybrid Vehicle Control ECU - Oscilloscope Waveforms (Part 1):

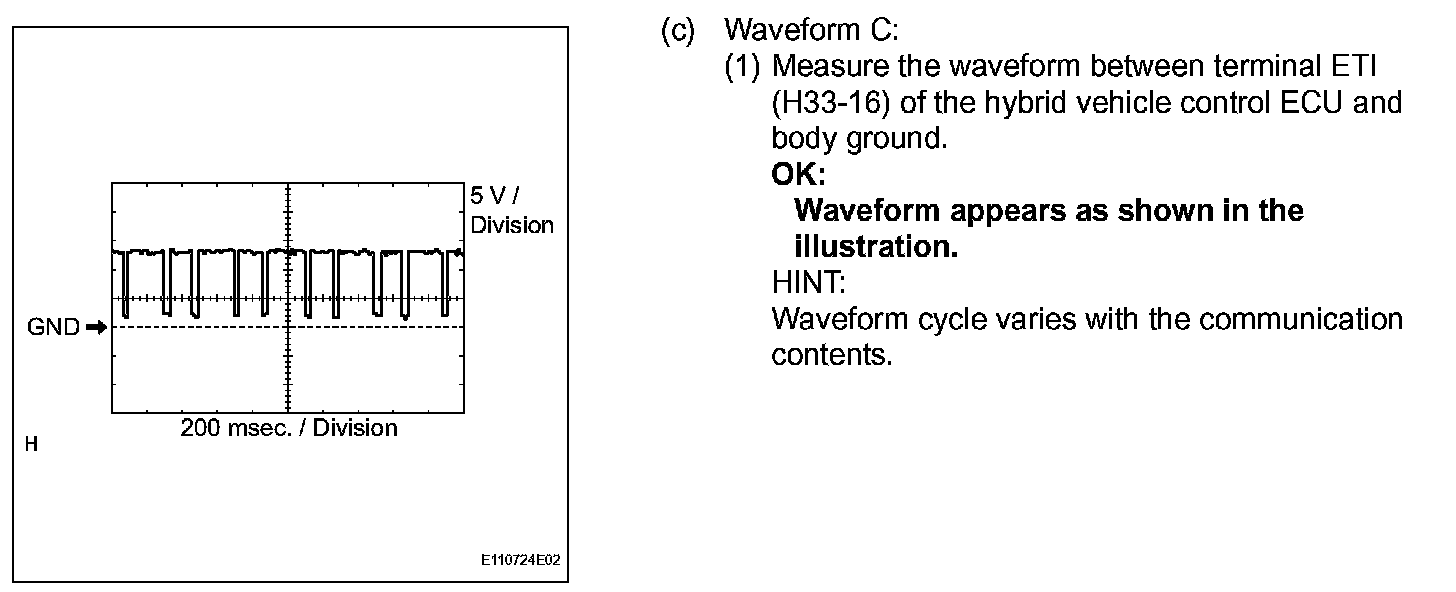

Hybrid Vehicle Control ECU - Oscilloscope Waveforms (Part 2):

2. HYBRID VEHICLE CONTROL ECU

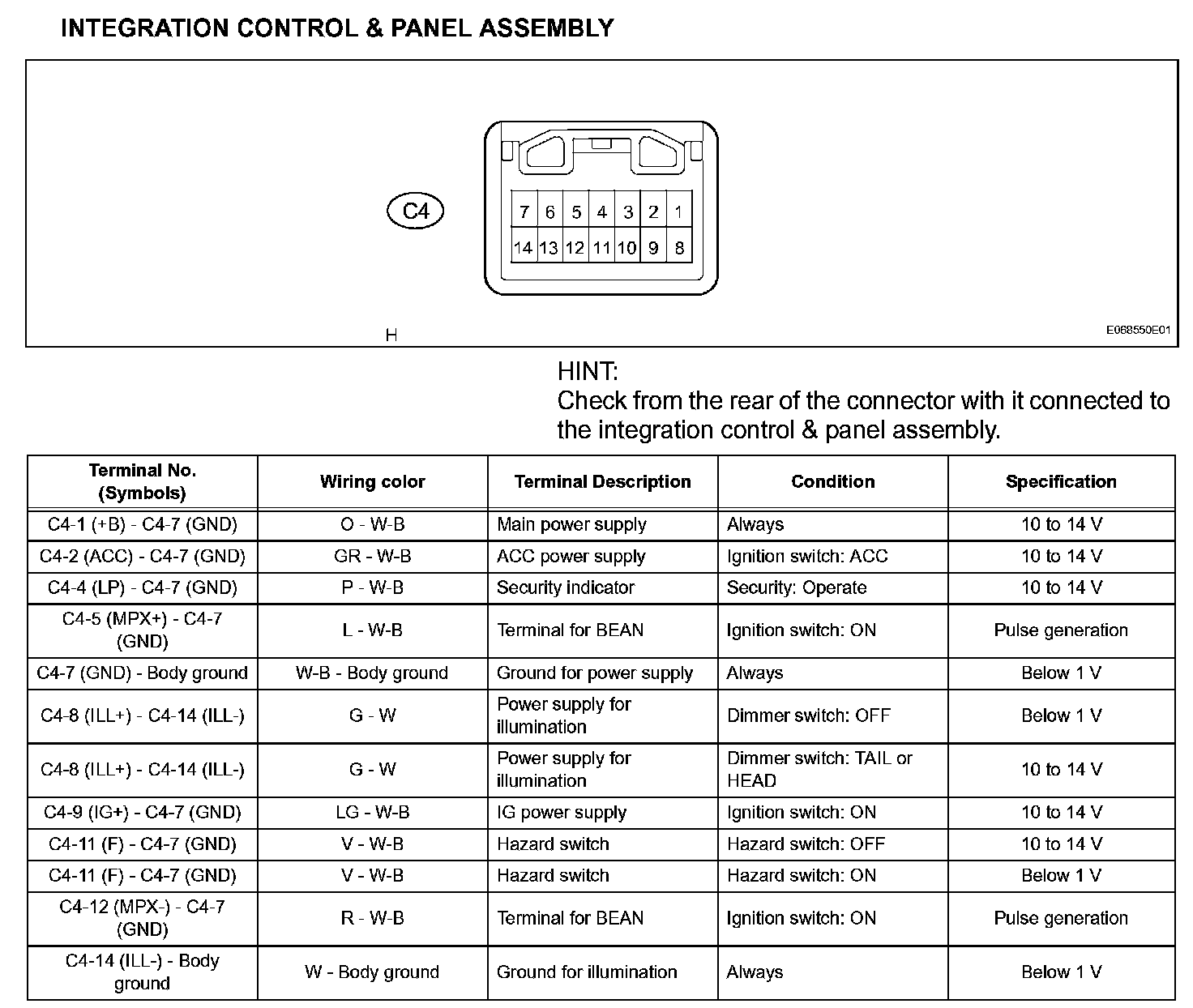

Terminals Of Control Module/Pinouts - Integration Control & Panel Assembly:

3. INTEGRATION CONTROL & PANEL ASSEMBLY

Terminals Of Control Modules/Pinouts - Multi-Display (Part 1):

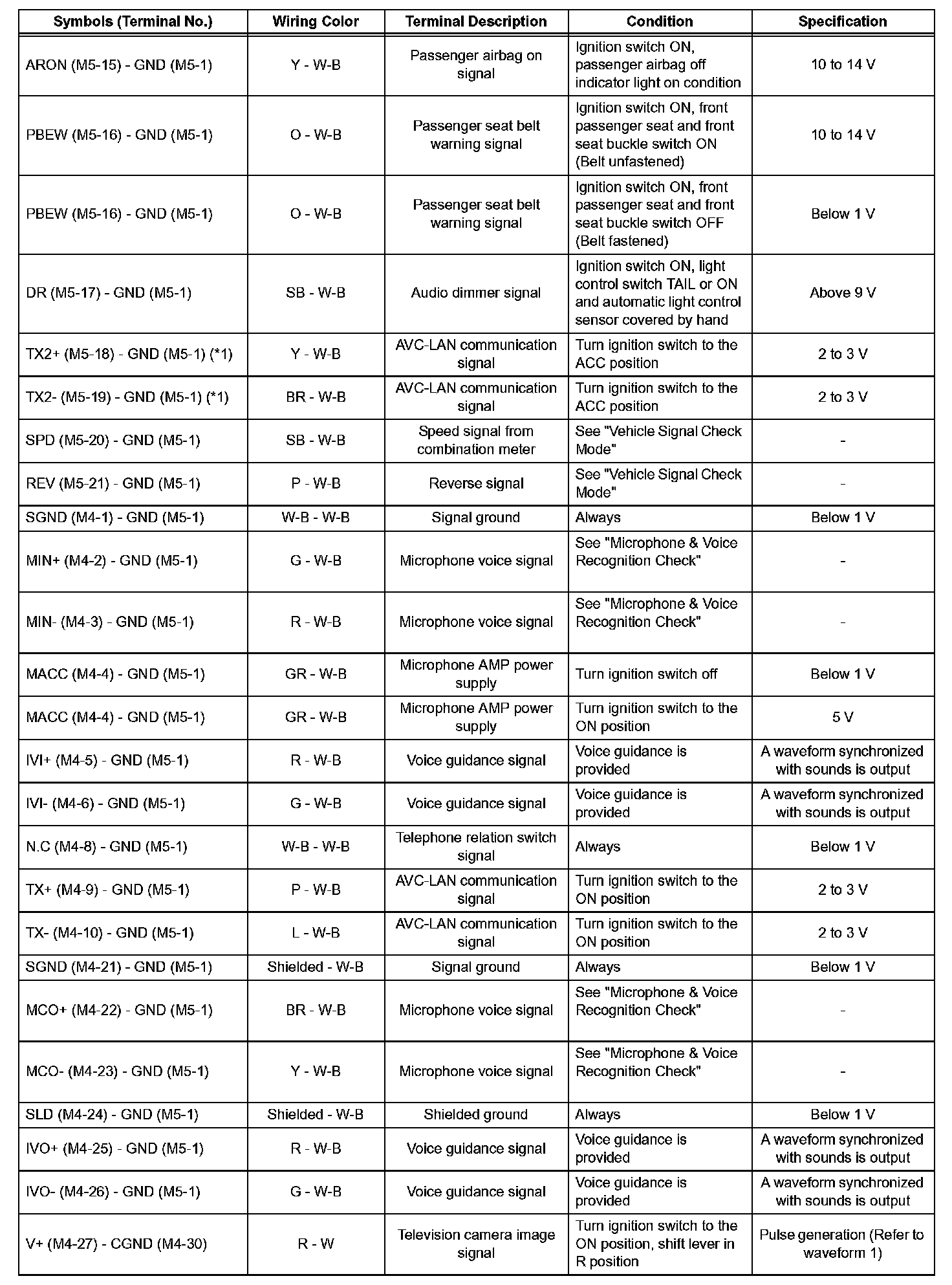

Terminals Of Control Modules/Pinouts - Multi-Display (Part 2):

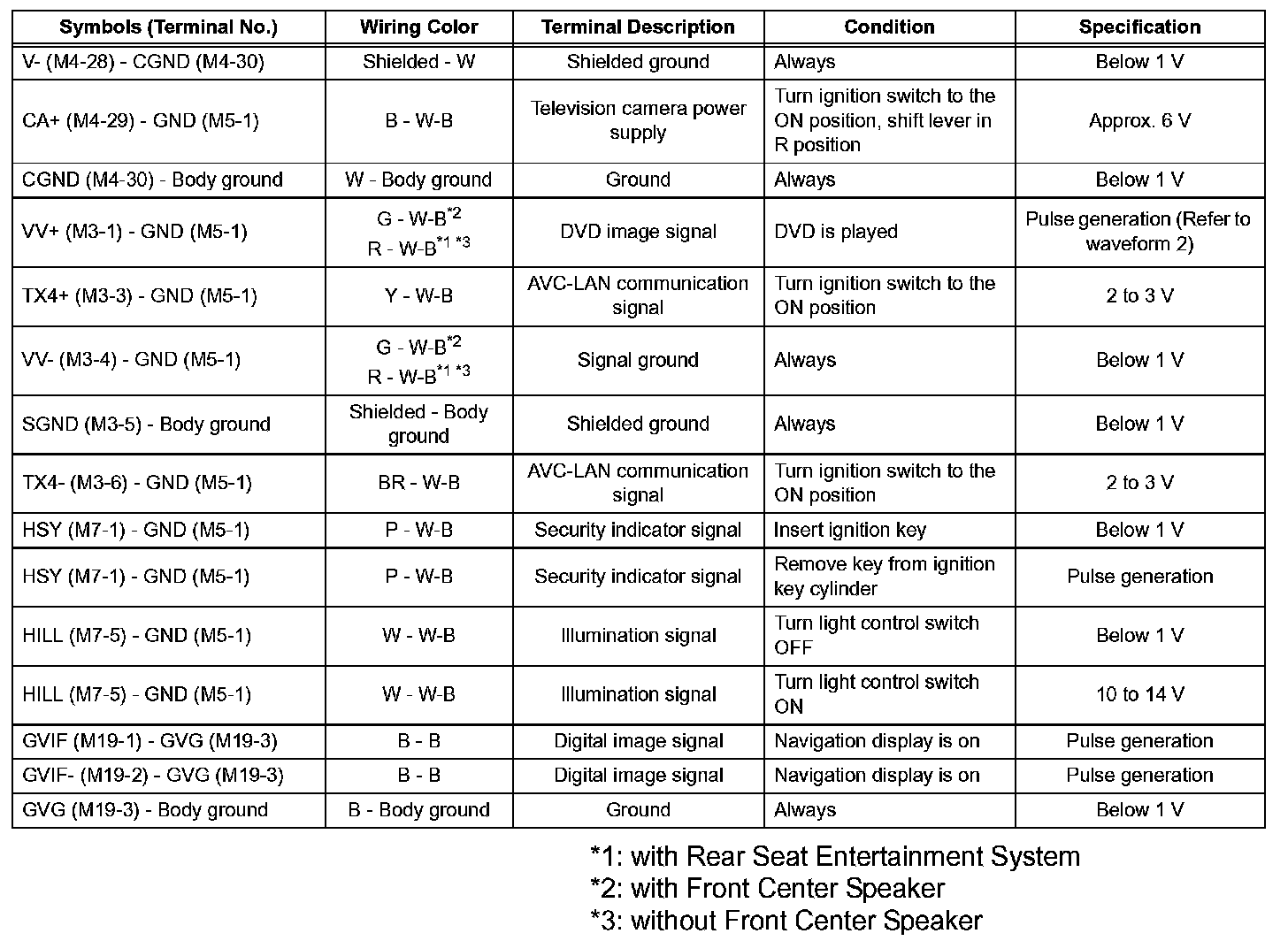

Terminals Of Control Modules/Pinouts - Multi-Display (Part 3):

4. MULTI DISPLAY ASSEMBLY
