Home >> Lexus Truck >> 2007 >> RX 400h AWD V6-3.3L (3MZ-FE) Hybrid >> Repair and Diagnosis >> Hybrid Drive Systems >> Specifications >> Mechanical Specifications >> Service Data

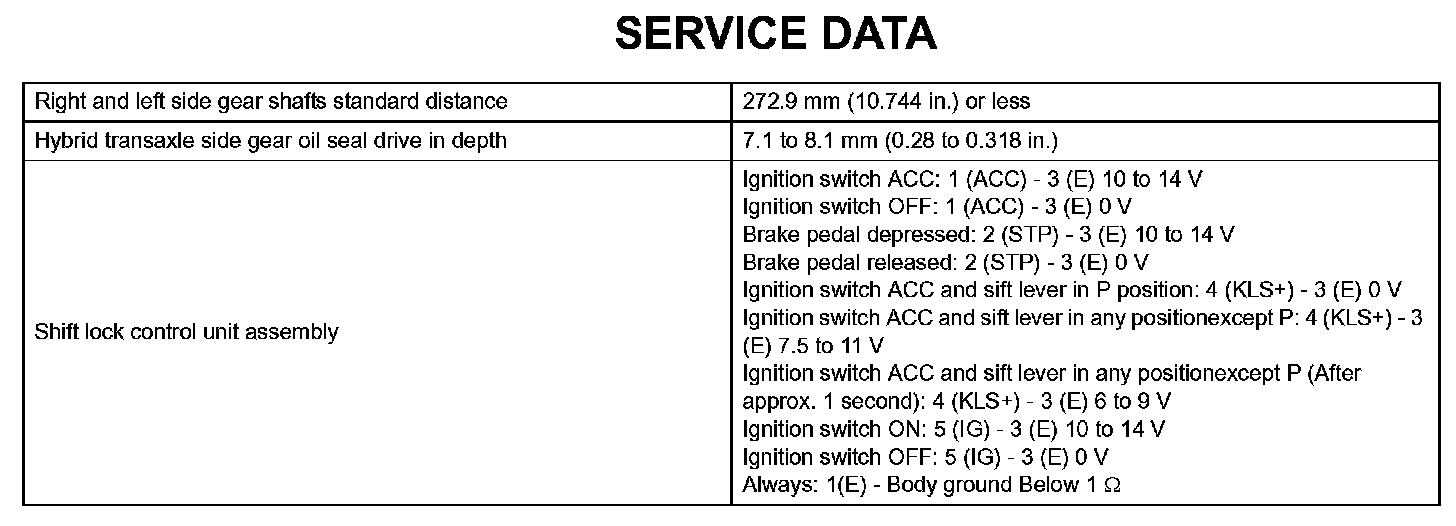

Service Data

Hybrid Transmission / Transaxle - Service Data:



Hybrid Transmission / Transaxle - Service Data:
