Hybrid Battery System

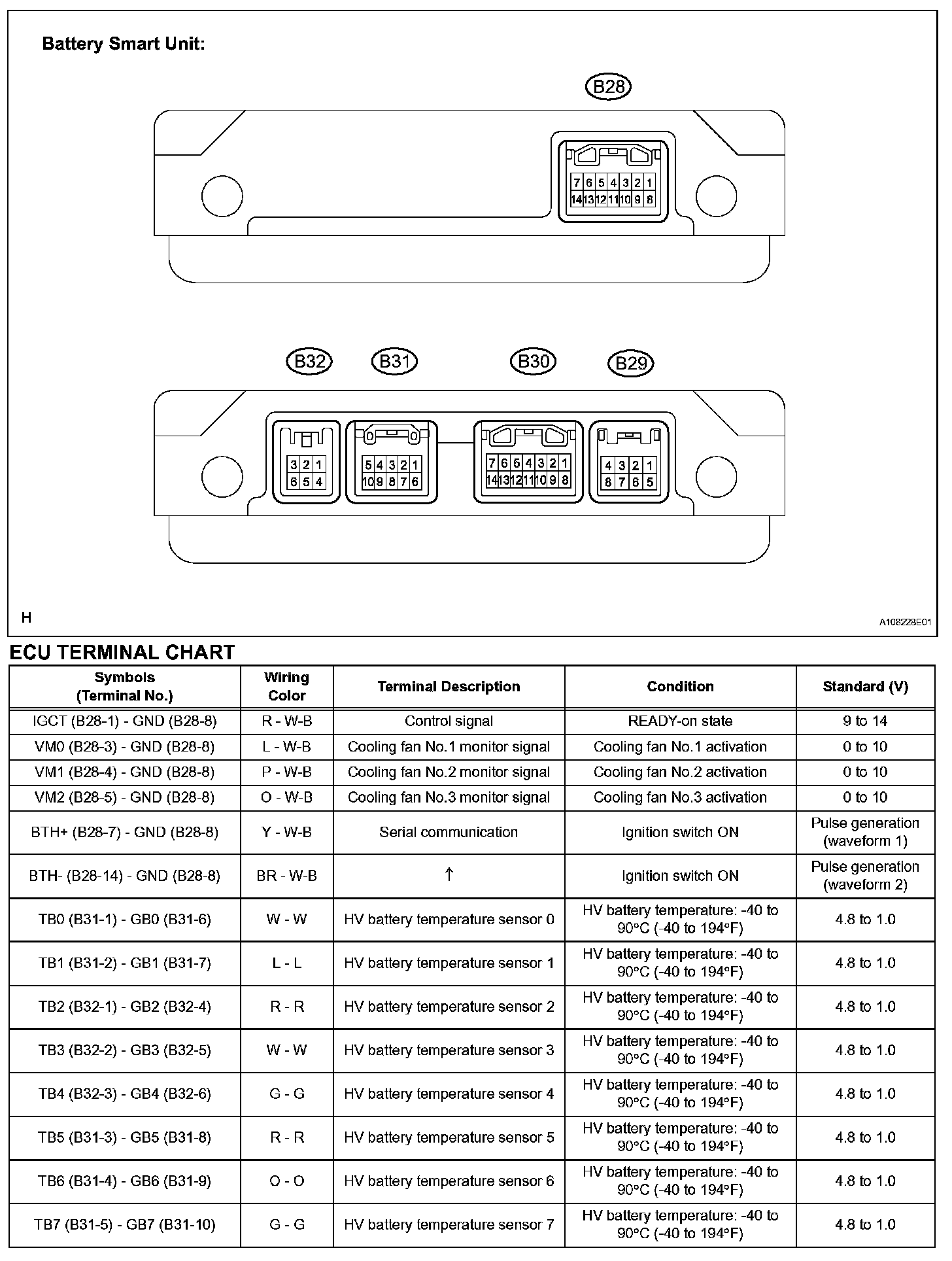

Terminals Of Control Module/Pinouts (Part 1):



Terminals Of Control Module/Pinouts (Part 2):



Oscilloscope Waveforms:
