Instrument Panel, Gauges and Warning Indicators: Description and Operation

System Diagram (Part 1):

System Diagram (Part 2):

System Diagram (Part 3):

System Diagram (Part 4):

Part 1:

Part 2:

(Part 1):

(Part 2):

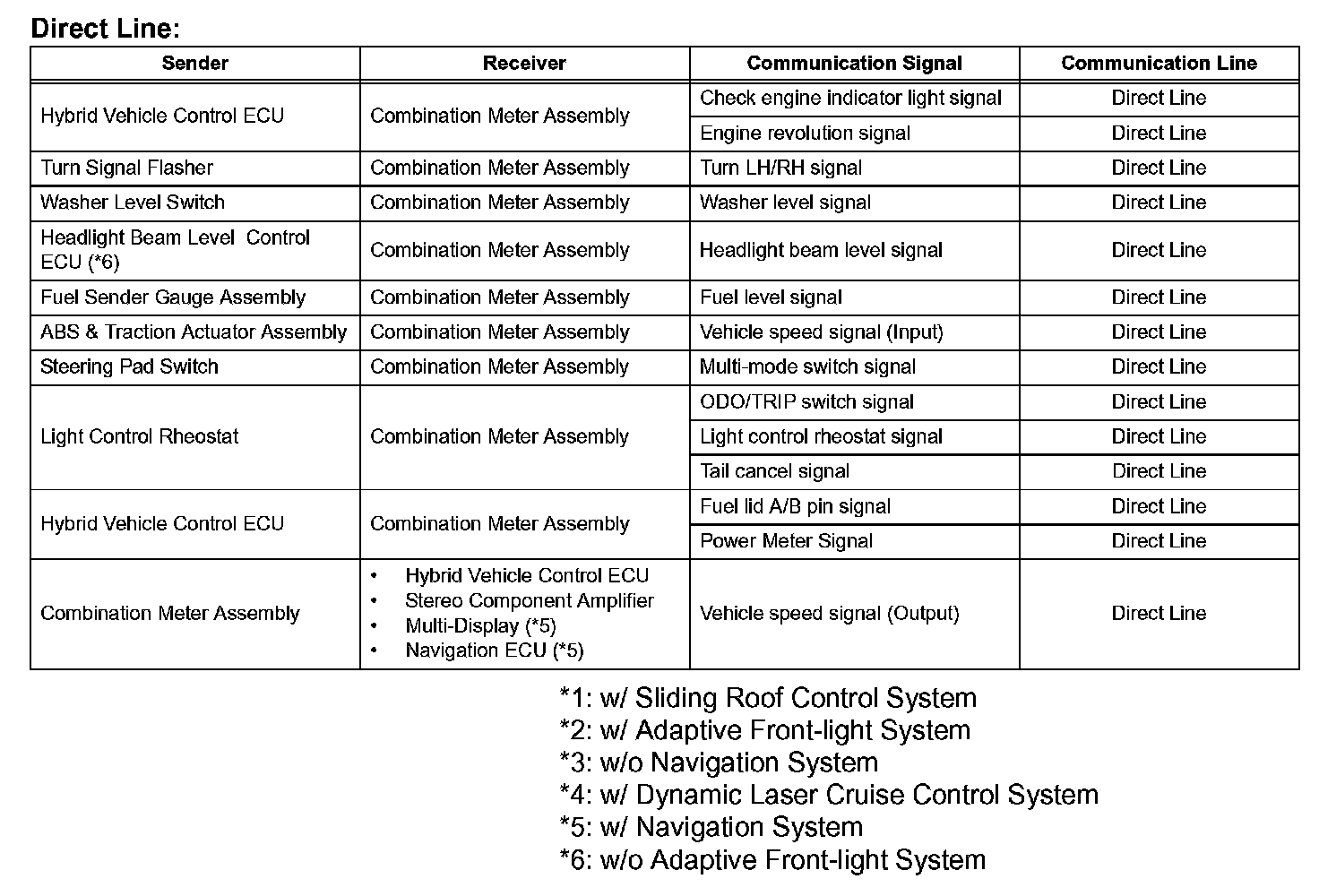

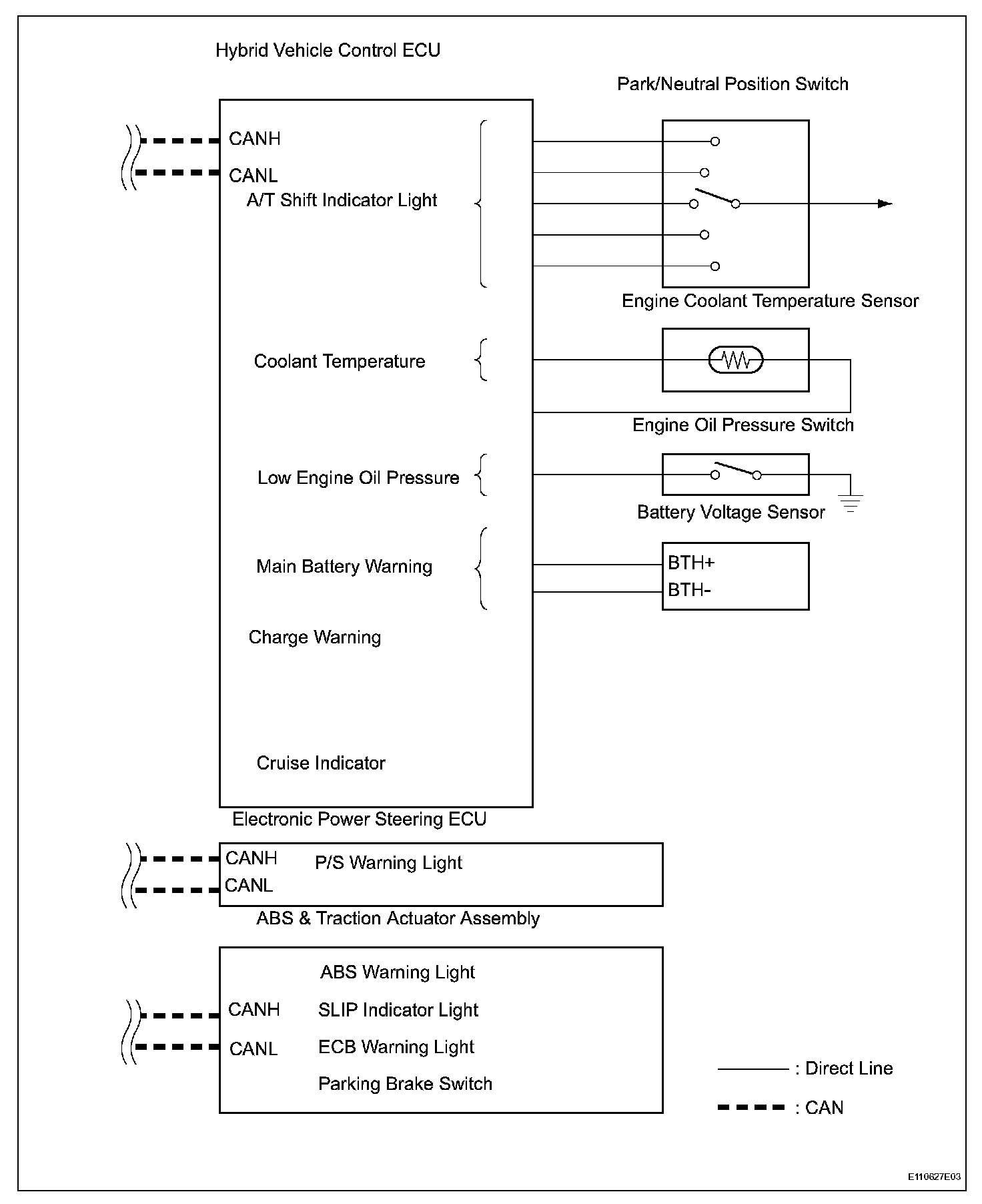

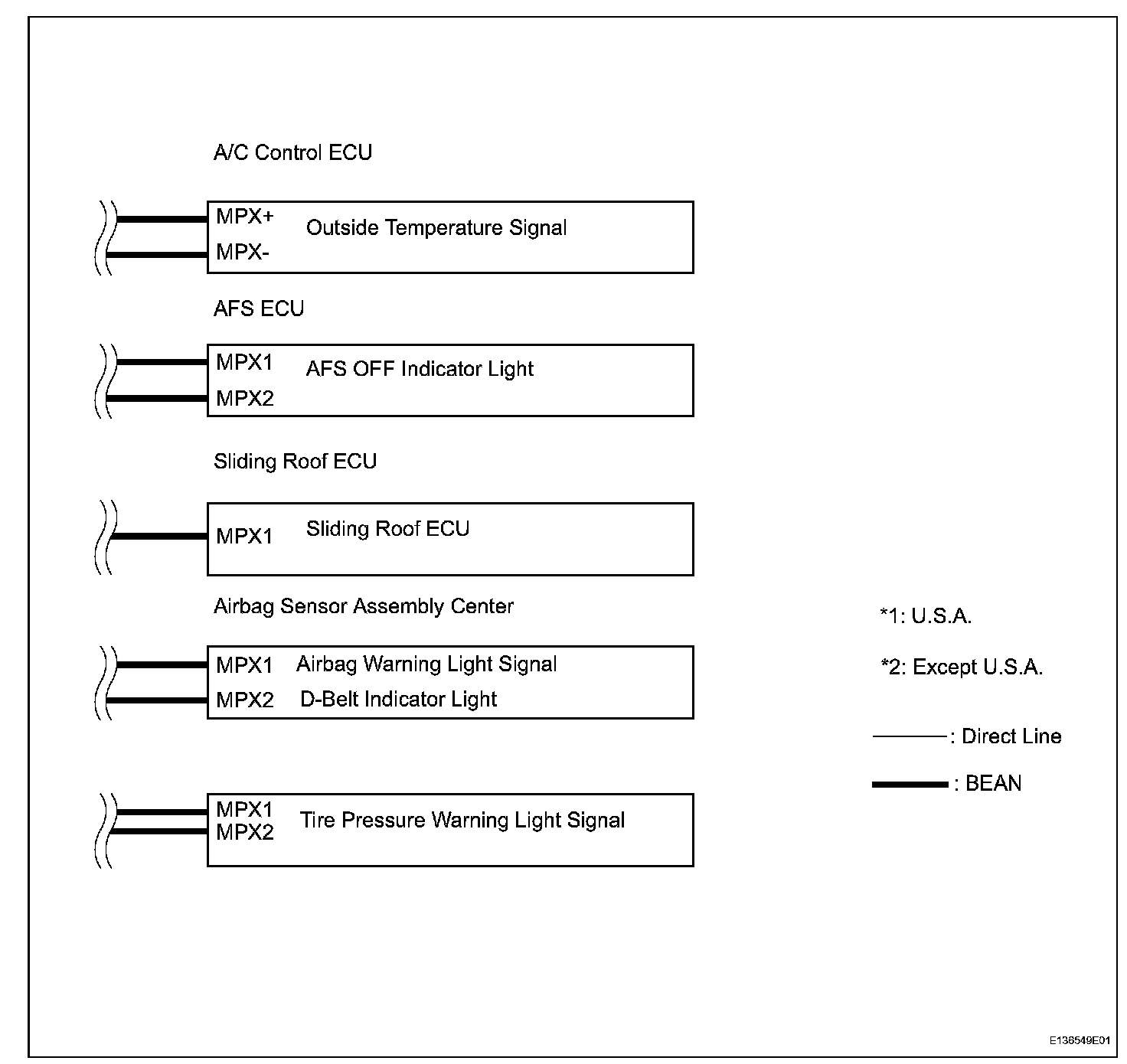

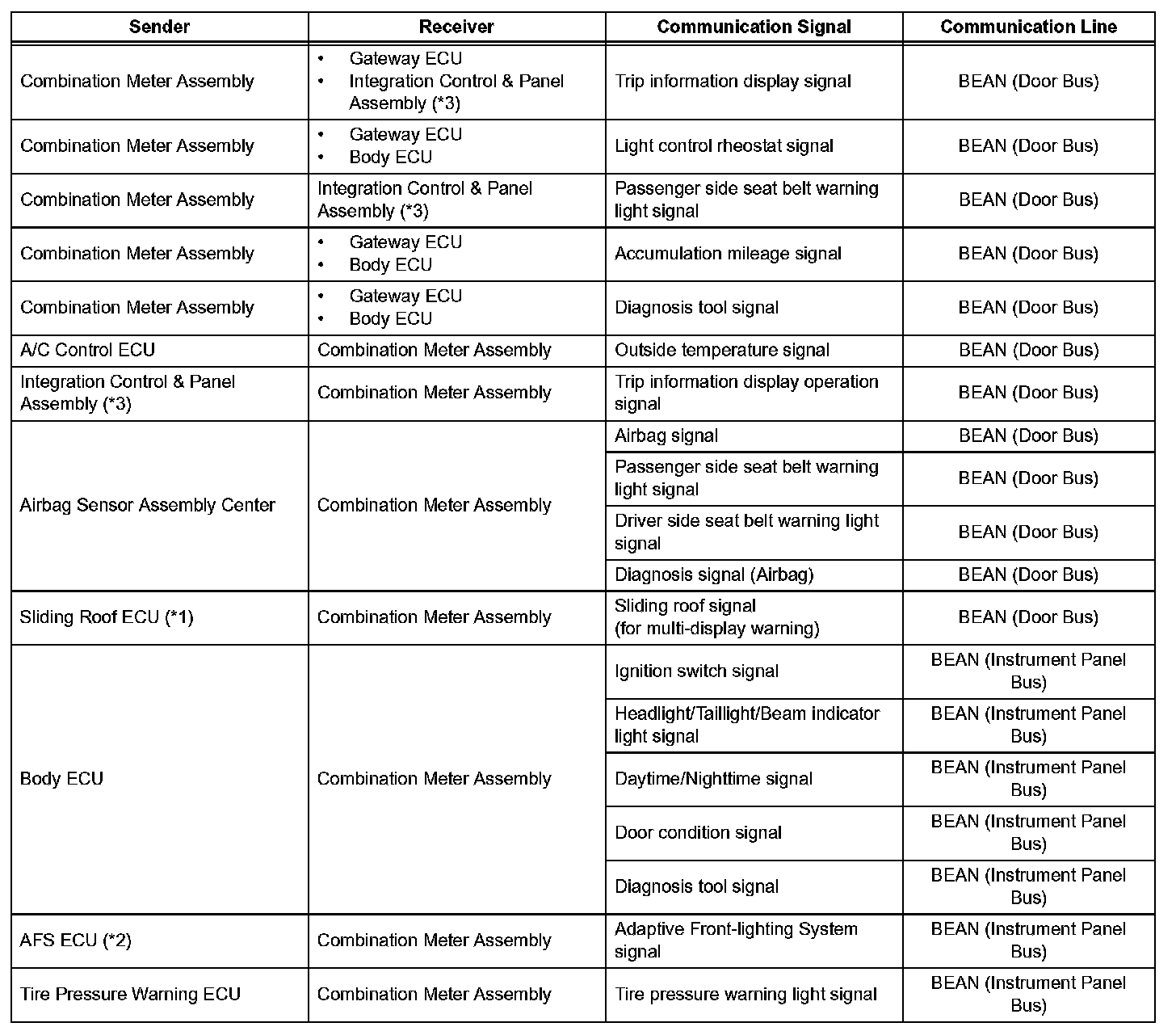

SYSTEM DIAGRAM

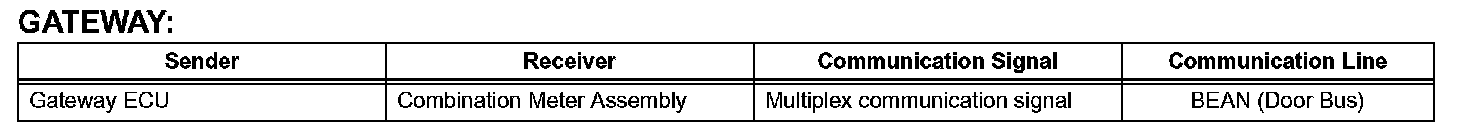

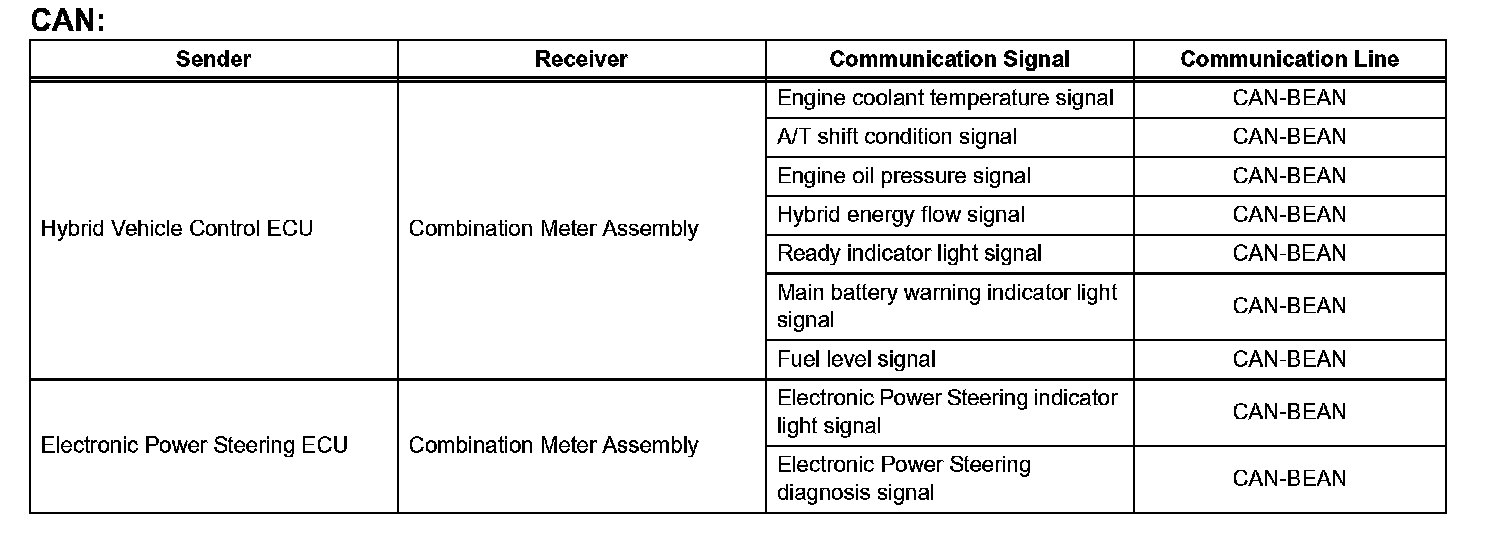

HINT: CAN signals and AVC-LAN signals are transmitted to or received from the combination meter assembly through the gateway ECU.

SYSTEM DESCRIPTION

Part 1:

Part 2:

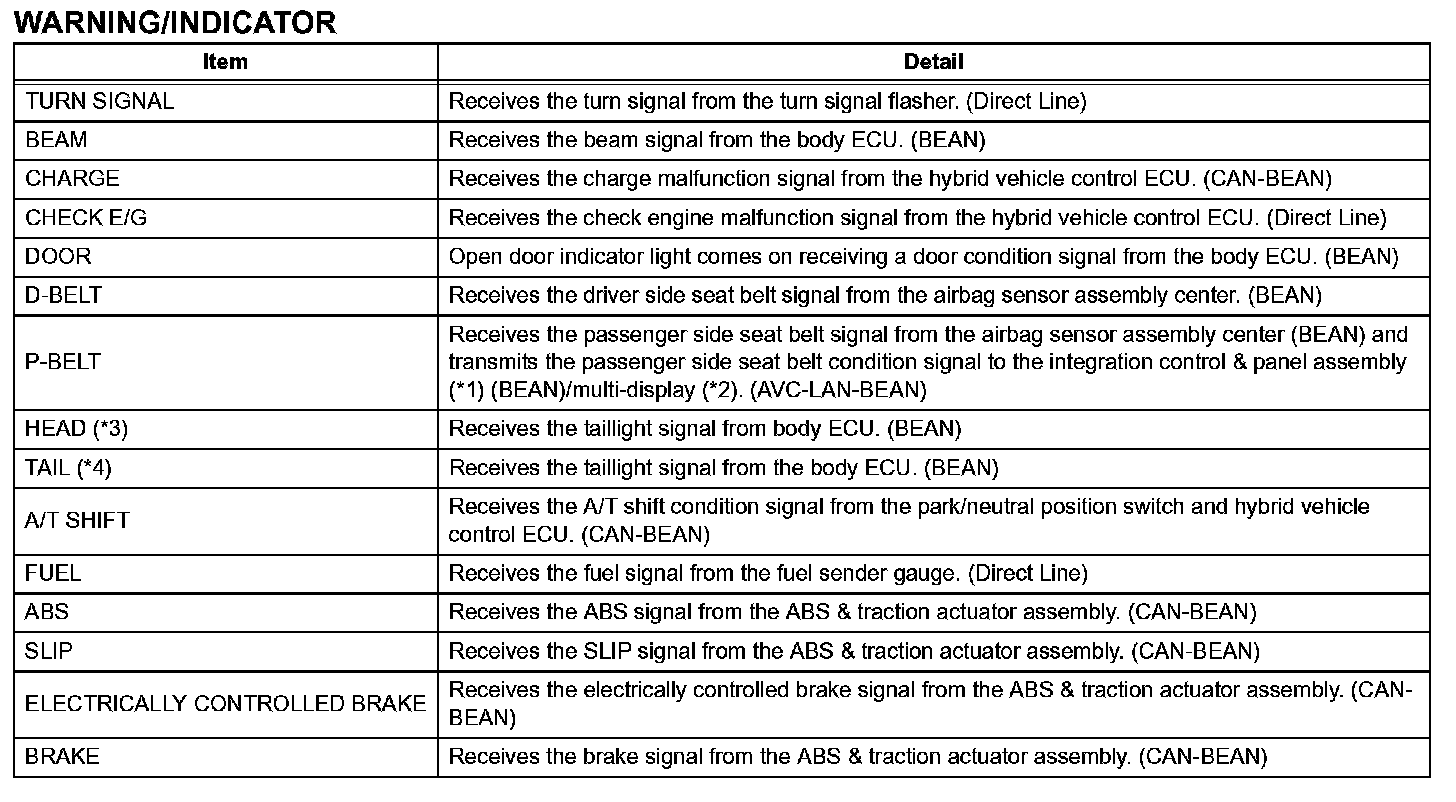

1. METER GAUGE






HINT:

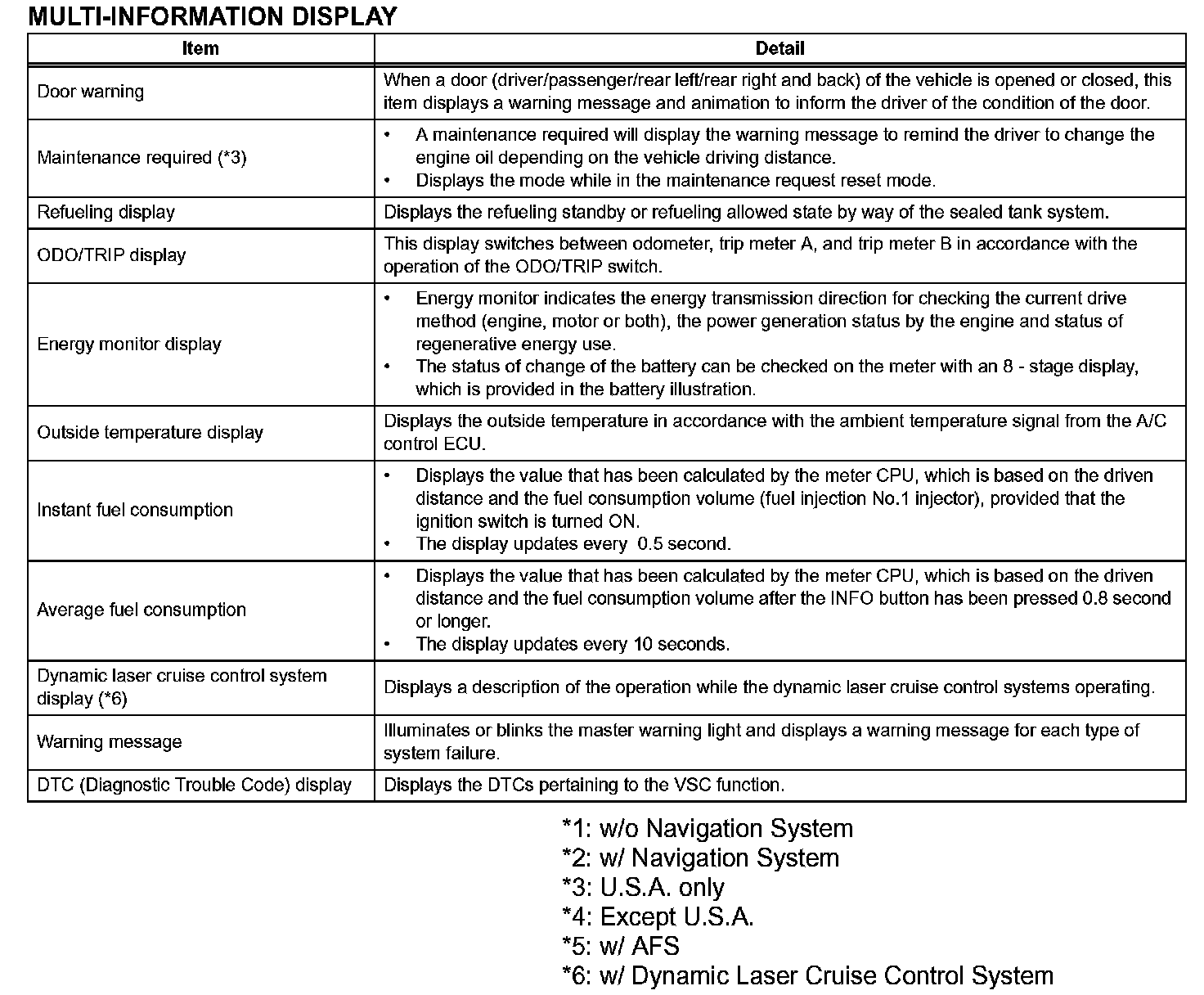

- The multi-information display has been located in the center of the combination meter assembly.
- The display shows a message or animation for each of the functions described in the table.

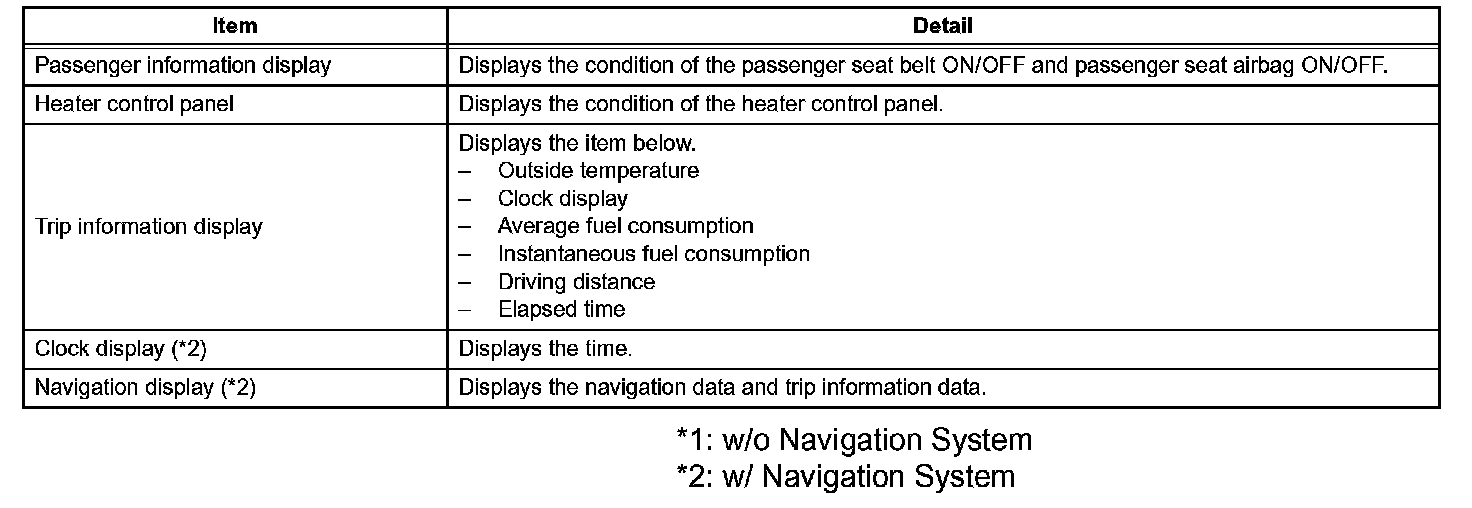

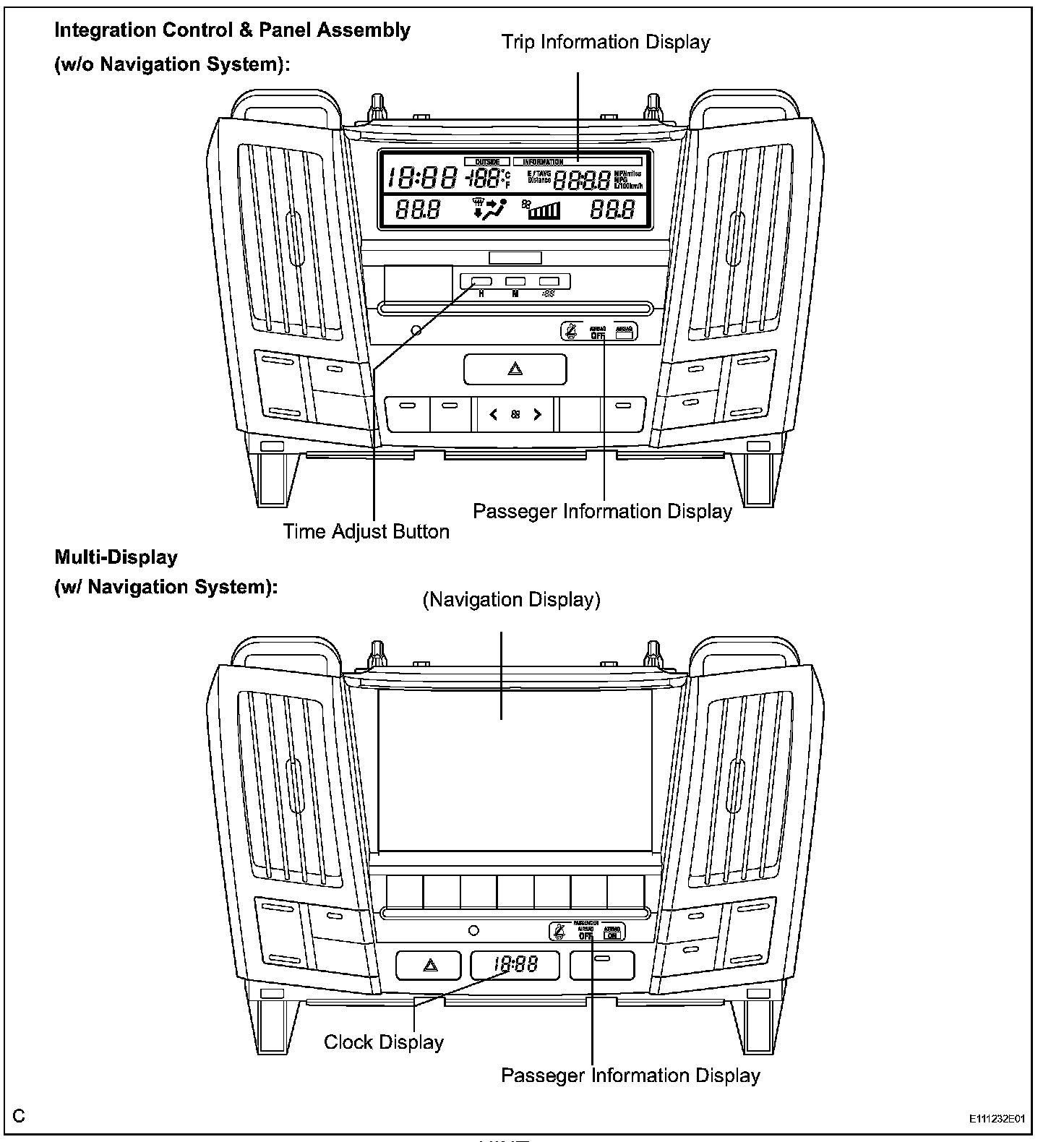

2. INTEGRATION CONTROL & PANEL ASSEMBLY (W/O NAVIGATION SYSTEM)/MULTI-DISPLAY (W/ NAVIGATION SYSTEM)

HINT:
- Integration control & panel assembly (.1) consists of three parts (driver monitor display, passenger information display, and heater control panel). These areas display the contents given in the table.




- Multi-display assembly (.2) consists of four parts (navigation display, passenger information display, clock display, and heater control panel). These areas display the contents given in the table.

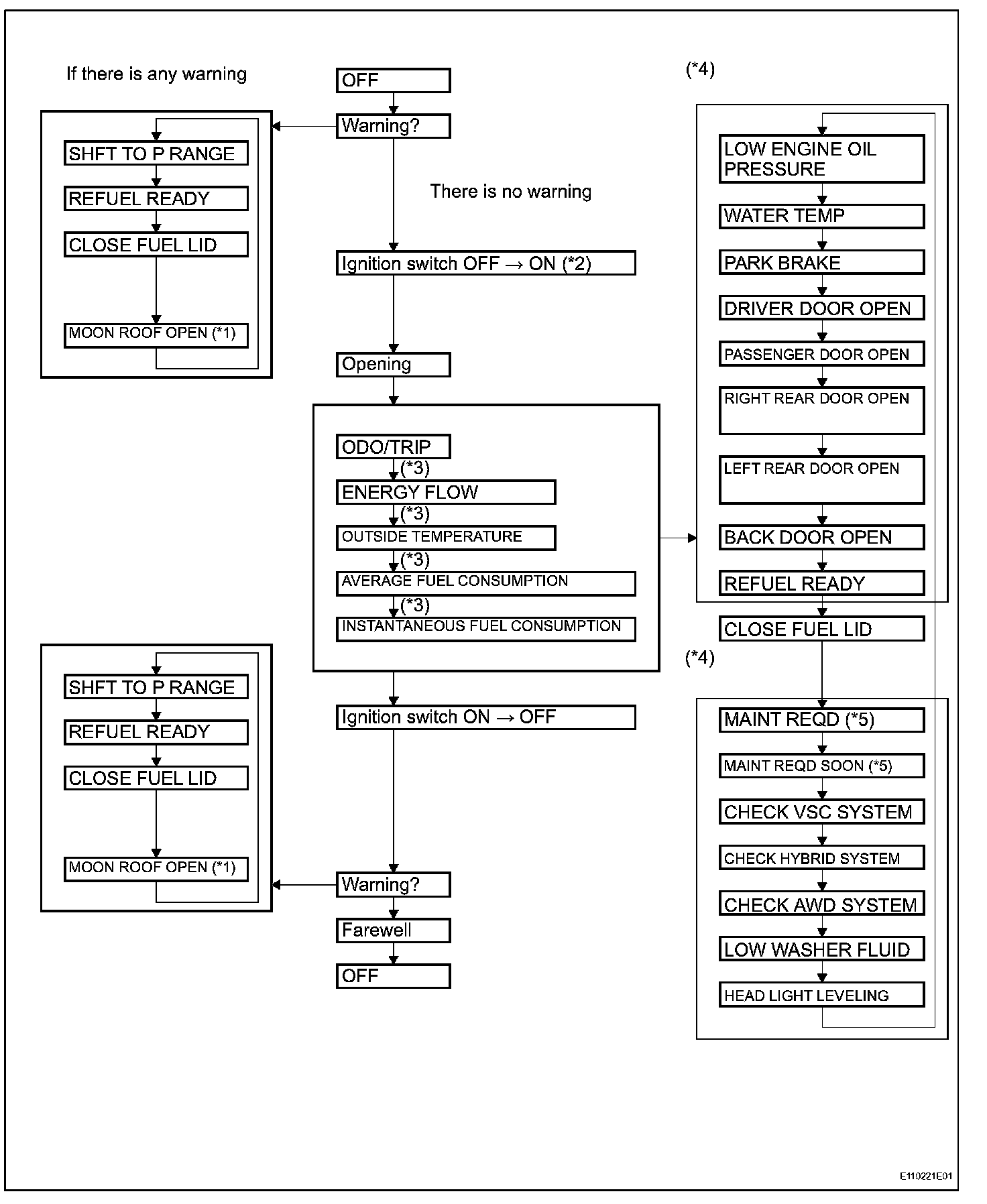

3. Multi-Information Display Flow Chart

*1: w/ Sliding Roof Control System
*2: The display immediately before turning the ignition switch off will appear when the ignition switch is turned to the ON position.
*3: The display is switched in order shown by pushing the "DISP" switch on the steering pad switch.
*4: If the abnormal condition is detected, the warning display appears immediately (w/ buzzer)
*5: U.S.A. only




4. MAINTENANCE MODE

HINT: MAINTENANCE MODE is the secret mode.

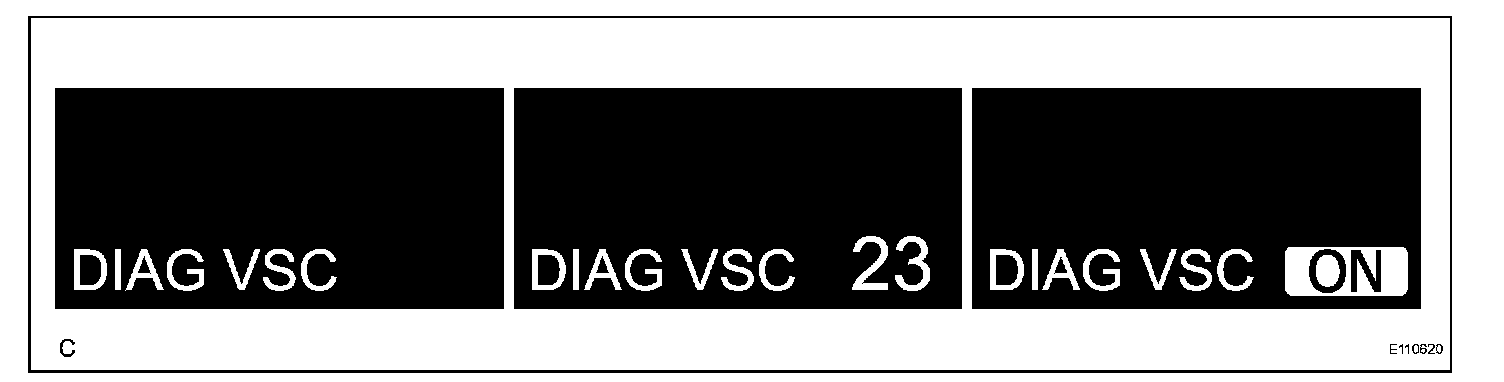

5. DIAGNOSIS SYSTEM

HINT:
- The multi-information display shows "DIAG" when the ignition switch is turned to the ON position.
- Diagnosis checks for the VSC system can be done by using the displayed items is in the multi-information display.
