On-Vehicle Inspection
ON-VEHICLE INSPECTION1. INSPECT SPEEDOMETER
a. Check the operation.

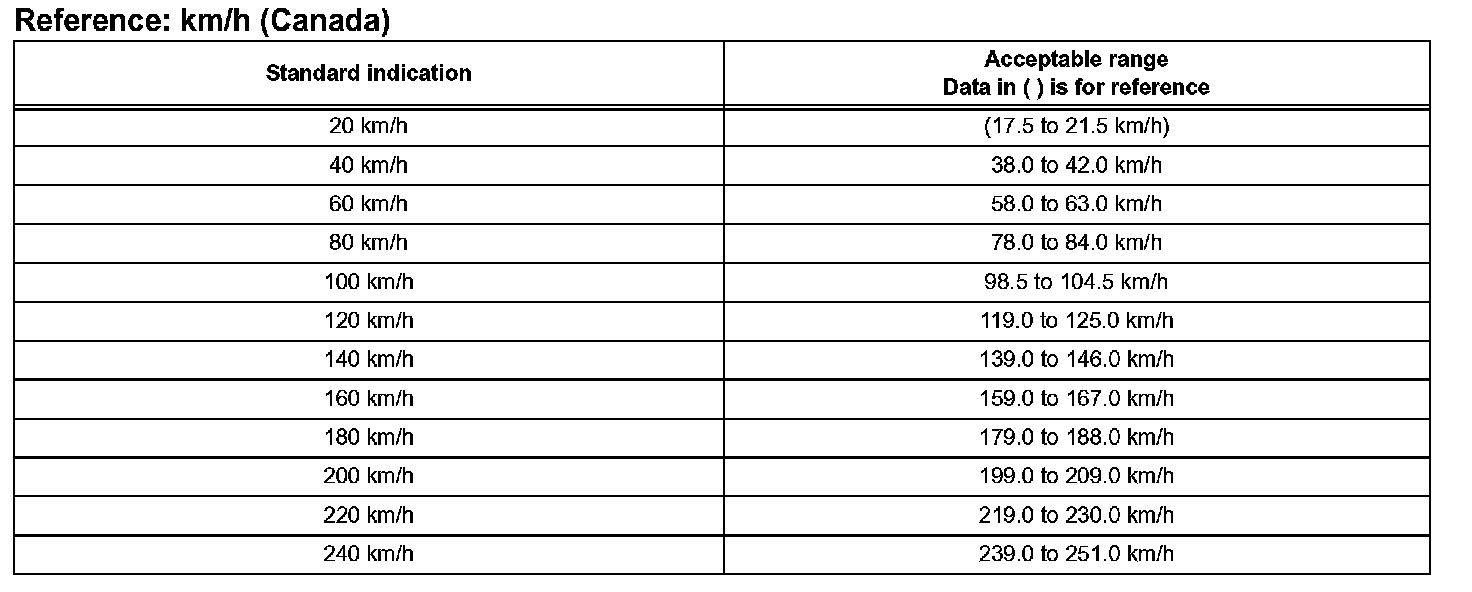

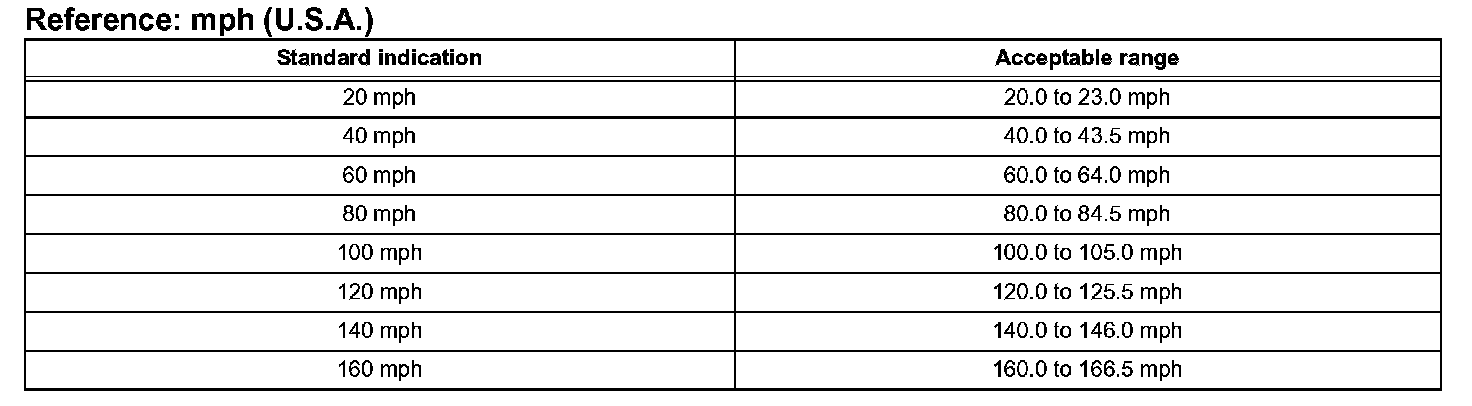

1. Using a speedometer tester, check the speedometer indication according to the table.
NOTE: Tire wear, as well as over or under inflation will cause errors.
2. Check the deviation from the acceptable value of the speedometer indication.
Reference: Below 0.5 km/h (0.3mph)
2. INSPECT FUEL RECEIVER GAUGE
a. Disconnect the connector from the sender gauge.
b. Turn the ignition switch to the ON position, then check the position of the receiver gauge needle.
OK: Needle position is on (EMPTY).

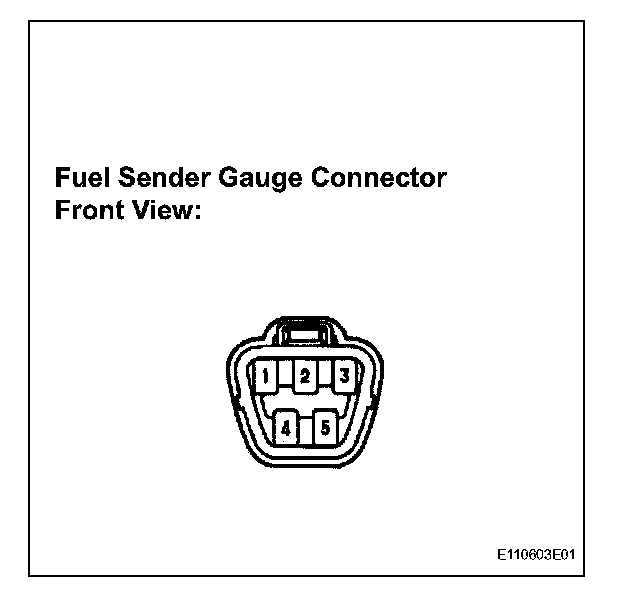

c. Connect the terminals 2 and 3 on the wire harness side connector of the fuel sender gauge.
d. Turn the ignition switch to the ON position, then check the position of the receiver gauge needle.
OK: Needle position is on (FULL).
3. INSPECT FUEL LEVEL WARNING LIGHT
a. Disconnect the connector from the sender gauge.
b. Turn the ignition switch to the ON position, then check the fuel level needle indicates EMPTY and the fuel level warning light comes on.
OK: Fuel level warning light comes on.
4. INSPECT LOW OIL PRESSURE WARNING DISPLAY
a. Disconnect the connector from the low oil pressure switch.
b. Turn the ignition switch to the ON position.
c. Ground the terminal of the wire harness side connector, then check the low oil pressure warning in the multi-display.
OK: LOW OIL PRESSURE warning is displayed.

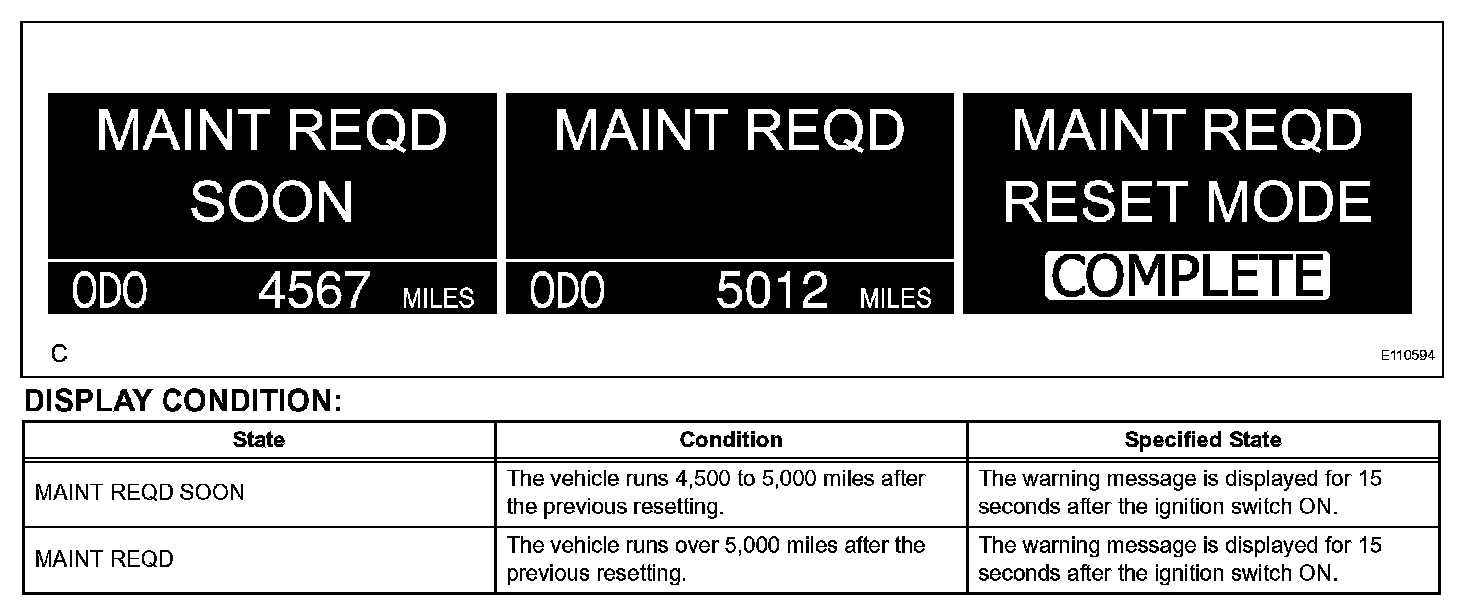

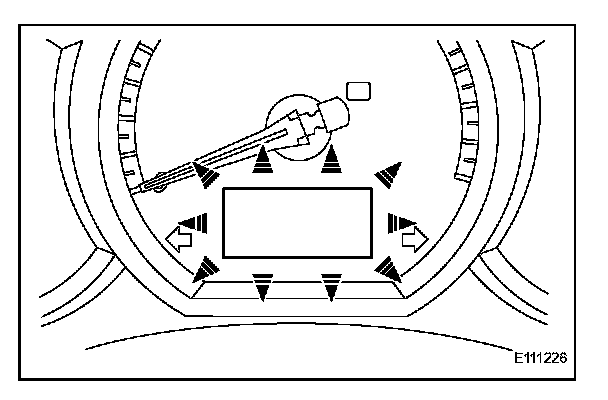

5. INSPECT MAINTENANCE REQUIRED DISPLAY RESETTING PROCEDURE
a. Set the display window to ODO.
b. Turn the ignition switch off.
c. While pressing the reset switch, turn the ignition switch to the ON position. Keep pressing the reset switch for at least 5 seconds to complete the reset procedure. Check that the "MAINTENANCE REQD RESET MODE COMPLETE" message is displayed.
HINT: If the ignition switch is turned off during the reset procedure; LCD: off Warning Display: off If the reset switch is not pressed for at least 5 seconds during the reset procedure; LCD: Return to ODO Warning Display: previous state
6. INSPECT MULTI-INFORMATION DISPLAY
a. Turn the ignition switch off.
b. Press the "DISP" button and hold it down.
c. Turn the ignition switch to the ON position.
OK: All the dot in the multi-information display comes on.
HINT: This test is also available on "DATA LIST / ACTIVE TEST".
d. Turn the ignition switch off to finish the test mode
