LOW PITCHED HORN

REMOVAL

1. REMOVE COOL AIR INTAKE DUCT SEAL

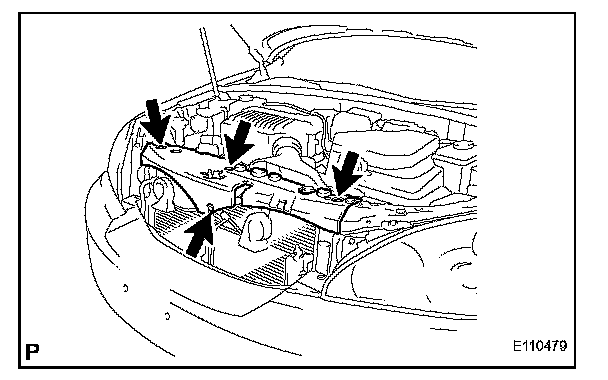

a. Remove the 4 clips and cool air intake duct seal.

2. REMOVE LOW PITCHED HORN

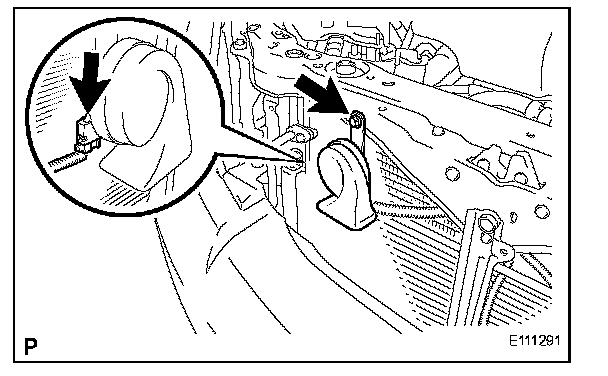

a. Disconnect the connector.
b. Remove the bolt and the low pitched horn.

INSTALLATION

1. INSTALL LOW PITCHED HORN

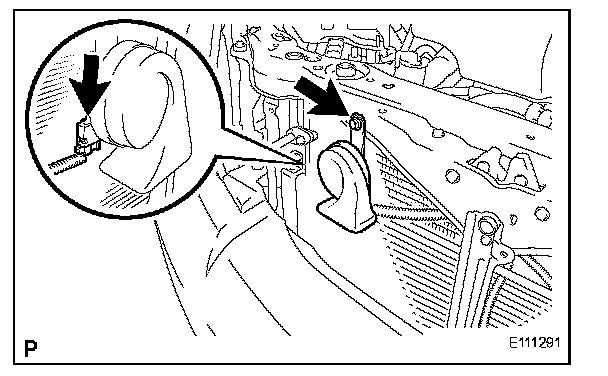

a. Install the low pitched horn with the bolt.

Torque: 20 N.m (204 kgf.cm, 15 ft..lbf)

b. Connect the connector.

2. INSTALL COOL AIR INTAKE DUCT SEAL

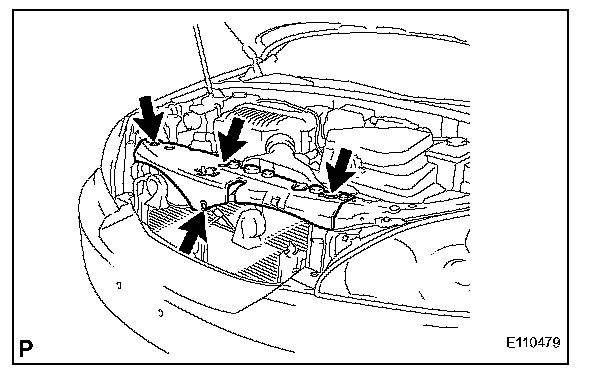

a. Install the cool air intake duct seal with the 4 clips.
