AFS ECU Power Source Circuit
AFS ECU Power Source CircuitDESCRIPTION
This circuit detects the state of the ignition switch and send it to the AFS ECU.

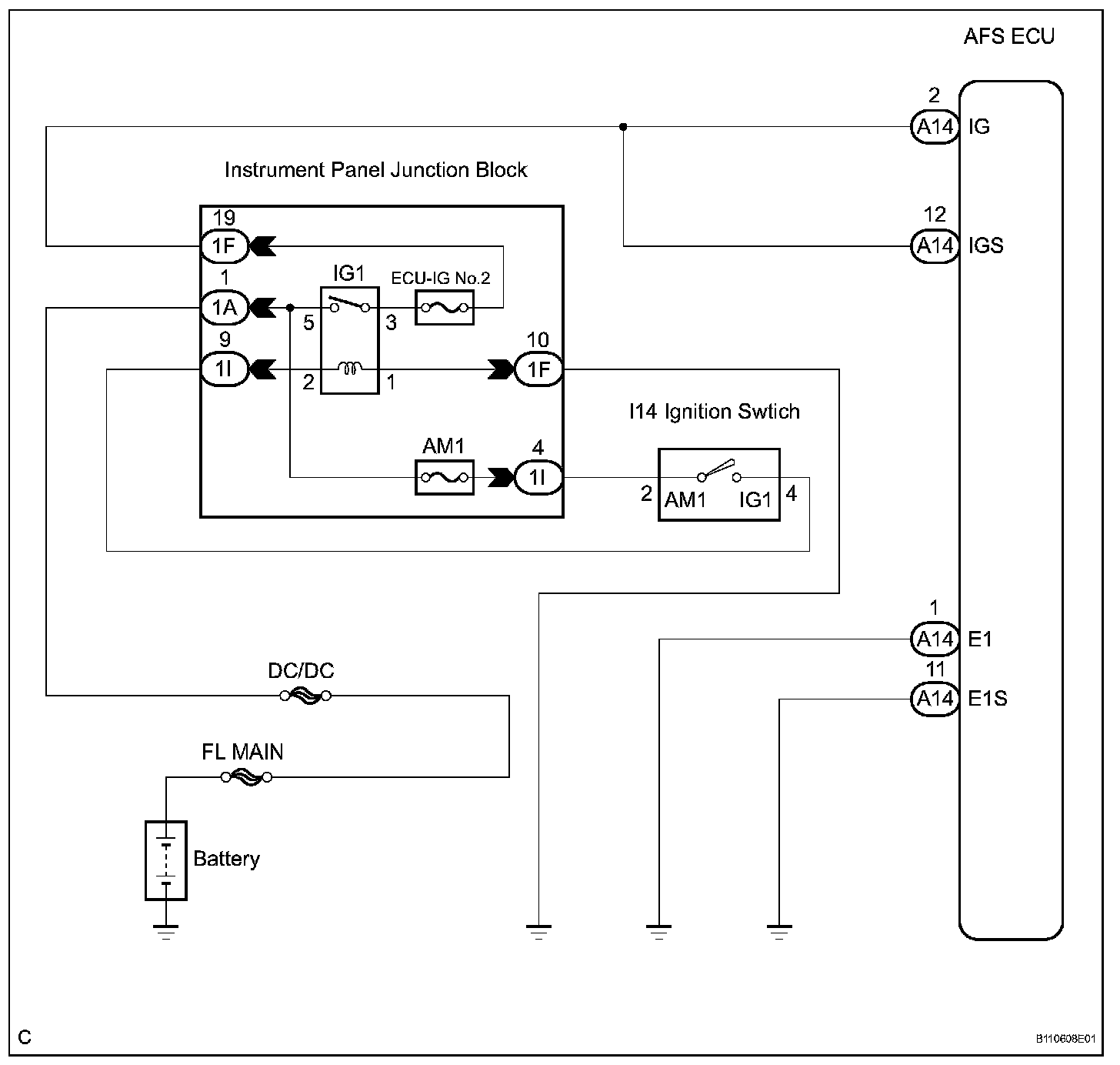

Wiring Diagram:
Step 1:
Step 1 (Continued)-3:
Step 3 (Continued)-5:
Step 5 (Continued)-6:
Step 6 (Continued)-7:
Step 7 (Continued)-9:
Step 9 (Continued)-10:
Step 10 (Continued):

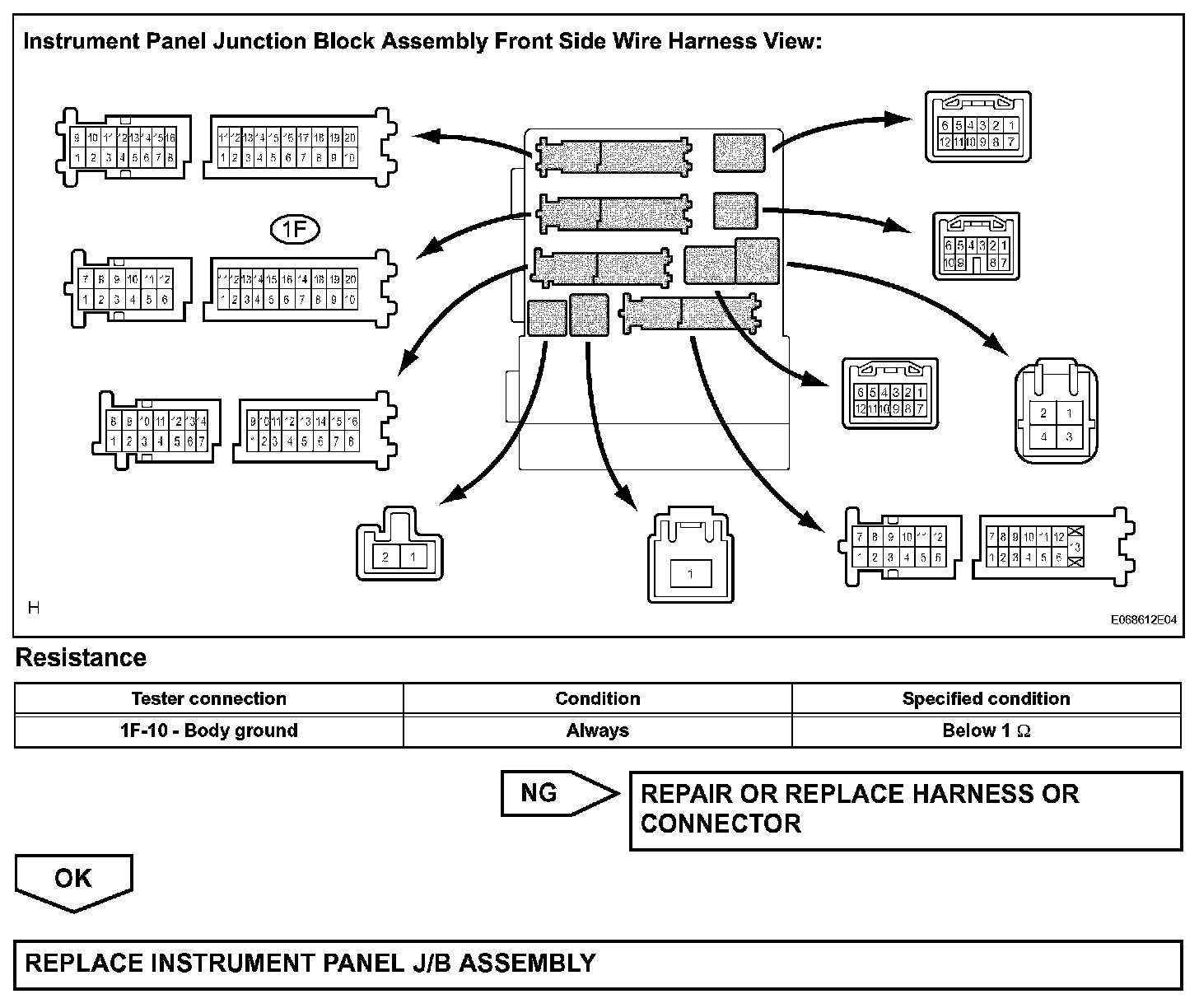

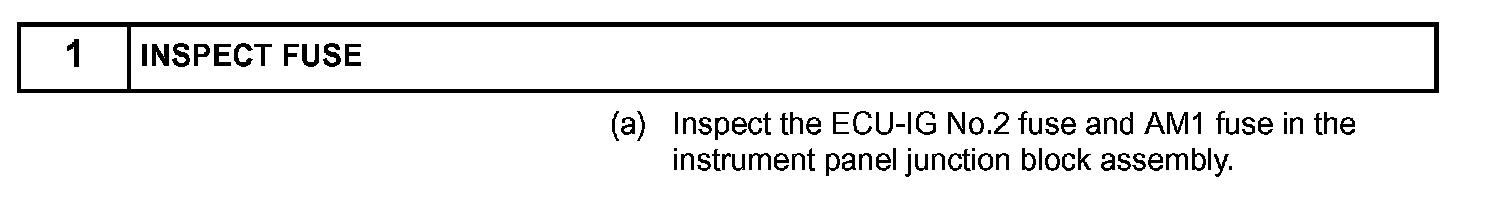

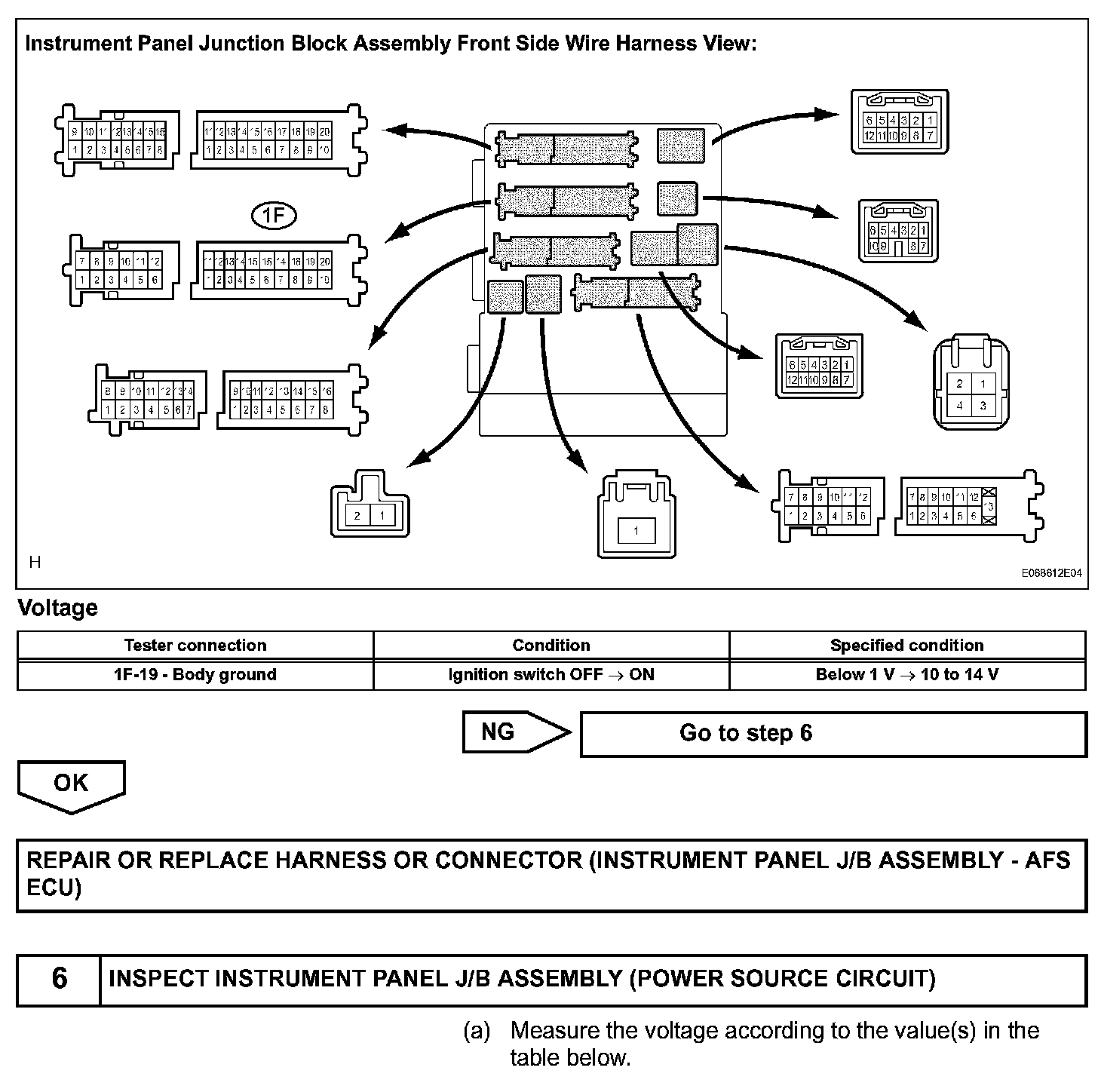

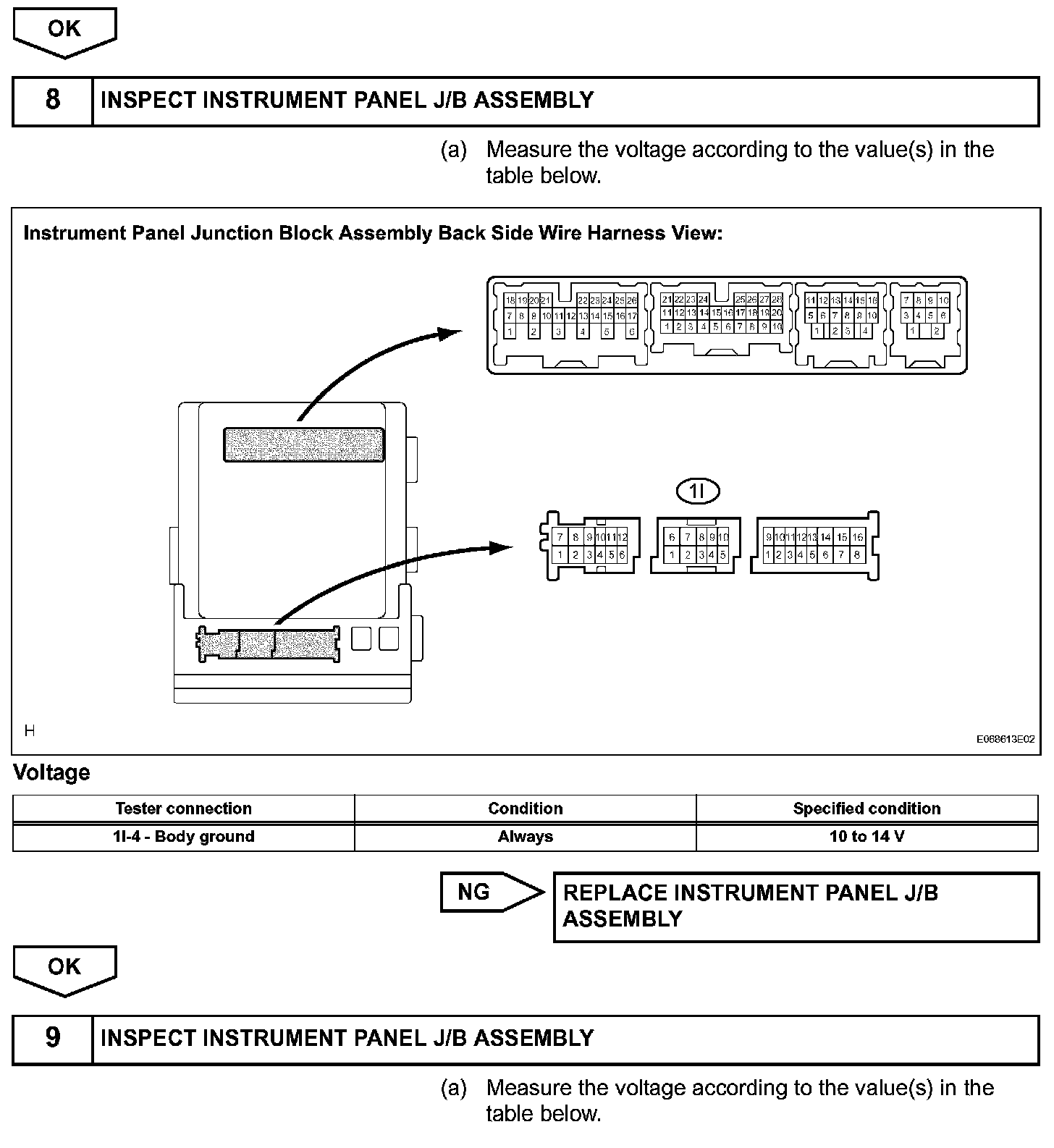

INSPECTION PROCEDURE
