AFS Off Switch Circuit

AFS OFF Switch Circuit

DESCRIPTION

The AFS ECU receives a signal from the AFS OFF switch.

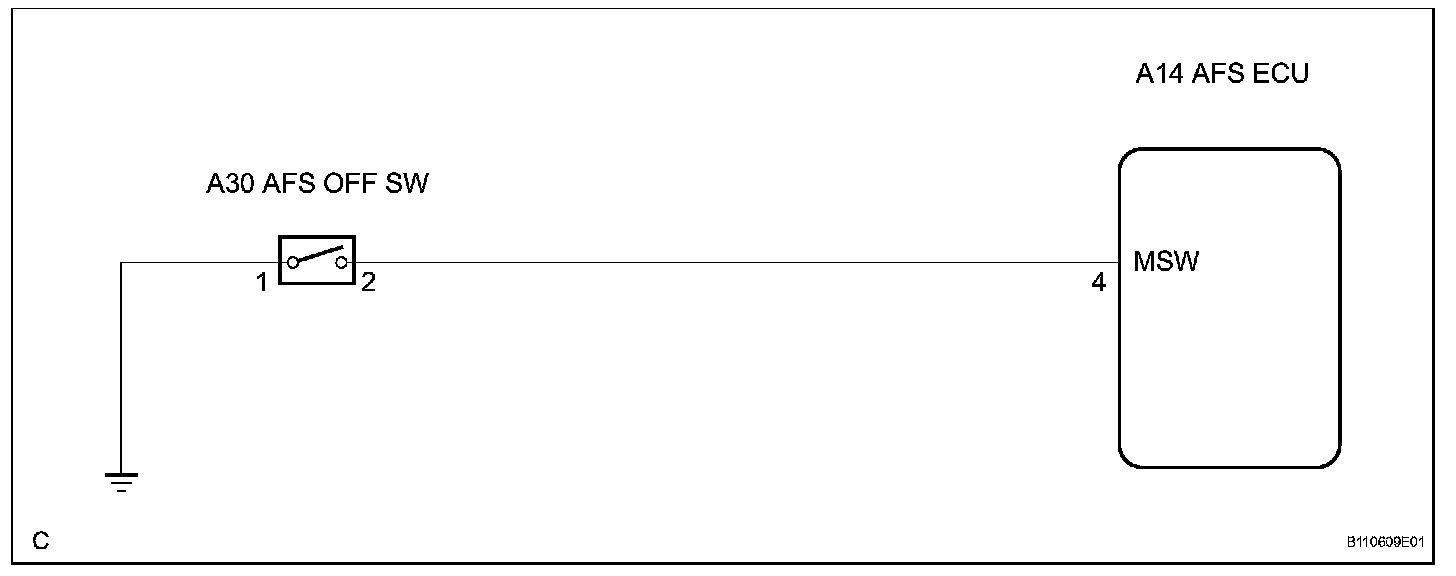

Wiring Diagram:

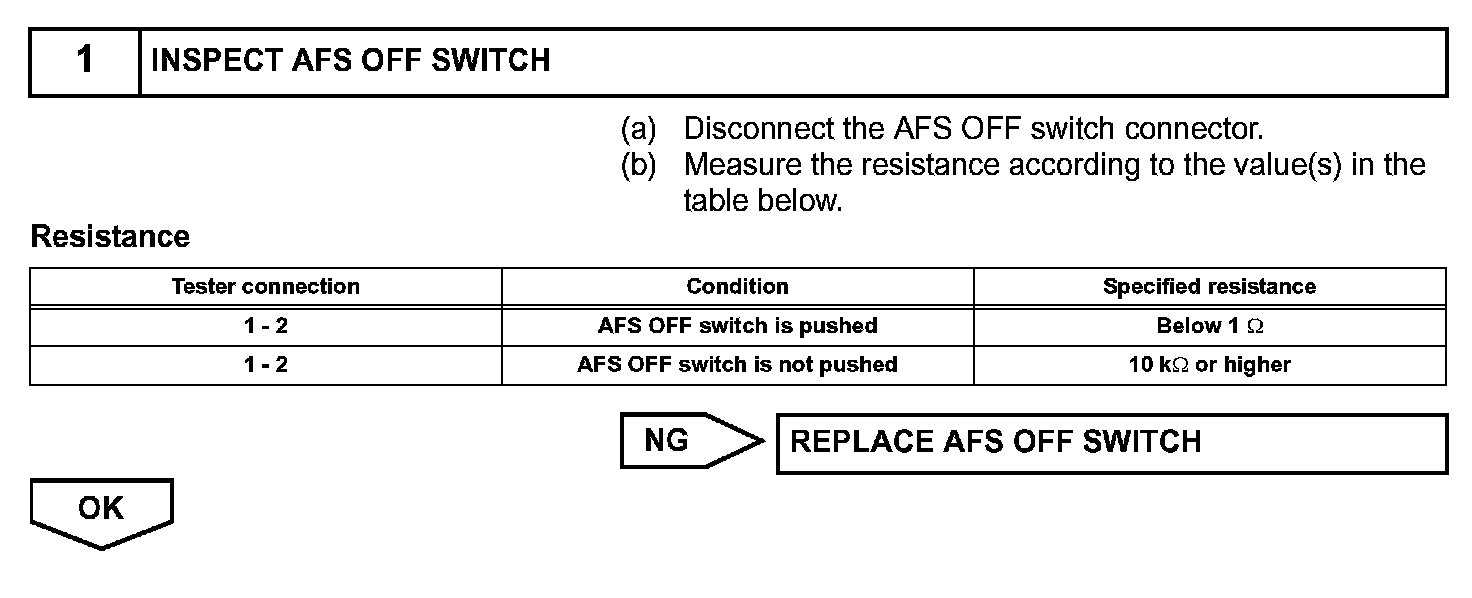

Step 1:

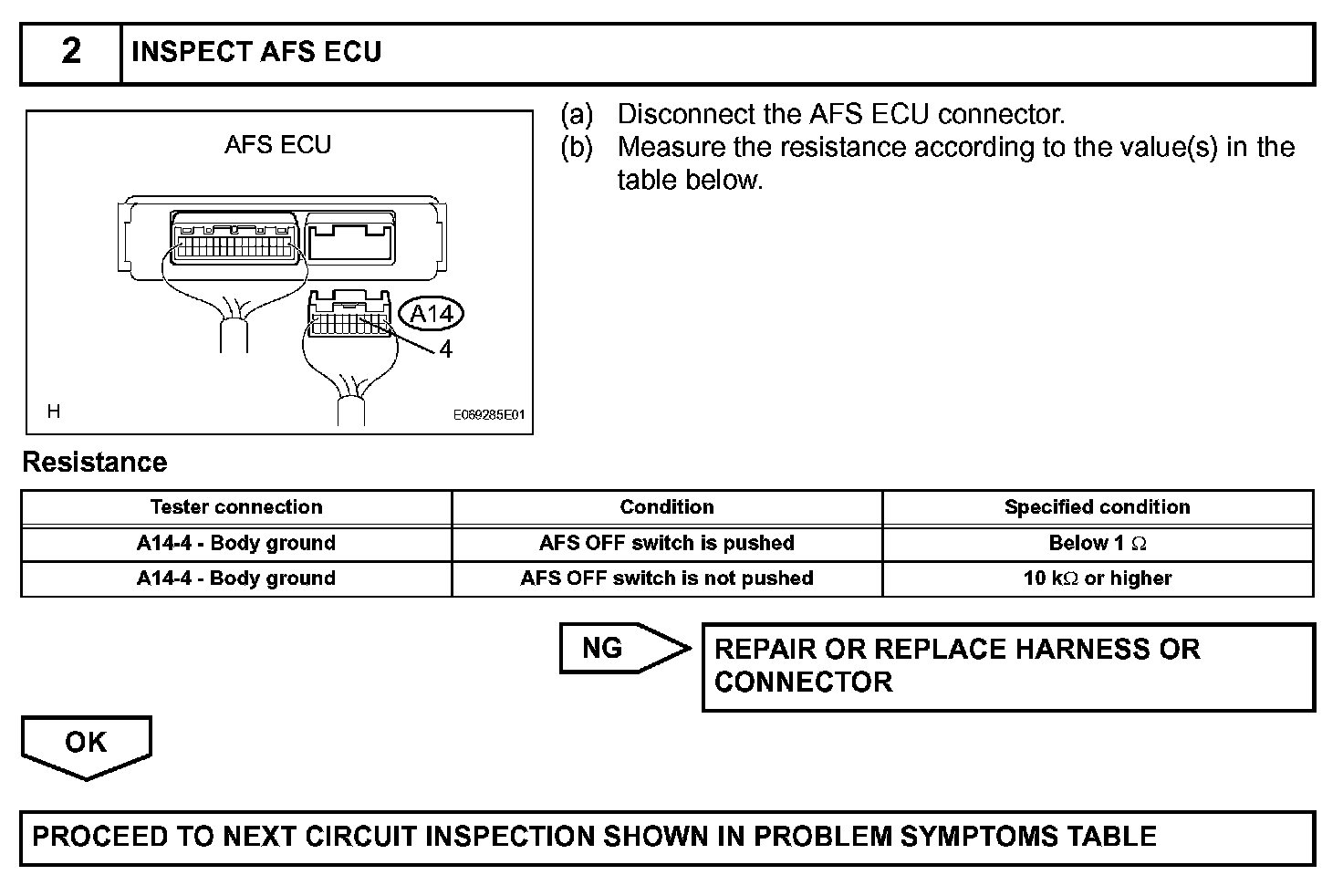

Step 2:




INSPECTION PROCEDURE
