DRL Relay Circuit

DRL Relay Circuit

DESCRIPTION

The body ECU controls the DRL No.2, DRL No. 3 and DRL No.4 relays. The DRL No.2 and DRL No.4 relays installed in the power distributor.

System diagram of the power distributor.
System description of the power distributor.

HINT:
- When the DRL No. 2, DRL No. 3, and DRL No. 4 relays are turned on, the high beam headlights come on.
- When only DRL No. 2 relay is turned on, the daytime running lights (dimmed high beam headlights) come on.

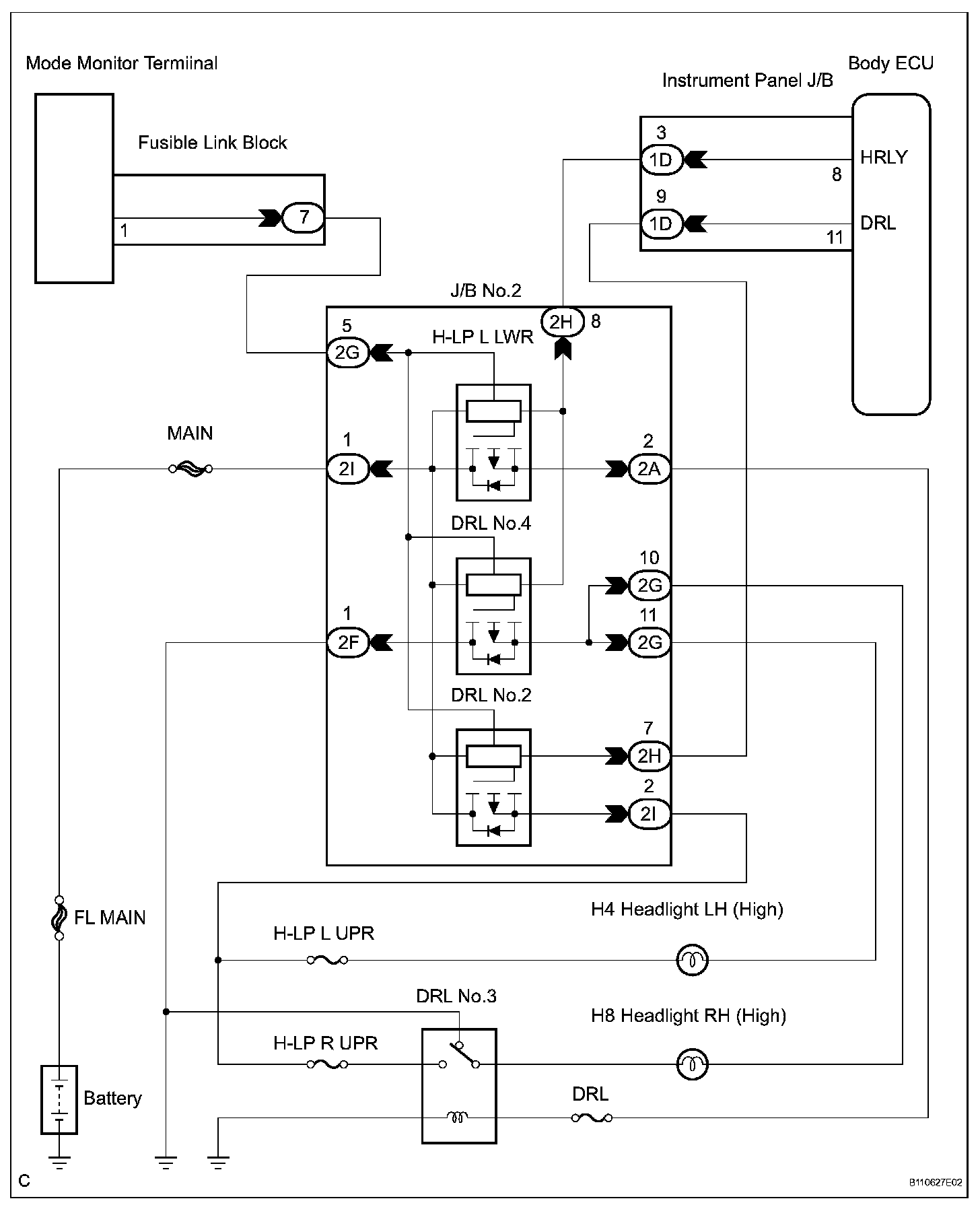

Wiring Diagram:

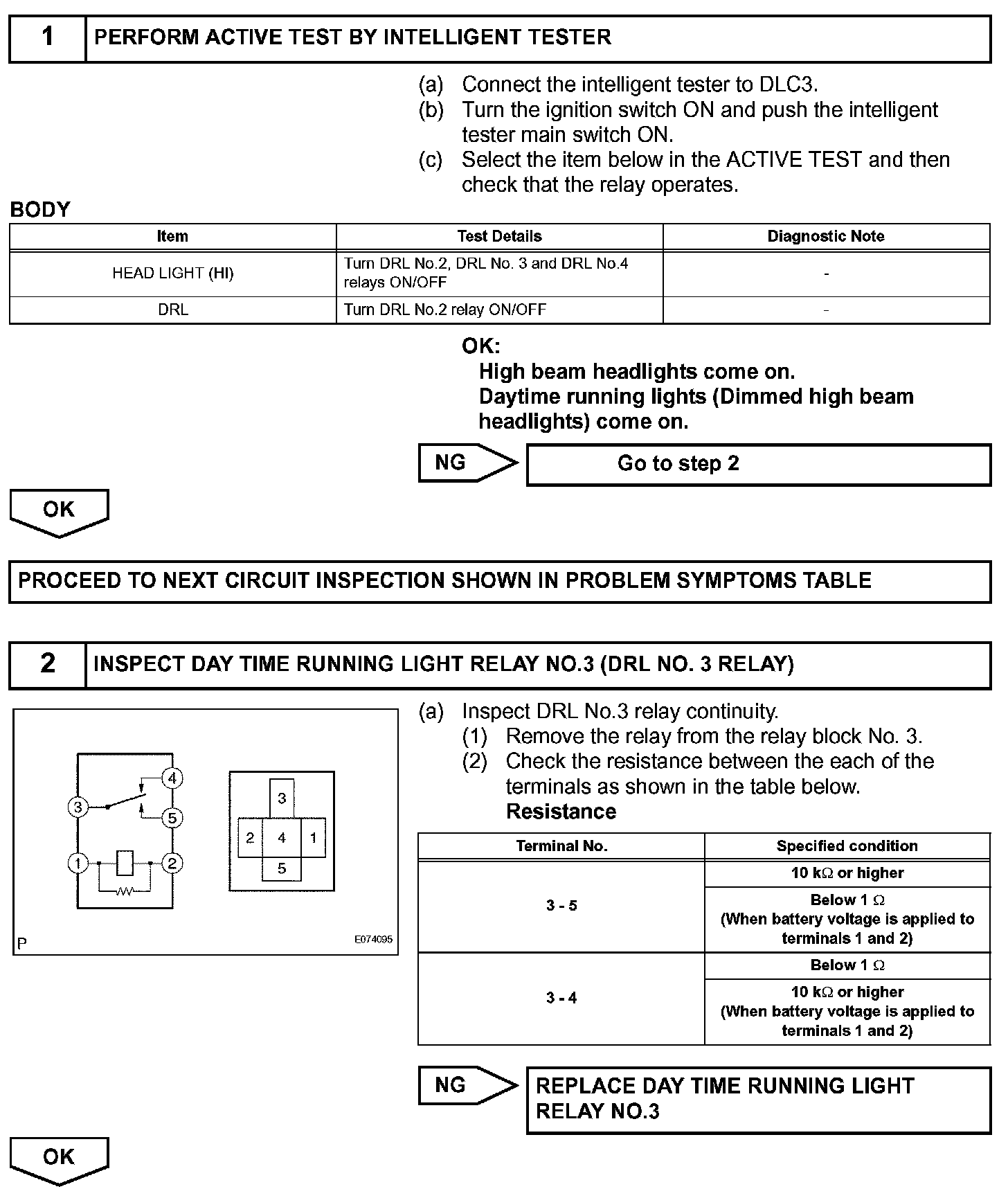

Step 1-2:

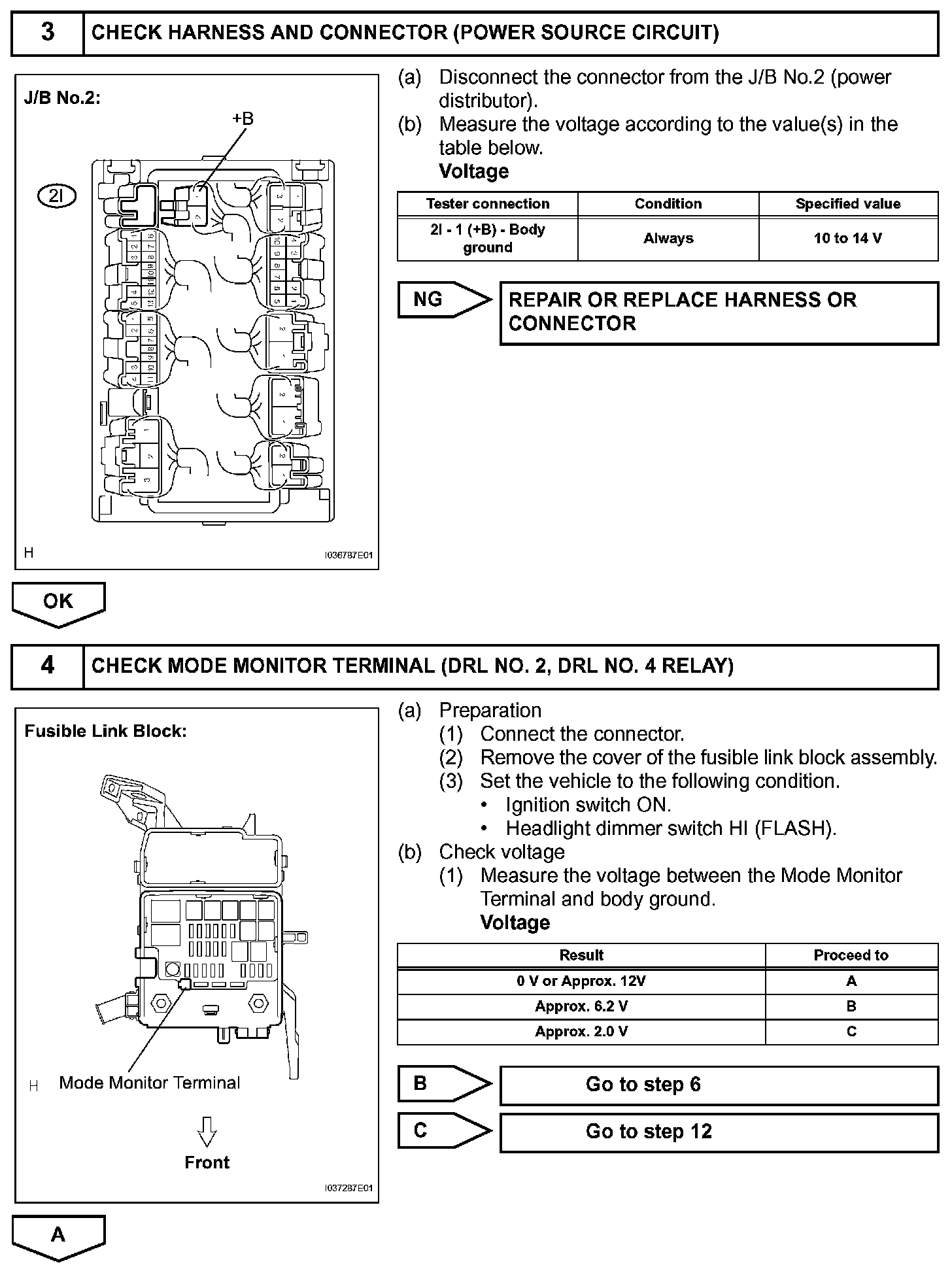

Step 3-4:

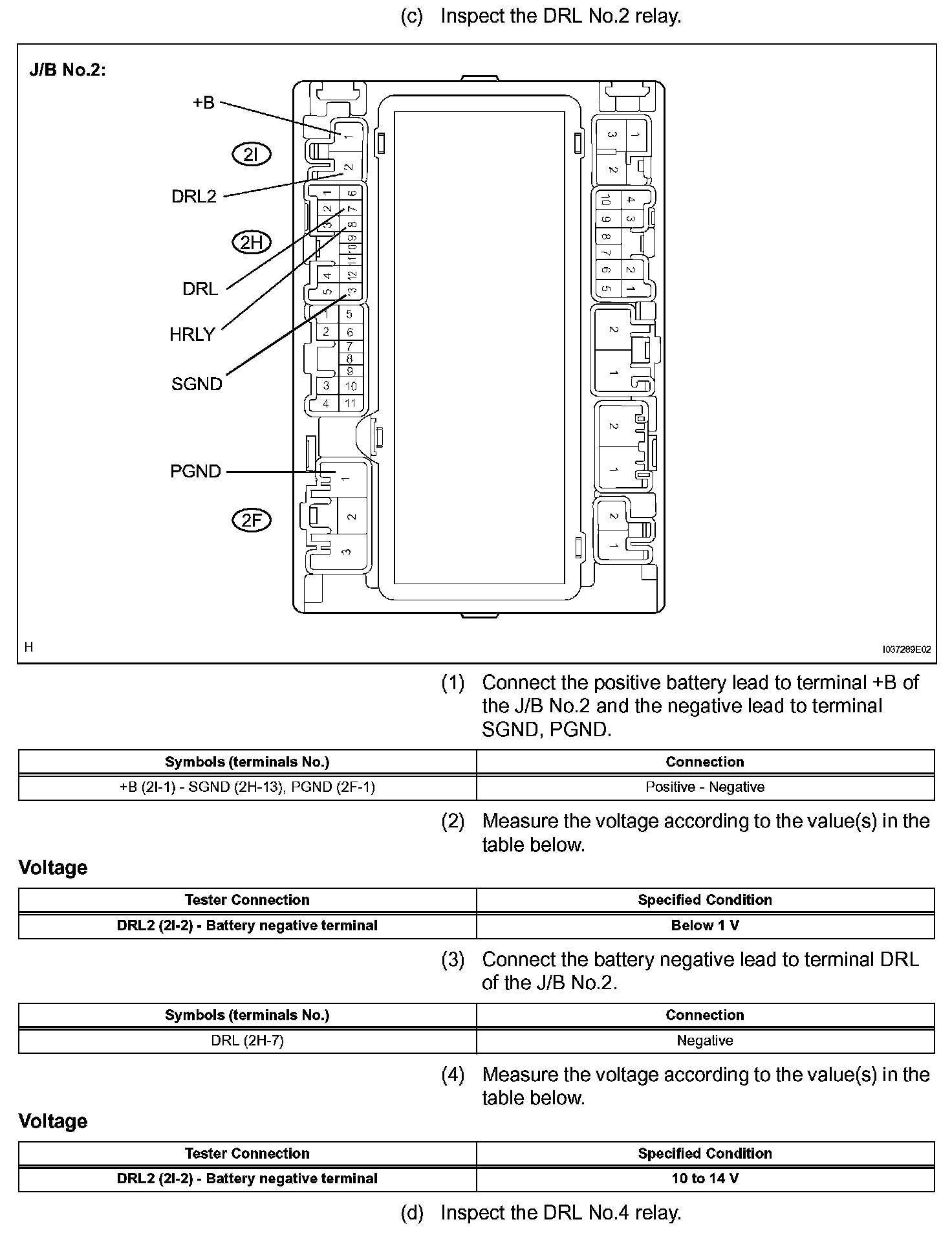

Step 5-6:

Step 6 (Continued):

Step 6 (Continued)-7:

Step 7 (Continued):

Step 7 (Continued)-8:

Step 9-10:

Step 11:

Step 12:

INSPECTION PROCEDURE
