Door Courtesy Switch Circuit

Door Courtesy Switch Circuit

DESCRIPTION

The body ECU detects the condition of the door courtesy switch assembly.

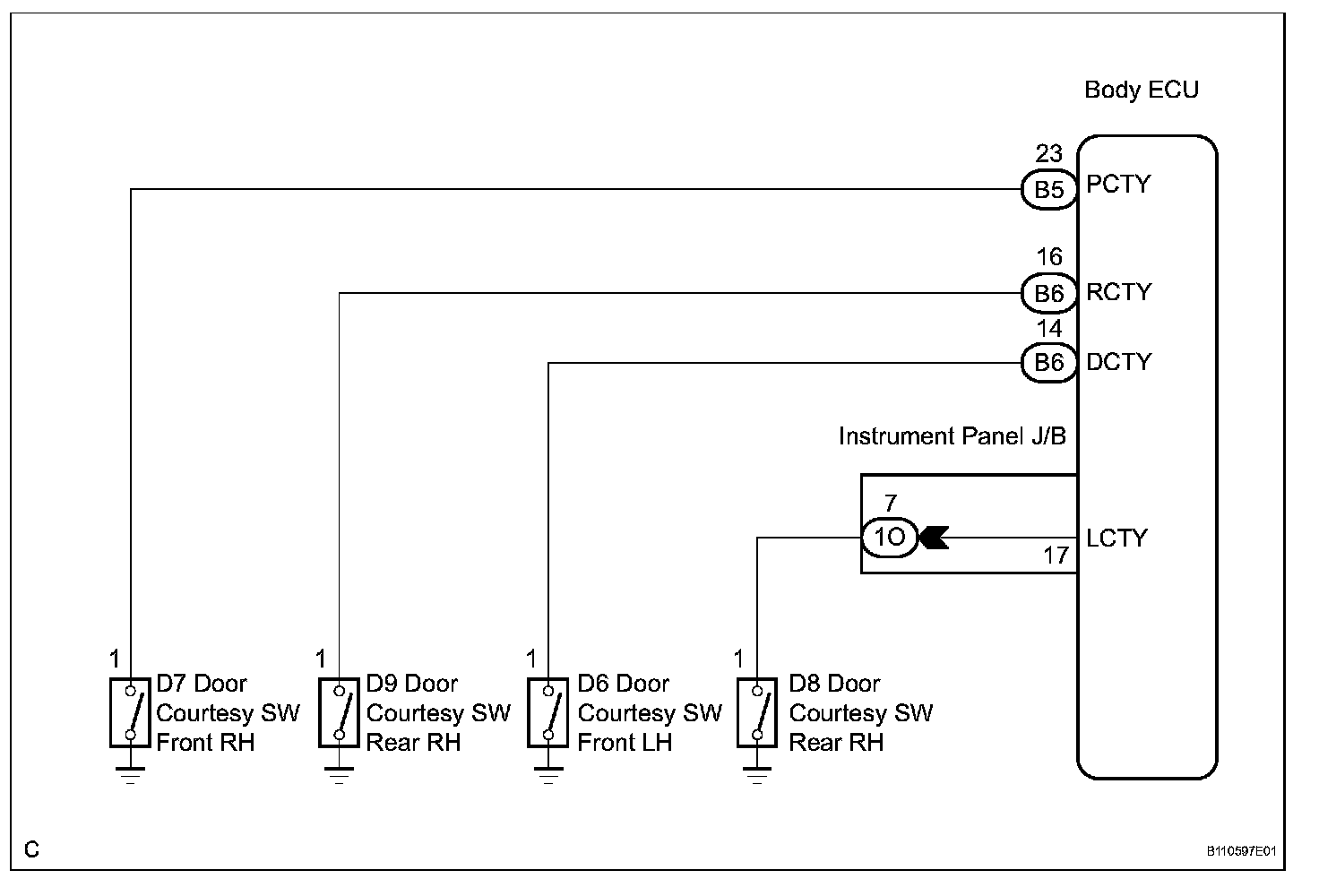

Wiring Diagram:

Step 1:

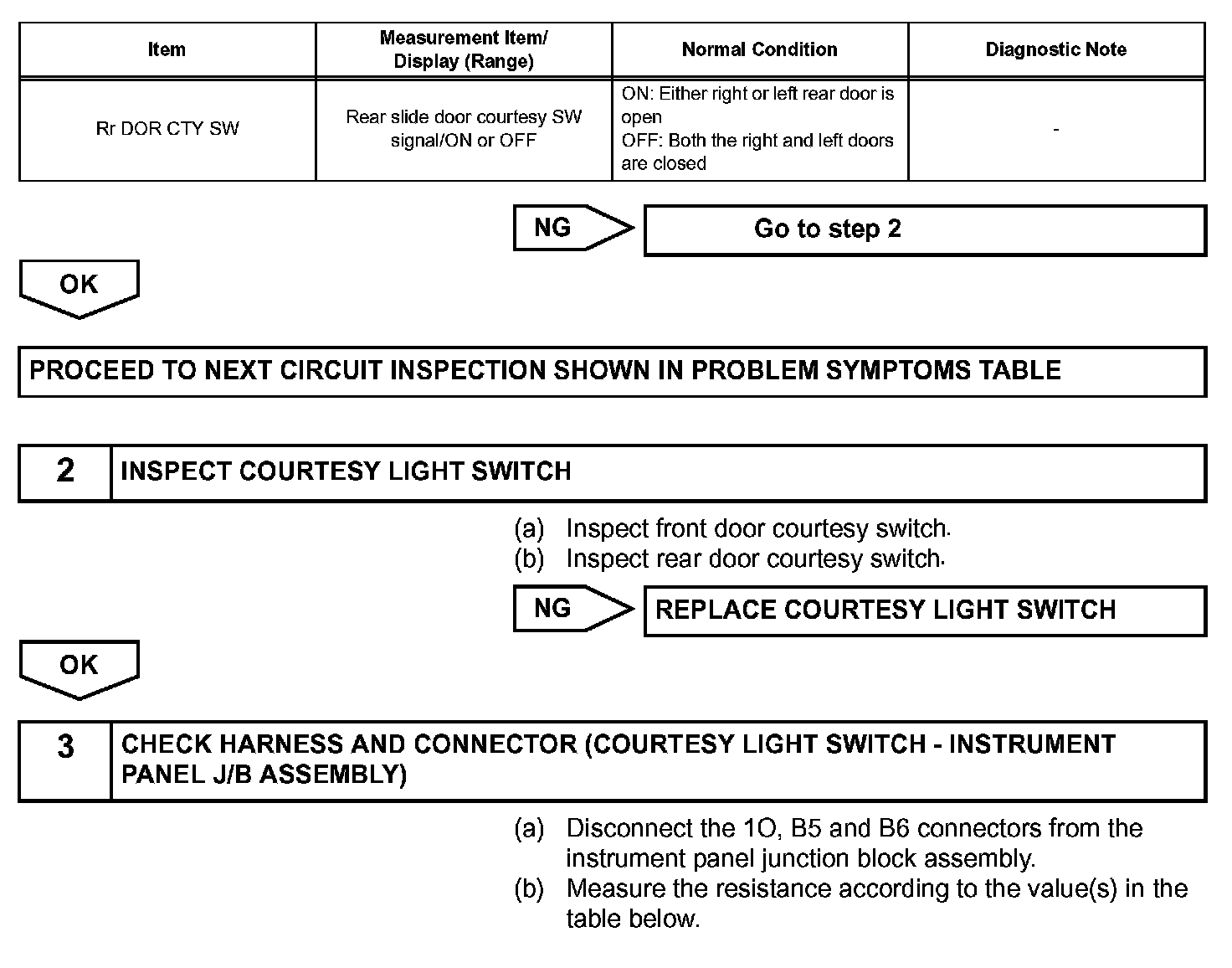

Step 1 (Continued)-3:

Step 3 (Continued):

INSPECTION PROCEDURE
