Headlight Relay Circuit
Headlight Relay CircuitDESCRIPTION
The body ECU controls the headlight relays. The headlight relays installed in the power distributor.
System diagram of the power distributor.
System description of the power distributor.

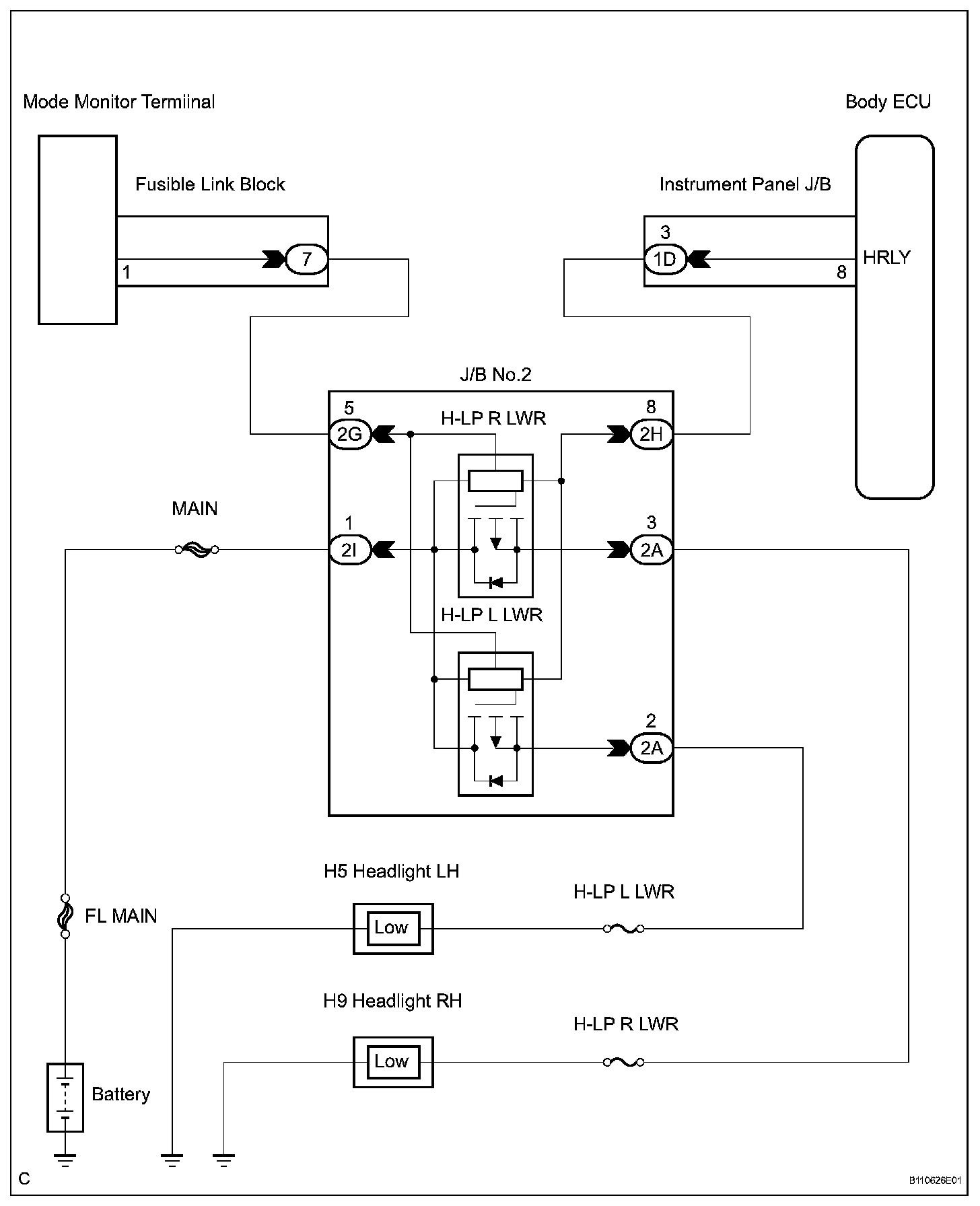

Wiring Diagram:

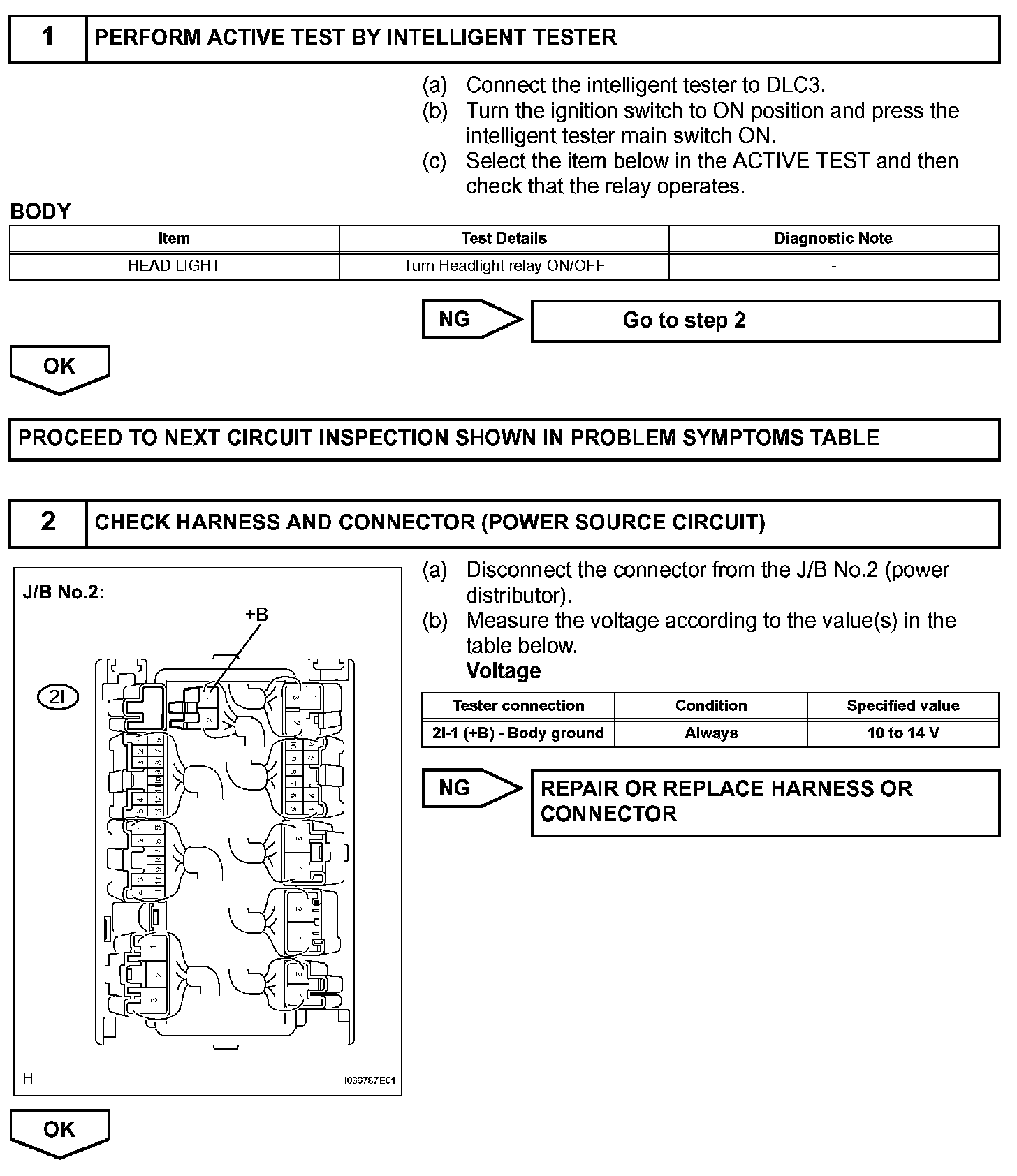

Step 1-2:

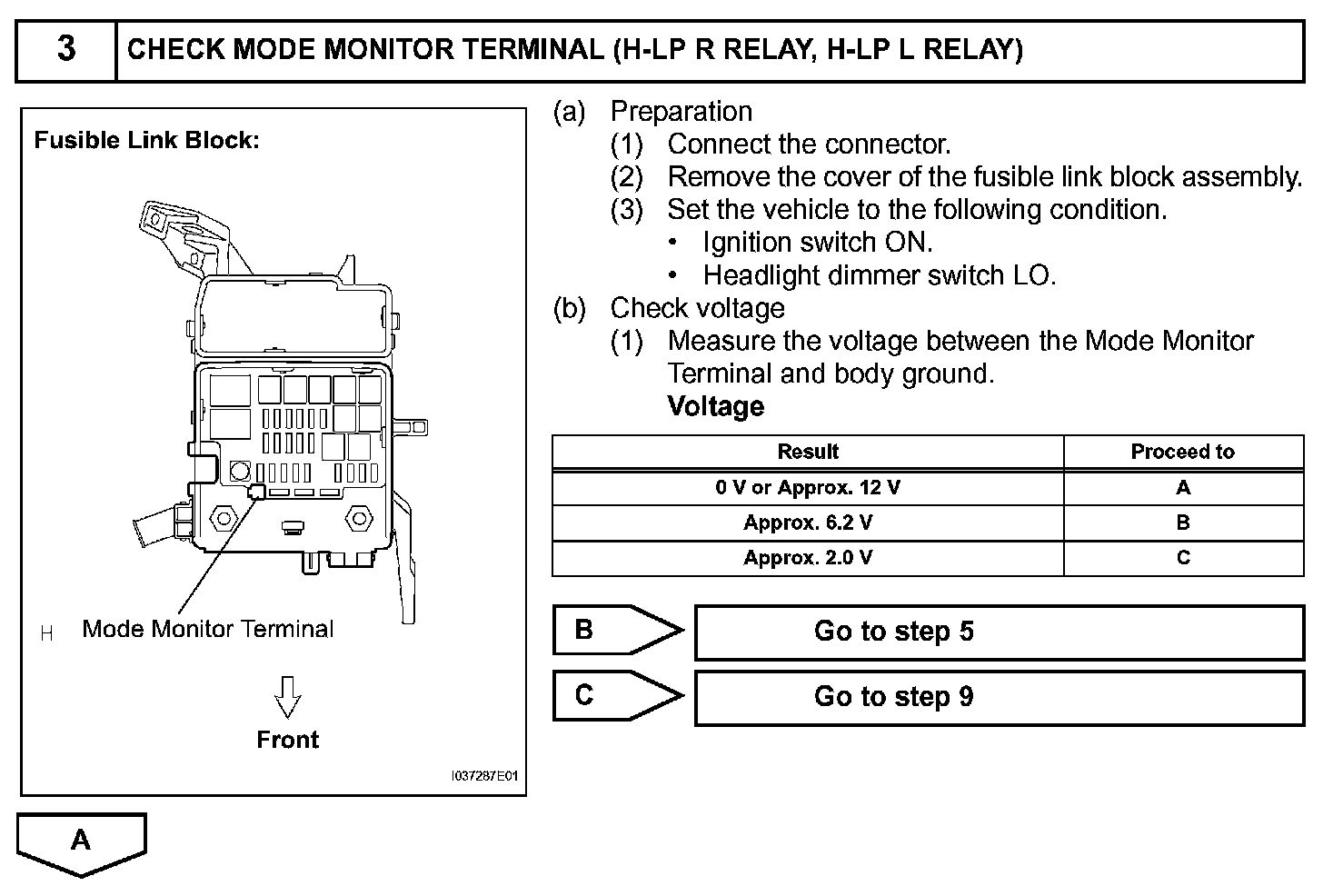

Step 3:

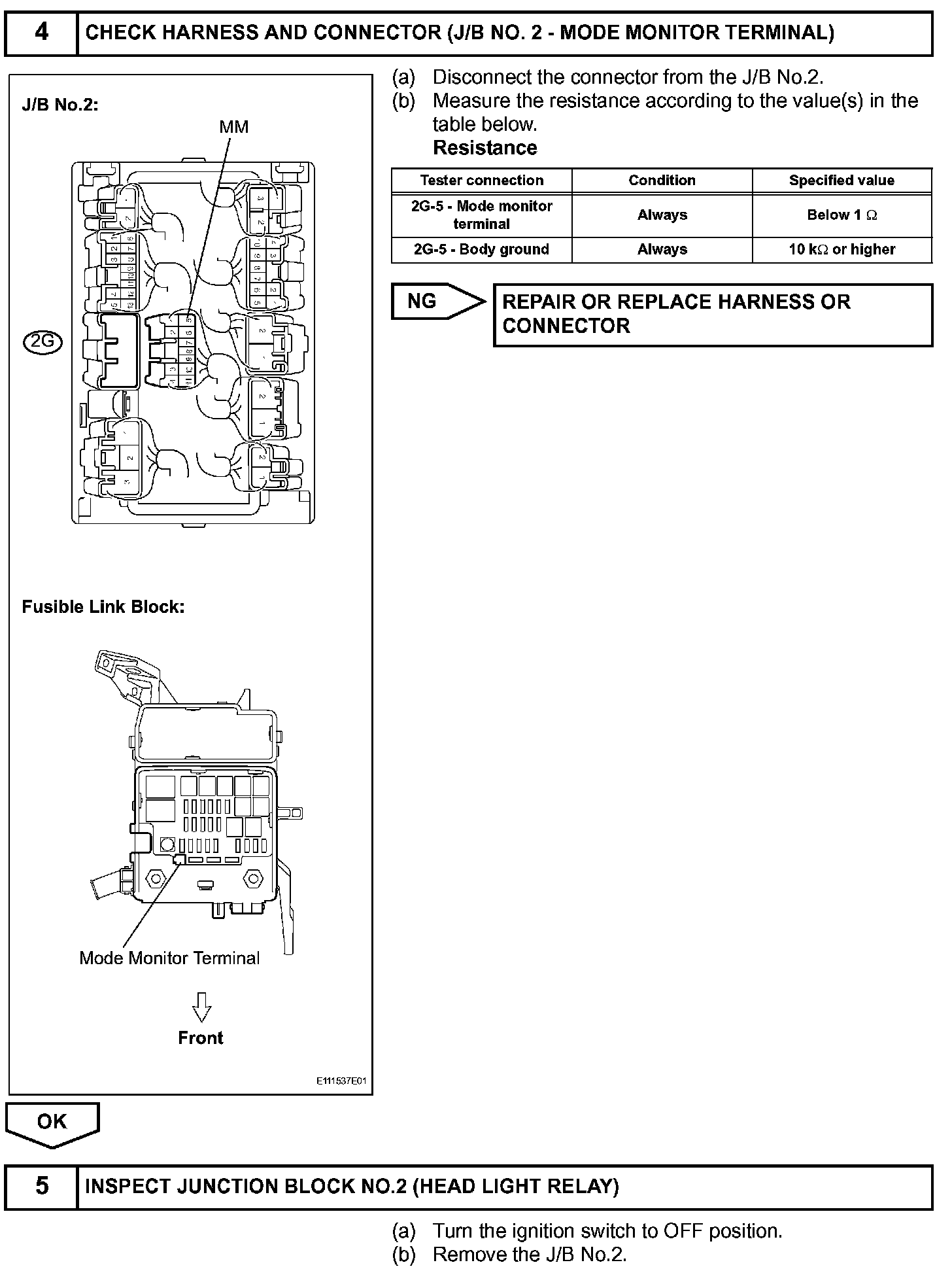

Step 4-5:

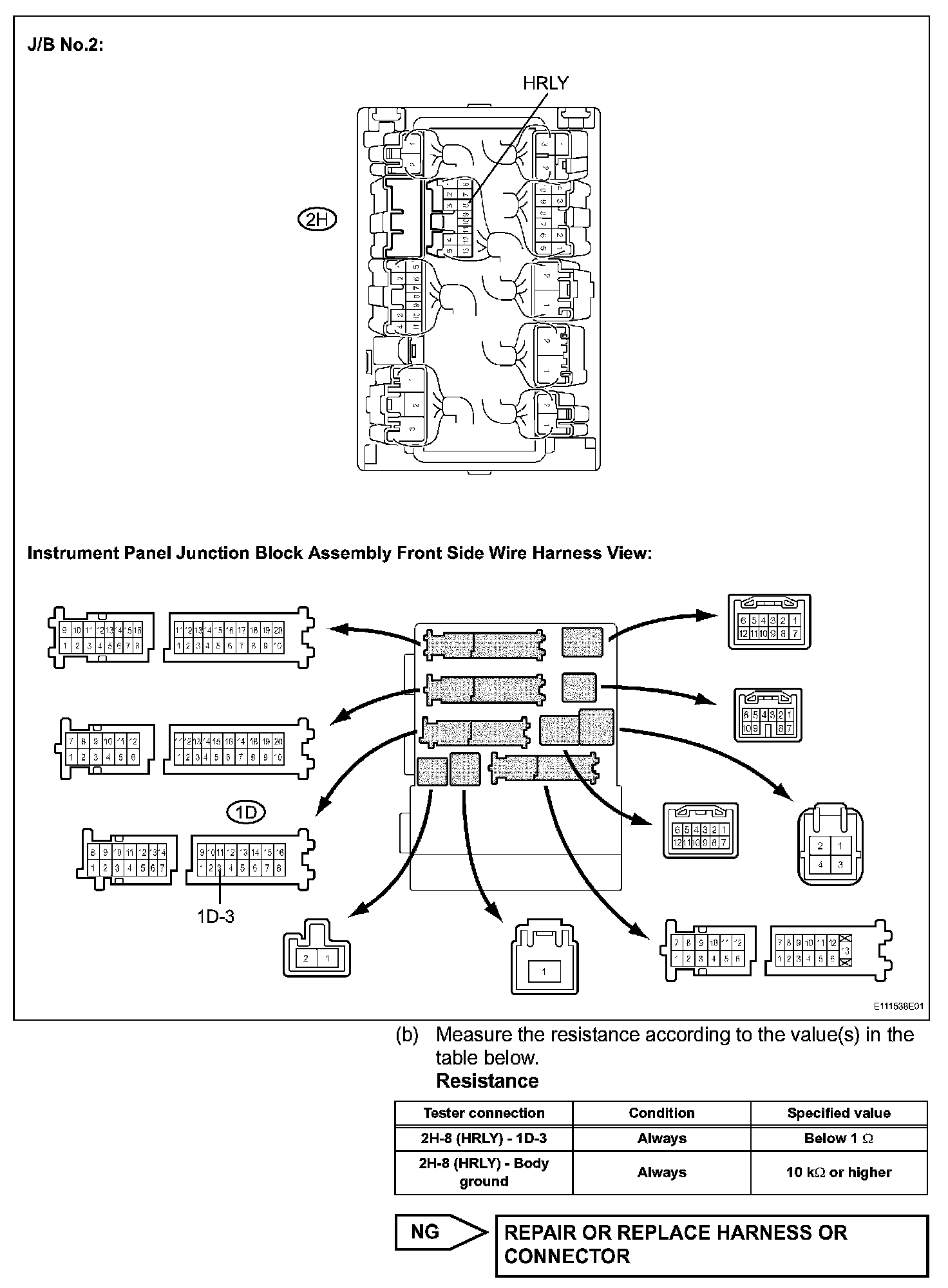

Step 5 (Continued):

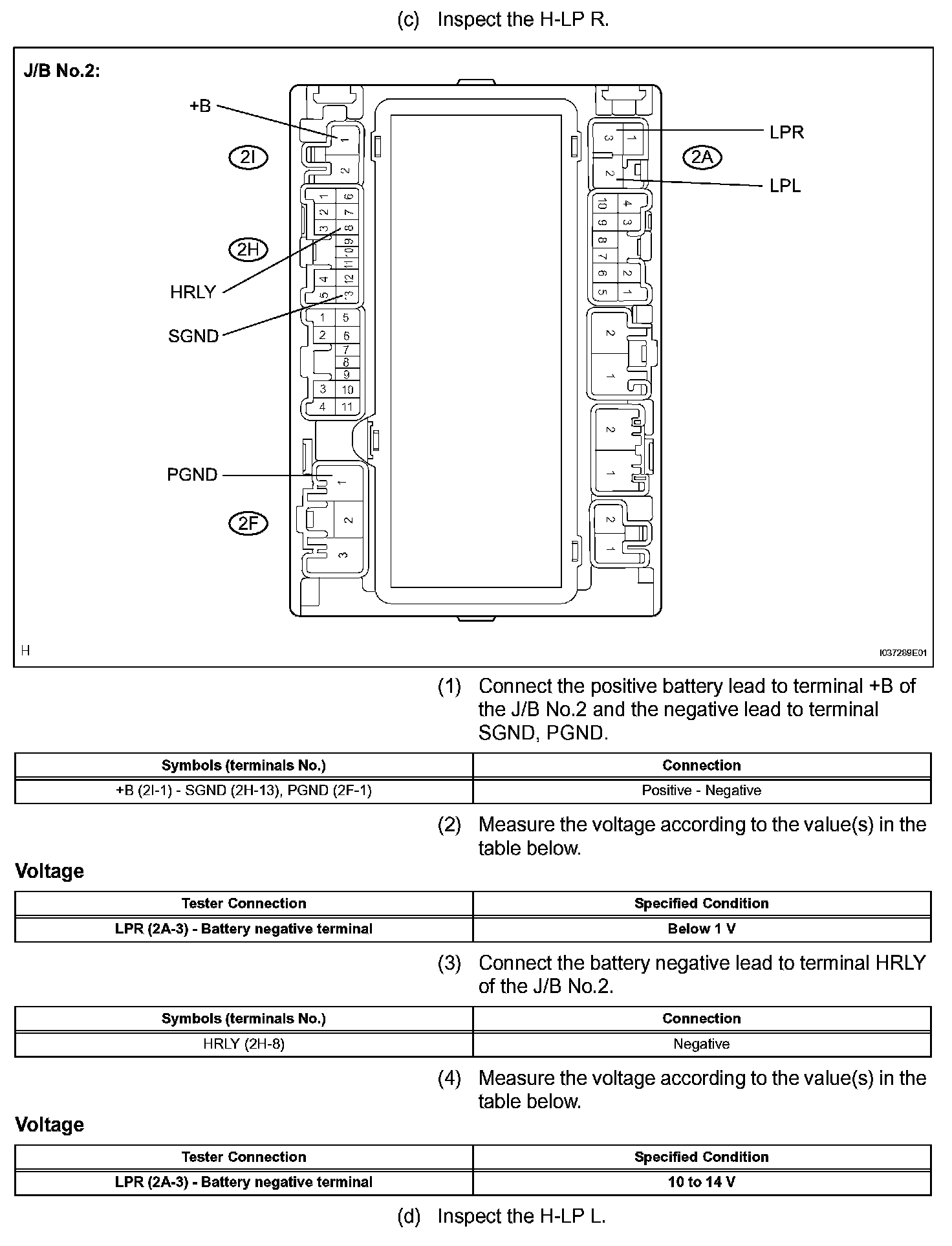

Step 5 (Continued)-6:
Step 6 (Continued):
Step 6 (Continued)-8:
Step 8 (Continued)-9:
INSPECTION PROCEDURE
