Inside Handle Illumination Light Circuit
Inside Handle Illumination Light CircuitDESCRIPTION
The body ECU receives information regarding the door lock position switch and ignition switch, and turns on each inside handle illumination. It also receives shift position information and controls the illumination.

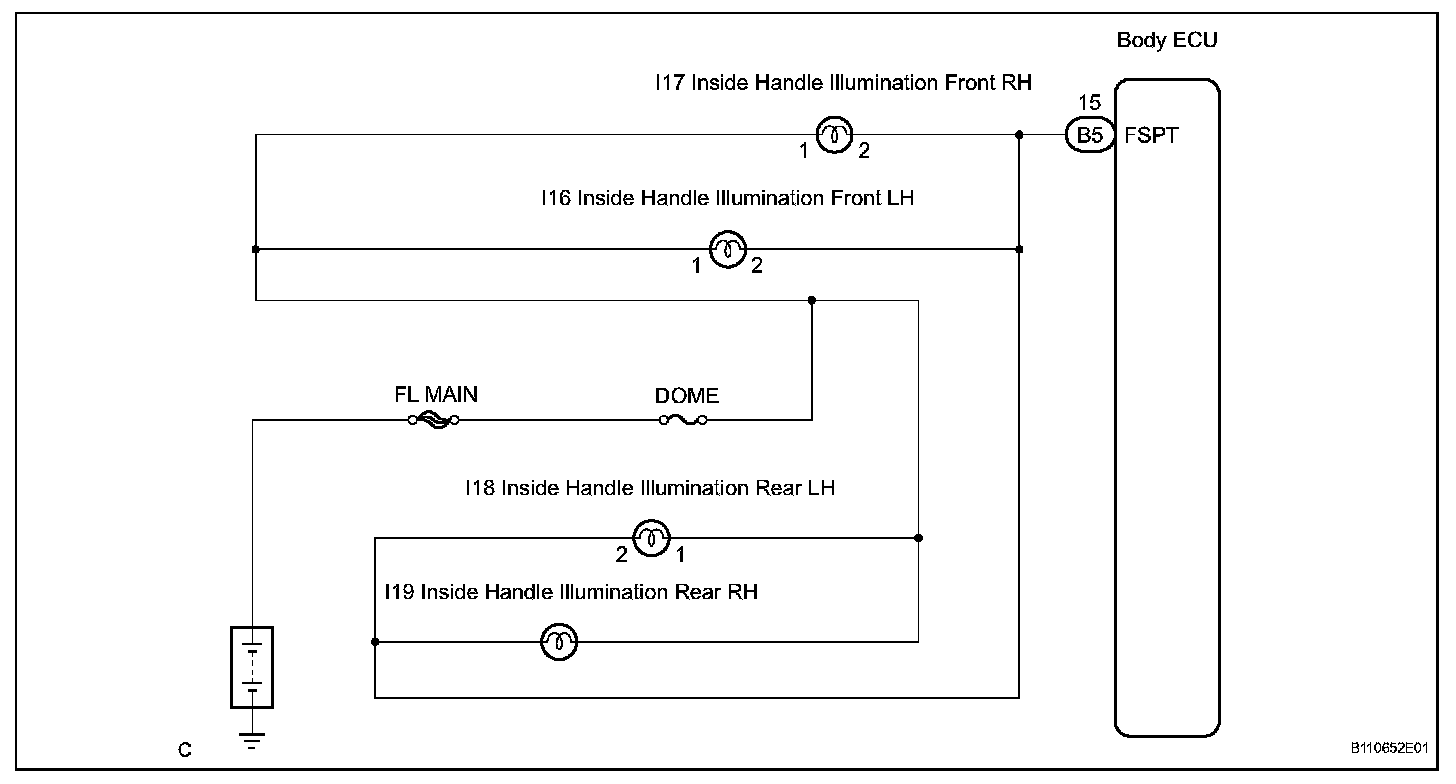

Wiring Diagram:

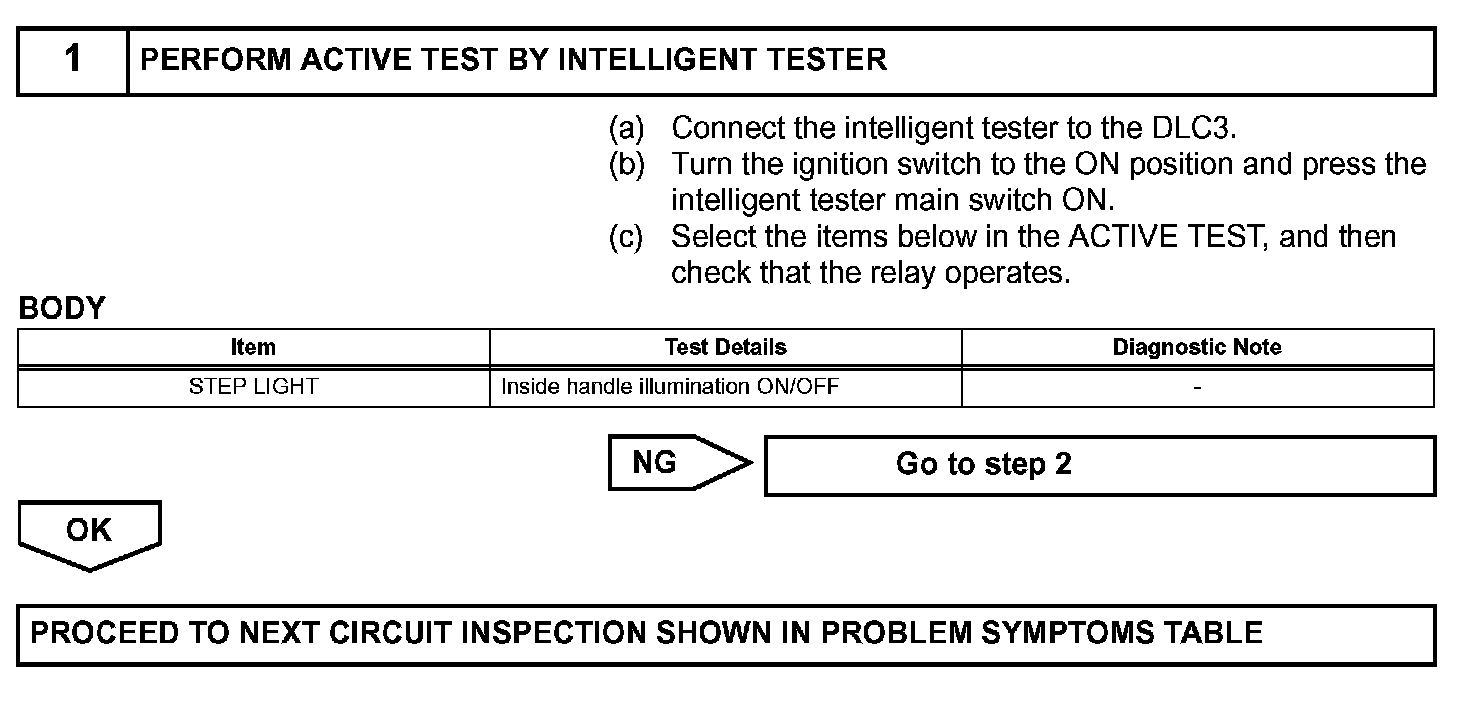

Step 1:

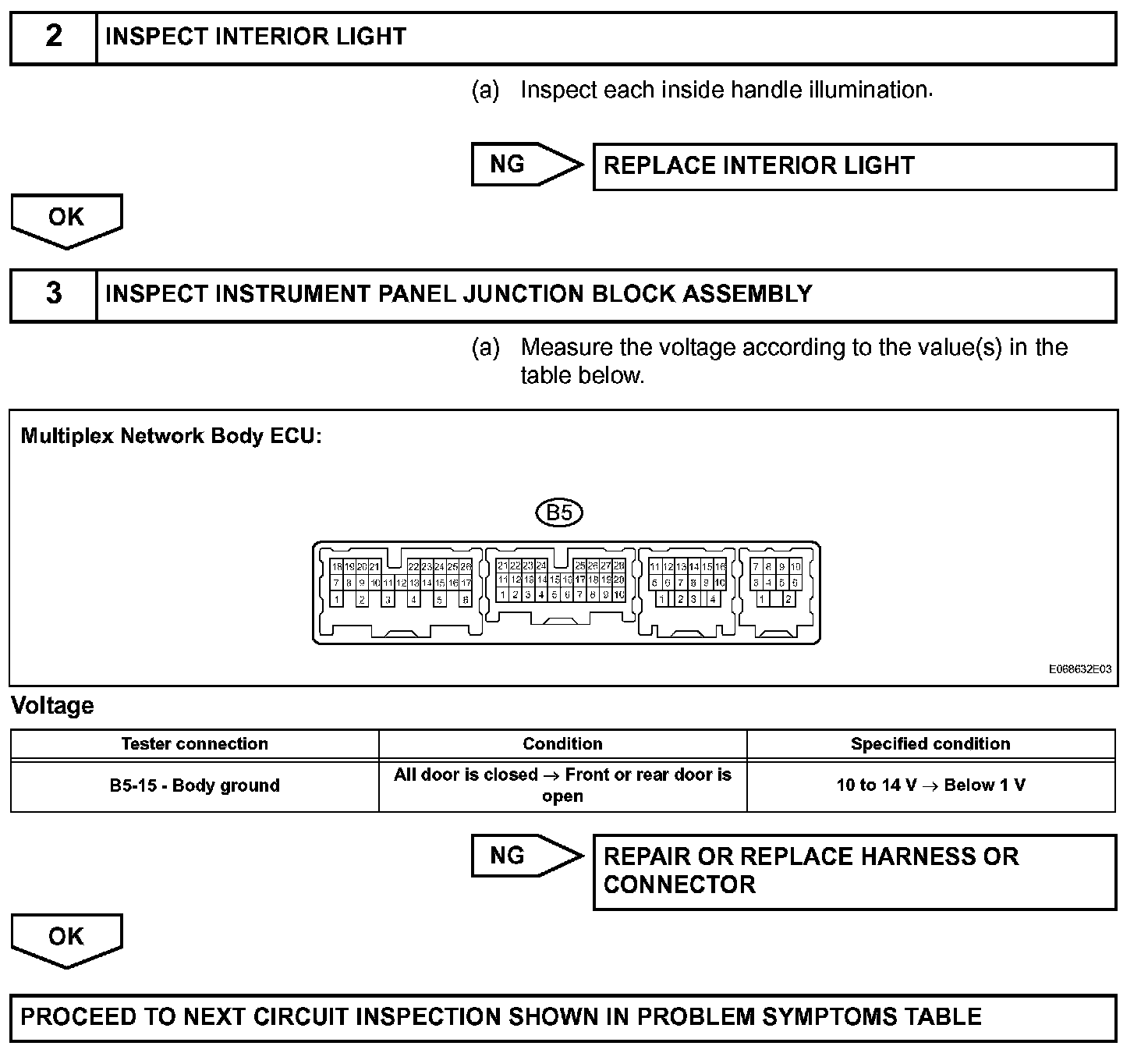

Step 2-3:
INSPECTION PROCEDURE
