Parking Brake Switch Circuit

Parking Brake Switch Circuit

DESCRIPTION

The Multiplex network body ECU receives the parking brake switch signal.

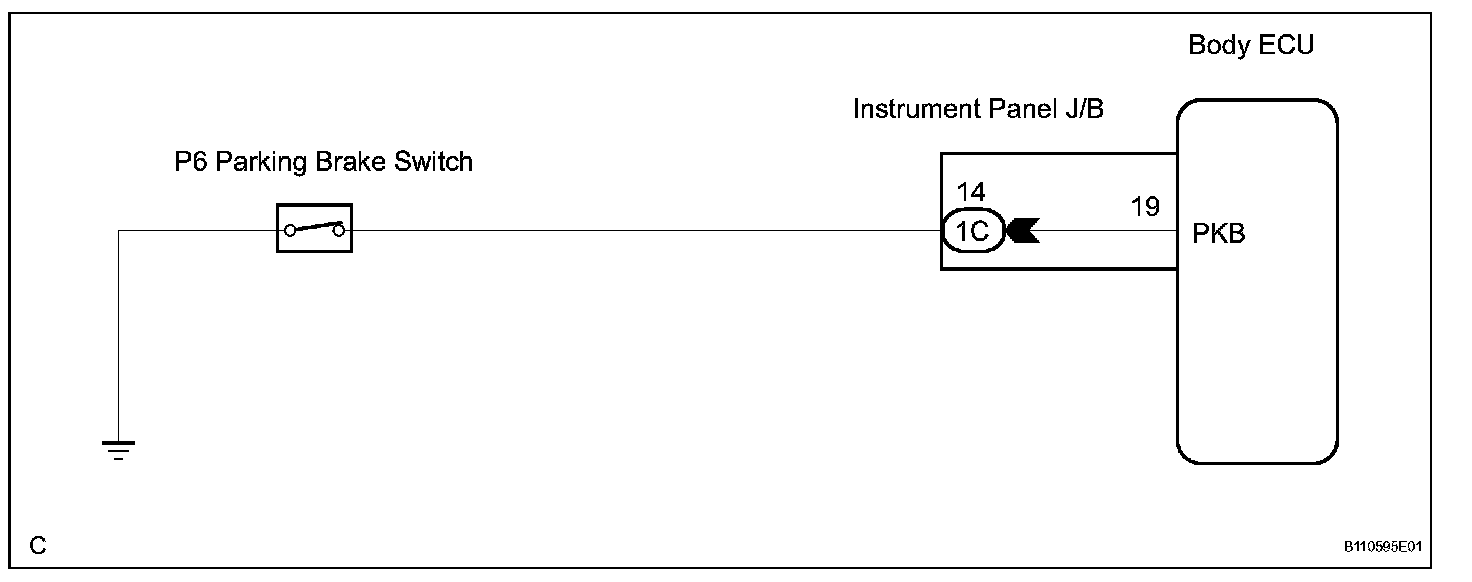

Wiring Diagram:

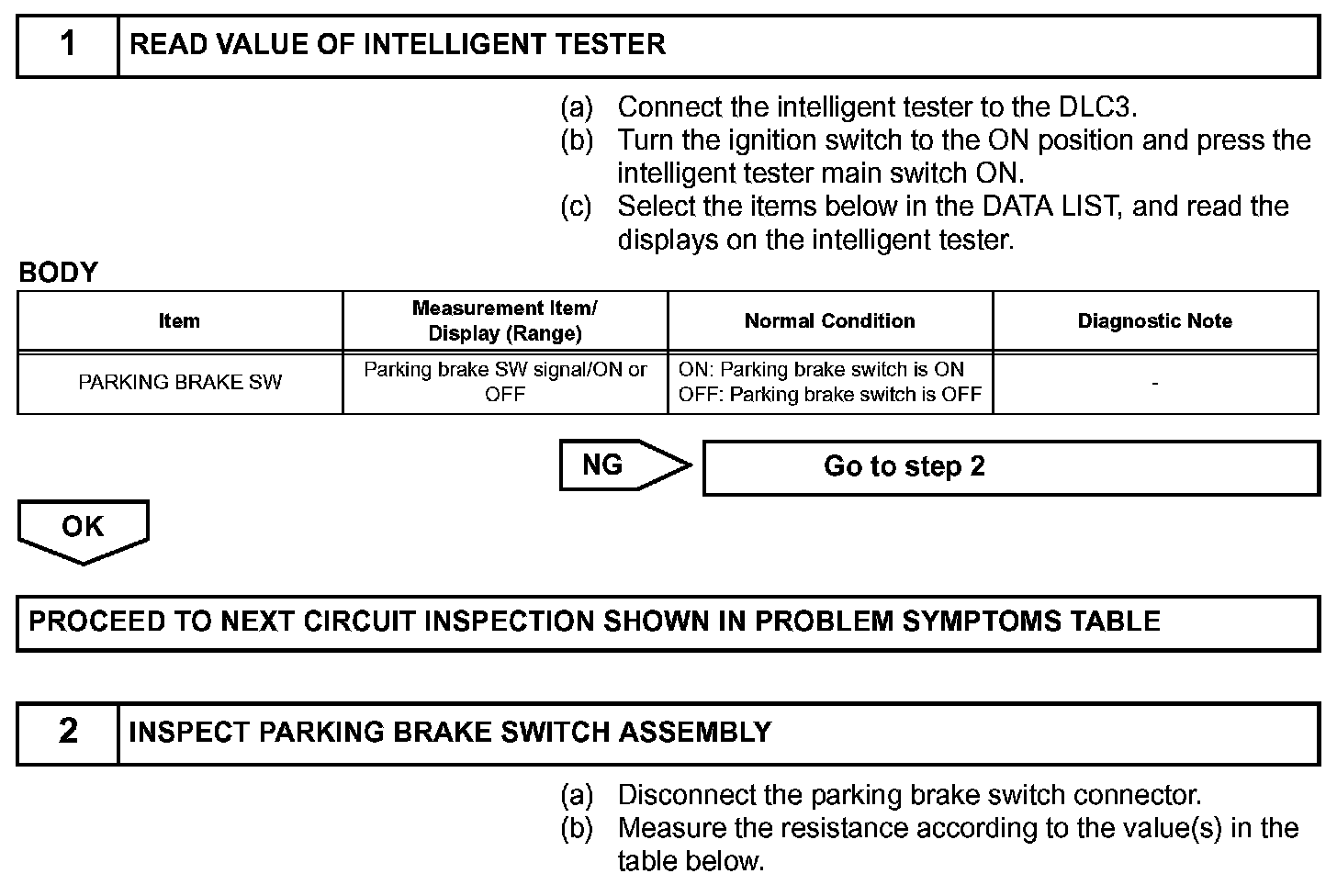

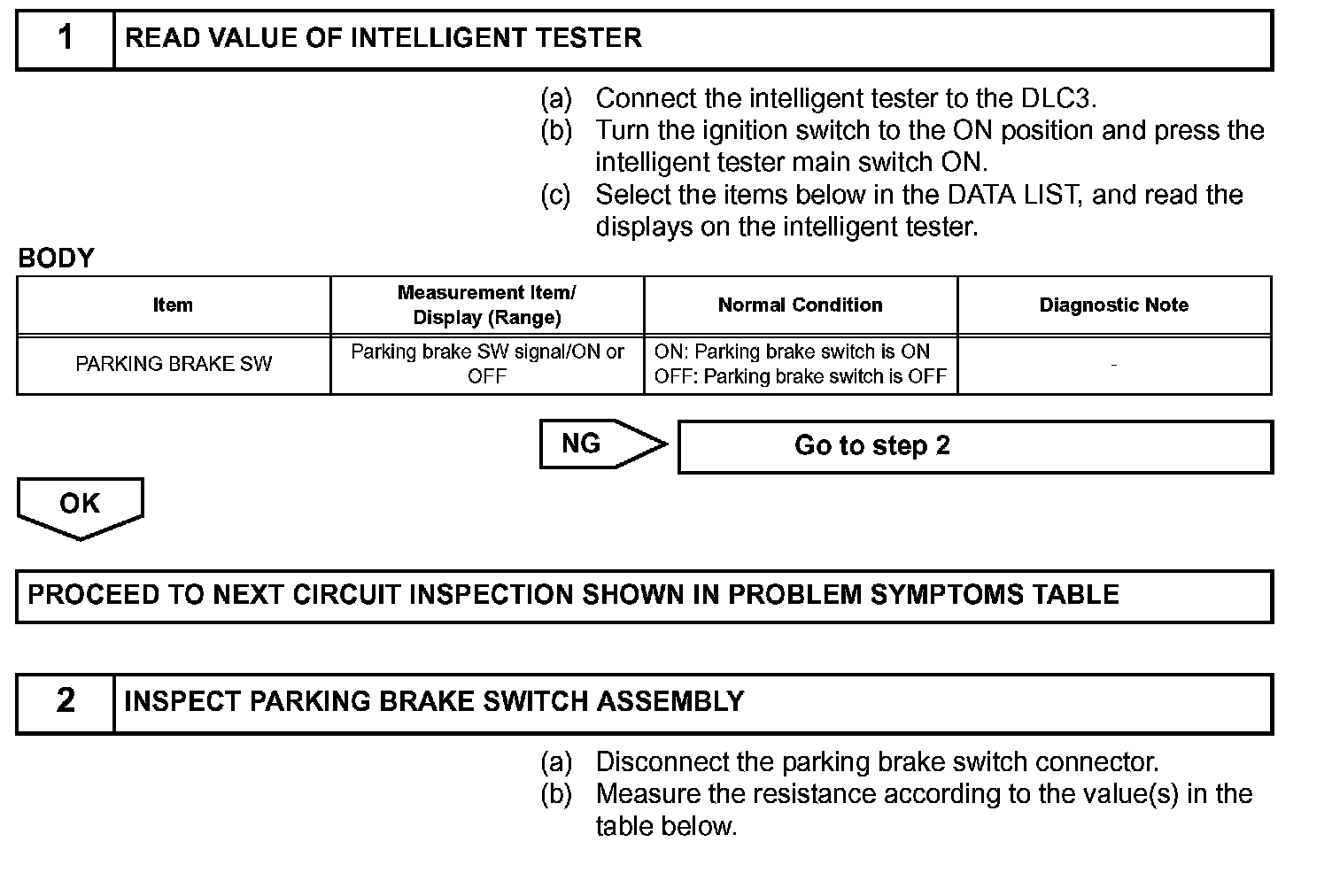

Step 1-2:

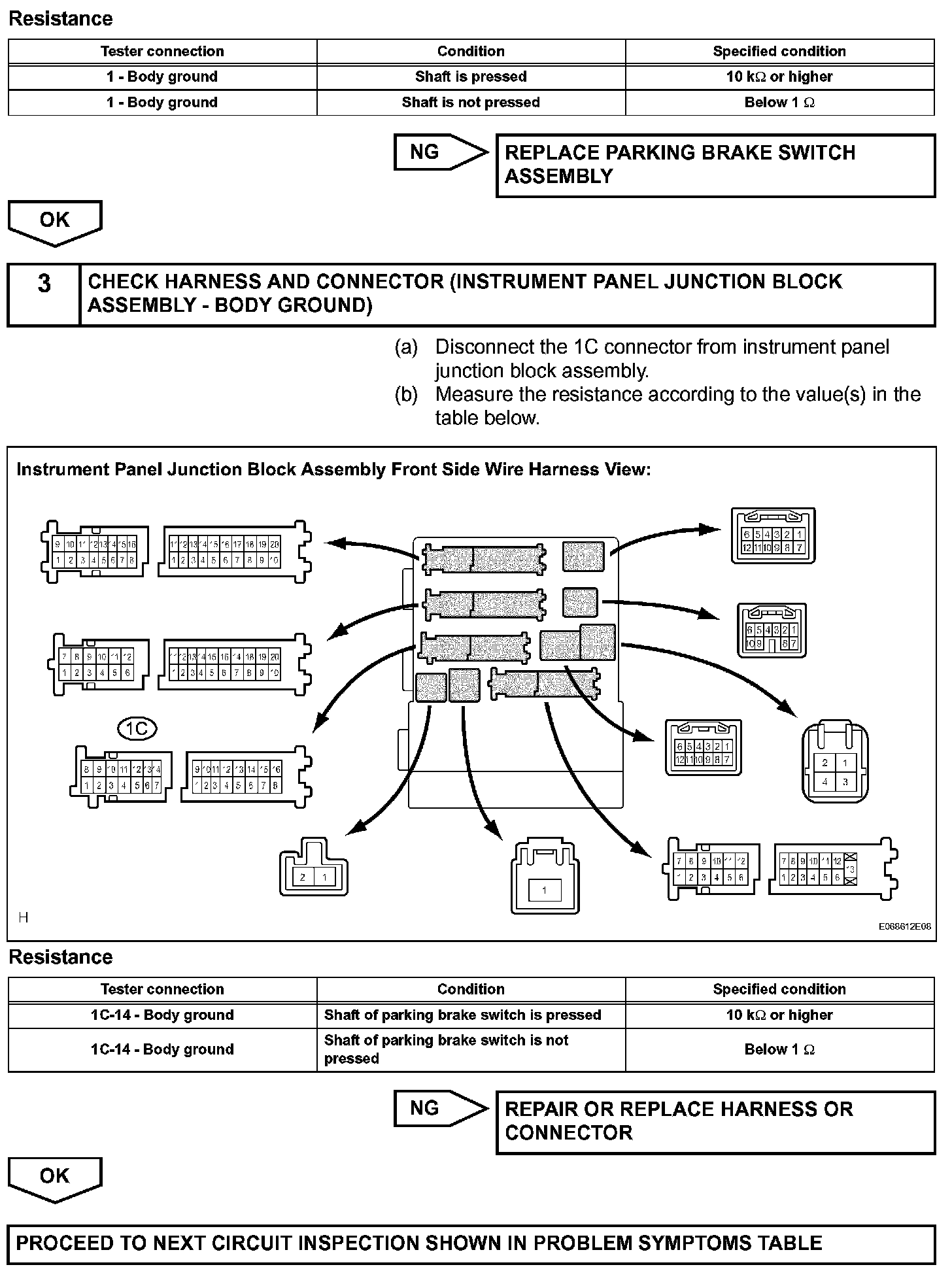

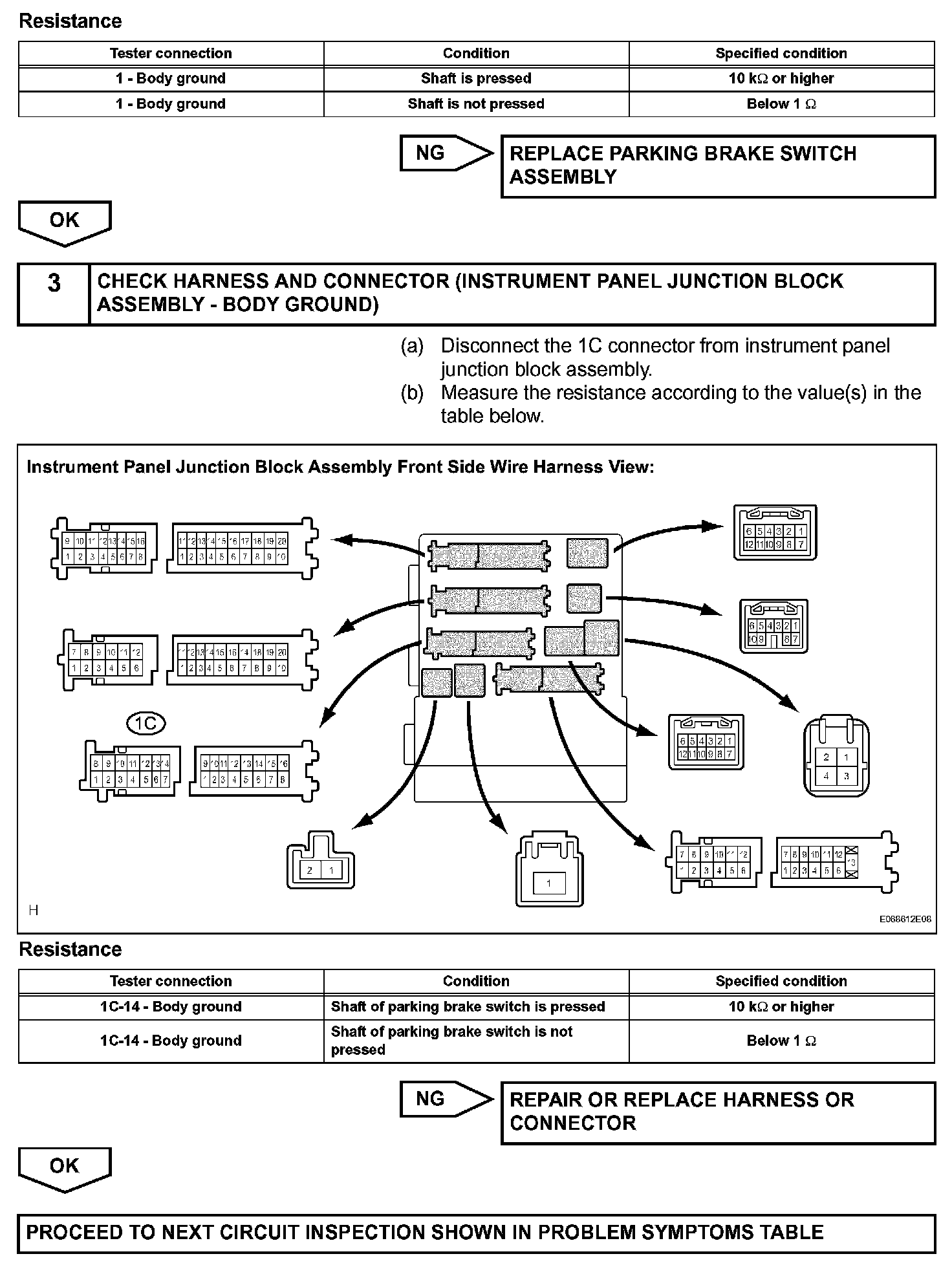

Step 2 (Continued)-3:

INSPECTION PROCEDURE
