Fail Safe Chart

FAIL-SAFE CHART




1. Light control ECU (HID)




2. Headlight Leveling ECU Assembly

HINT: The Headlight Leveling Control ECU performs fail-safe when detecting the following troubles.

Recovery condition: Ignition switch off or signal level error cancellation.

Part 1:

Part 2:

3. Headlight Swivel ECU Assembly

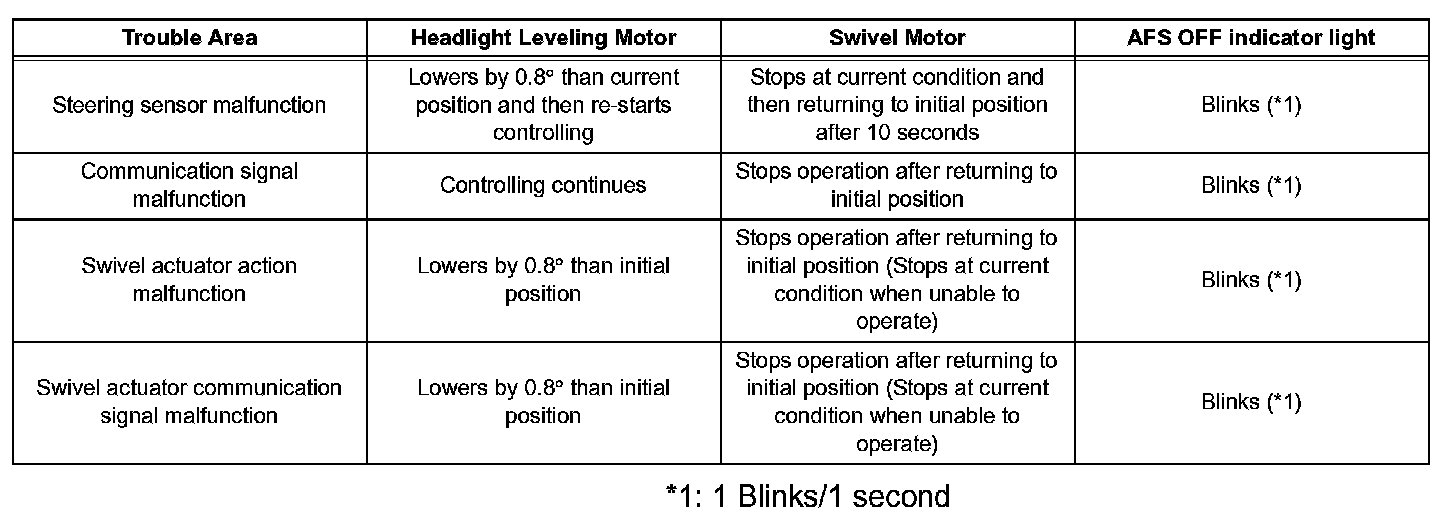

HINT: The Headlight Swivel ECU performs fail-safe when detecting the following troubles. The AFS OFF indicator light on the combination meter comes on at the same time.
