Front Wiper and Washer With Auto Wiper System

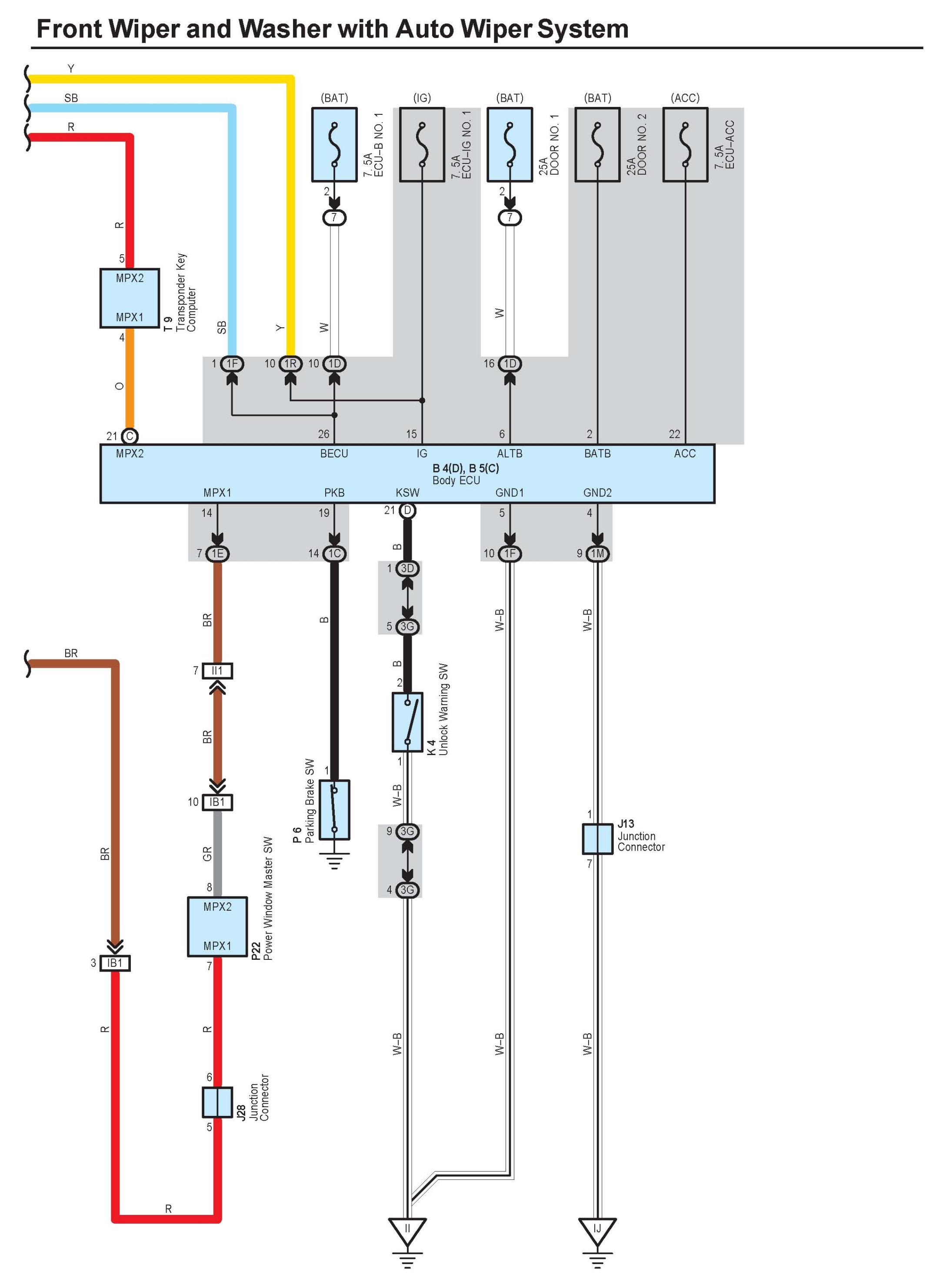

Front Wiper And Washer With Auto Wiper System Part 1:

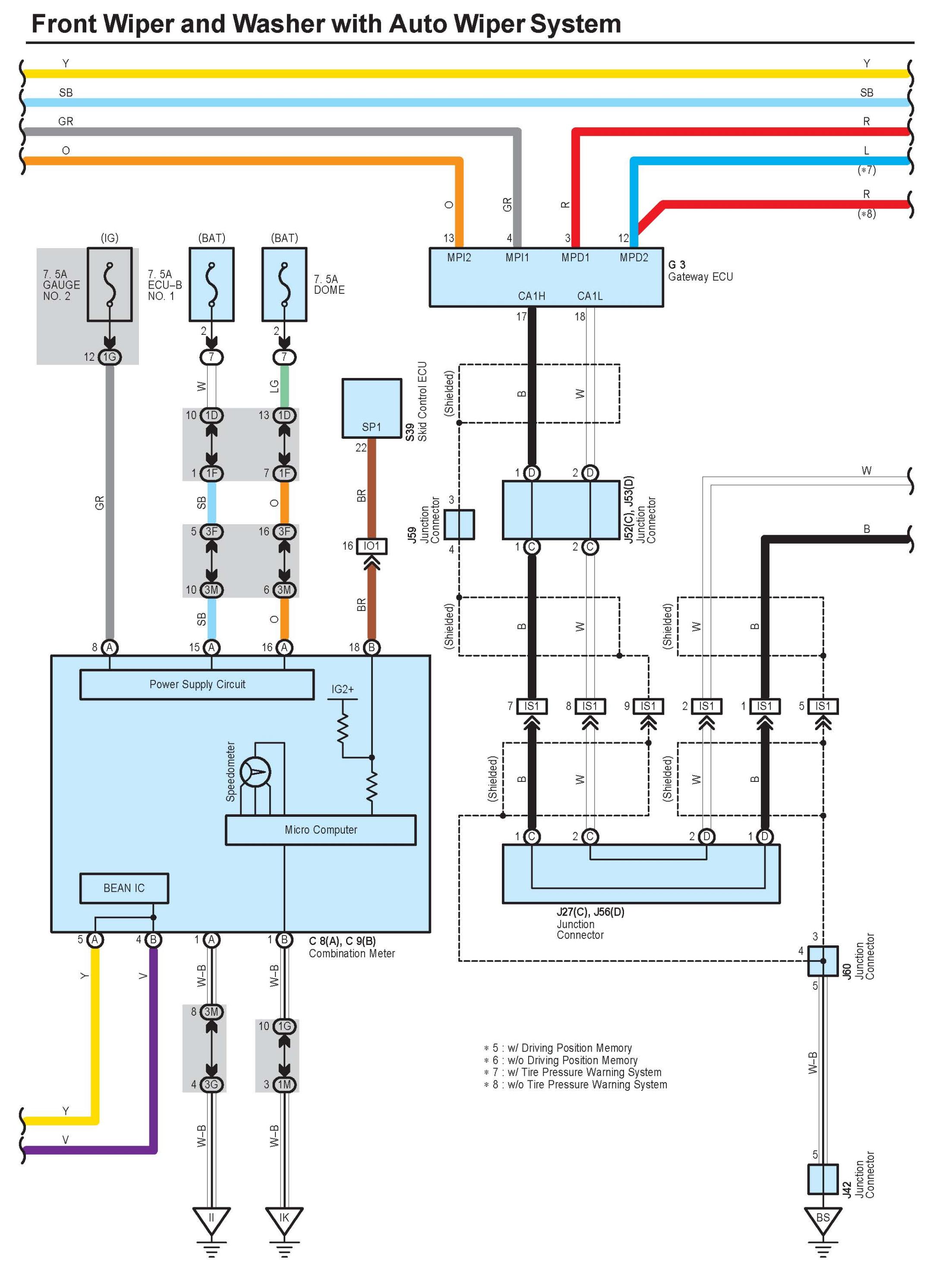

Front Wiper And Washer With Auto Wiper System Part 2:

Front Wiper And Washer With Auto Wiper System Part 3:

Front Wiper And Washer With Auto Wiper System Part 4:

Front Wiper And Washer With Auto Wiper System Part 5:

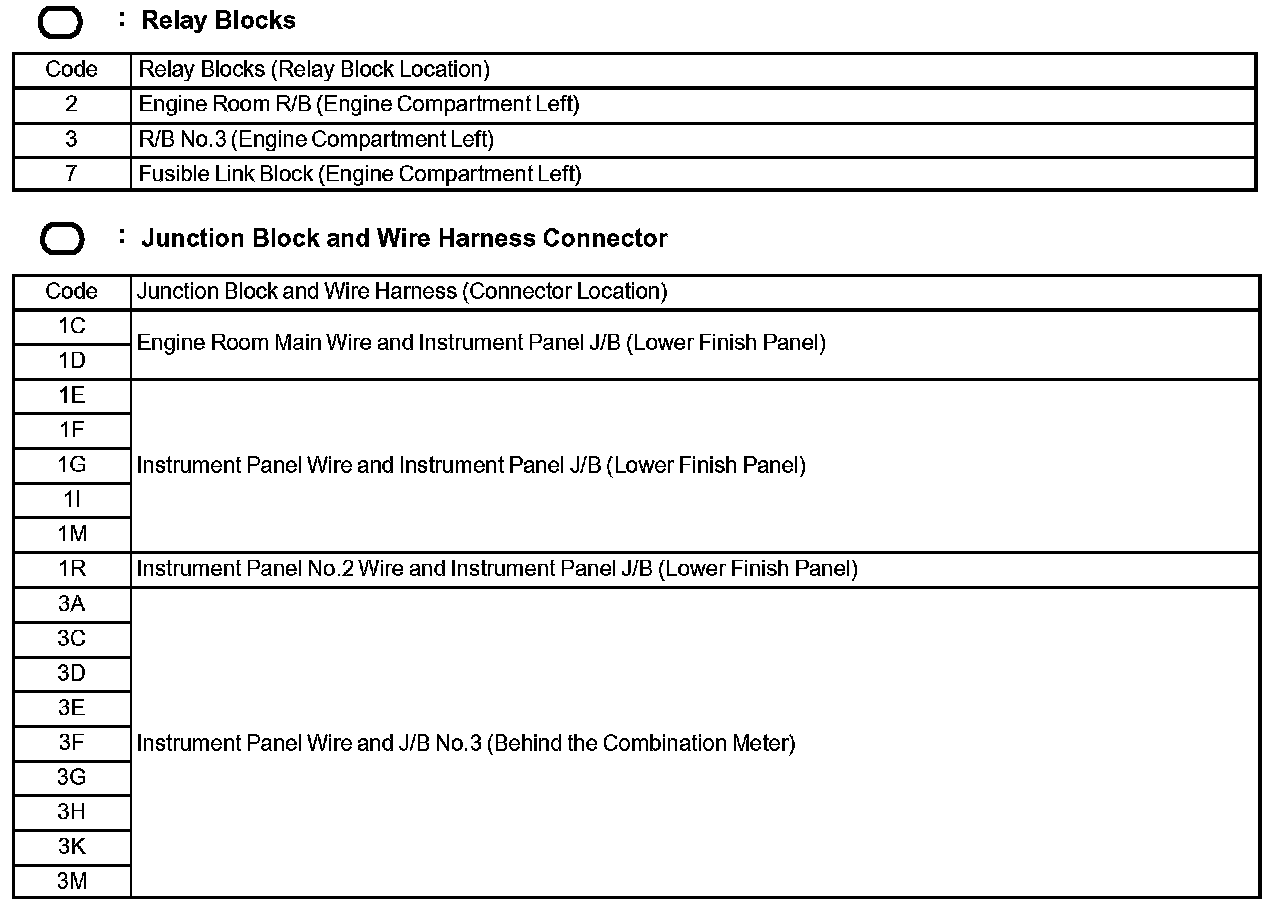

Diagram Legend Part 1:

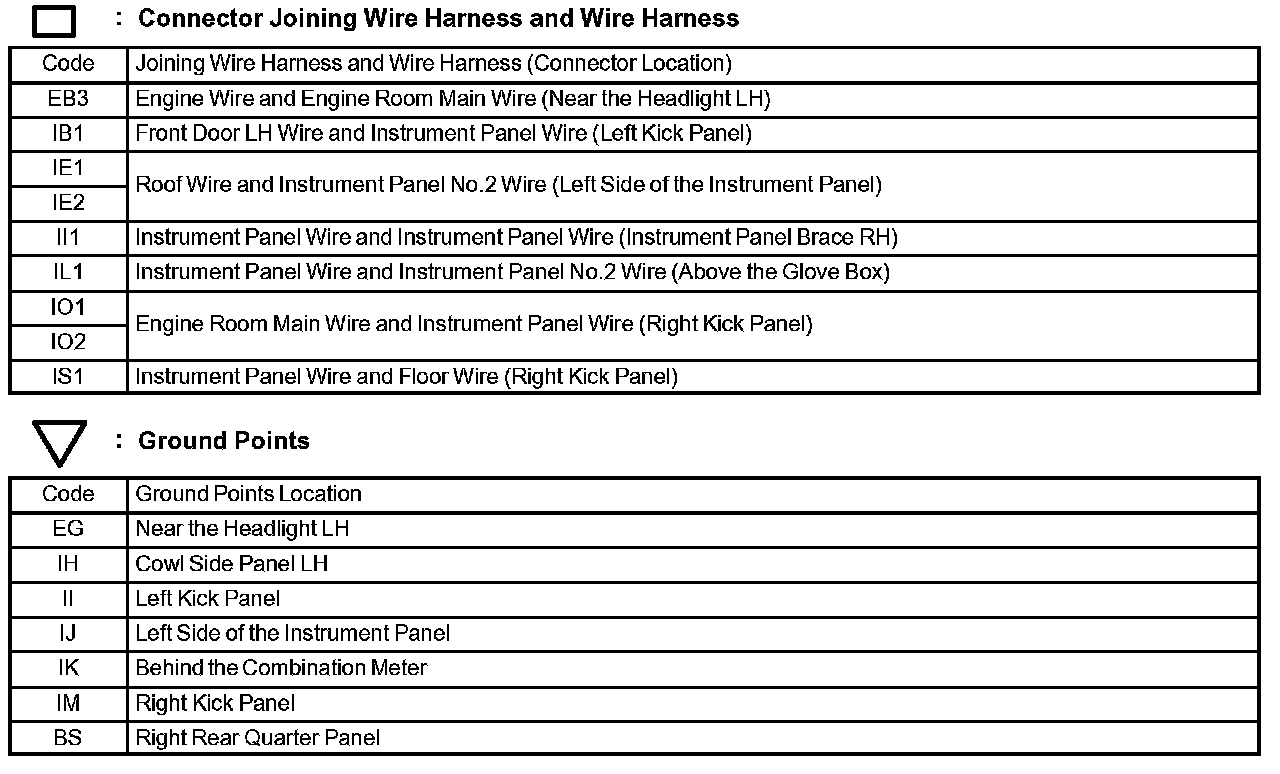

Diagram Legend Part 2:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
