Front Wiper Motor Circuit

Front Wiper Motor Circuit

DESCRIPTION

The windshield wiper relay assembly controls the front wiper motor.

Even if the windshield wiper relay assembly is in failure, its circuit structure enables operation of the front wiper.

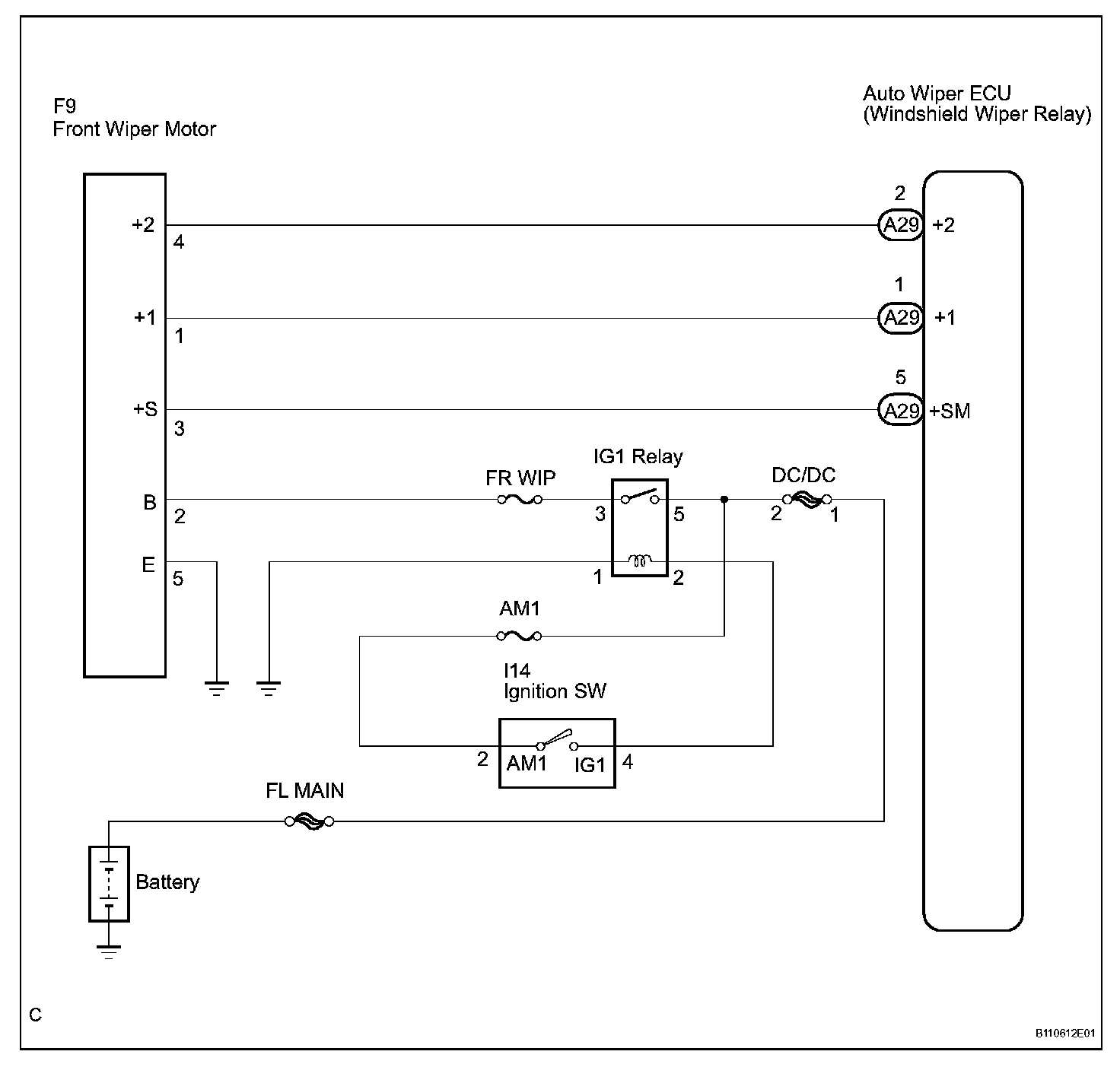

Wiring Diagram:

Step 1-3:

Step 3 (Continued)-4:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 when using the intelligent tester, and start from step 2 when not using the intelligent tester.
