Headlight Cleaner Switch Circuit

Headlight Cleaner Switch Circuit

DESCRIPTION

This circuit sends the signal for the headlight cleaner control relay to operate the headlight cleaner motor and pump assembly. The signal is send when the headlight cleaner switch or the front washer switch is turned ON.

The headlight cleaner does not work while the multiplex network body computer sends the signal that the daytime running light system is in operation.

Wiring Diagram:

Step 1-3:

Step 4-5:

Step 5 (Continued)-7:

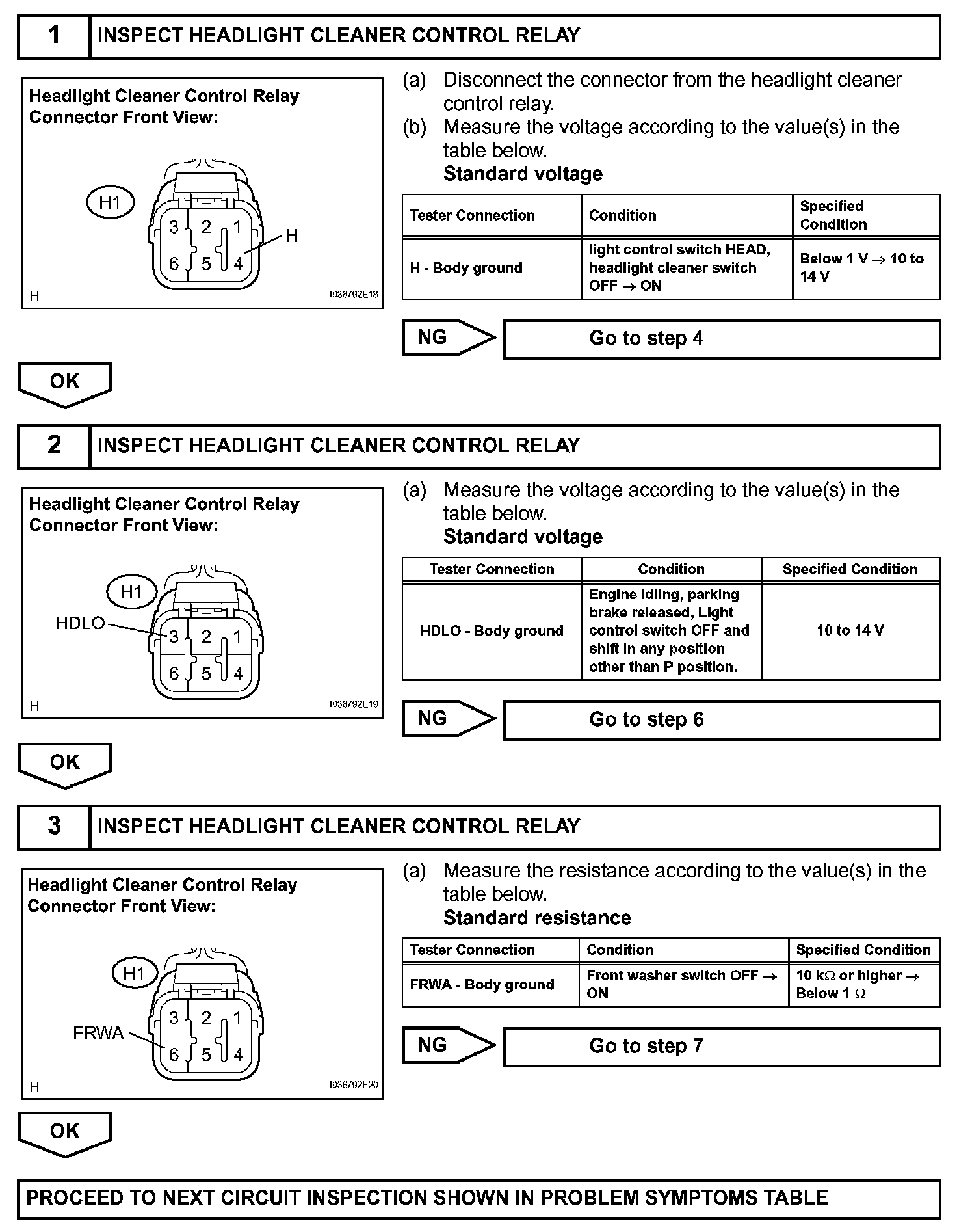

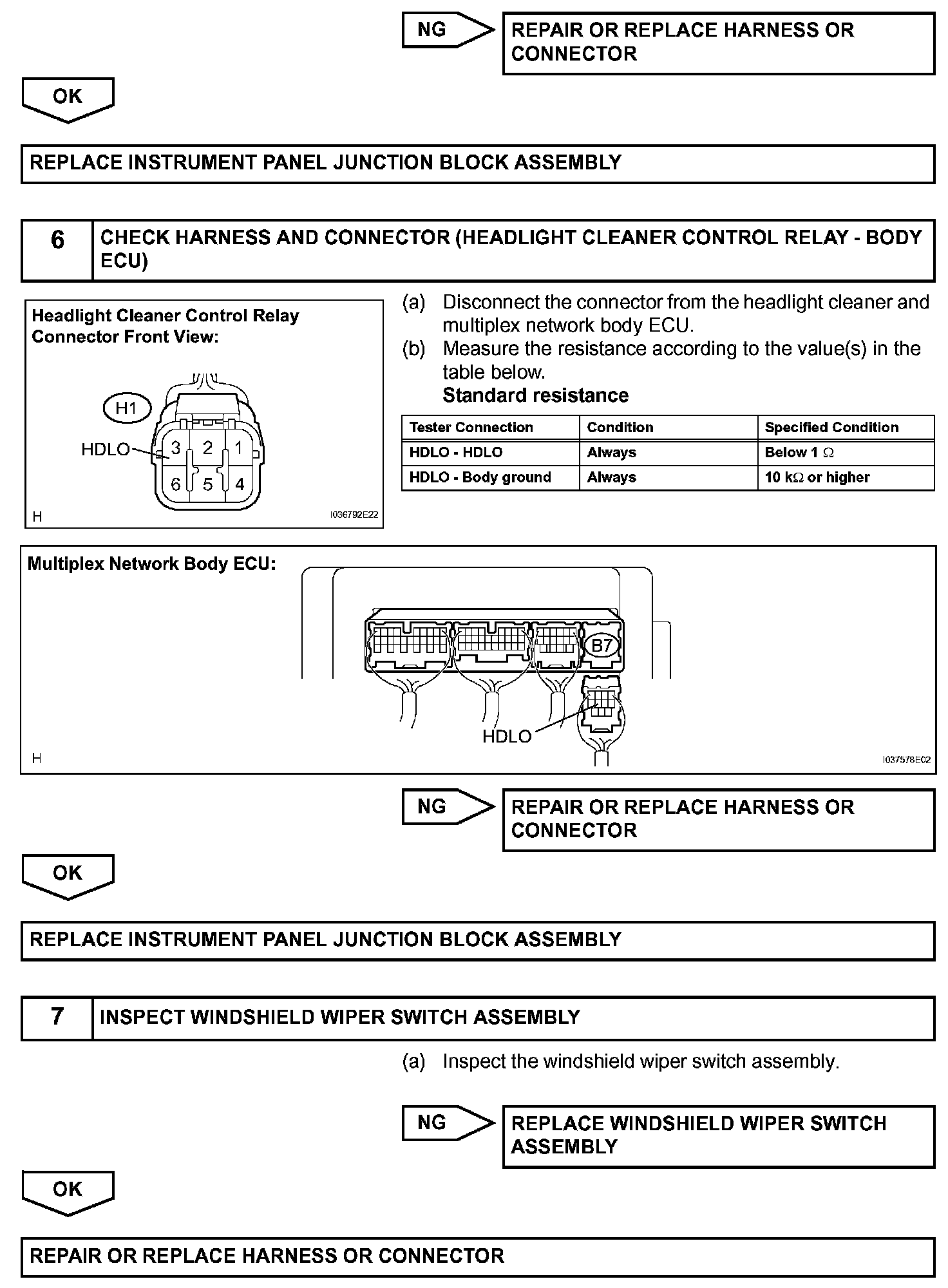

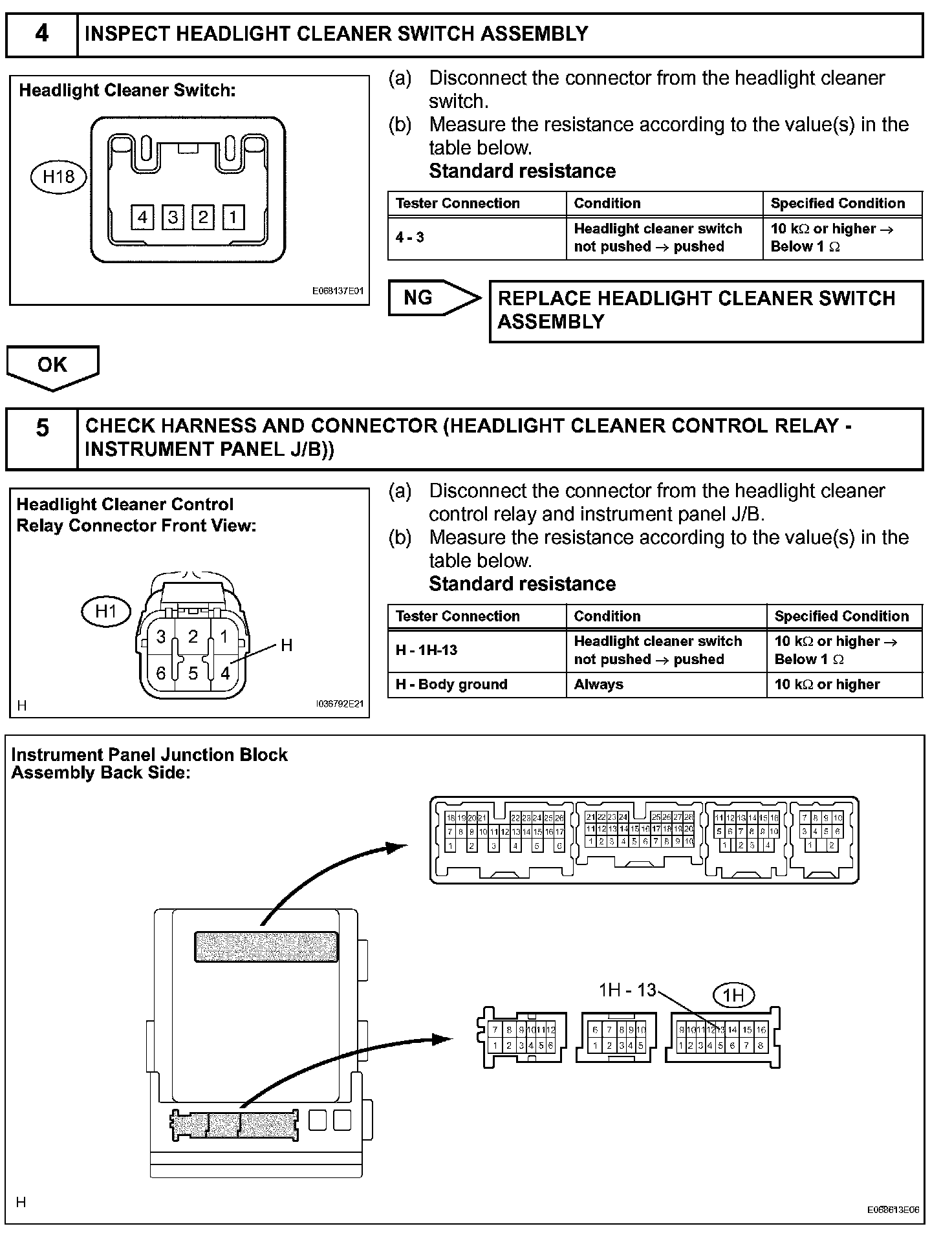

INSPECTION PROCEDURE
