Wiper and Washer Switch Circuit

Wiper and Washer Switch Circuit

DESCRIPTION

This circuit detects the state of the wiper and washer switch and sends it to the windshield wiper relay assembly.

Wiring Diagram:

Step 1-2:

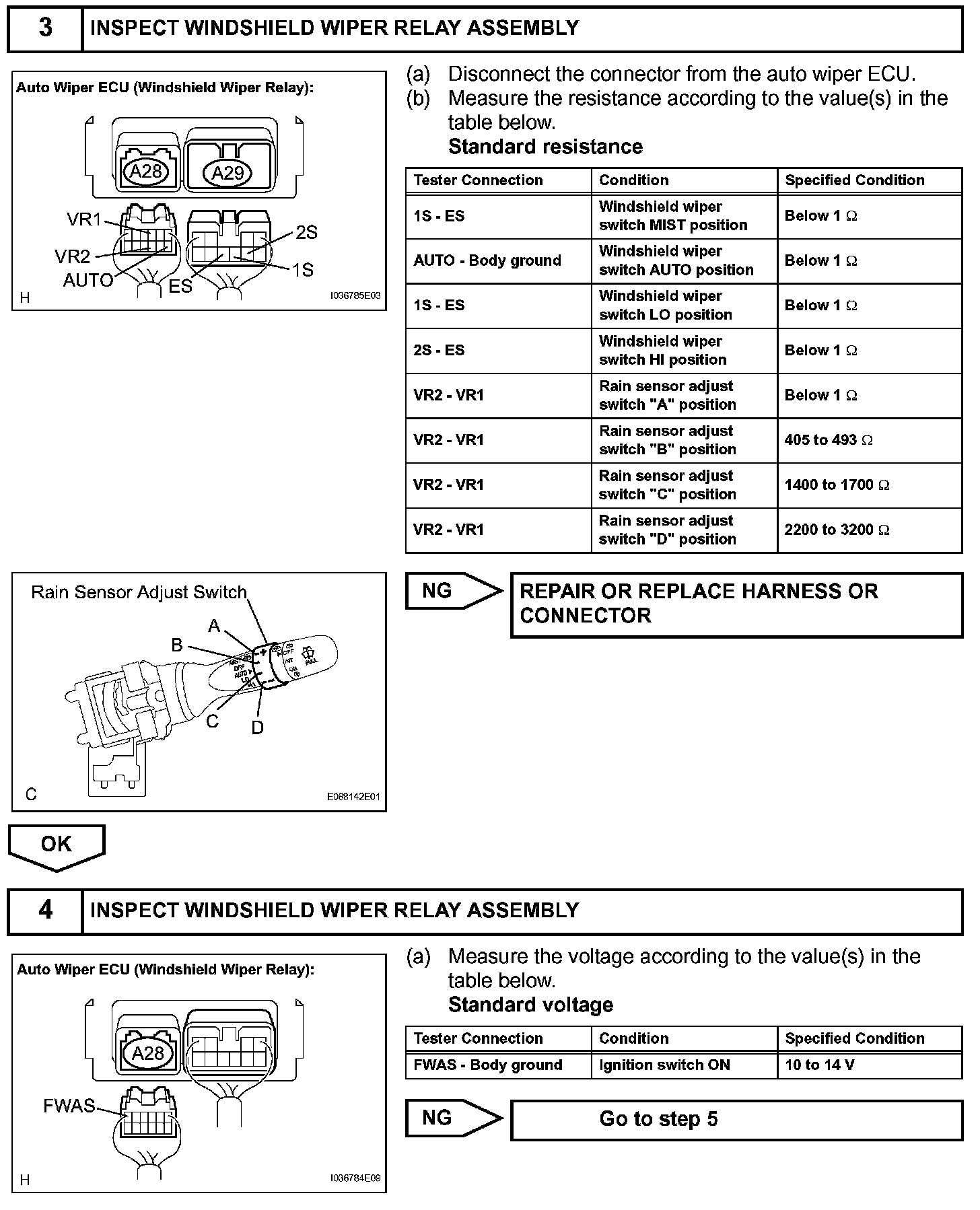

Step 3-4:

Step 4 (Continued)-5:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 when using the intelligent tester, and start from step 2 when not using the intelligent tester.
