Pinout Values and Diagnostic Parameters

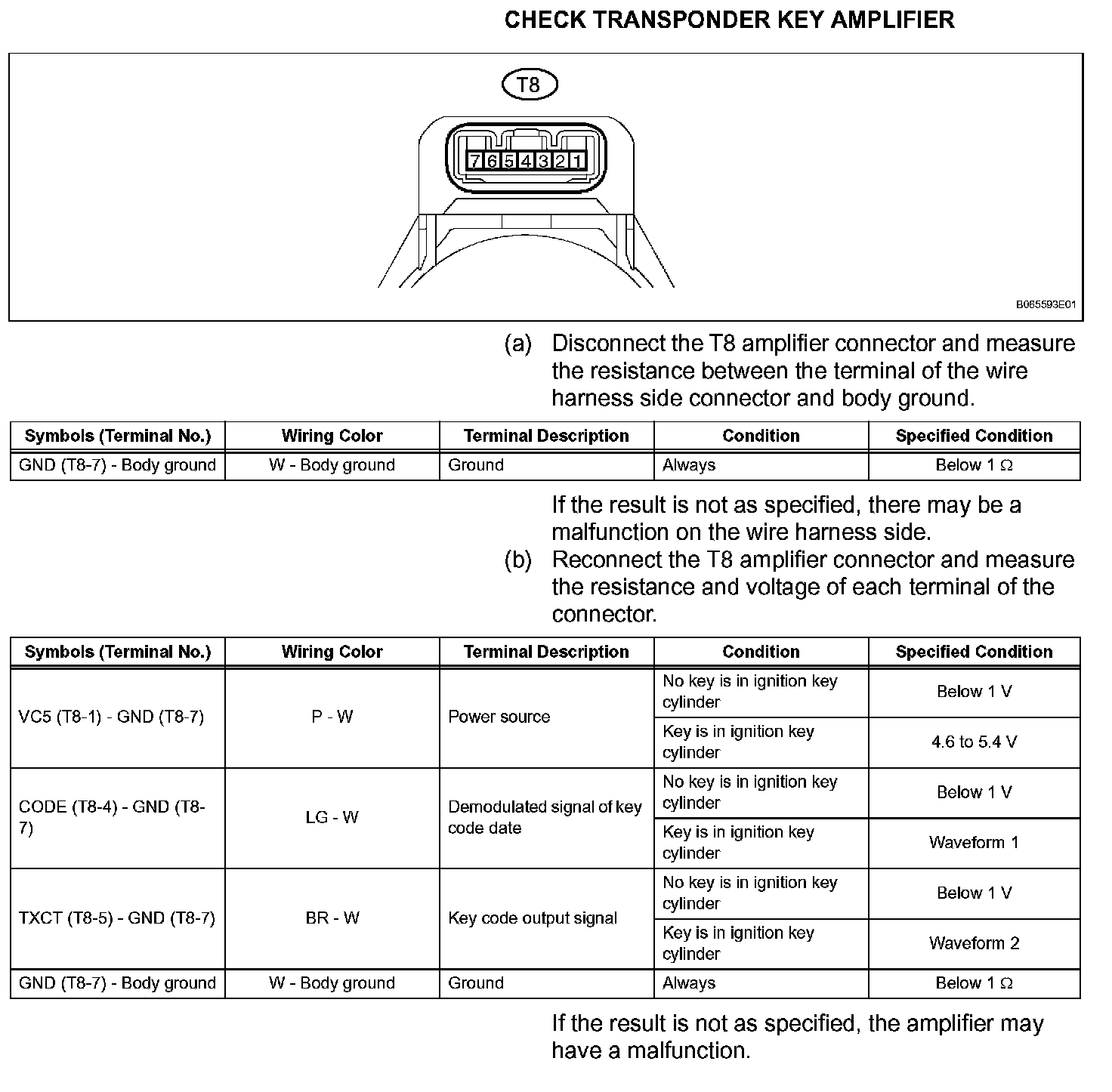

Terminals Of Control Module/Pinouts - Check Transponder Key Amplifier:

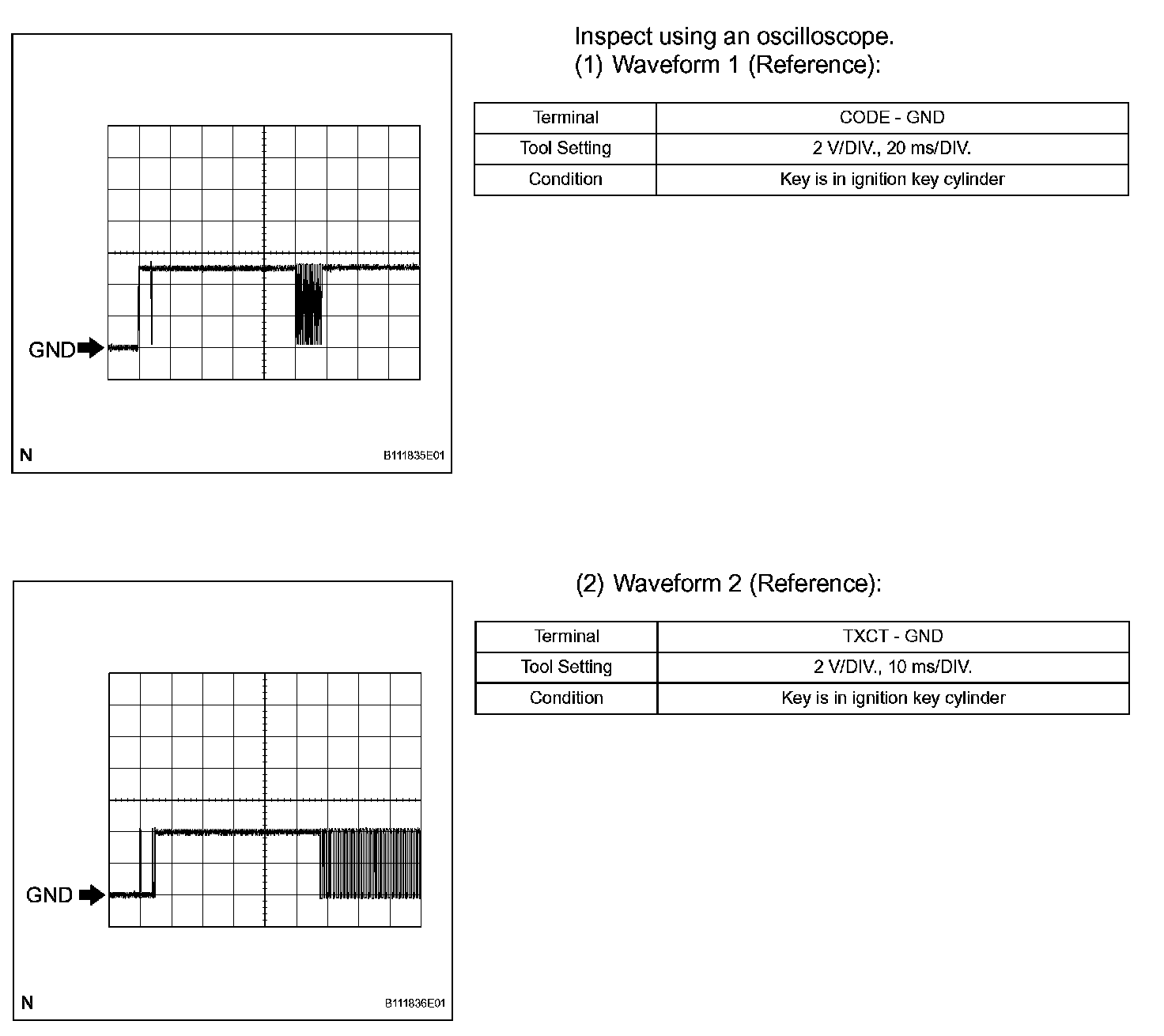

Check Transponder Key Amplifier - Oscilloscope Waveforms:

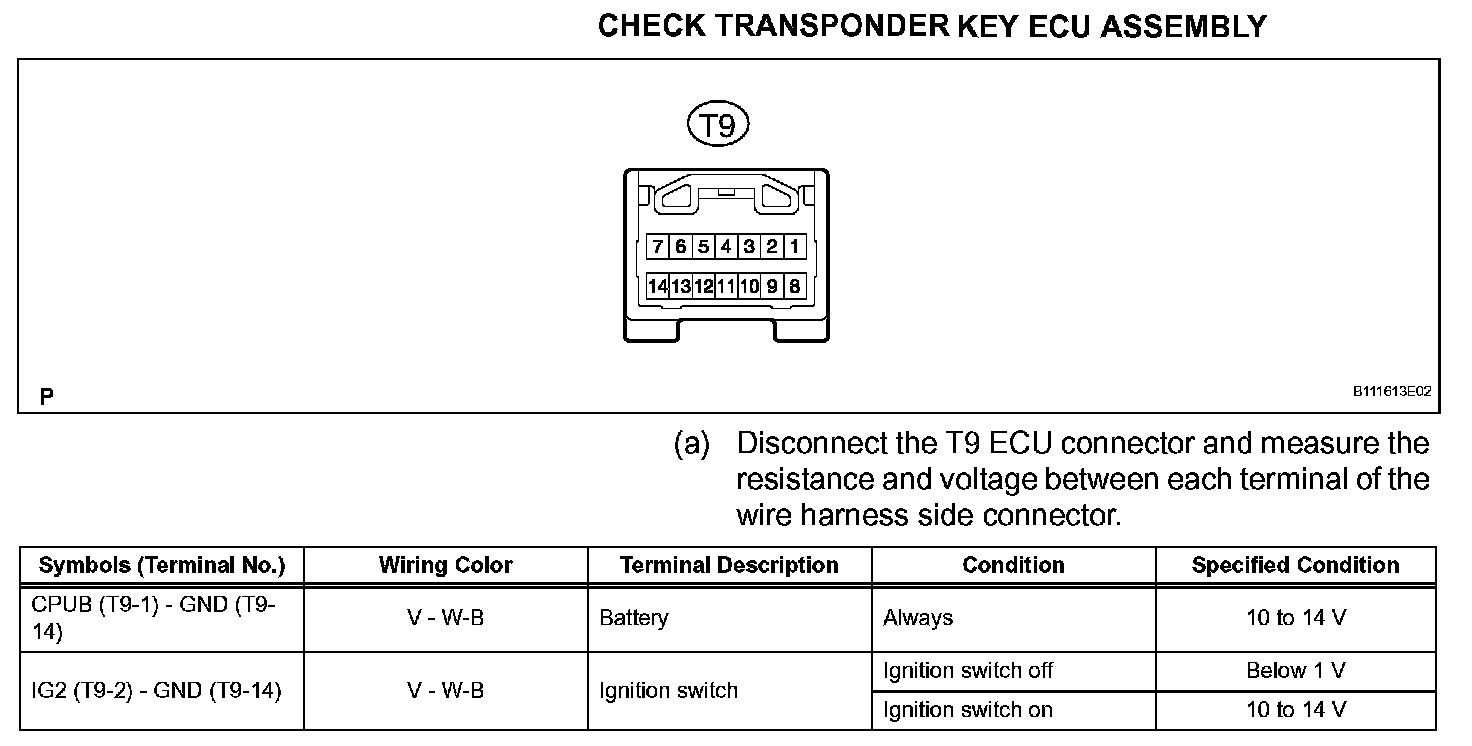

Terminals Of Control Module/Pinouts - Check Transponder Key ECU Assembly (Part 1):

Terminals Of Control Module/Pinouts - Check Transponder Key ECU Assembly (Part 2):

Check Transponder Key ECU Assembly - Oscilloscope Waveforms (Part 1):

Check Transponder Key ECU Assembly - Oscilloscope Waveforms (Part 2):

Terminals Of Control Module/Pinouts - Check Hybrid Vehicle Control ECU:

Check Hybrid Vehicle Control ECU - Oscilloscope Waveforms (Part 1):

Check Hybrid Vehicle Control ECU - Oscilloscope Waveforms (Part 2):

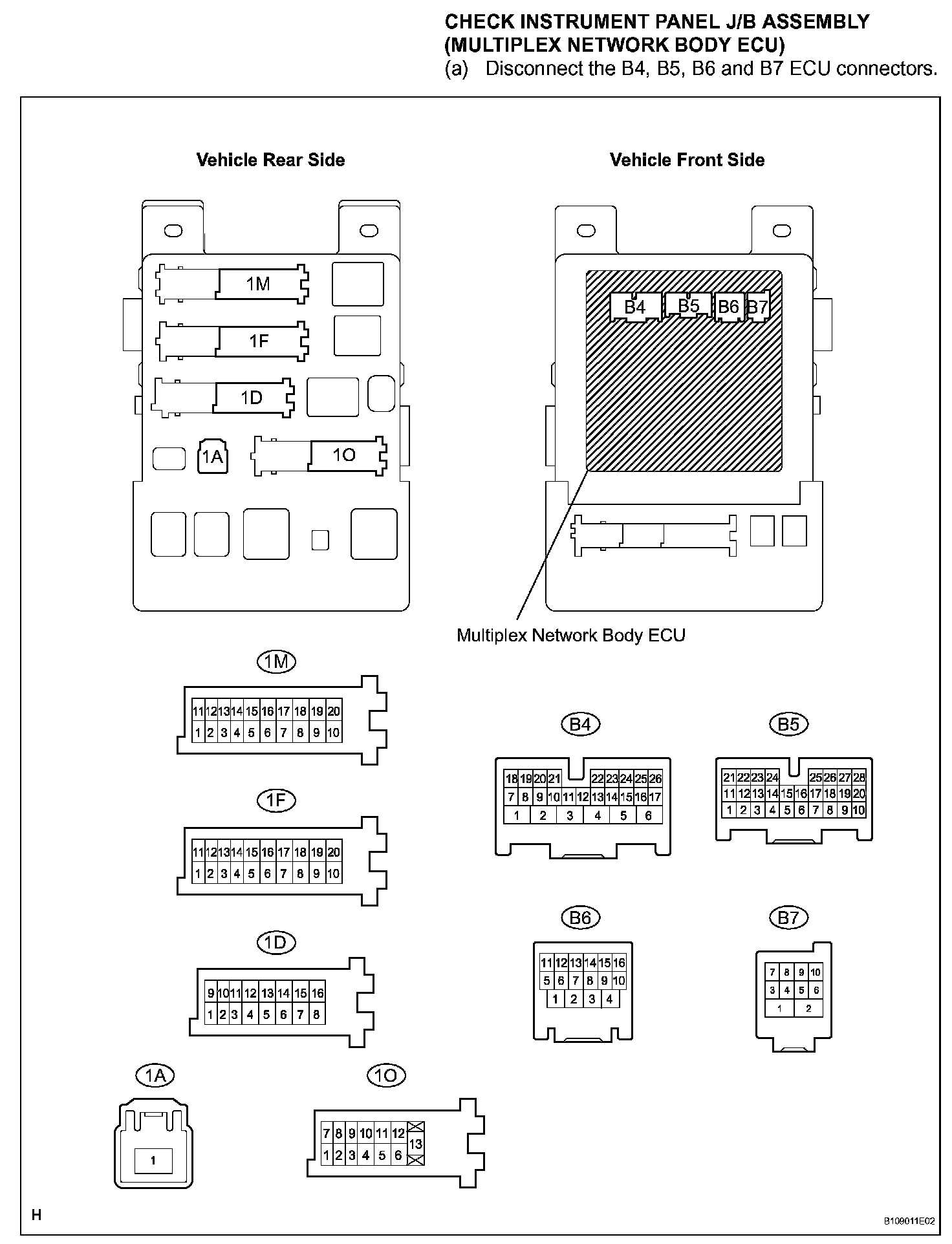

Terminals Of Control Module/Pinouts - Check Instrument Panel J/B Assembly (Multiplex Network Body ECU) (Part 1):

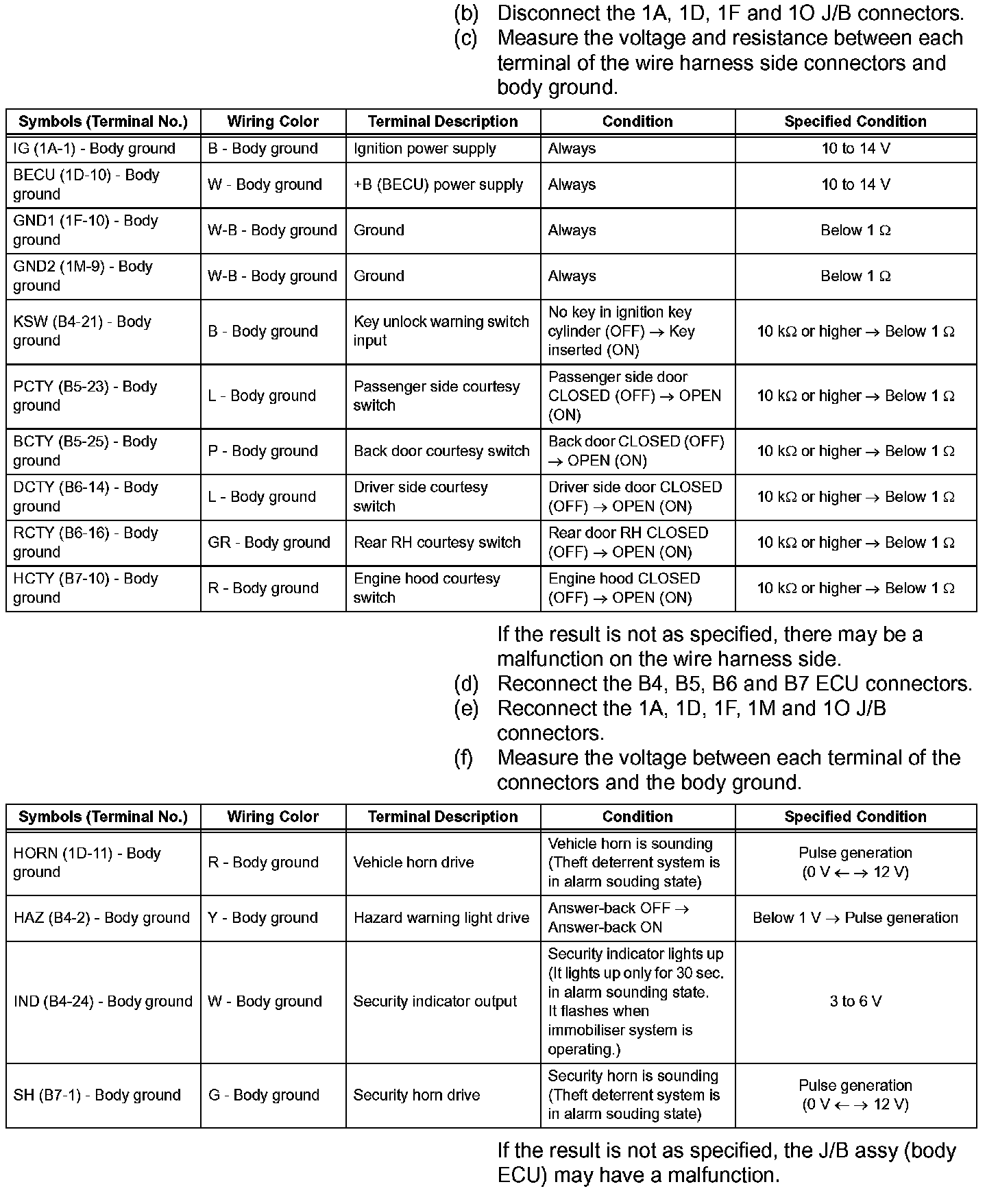

Terminals Of Control Module/Pinouts - Check Instrument Panel J/B Assembly (Multiplex Network Body ECU) (Part 2):
