Antilock Brakes / Traction Control Systems

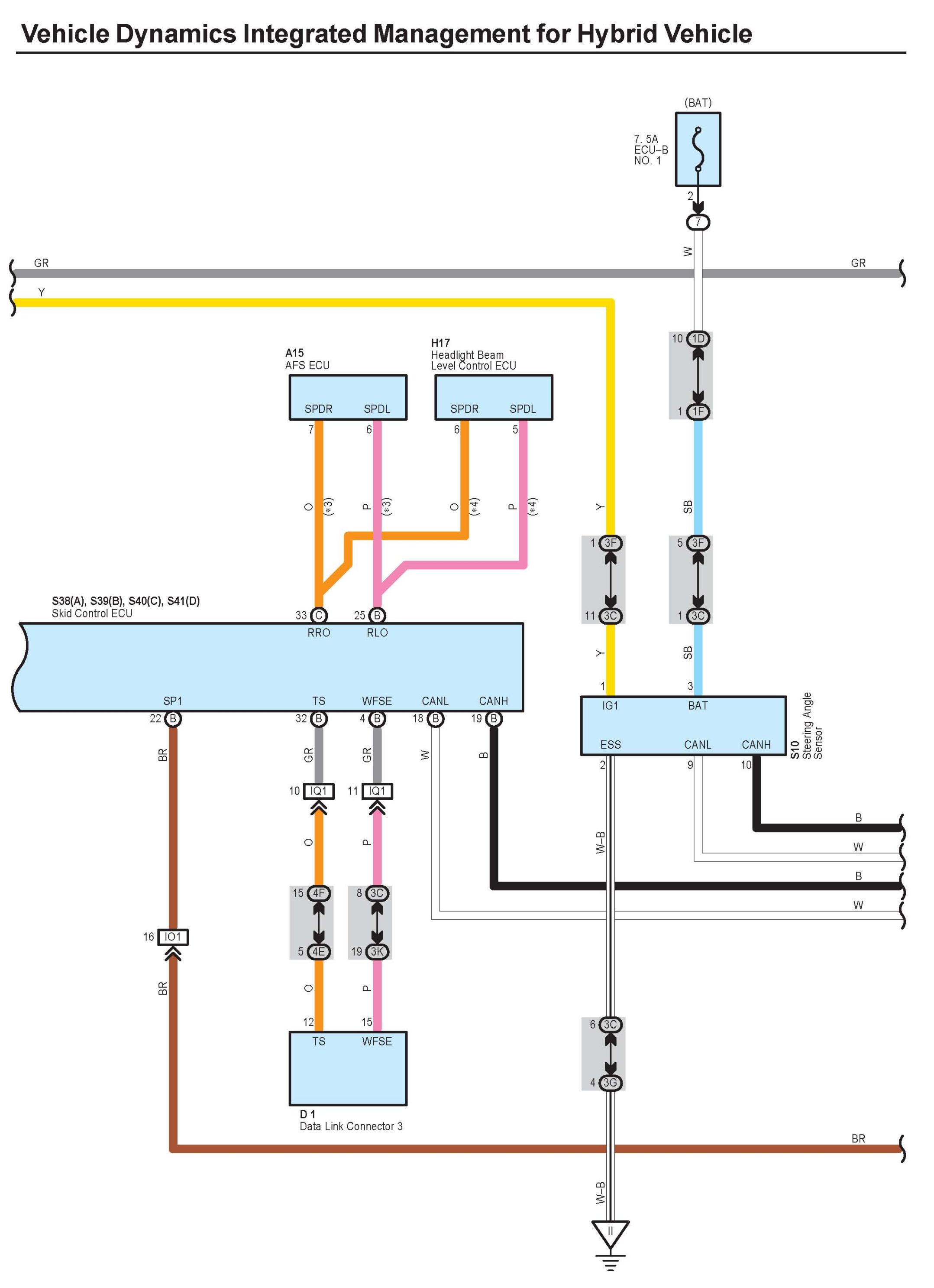

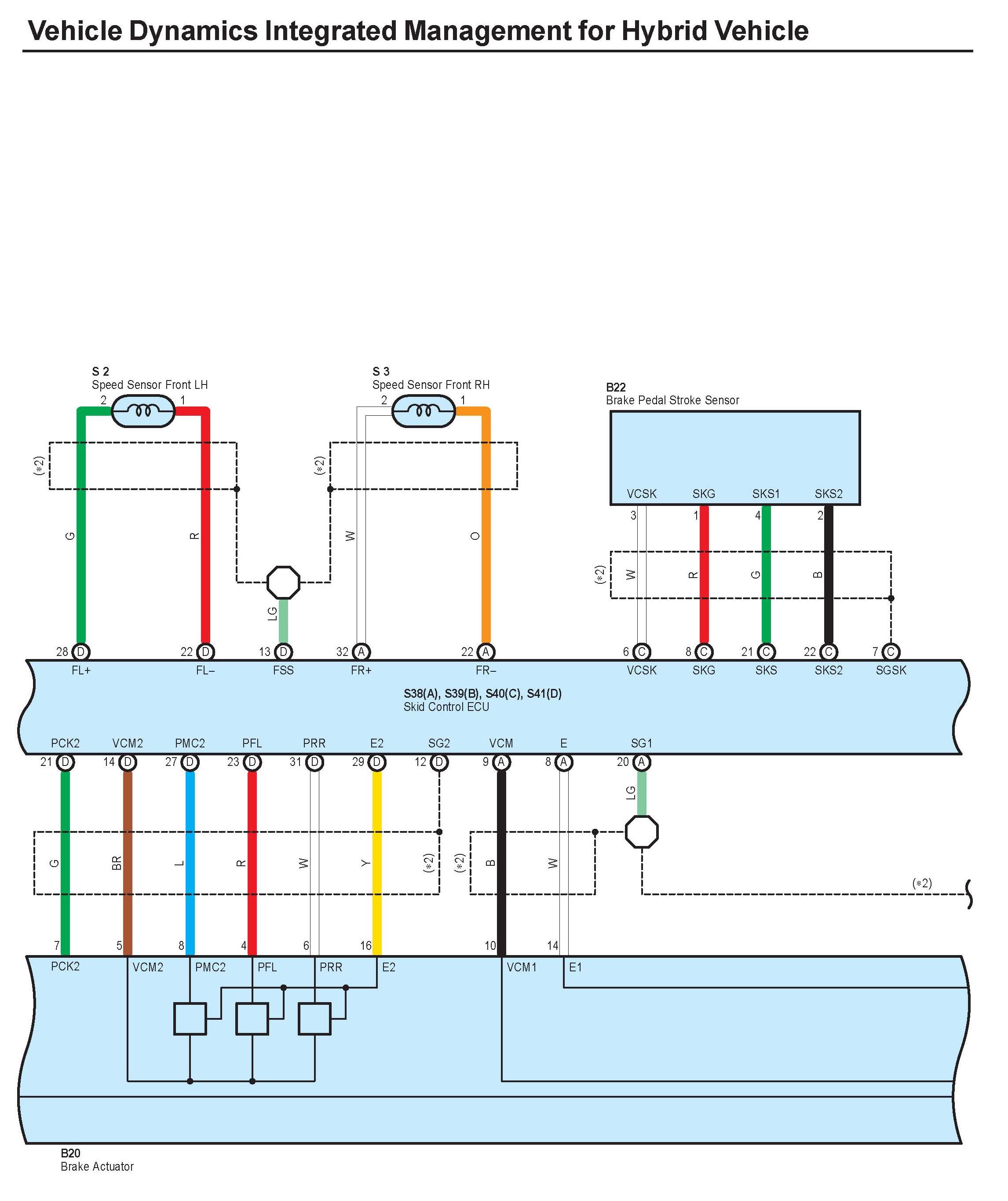

Vehicle Dynamics Integrated Management For Hybrid Vehicle Part 1:

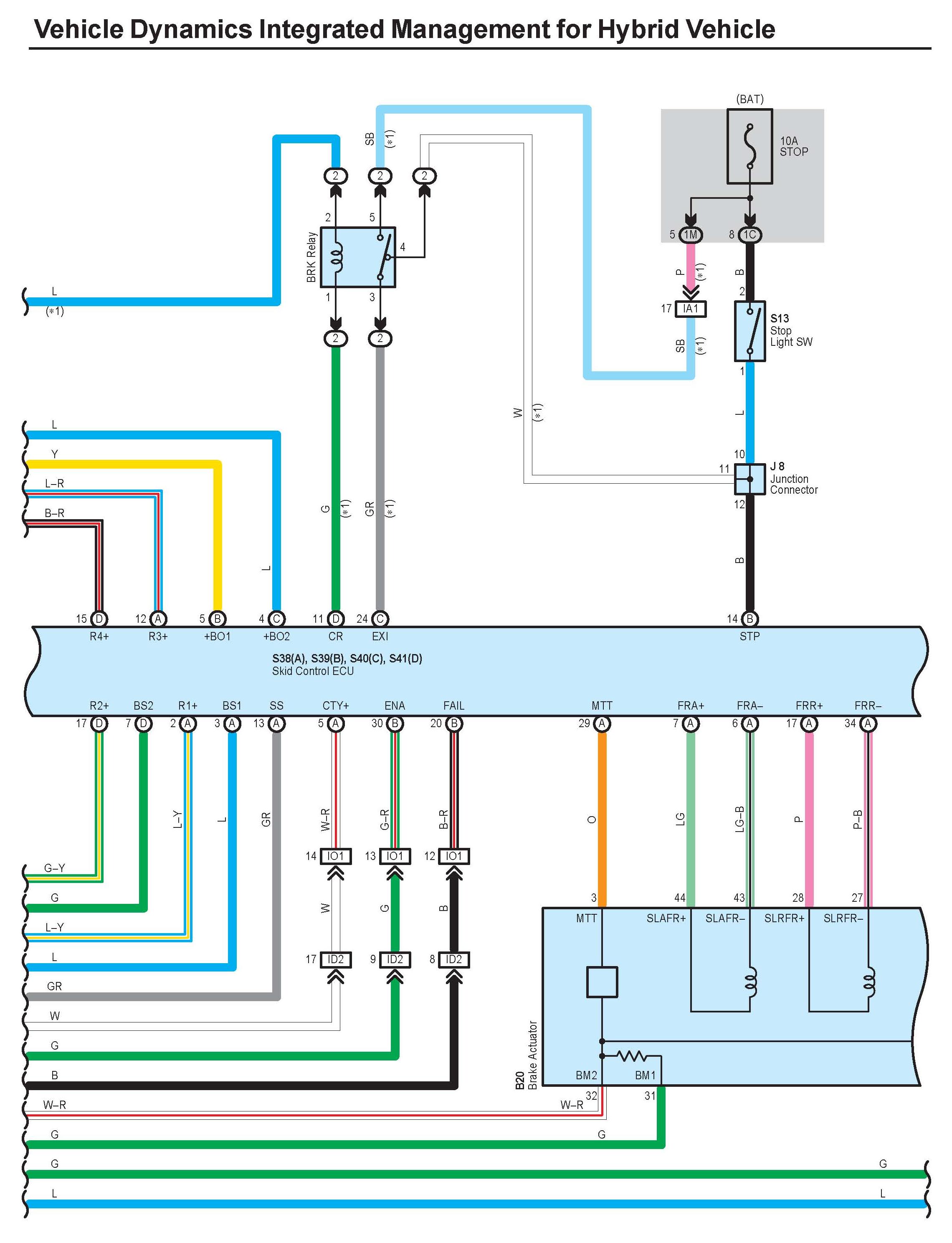

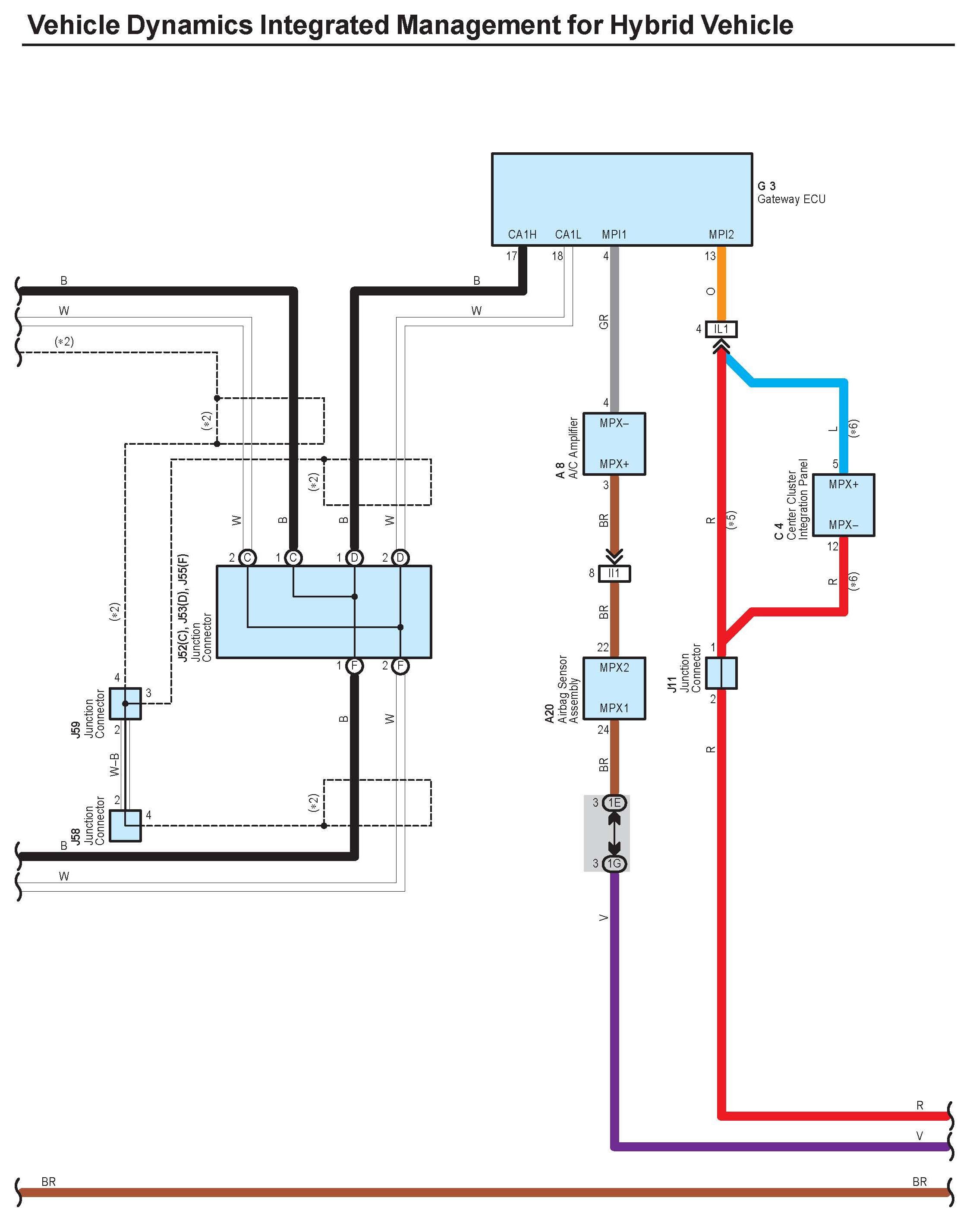

Vehicle Dynamics Integrated Management For Hybrid Vehicle Part 2:

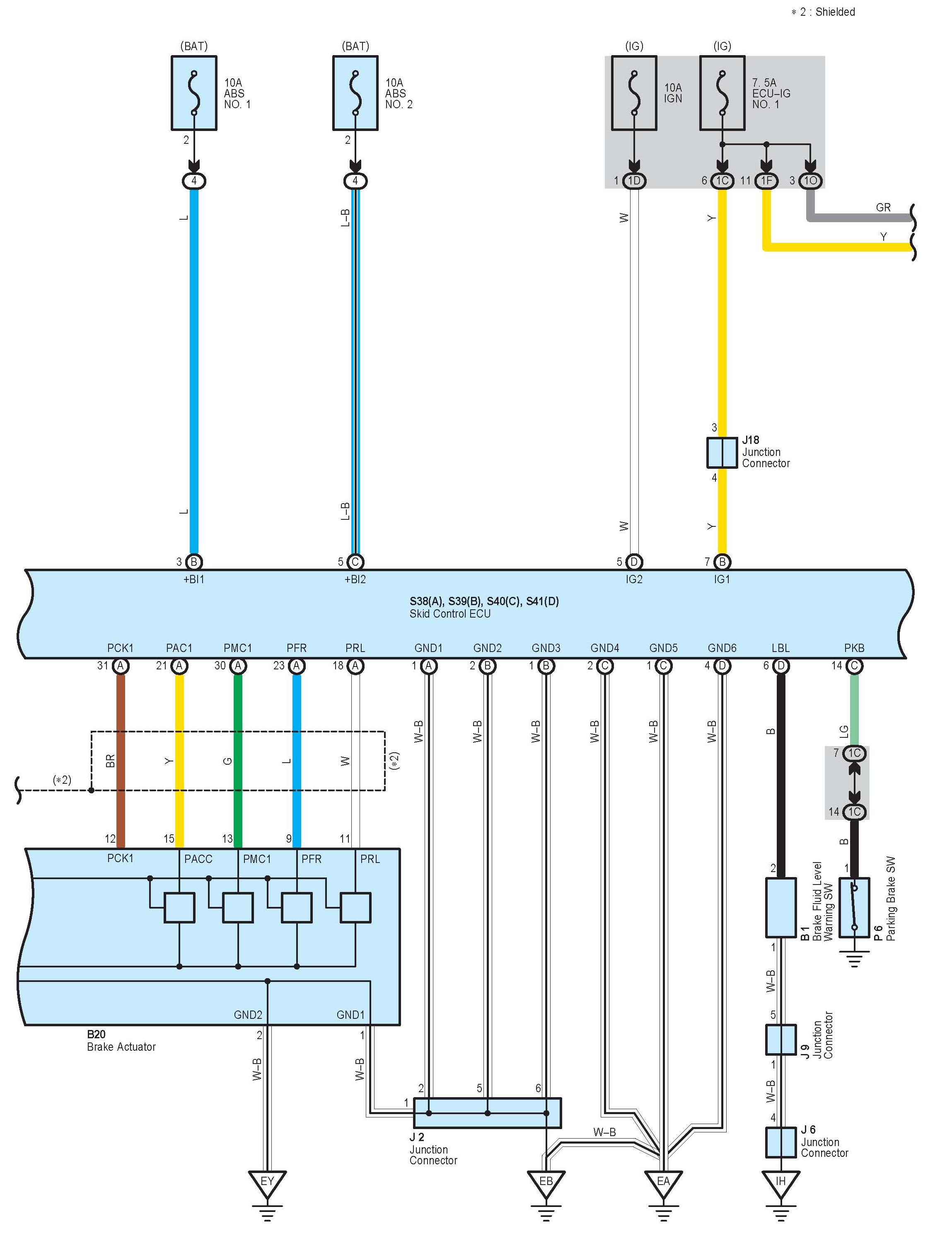

Vehicle Dynamics Integrated Management For Hybrid Vehicle Part 3:

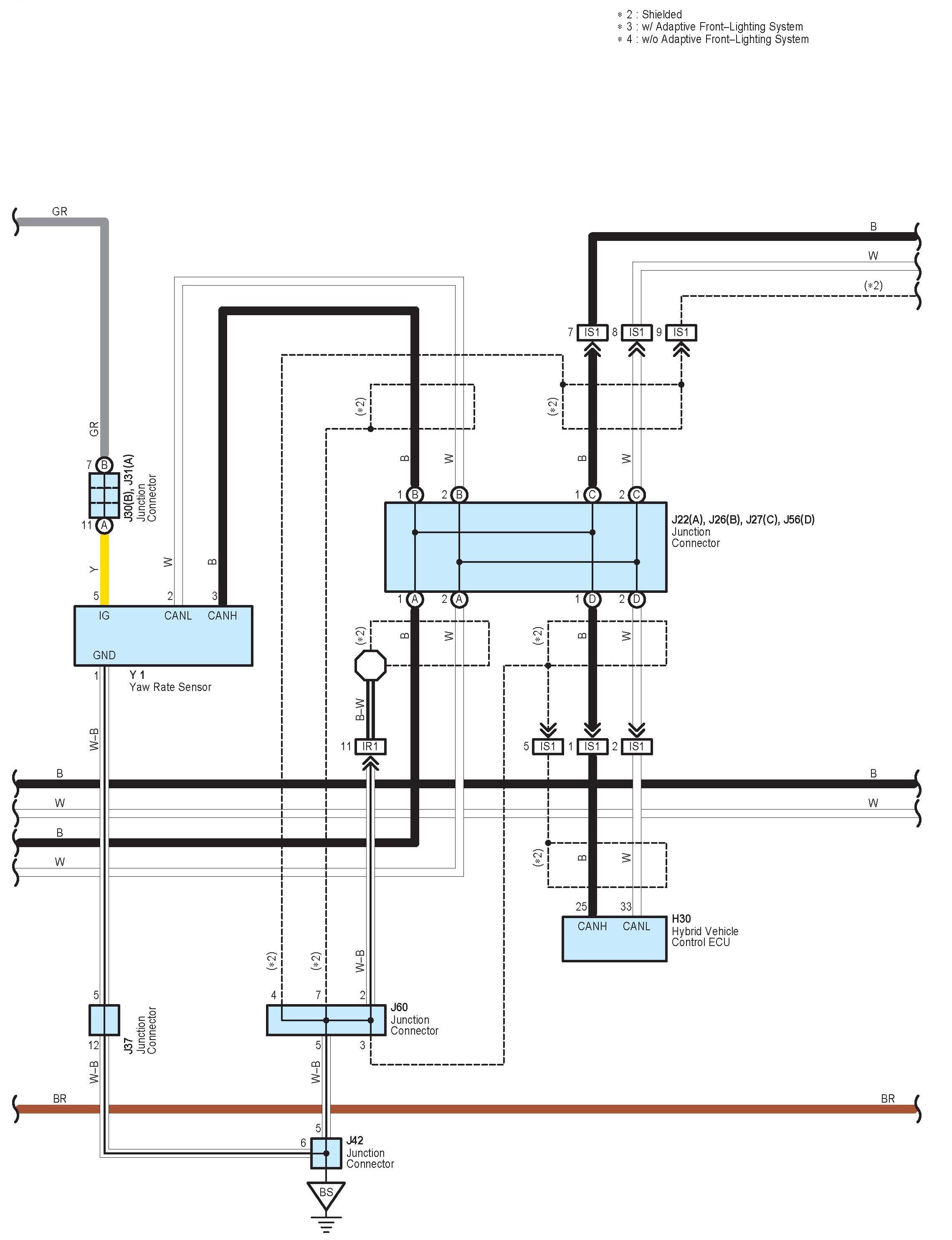

Vehicle Dynamics Integrated Management For Hybrid Vehicle Part 4:

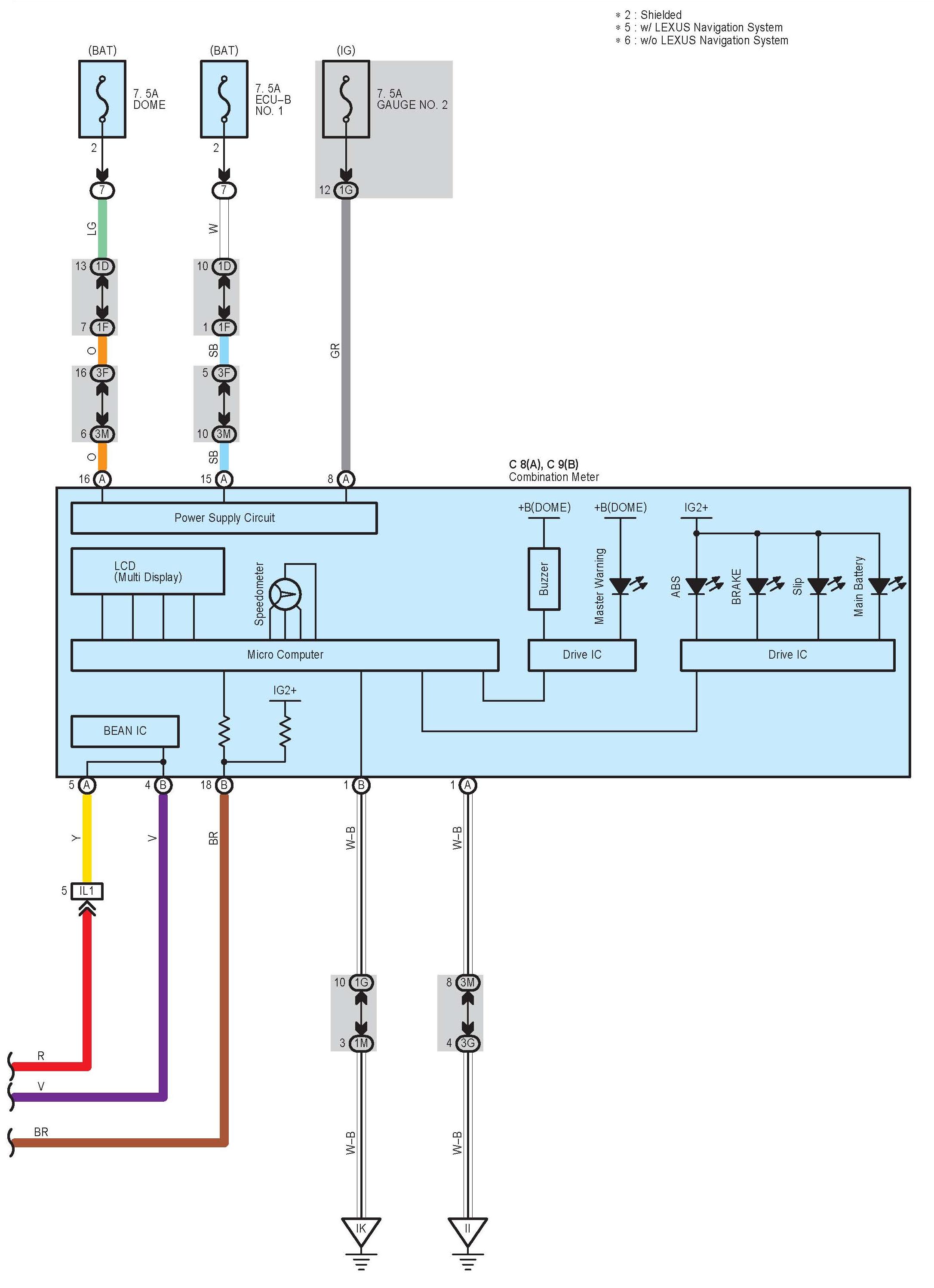

Vehicle Dynamics Integrated Management For Hybrid Vehicle Part 5:

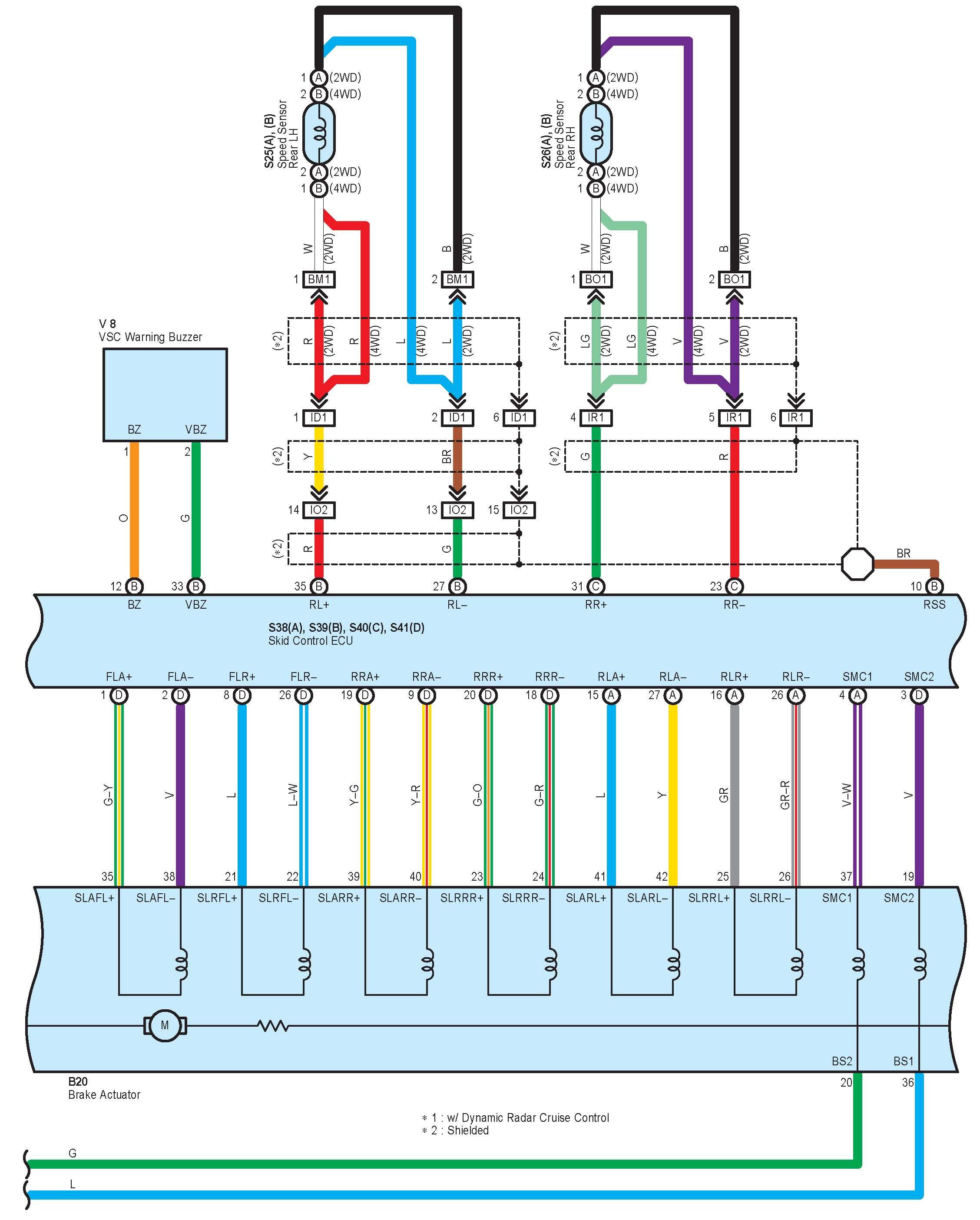

Vehicle Dynamics Integrated Management For Hybrid Vehicle Part 6:

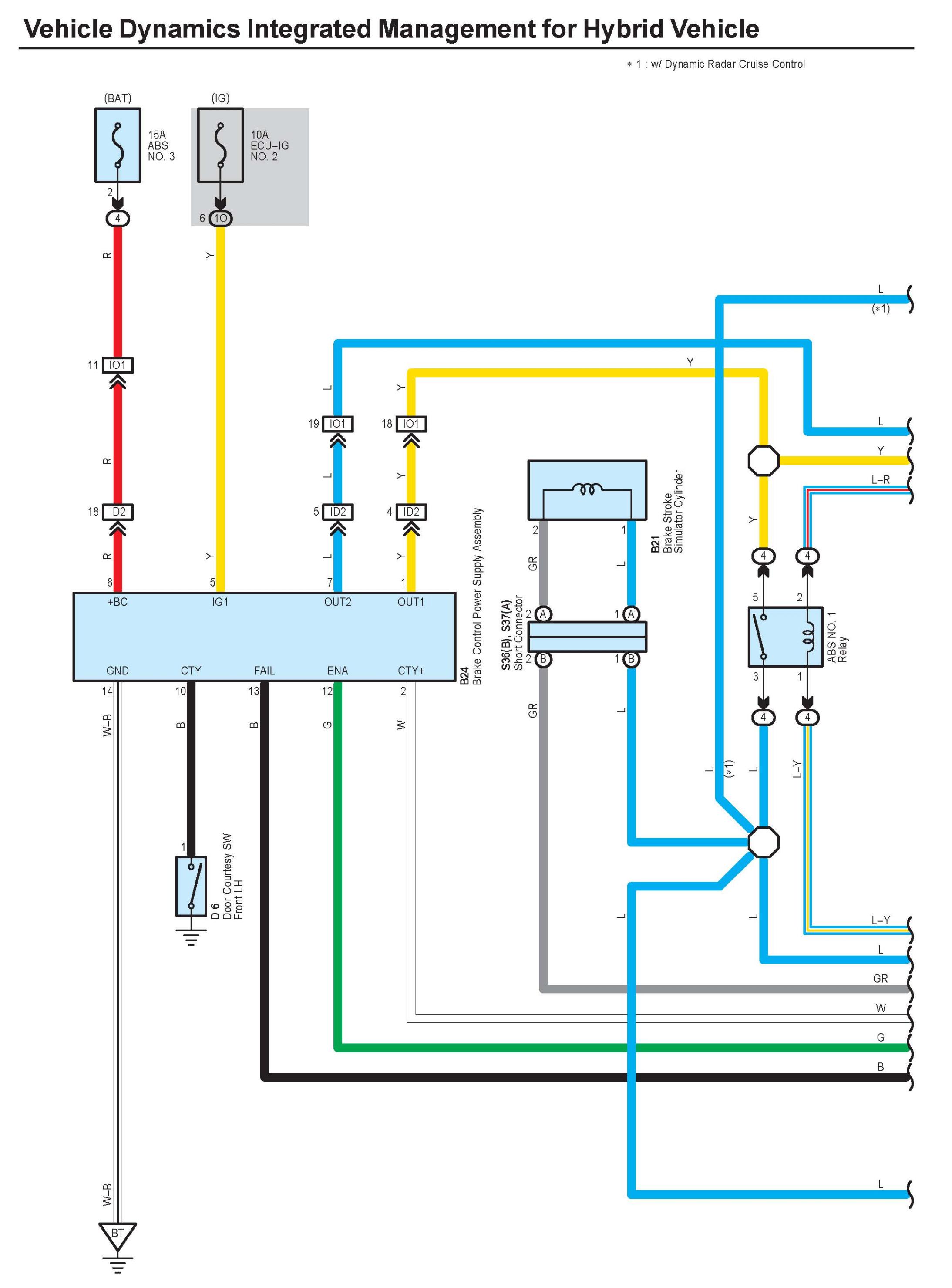

Vehicle Dynamics Integrated Management For Hybrid Vehicle Part 7:

Vehicle Dynamics Integrated Management For Hybrid Vehicle Part 8:

Vehicle Dynamics Integrated Management For Hybrid Vehicle Part 9:

Vehicle Dynamics Integrated Management For Hybrid Vehicle Part 10:

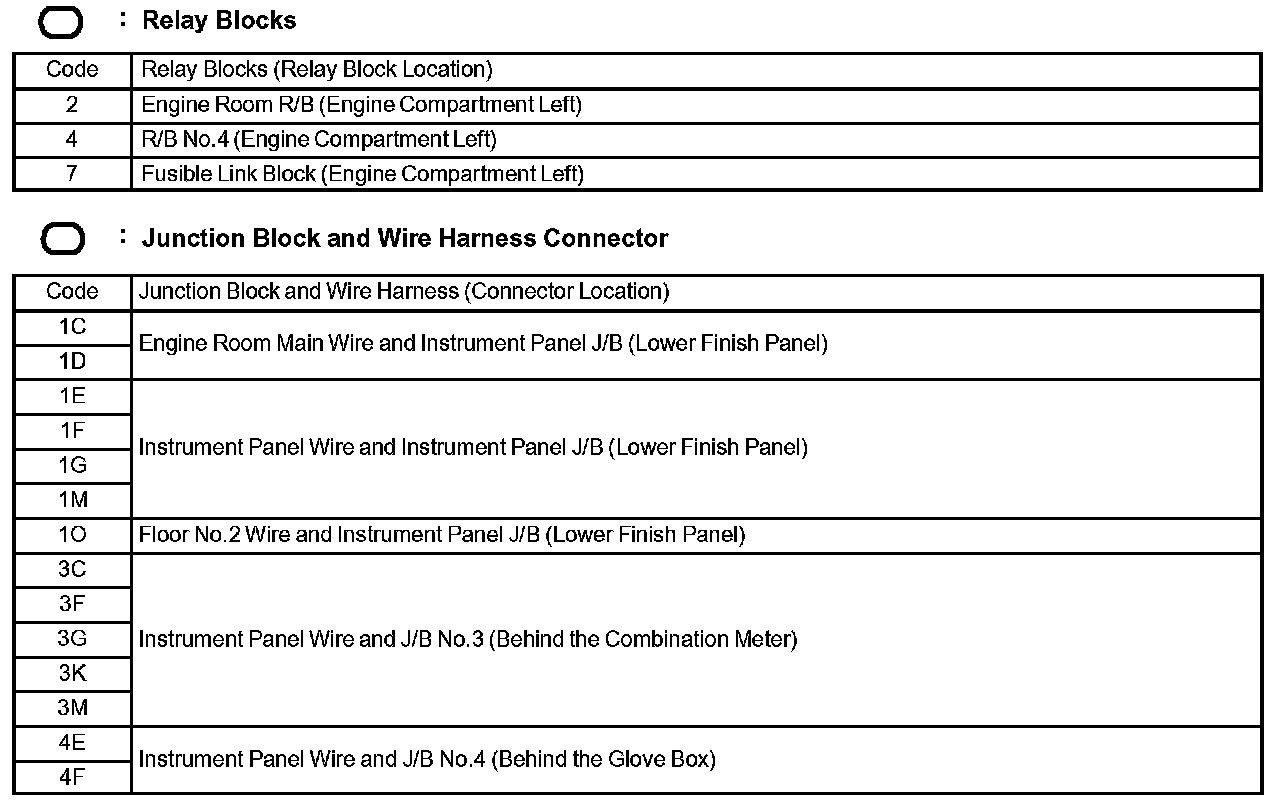

Diagram Legend Part 1:

Diagram Legend Part 2:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
