Entertainment Systems: Description and Operation

AUDIO / VISUAL: REAR SEAT ENTERTAINMENT SYSTEM:

SYSTEM DIAGRAM





SYSTEM DESCRIPTION

1. OUTLINE

- The RSE (Rear Seat Entertainment) system allows the front and rear seat occupants to select different audio-visual modes at the same time.
- The rear seat occupants can control the audio-visual modes with the remote controller, and listen to the audio using wireless headphones.
- The RSE system is controlled by the television display, and the communication between the audio head unit and the television display is established via an AVC-LAN (Audio Visual Communication-Local Area Network).
- The RSE system can play discs recorded entirely in the MP3 format, as well as music discs containing a mixture of CD data (CD-DA files) and MP3 data.
HINT: MP3 is short for MPEG1 (Moving Picture Expert Group Phase 1) & 2 Audio Layer 3. It is an audio compression standard set by a working group (MPEG) of the ISO (International Organization for Standardization). MP3 data is compressed audio data that is about 1/10 the size of a conventional disc's audio data.

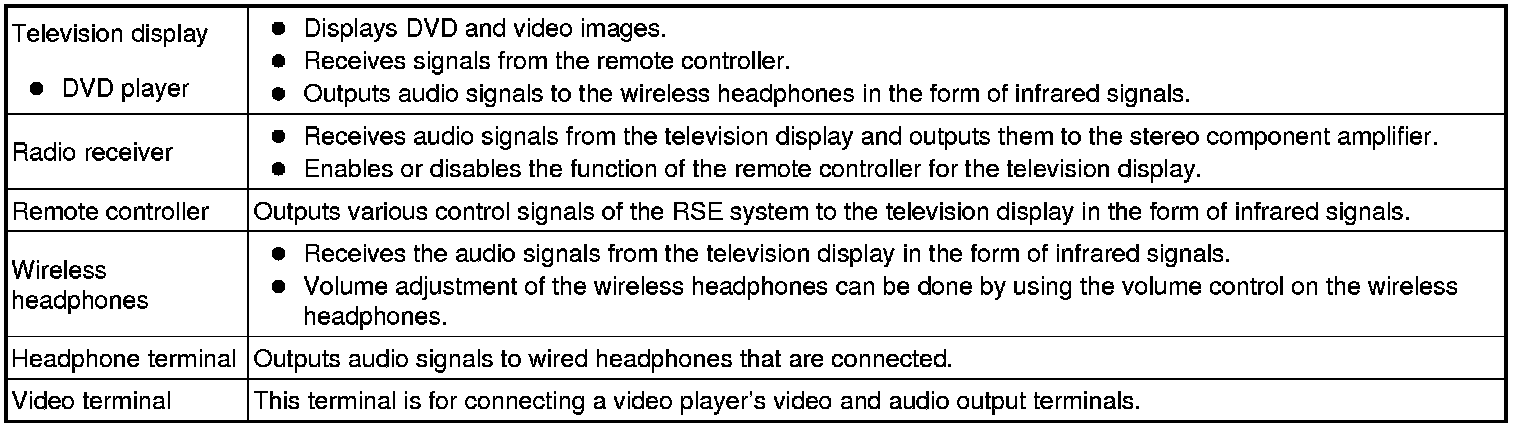

2. FUNCTION OF MAIN COMPONENTS
