Blower Motor Switch

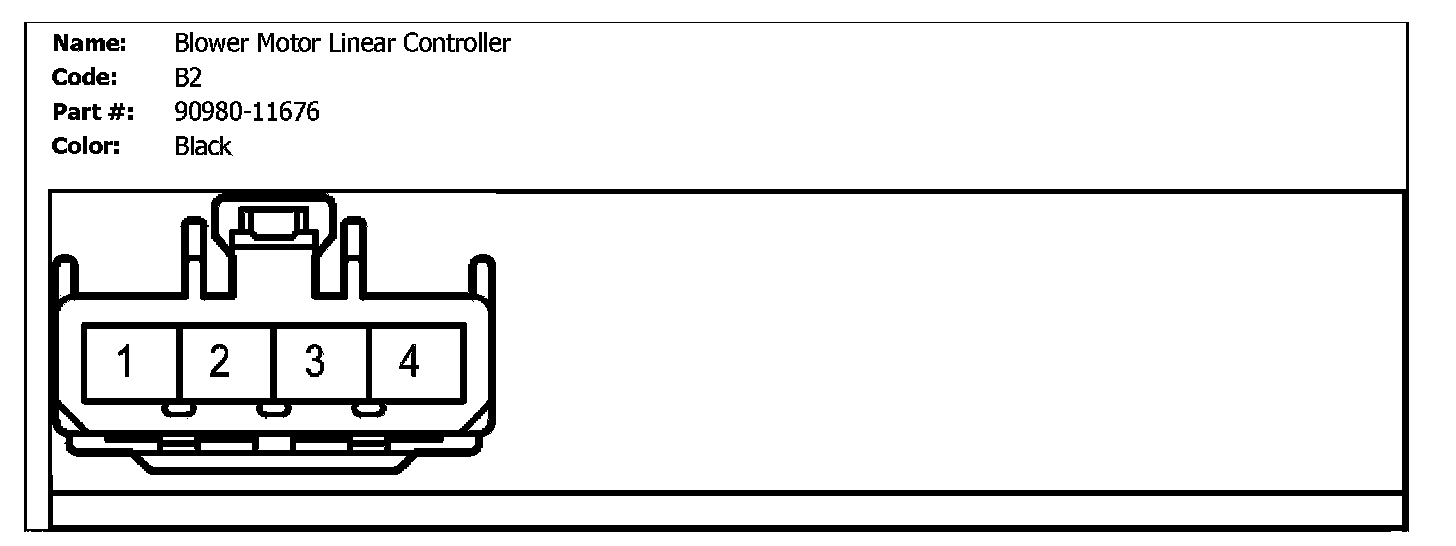

B2 (Blower Motor Linear Controller):

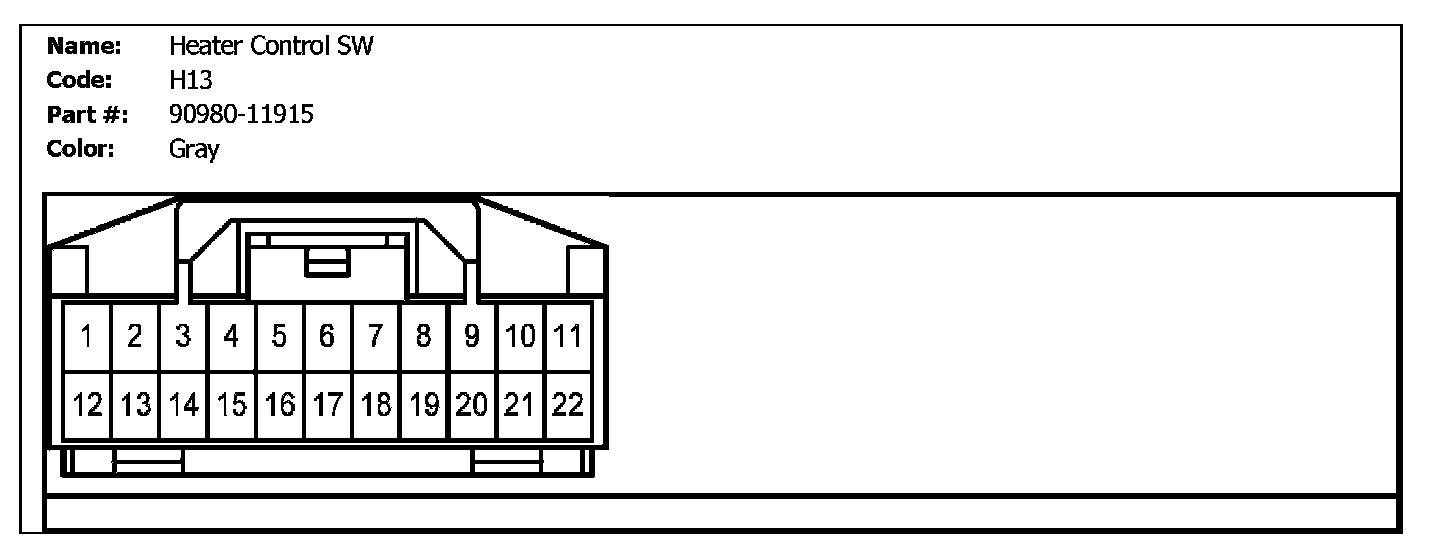

H13 (Heater Control SW):

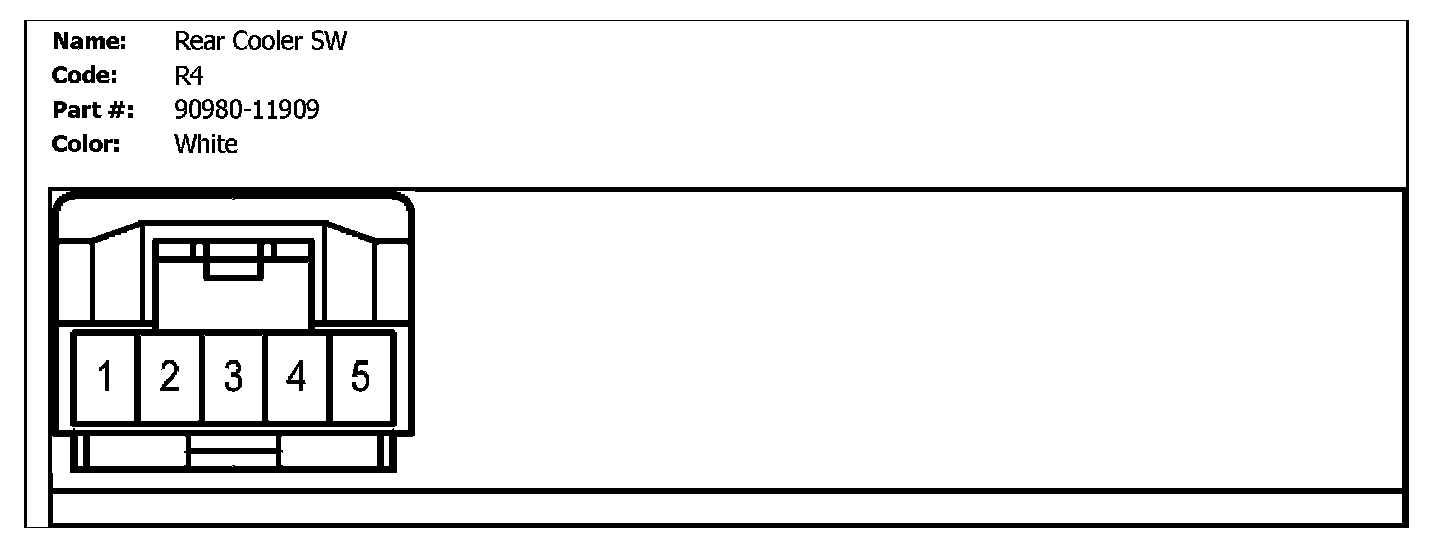

R4 (Rear Cooler SW):
