Damping Control Actuator
Damping Control Actuator
A10 (Absorber Control Actuator Front RH):
A35 (Absorber Control Actuator Rear LH):

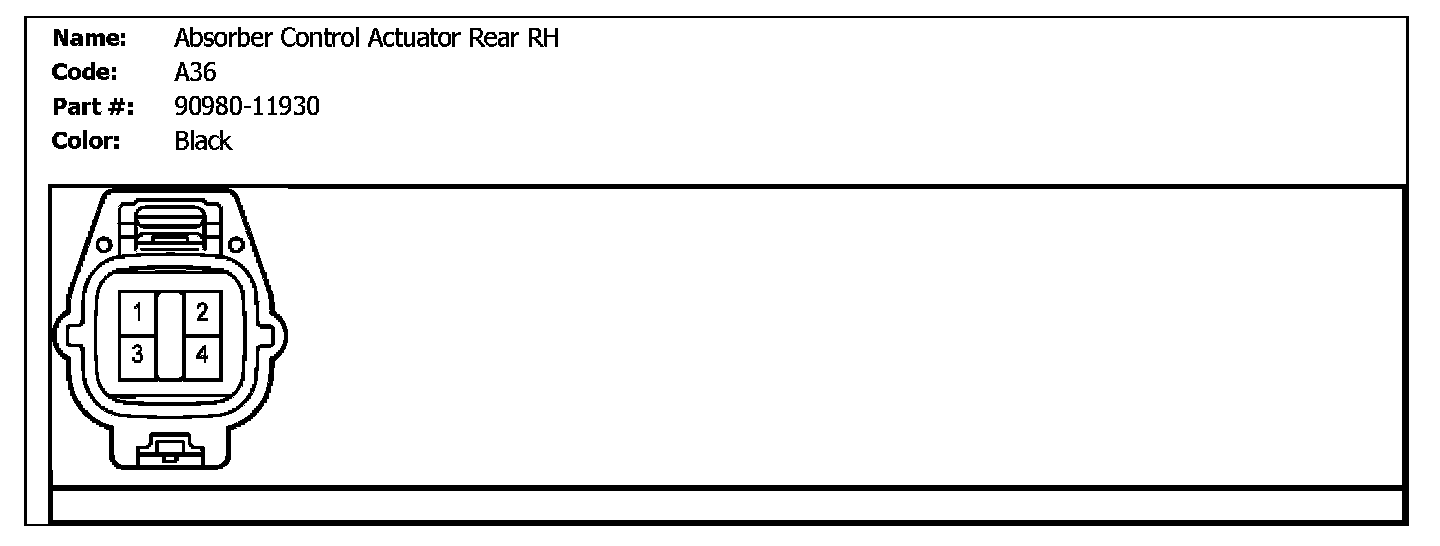

A36 (Absorber Control Actuator Rear RH):

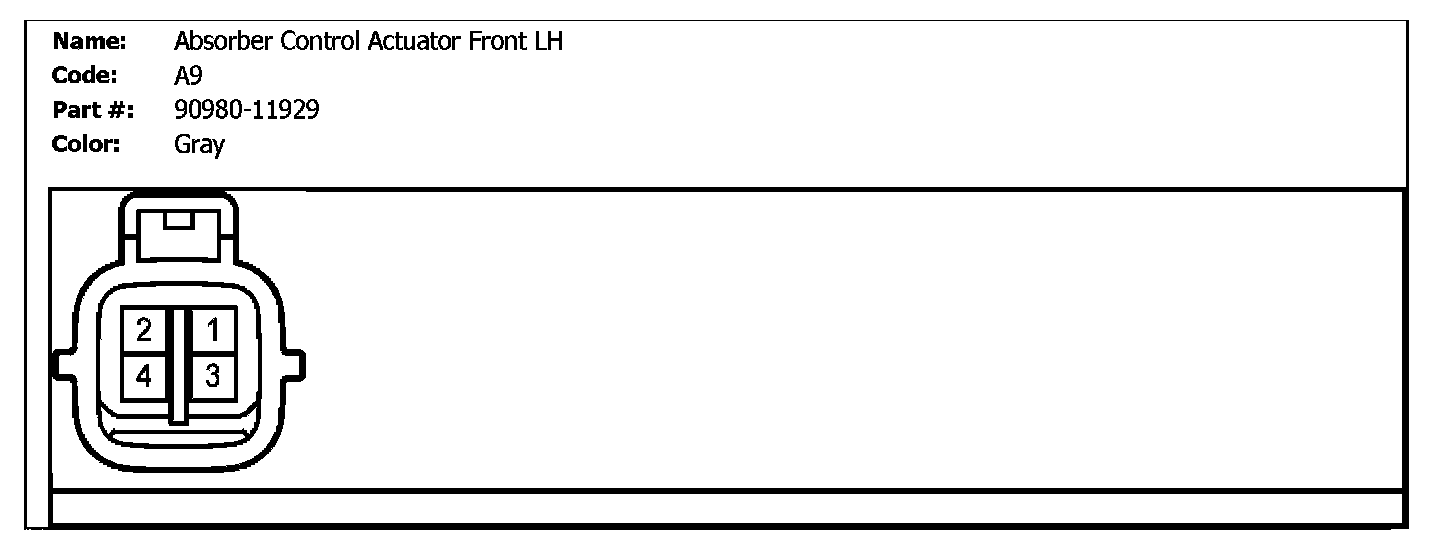

A9 (Absorber Control Actuator Front LH):
