Instrument Cluster / Carrier
Instrument Cluster / Carrier

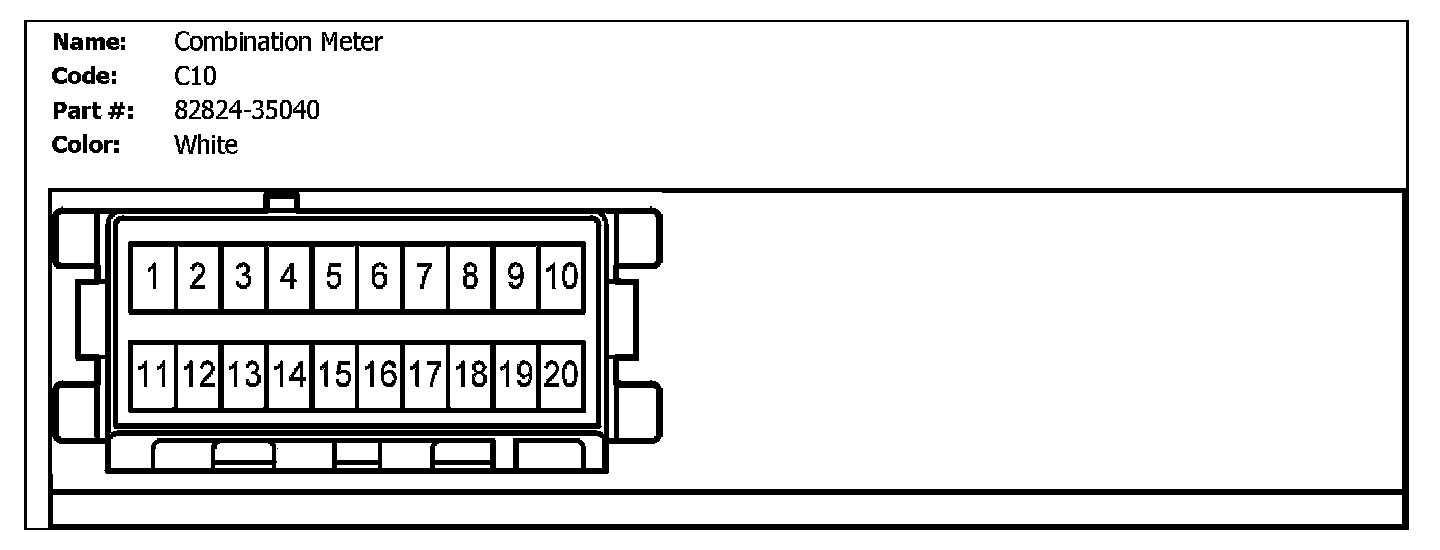

C10 (Combination Meter):

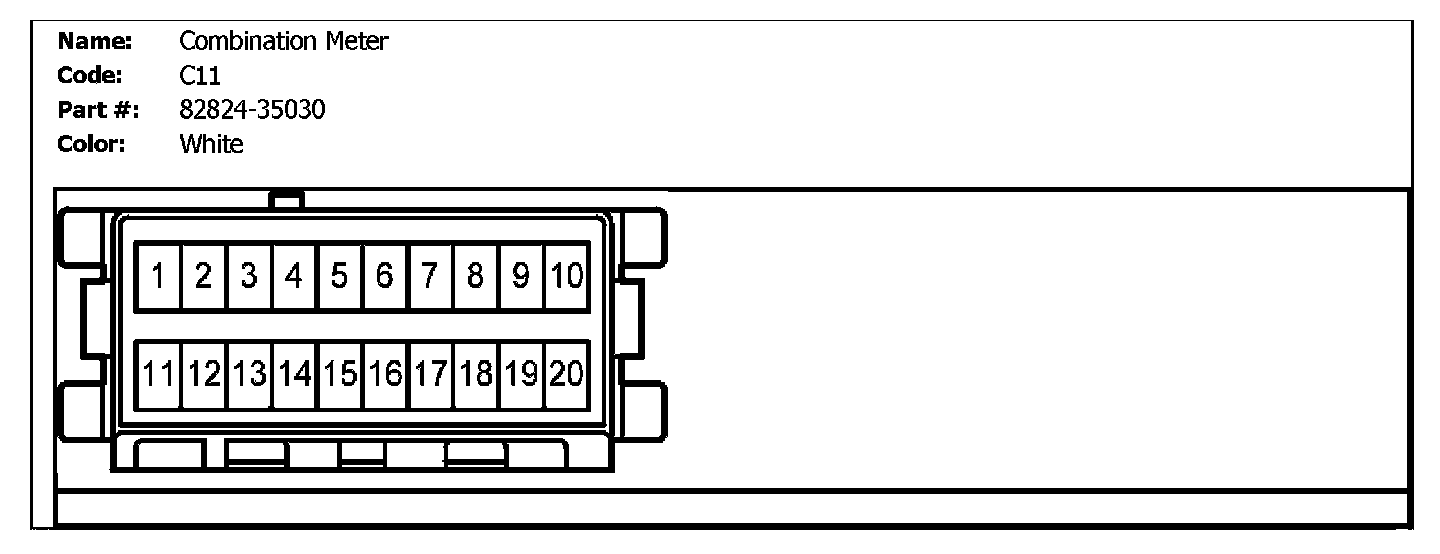

C11 (Combination Meter):

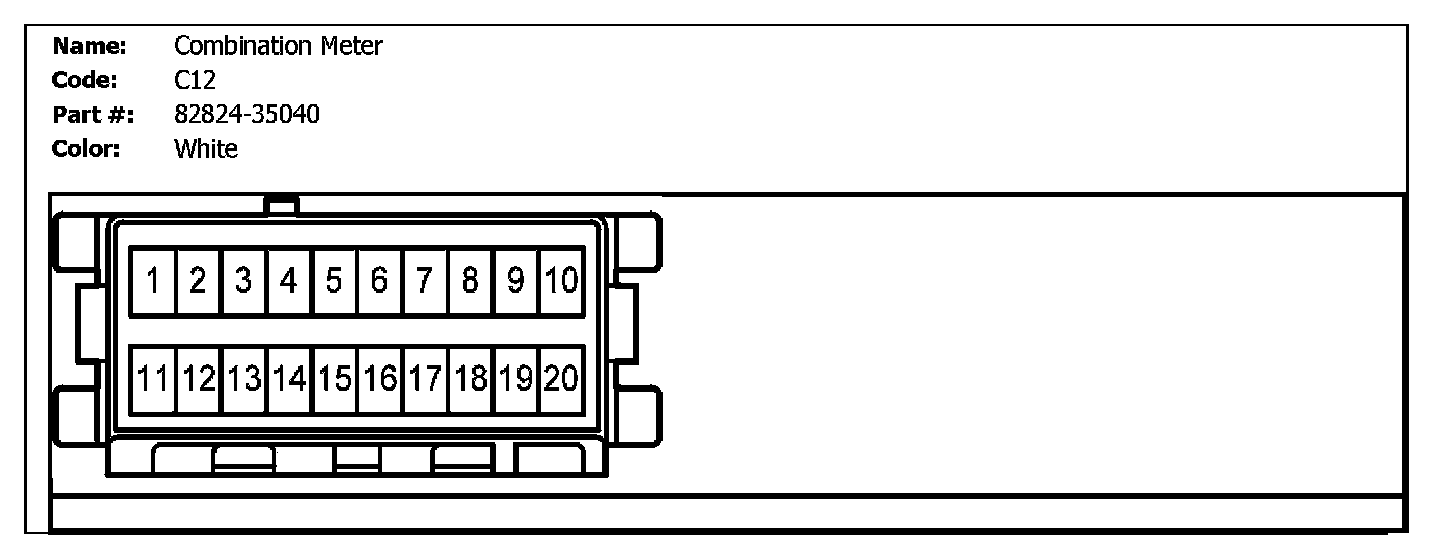

C12 (Combination Meter):
C9 (Combination Meter):
