Speaker

B8 (Back Door Speaker LH):

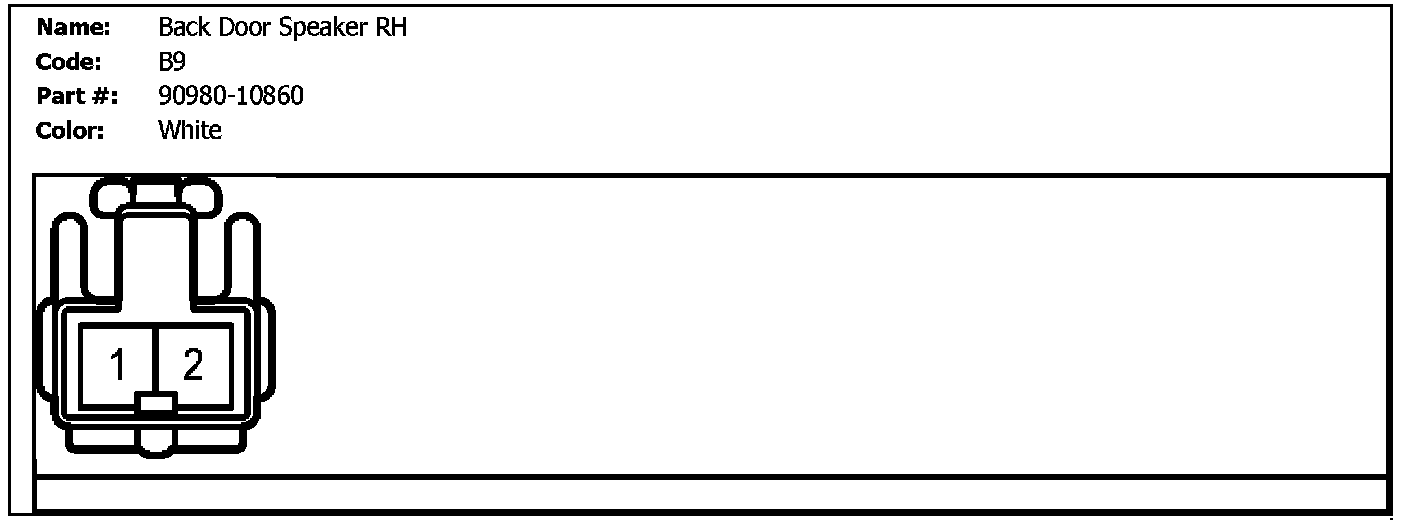

B9 (Back Door Speaker RH):

C6 (Center Speaker):

F10 (Front Door Speaker RH):

F11 (Front Door Squawker LH):

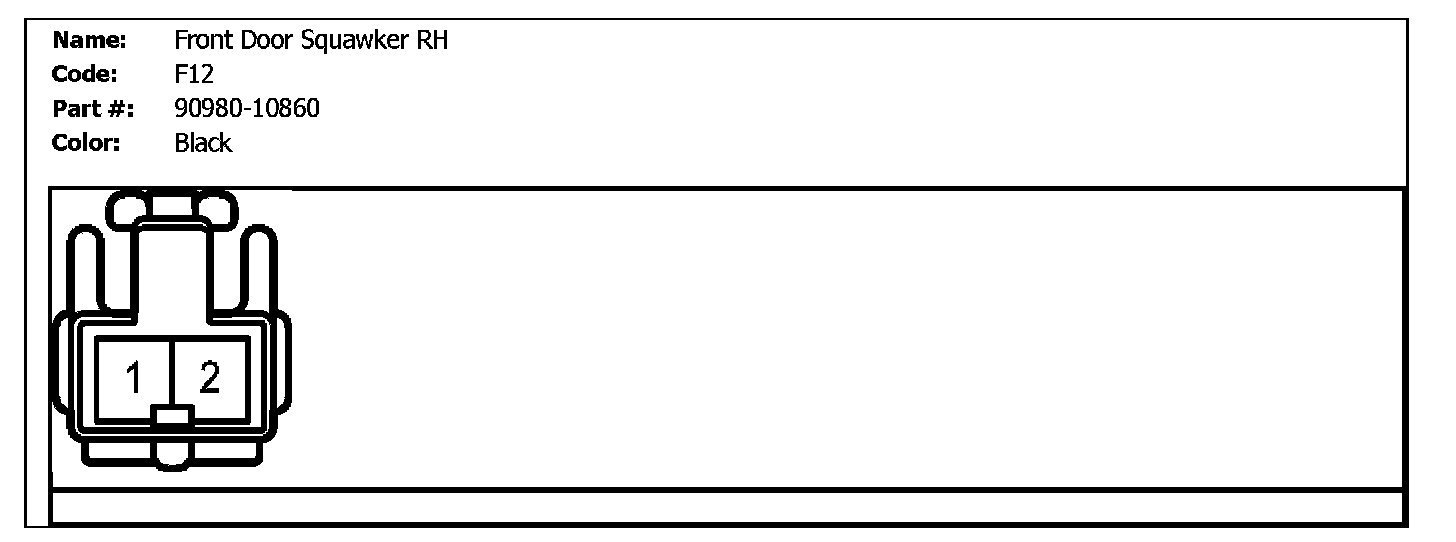

F12 (Front Door Squawker RH):

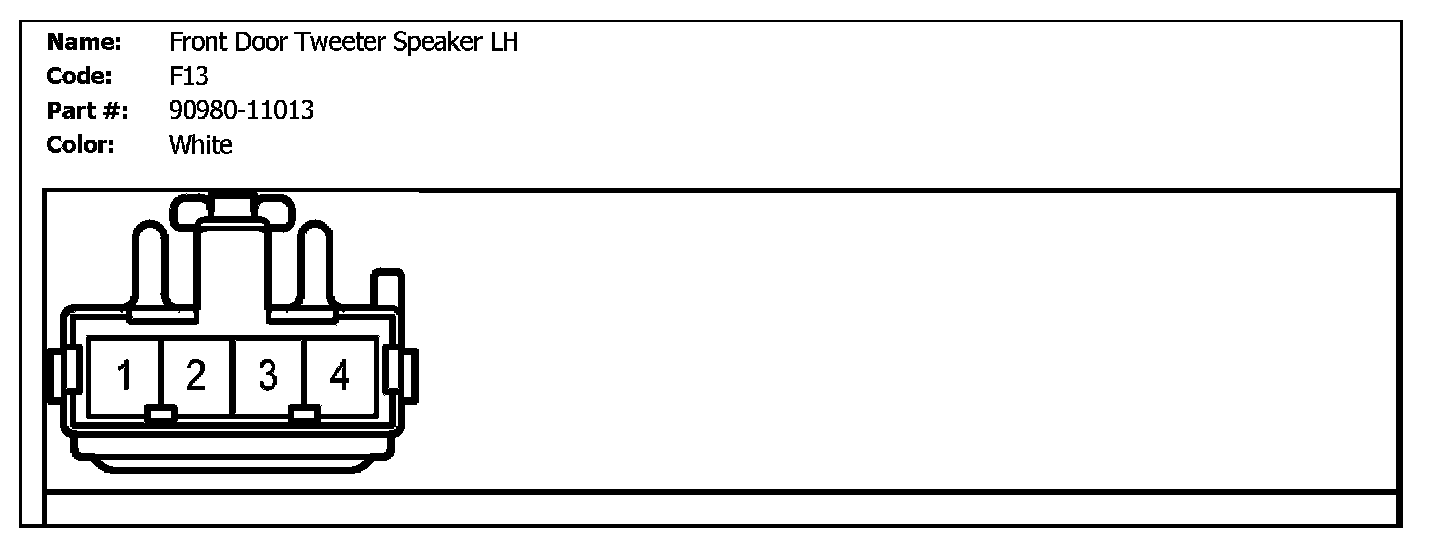

F13 (Front Door Tweeter Speaker LH):

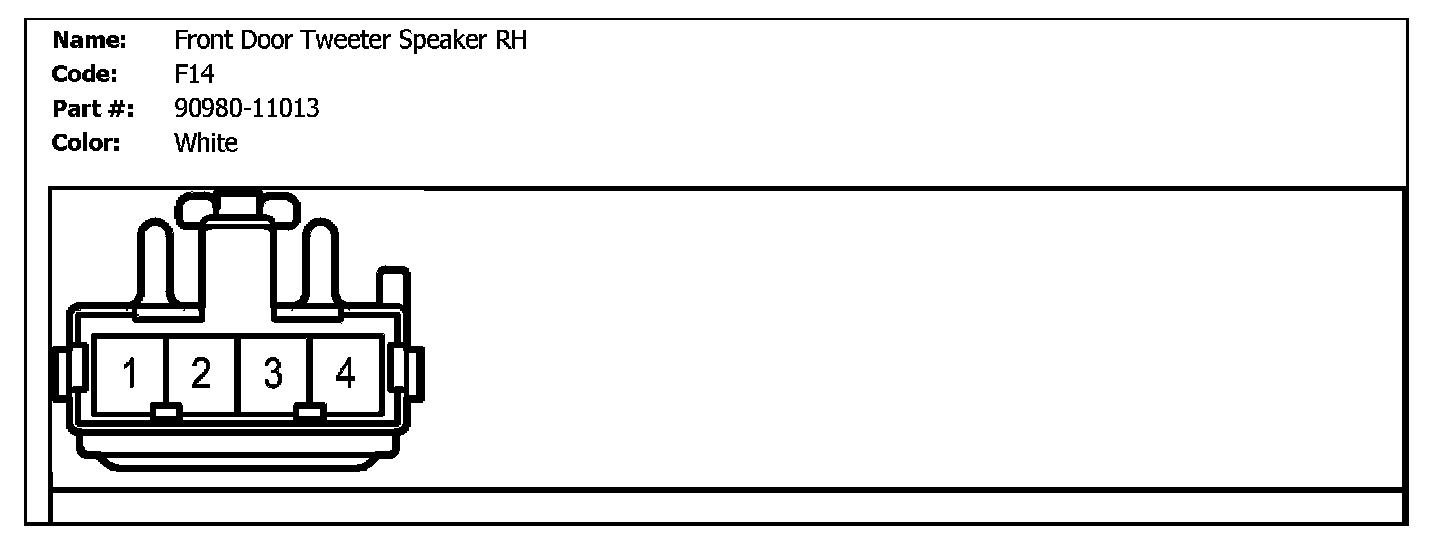

F14 (Front Door Tweeter Speaker RH):

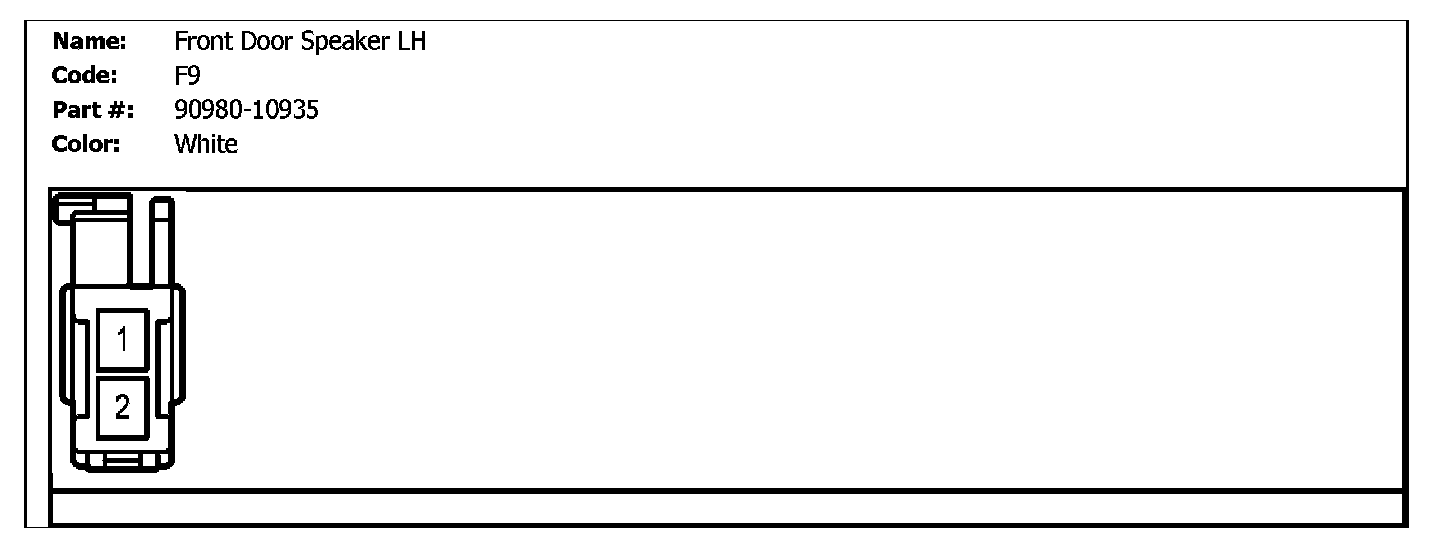

F9 (Front Door Speaker LH):

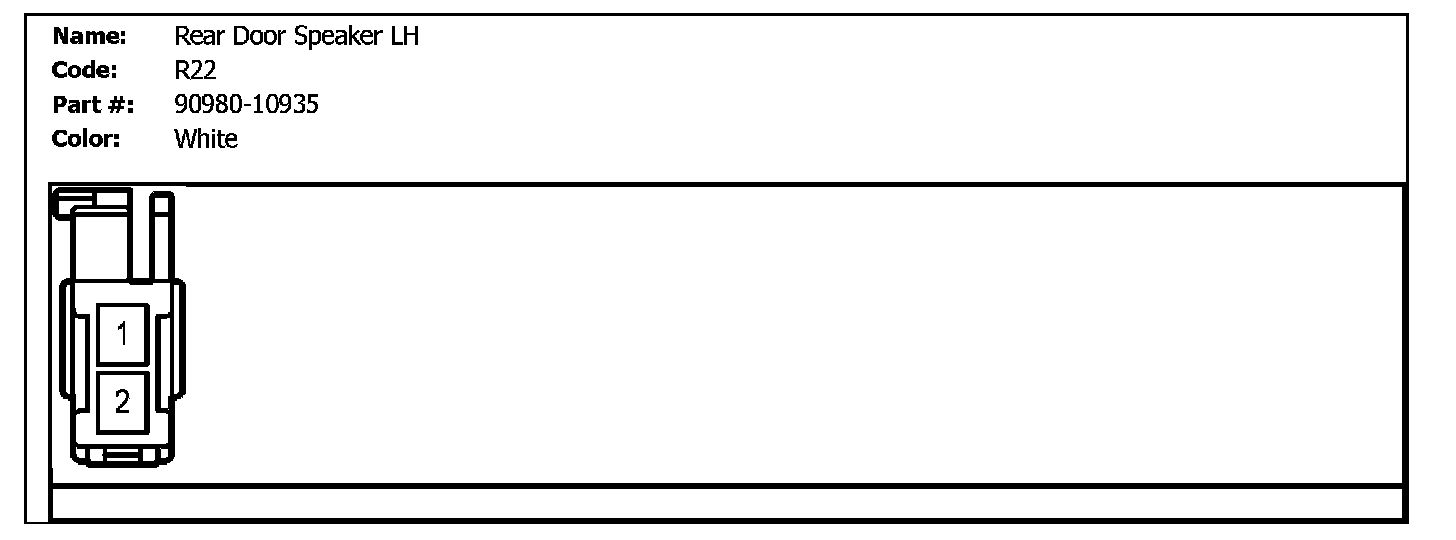

R22 (Rear Door Speaker LH):

R23 (Rear Door Speaker RH):

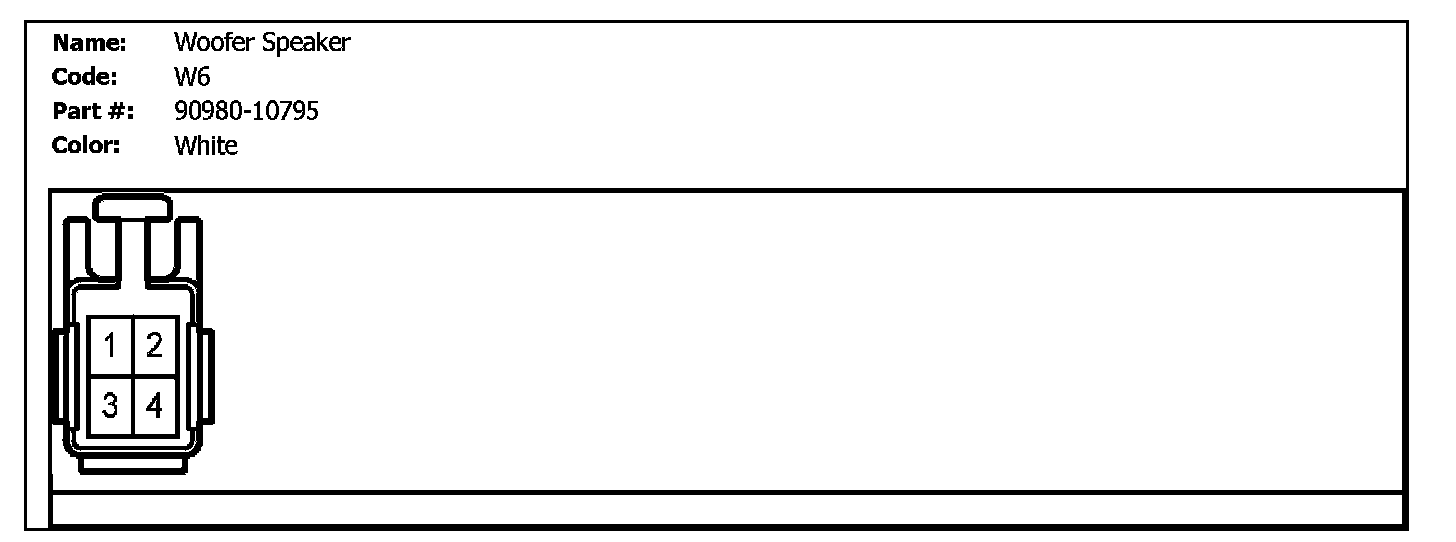

W6 (Woofer Speaker):
