Suspension Control Module
Suspension Control Module
S18 (Suspension Control ECU):

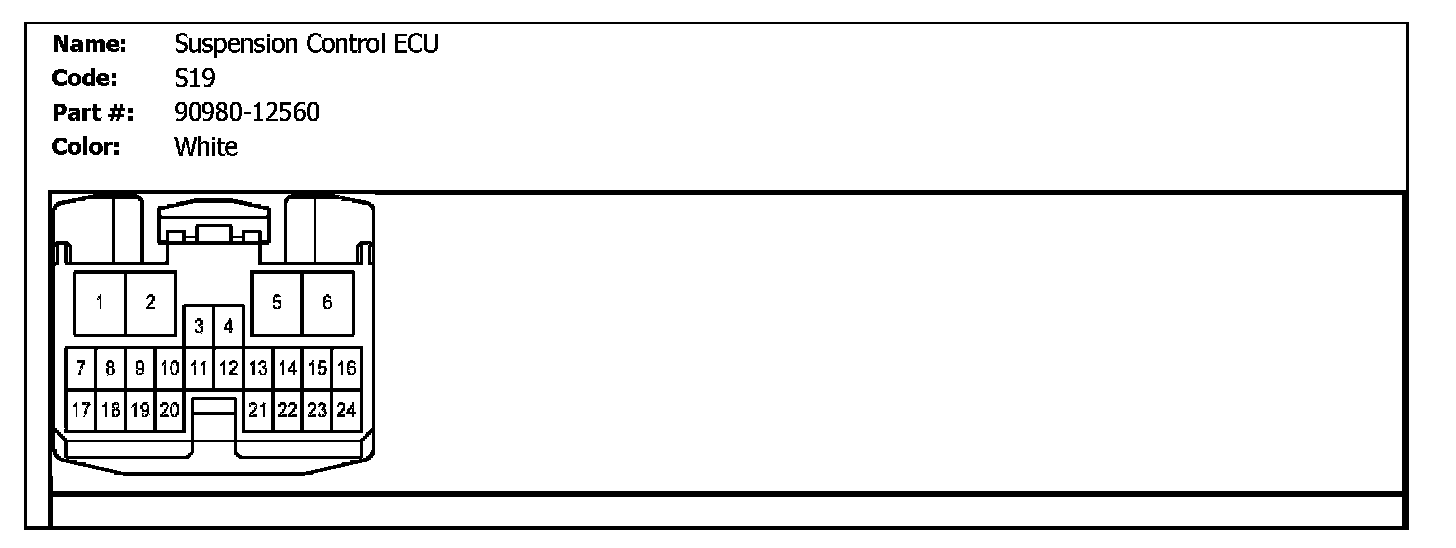

S19 (Suspension Control ECU):

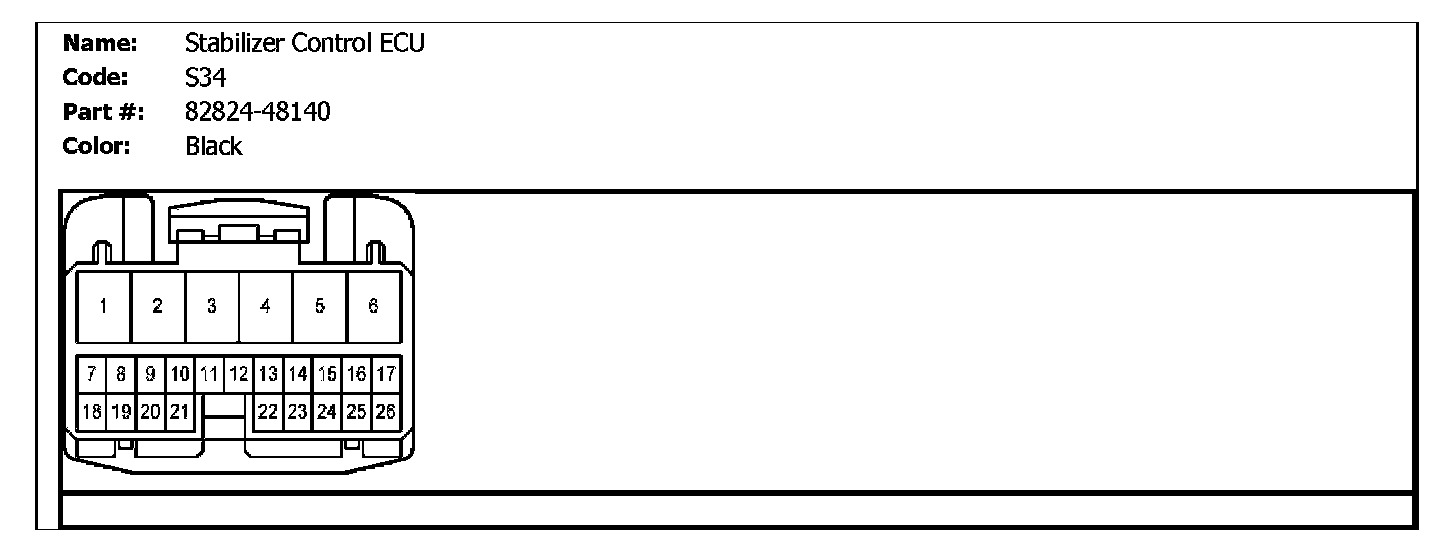

S34 (Stabilizer Control ECU):
S35 (Stabilizer Control ECU):
S36 (Stabilizer Control ECU):
