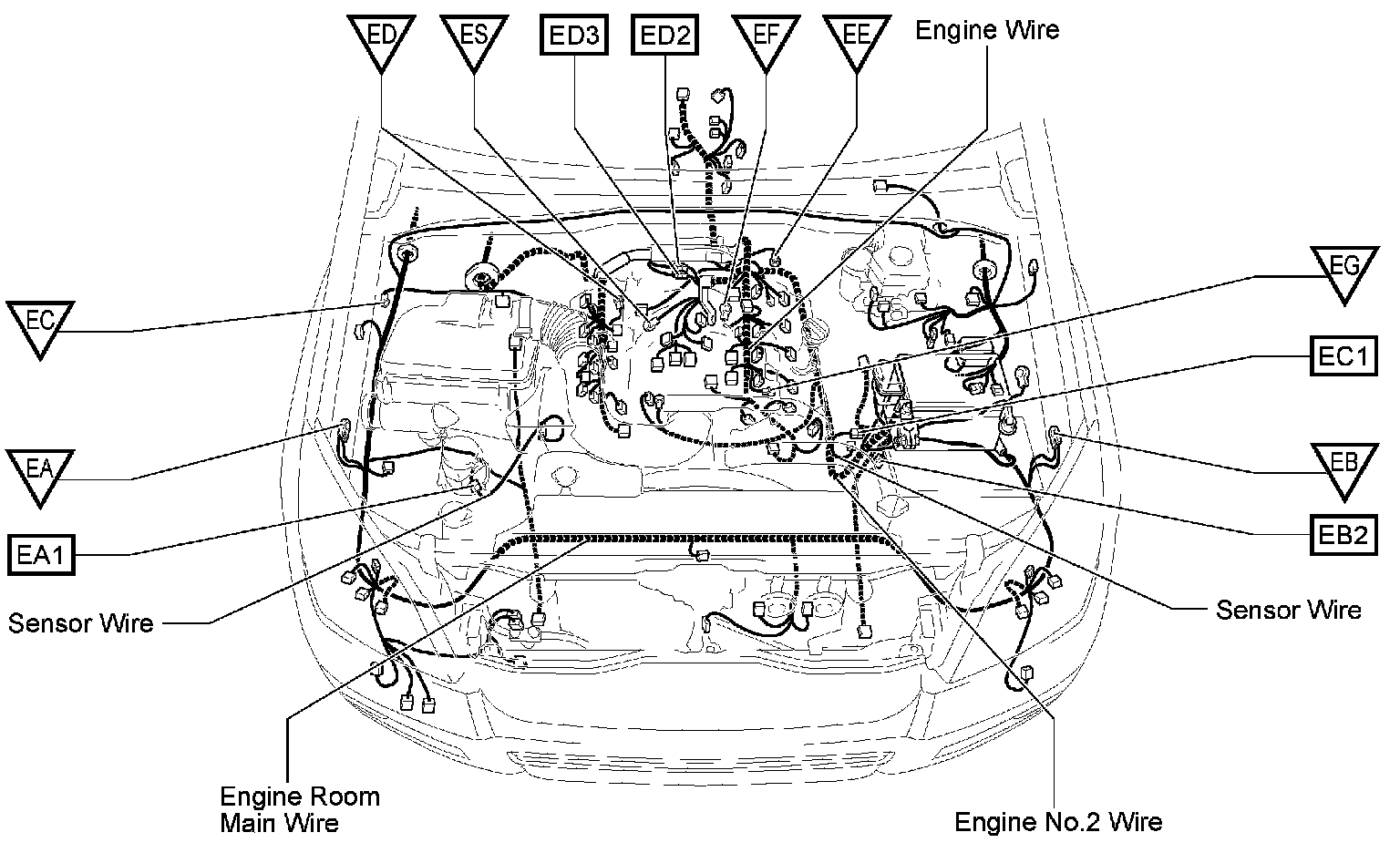

Wire and Wire, Ground Points In Engine Compartment
Wire and Wire, Ground Points In Engine Compartment
EA1-ED3, EA-ES:
EA1-ED3:
