Cabin Air Filter / Purifier: Service and Repair

Cabin Air Filter












1. Open the glove box and unhook the clip as shown.

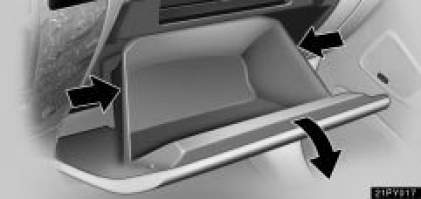

2. Push each side of the glove box to unhook the claws.

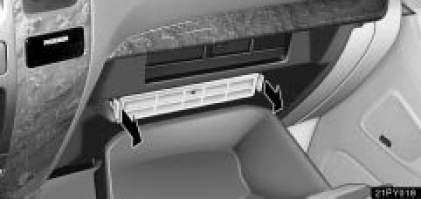

3. Take out the filter case.
4. Remove the filter from the filter case.






5. Replace the filter, keeping the arrow pointing up.



NOTICE: The filter should be installed properly in position. The use of the air conditioning with the filter removed may cause the malfunction of the air conditioning system.
