Home >> Lexus Truck >> 2008 >> GX 470 V8-4.7L (2UZ-FE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Hose/Line HVAC >> Service and Repair

Hose/Line HVAC: Service and Repair








AIR CONDITIONING: REFRIGERANT LINE:

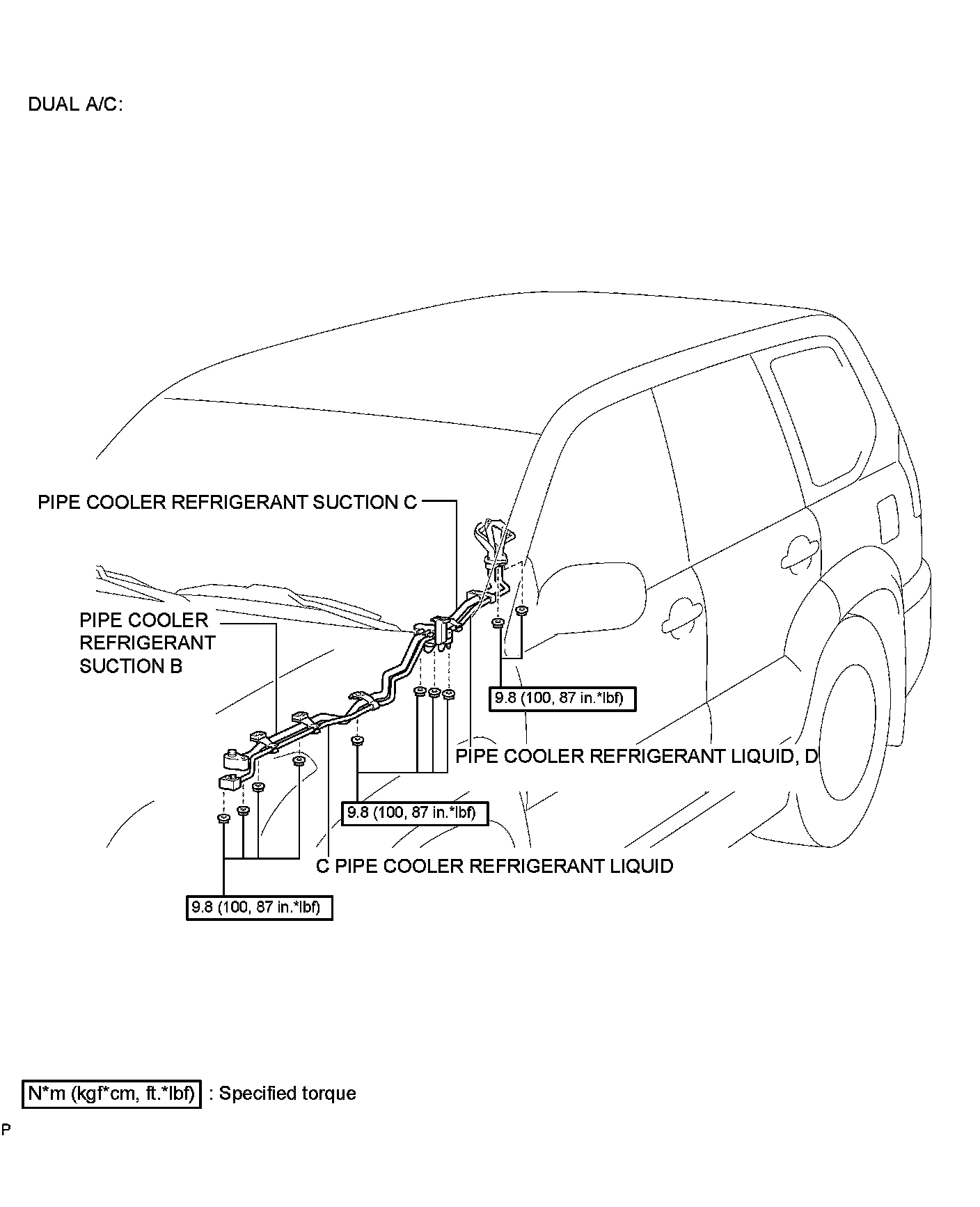

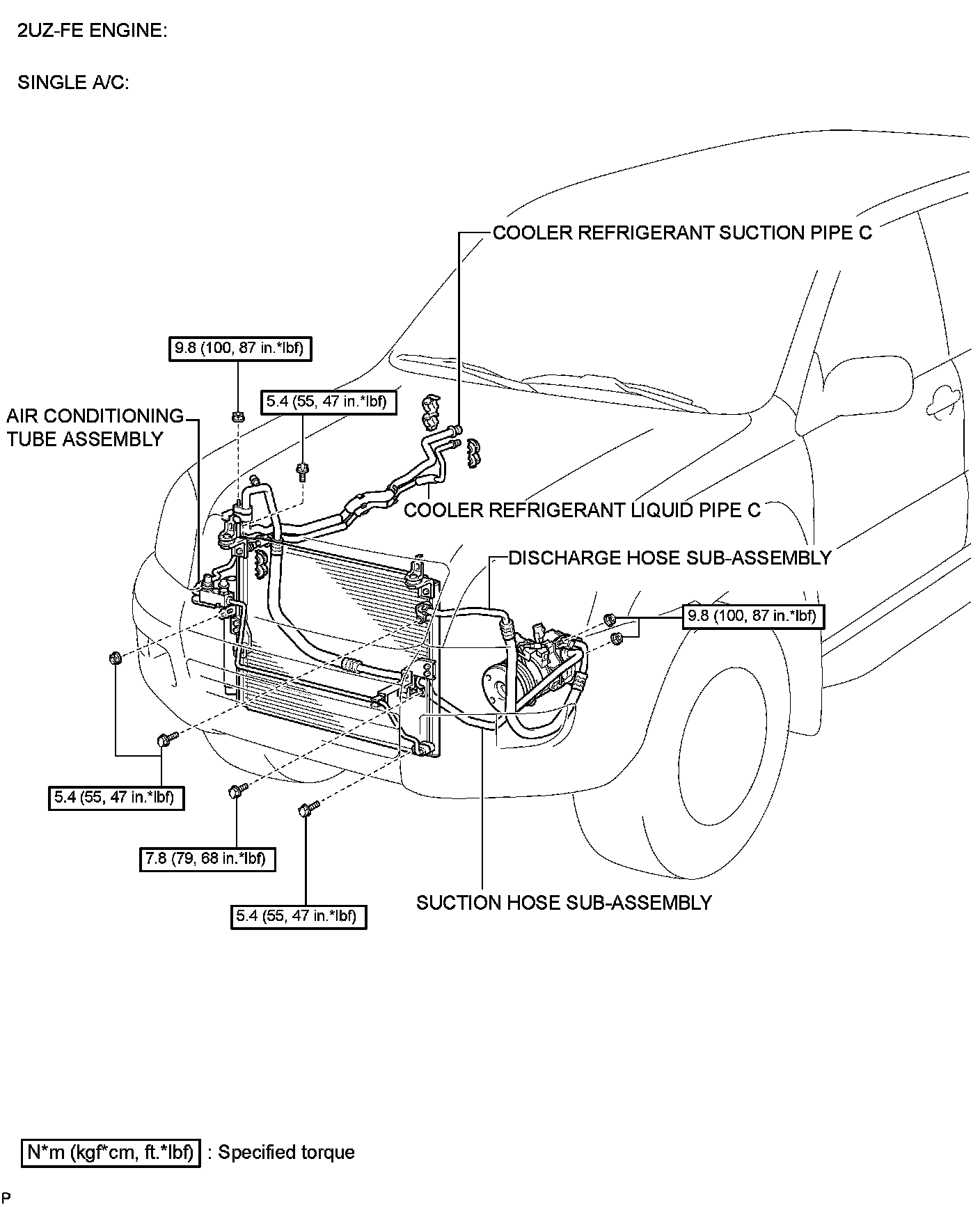

COMPONENTS
