Pinout Values and Diagnostic Parameters

AIR CONDITIONING SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

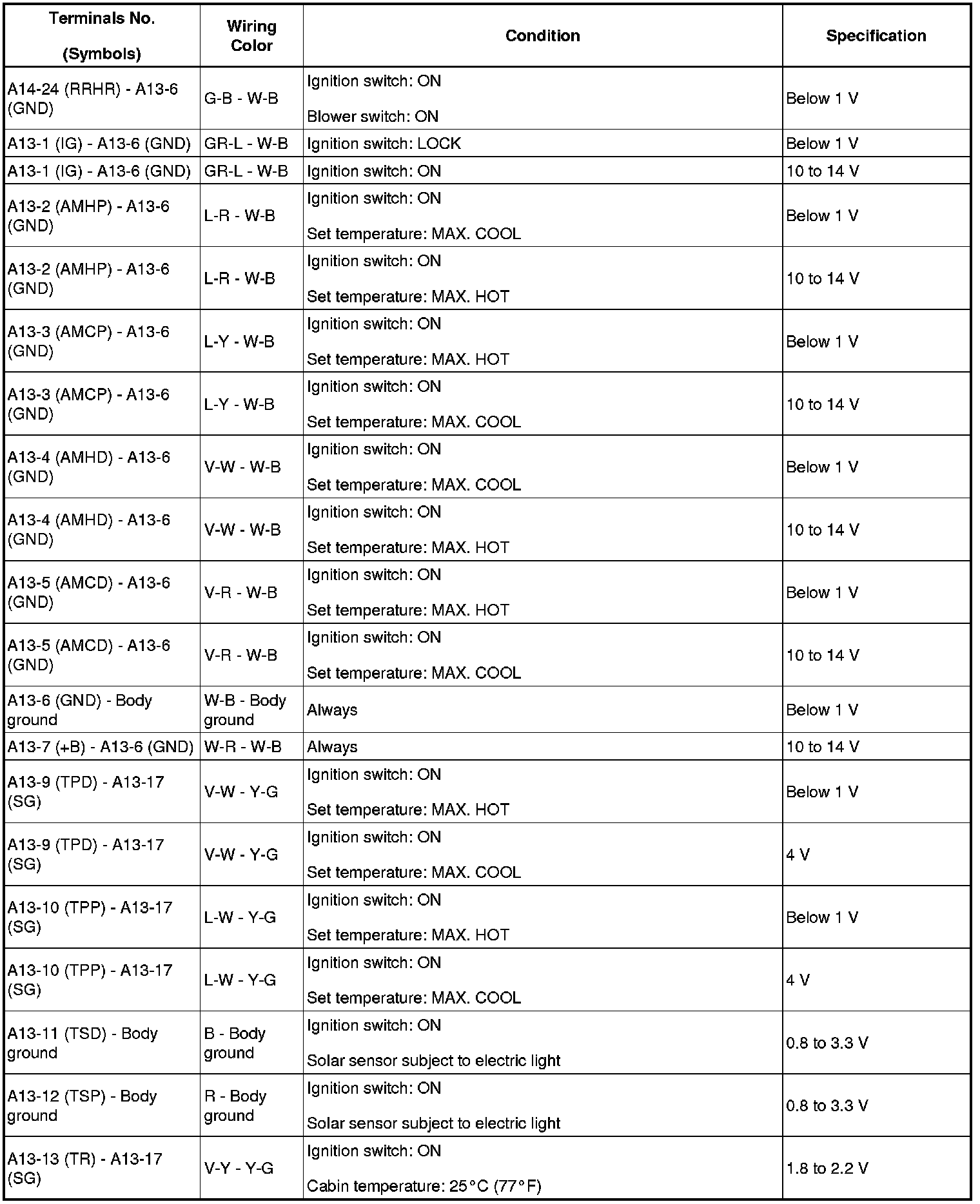

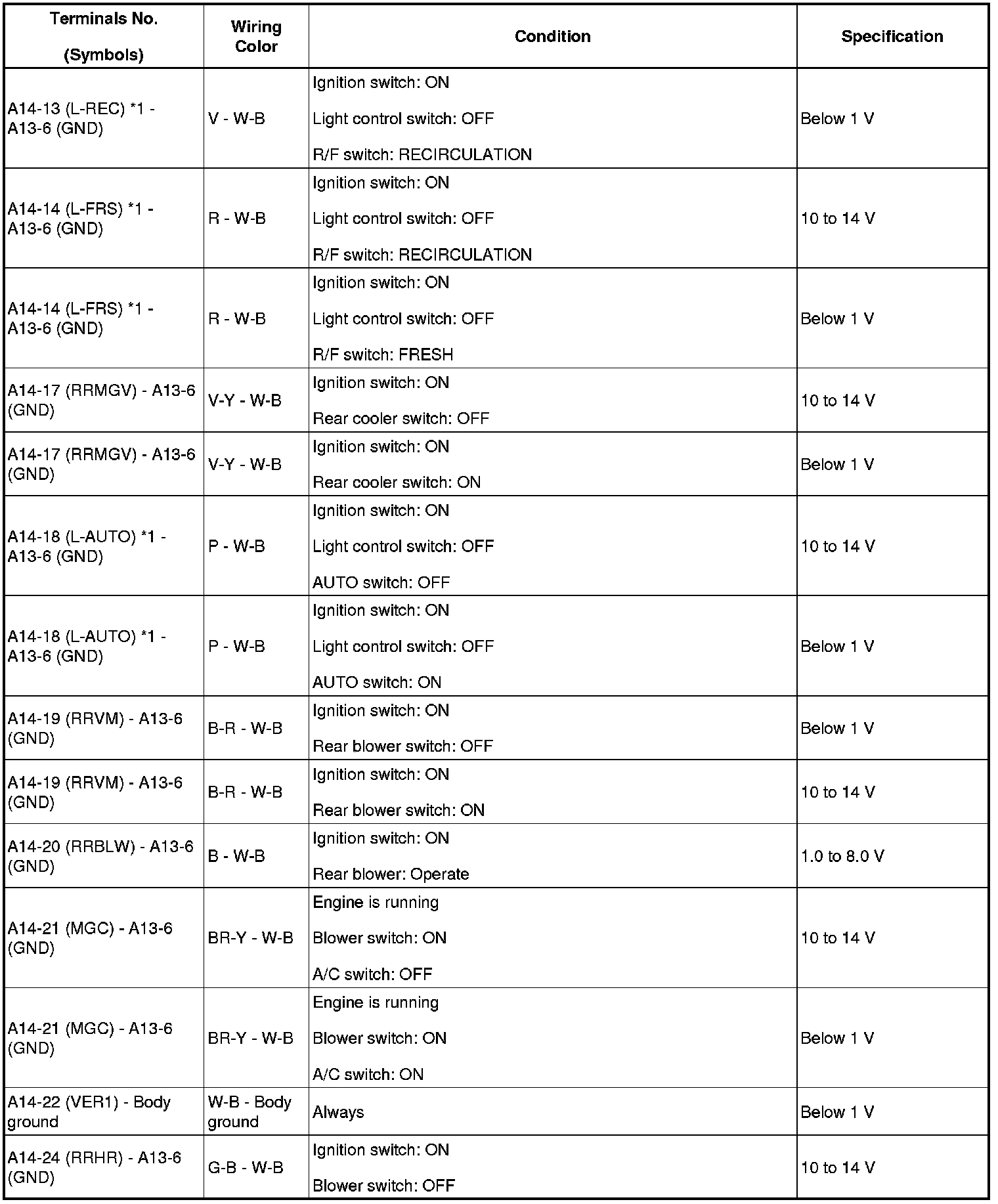

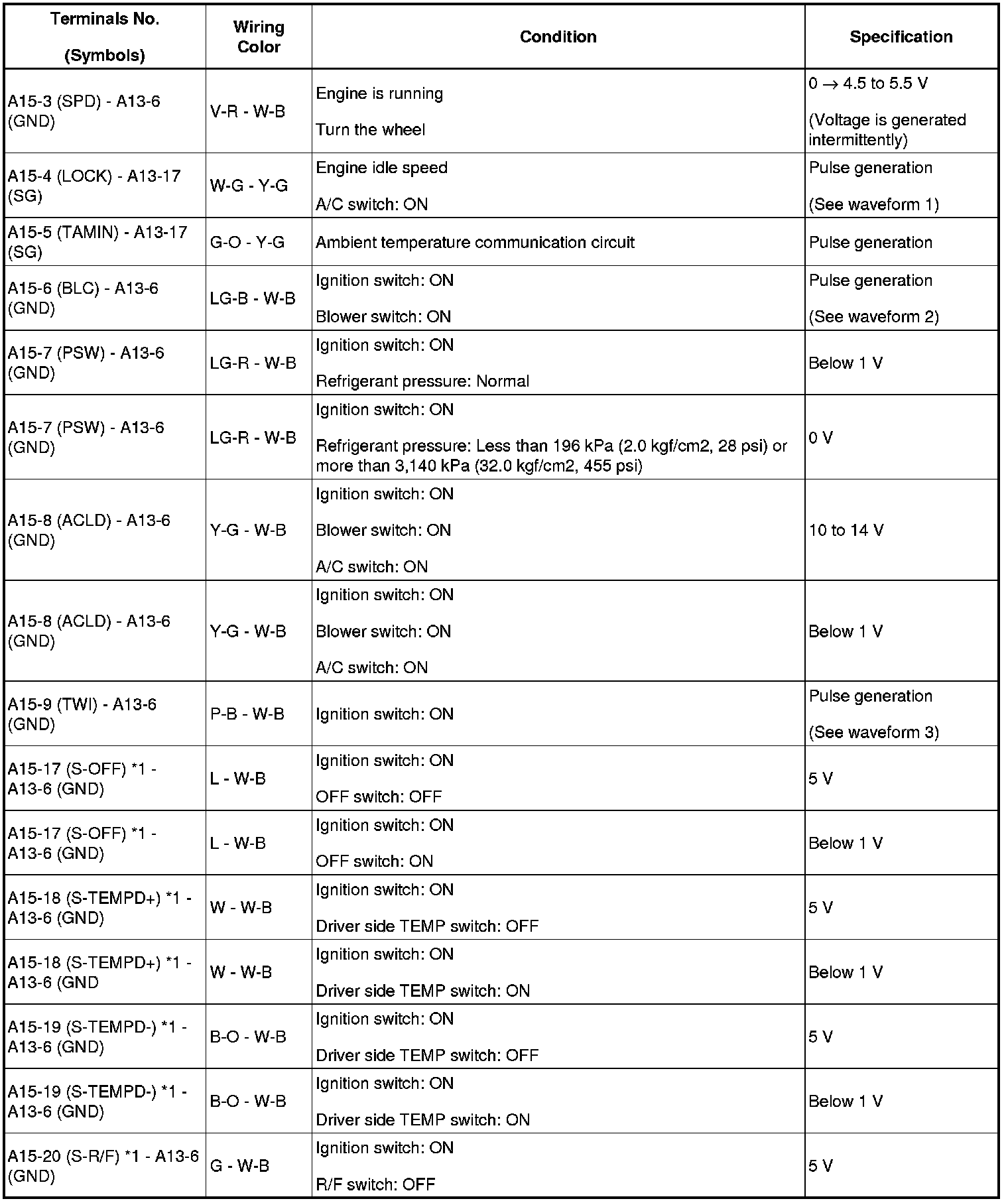

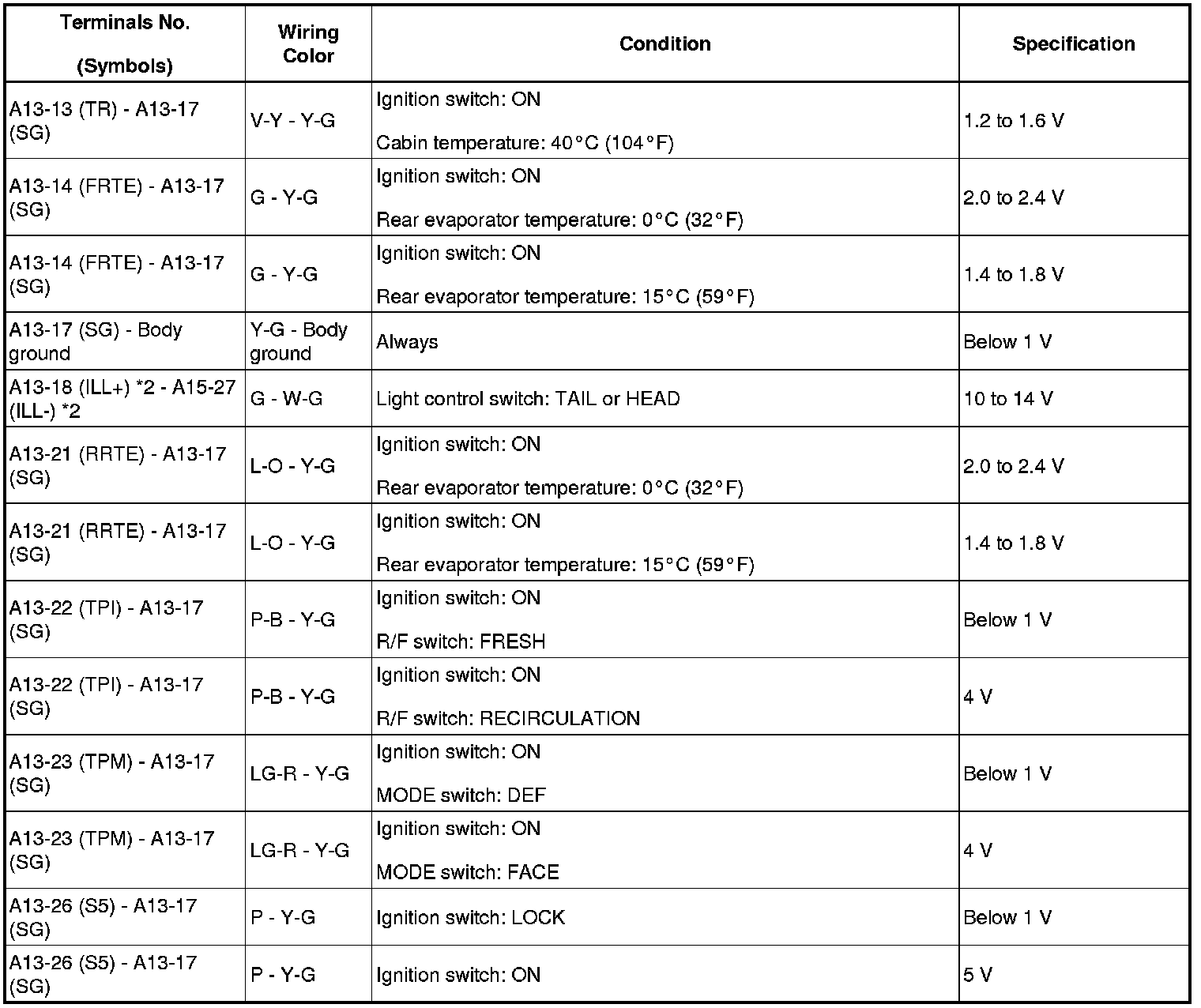

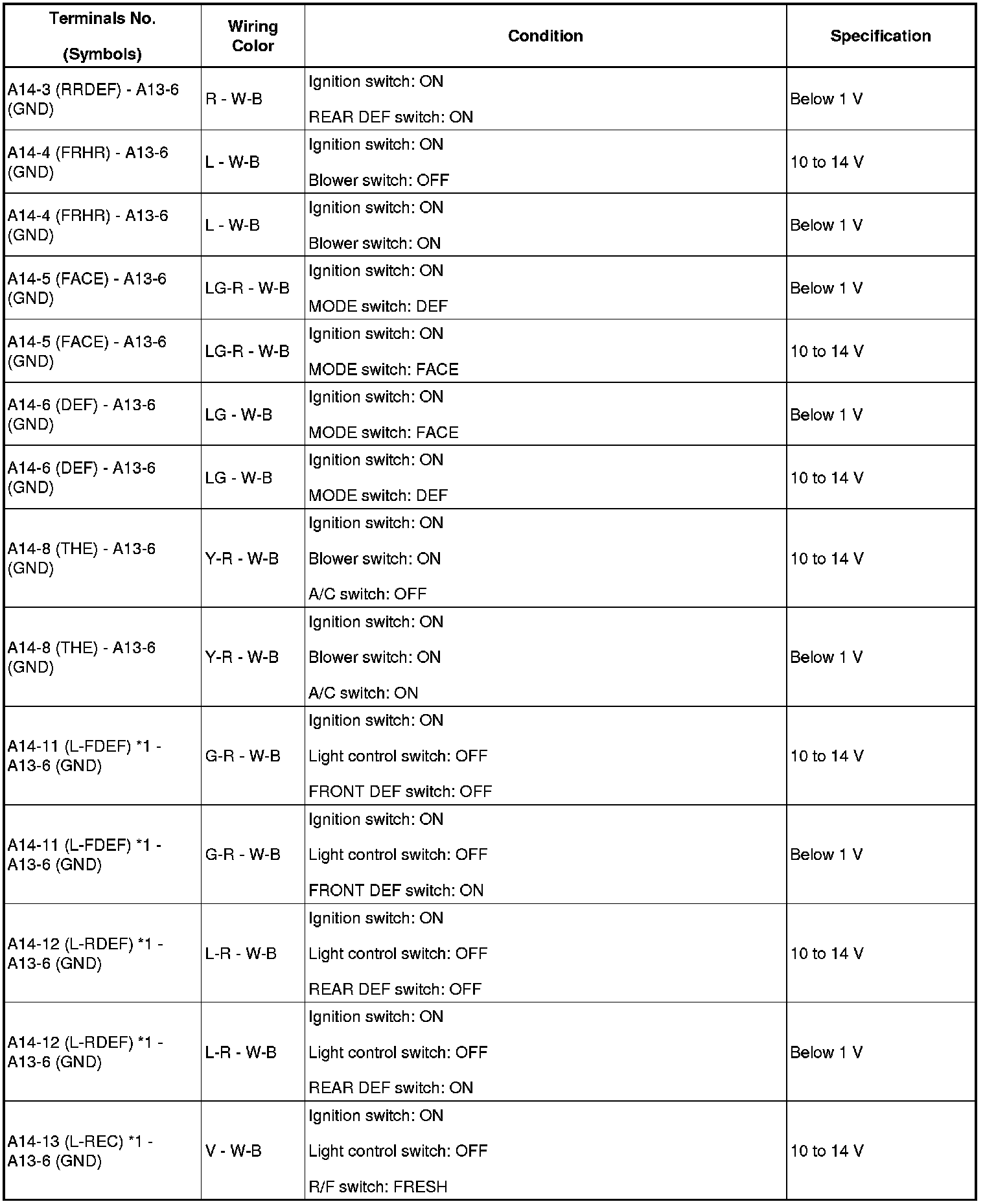

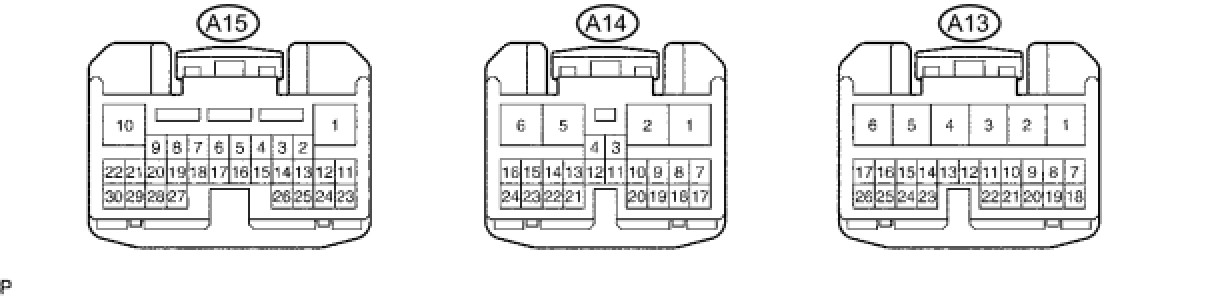

1. Air conditioning amplifier





























*1: with LEXUS Navigation System
*2: without LEXUS Navigation System

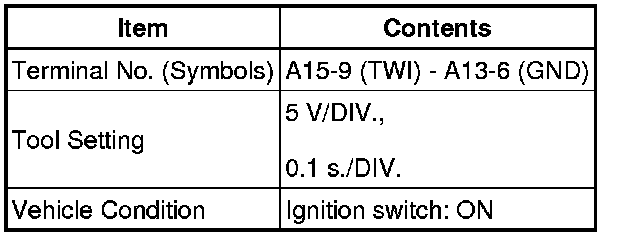

(a) Waveform 1:

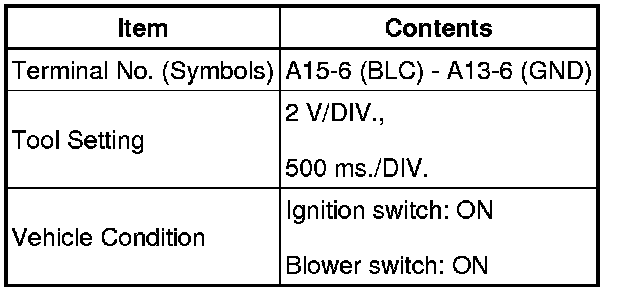

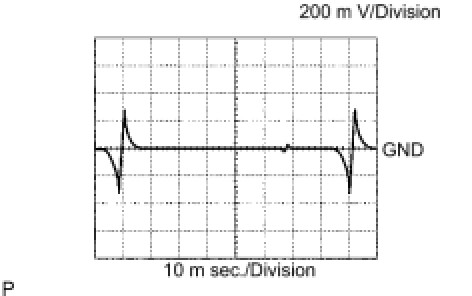

(b) Waveform 2:










(c) Waveform 3:

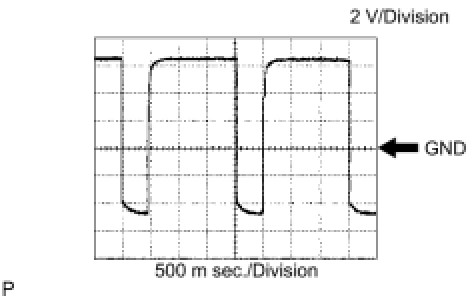

- The correct waveform is as shown.

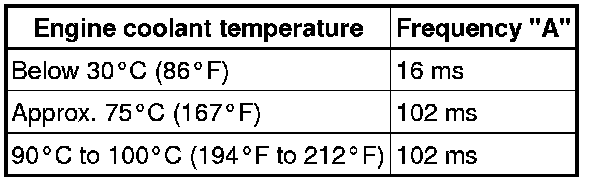

- The waveform frequency "A" becomes longer as the engine coolant temperature becomes higher, as shown in the chart.

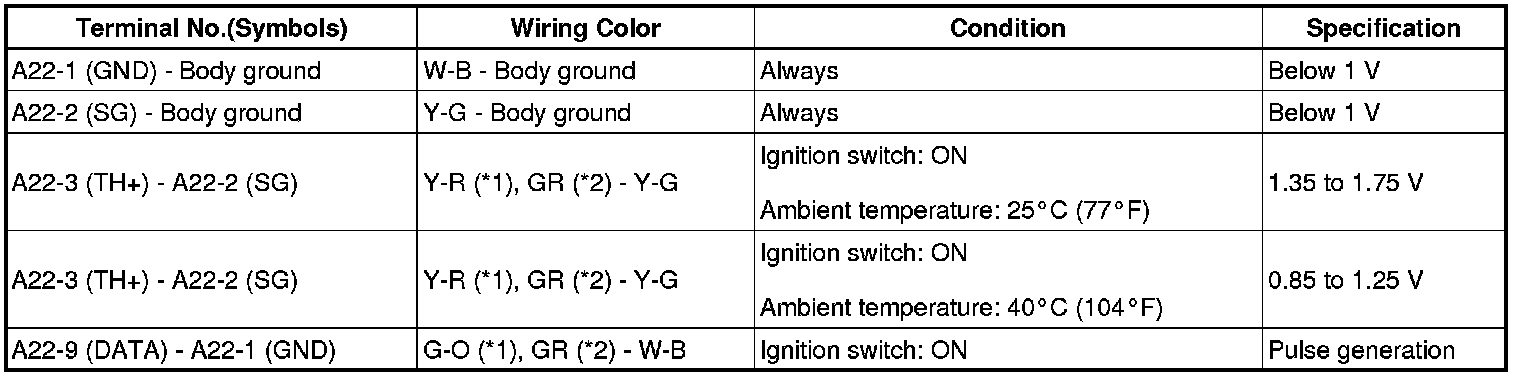

2. Accessory Meter Panel









*1: with LEXUS Navigation System
*2: without LEXUS Navigation System

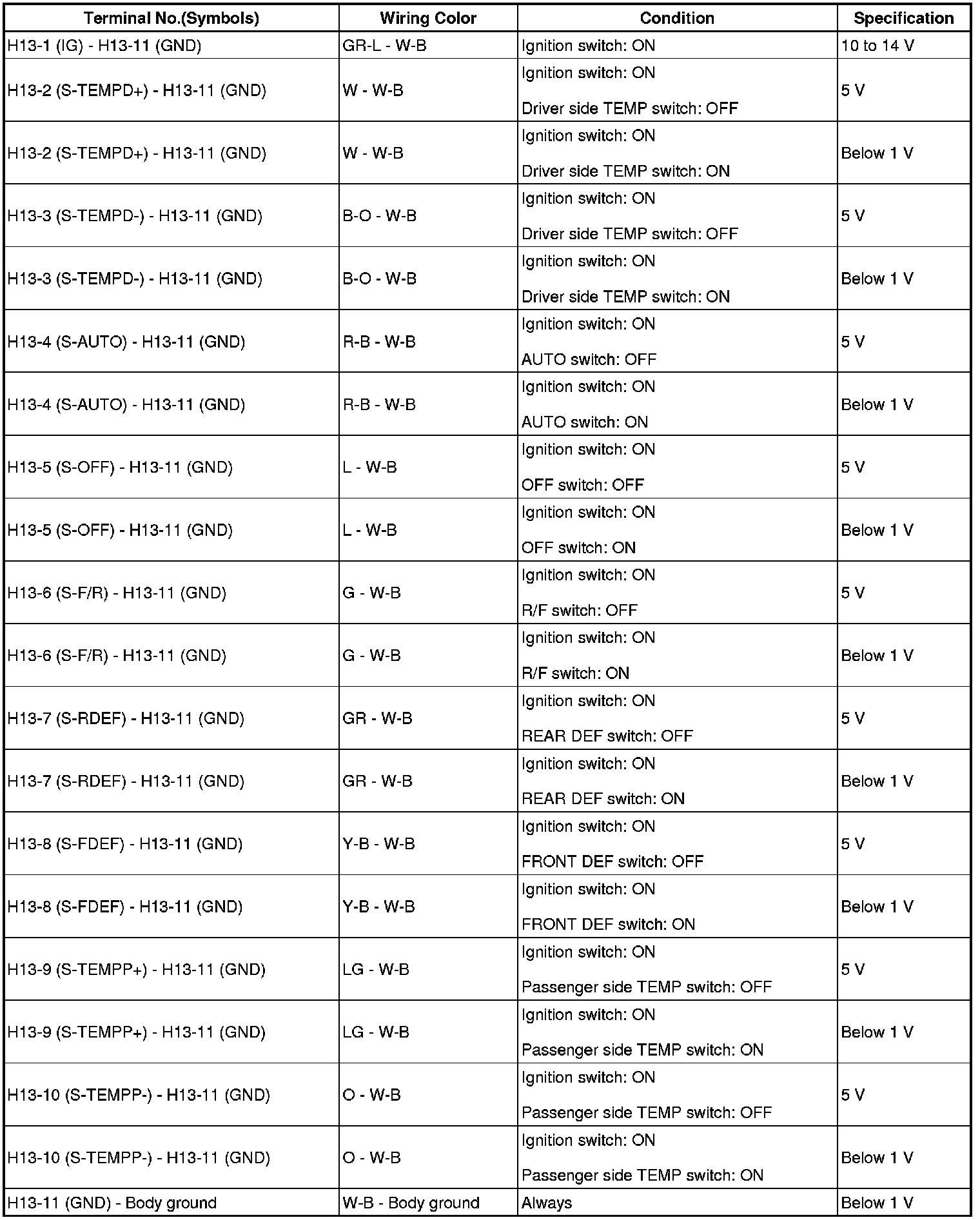

3. Heater Control Switch (with LEXUS Navigation System)

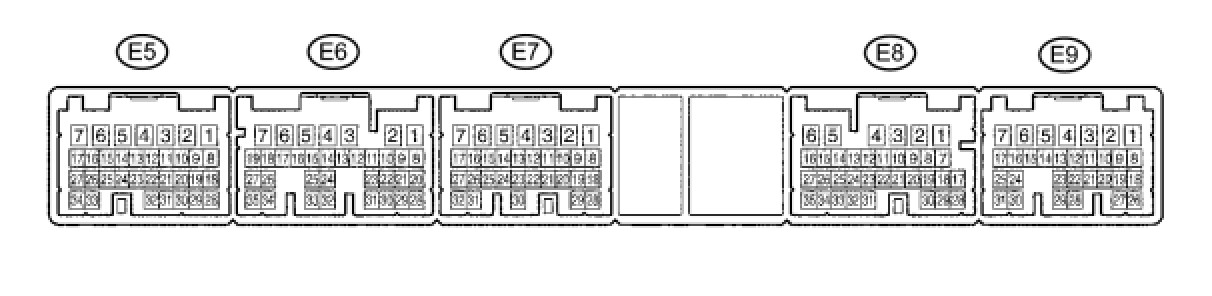

4. ECM

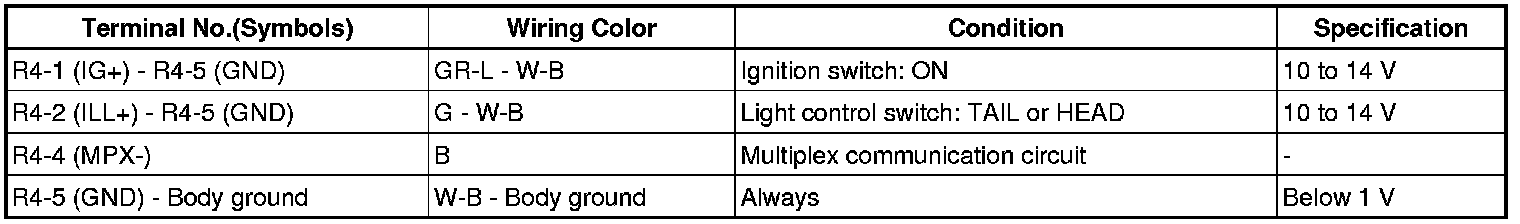

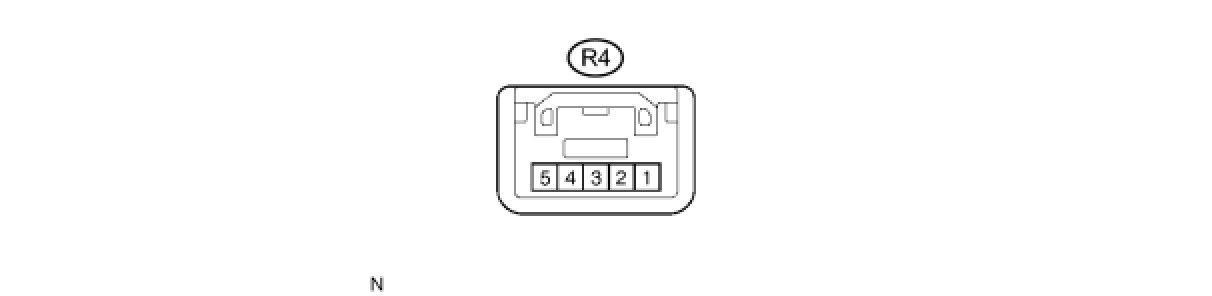

5. Rear Cooler Control Panel
