Home >> Lexus Truck >> 2008 >> GX 470 V8-4.7L (2UZ-FE) >> Repair and Diagnosis >> Lighting and Horns >> Trailer Lighting Relay >> Locations

Trailer Lighting Relay: Locations








LIGHTING: LIGHTING SYSTEM:

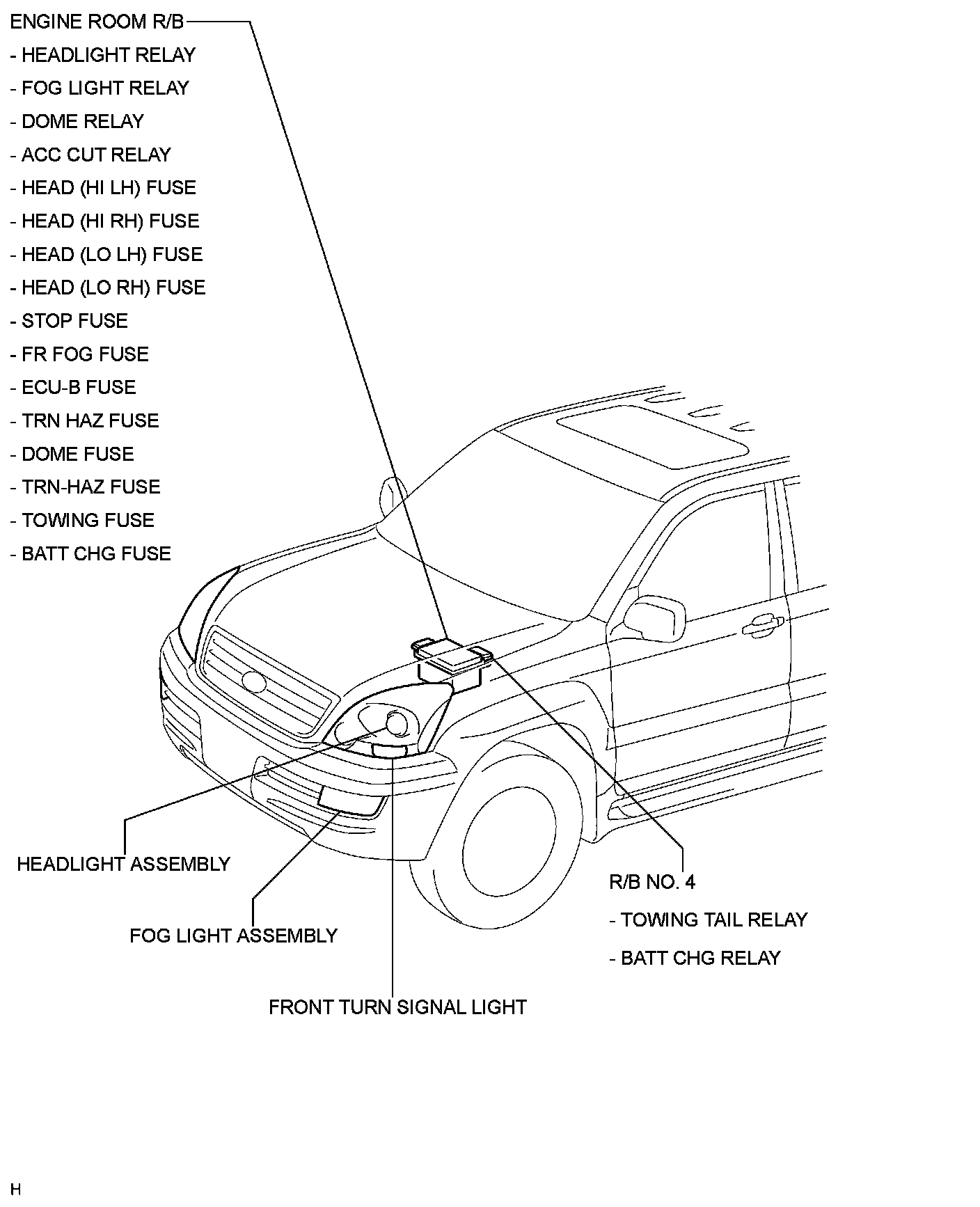

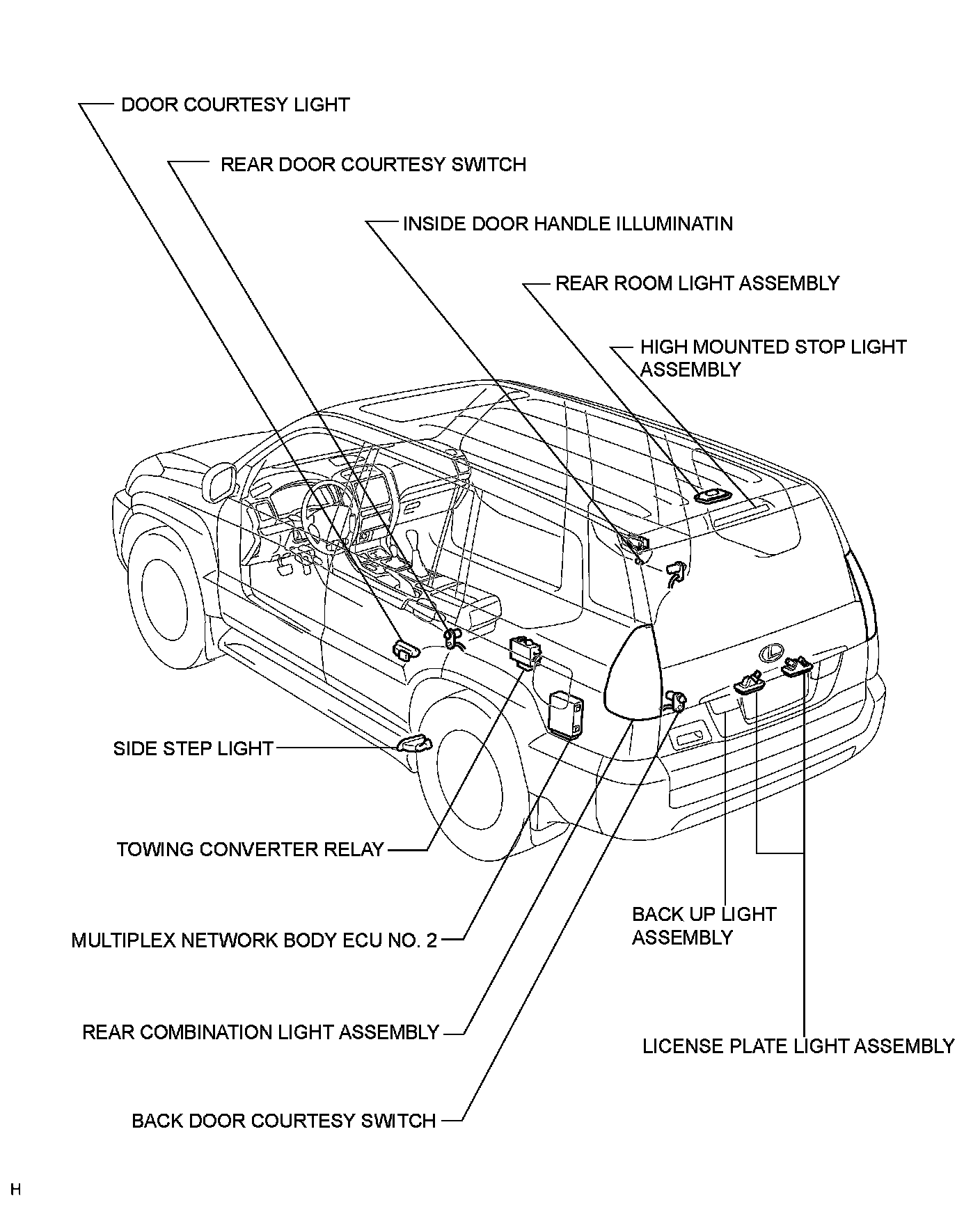

PARTS LOCATION
