Computers and Control Systems: Description and Operation








2UZ-FE ENGINE CONTROL SYSTEM: SFI SYSTEM:

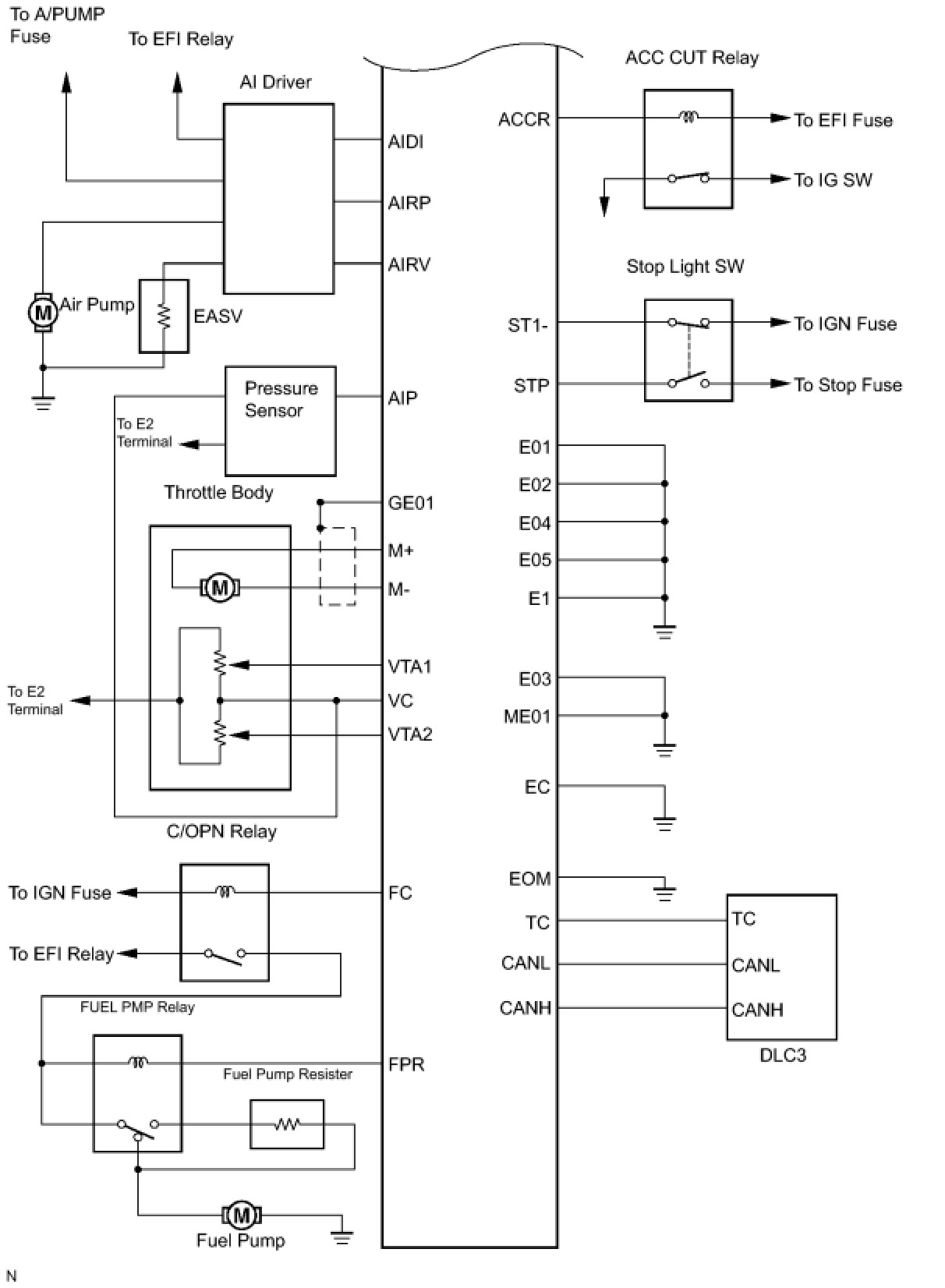

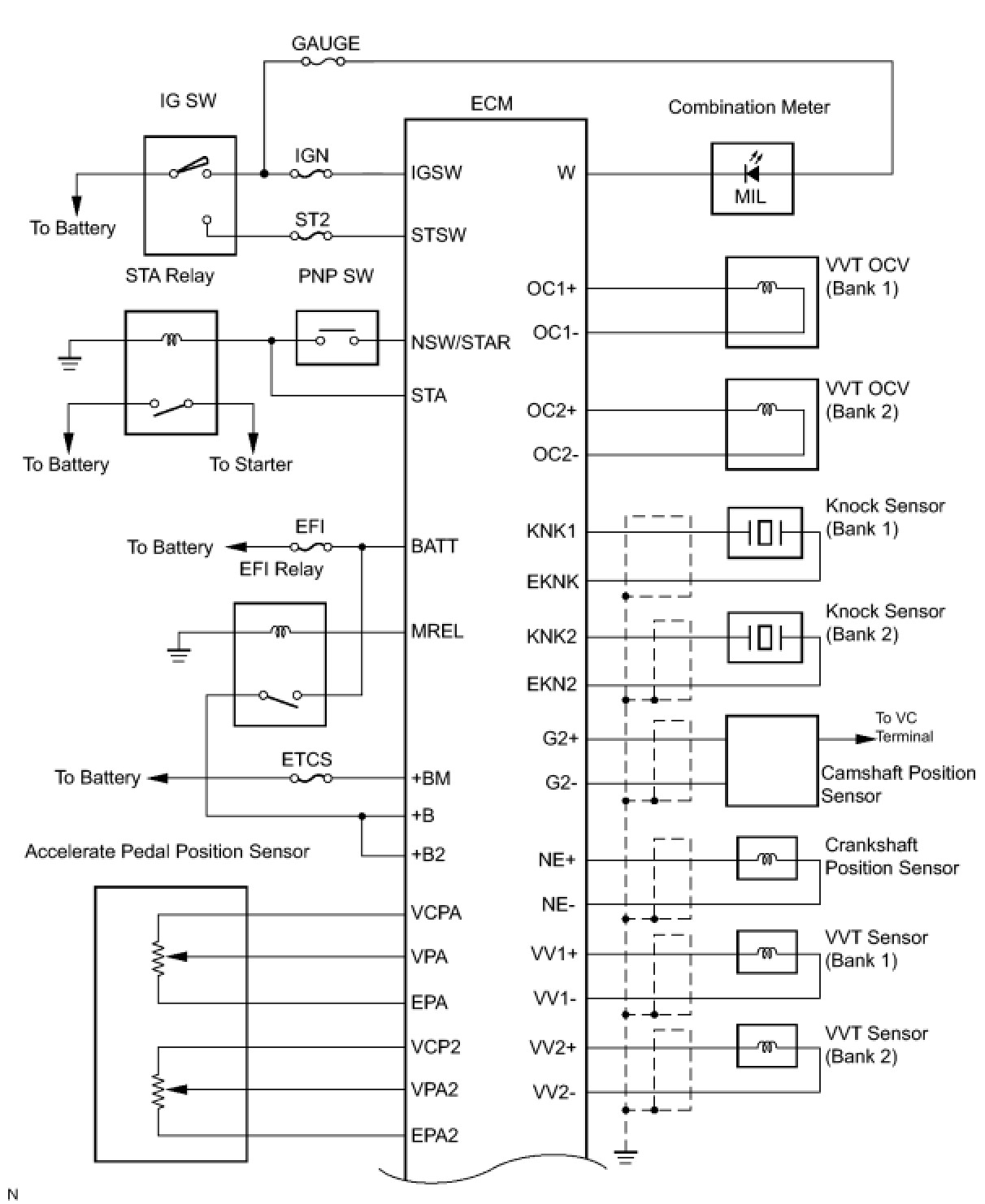

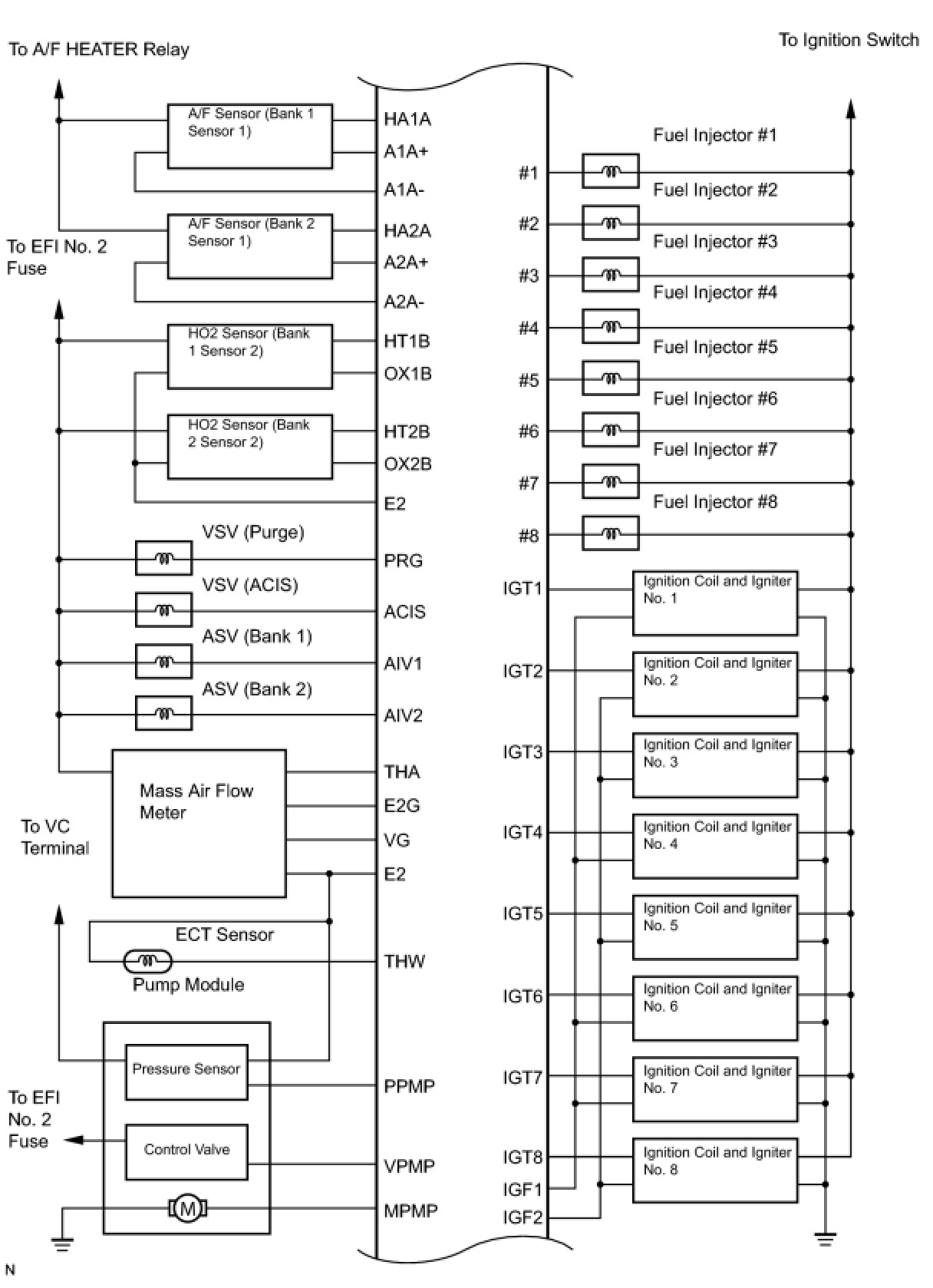

SYSTEM DIAGRAM
