Flex Plate

Drive Plate

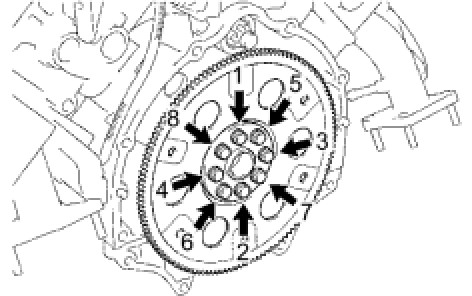

Install and uniformly tighten the 8 mounting bolts in several steps, in the order shown in the illustration.
Torque 49 Nm (500 kgf-cm, 36 ft-lbf)





Mark the mounting bolt with paint (Procedure "A").
Retighten the mounting bolts by 90° in the order shown.
Check that the painted mark is now at a 90° angle to the mark placed in procedure "A".
