Canada - A/T - A750 A/T Solenoid Identification
BulletinTSB2721
Issue Date
September 30, 2009
Title
A750 TRANSMISSION SOLENOID IDENTIFICATION
Component
AUTOMATIC TRANSMISSION
Models
'03-'09 GX470; '03-'07 LX470
INTRODUCTION:
This service bulletin provides information on the proper identification of the 7 solenoids used in the A750 transmission.

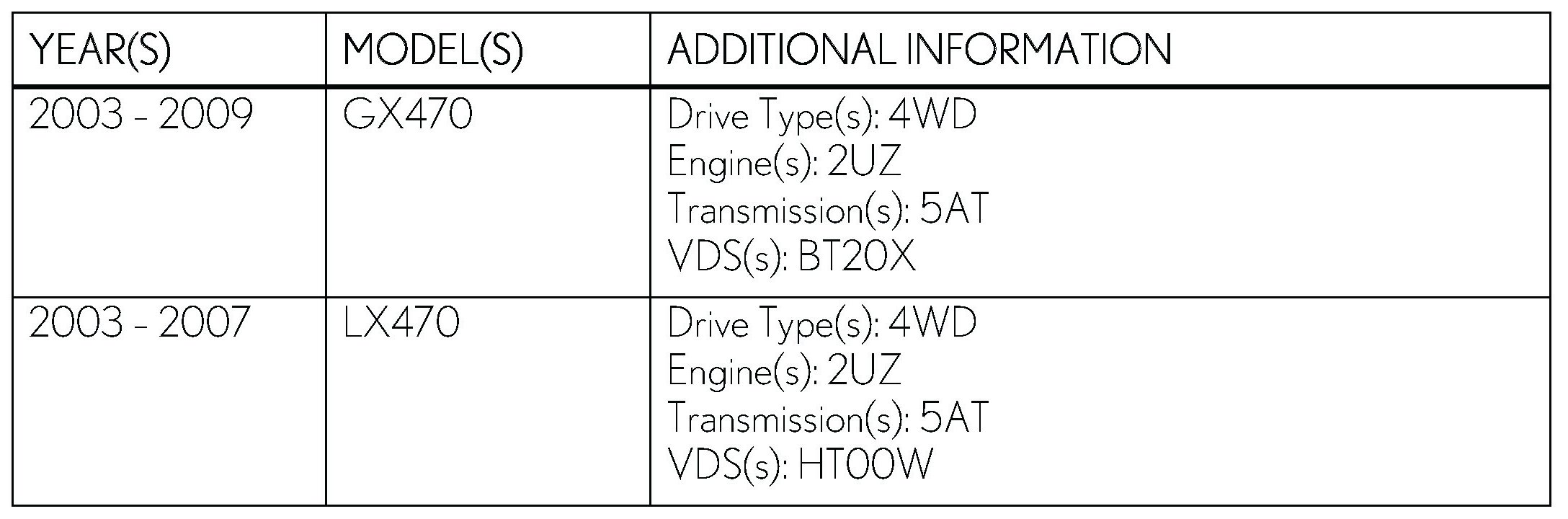

APPLICABILITY:

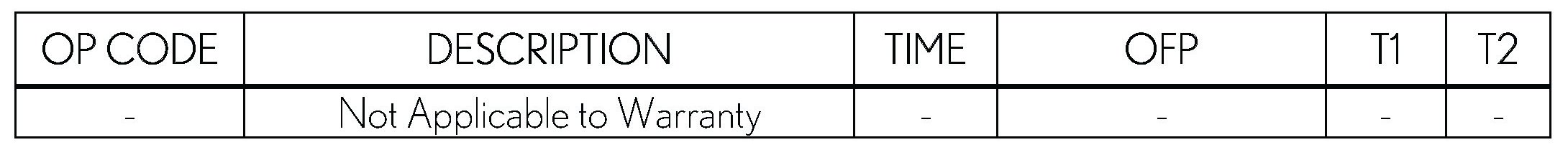

WARRANTY INFORMATION:

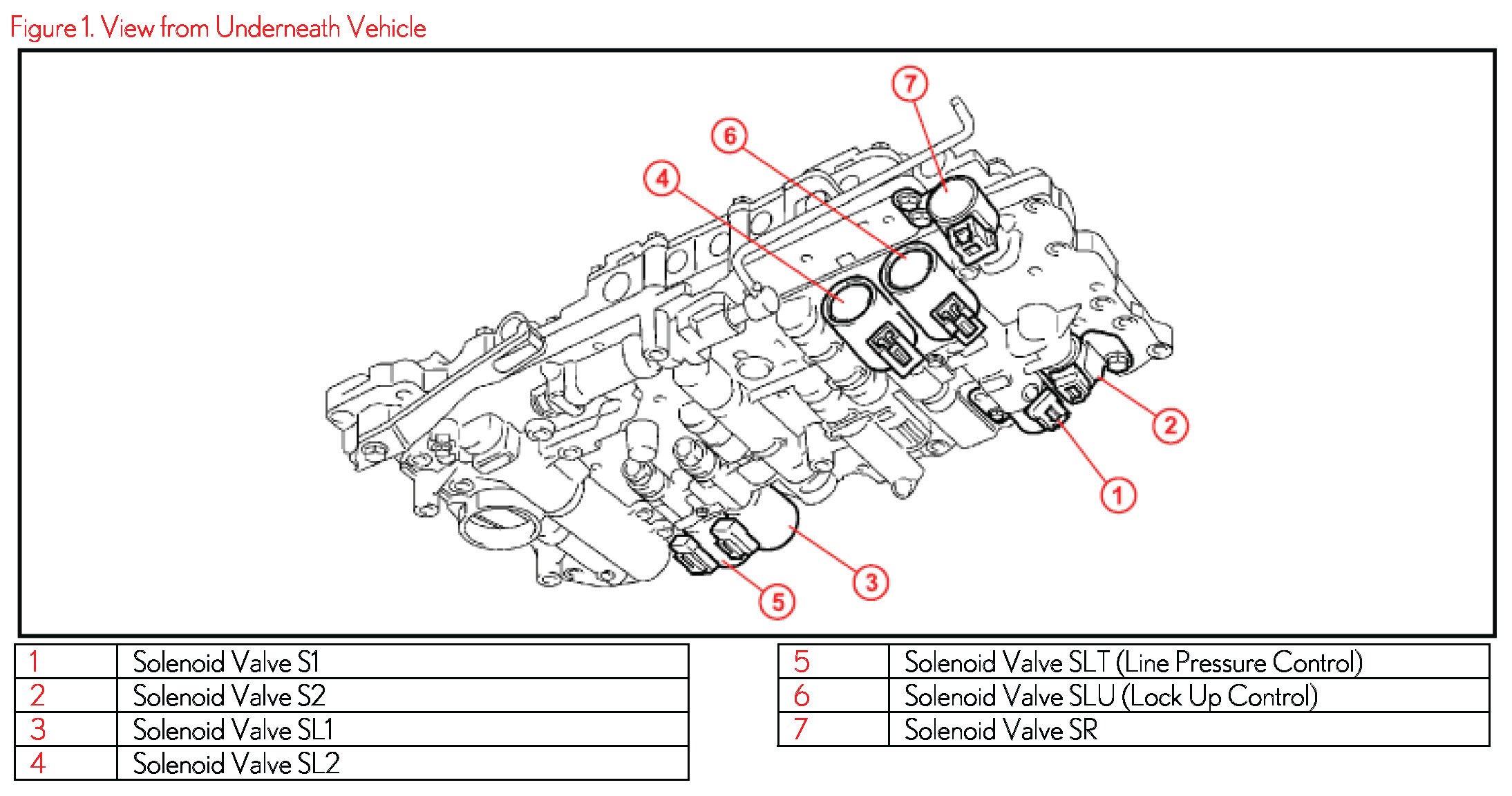

Transmission Solenoid Identification
PARTS INFORMATION

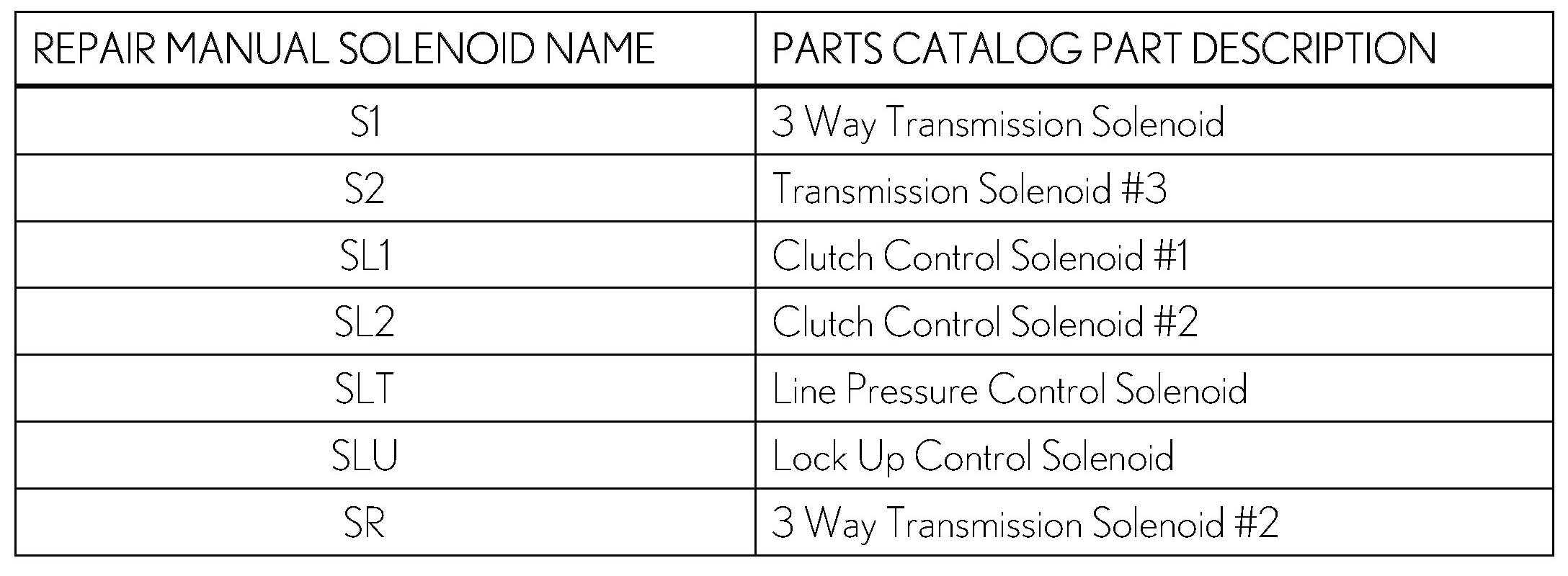

Provided is a chart listing the Repair Manual name of each solenoid used in the A750 transmission, as well as the part name description provided in the electronic parts catalog.
NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
