INTRODUCTION:
Some 2008 - 2009 GX470 vehicles may exhibit a condition where surface blemishes appear on the chrome garnish of the back glass (lower back window moulding). In some instances, the blemish is caused by remaining adhesive left by the protective film when it was removed. To correct this condition and improve serviceability, the garnish is now separately available from the rear glass assembly as a service part.
Please refer to the procedure in this bulletin to clean and/or how to replace the chrome garnish.

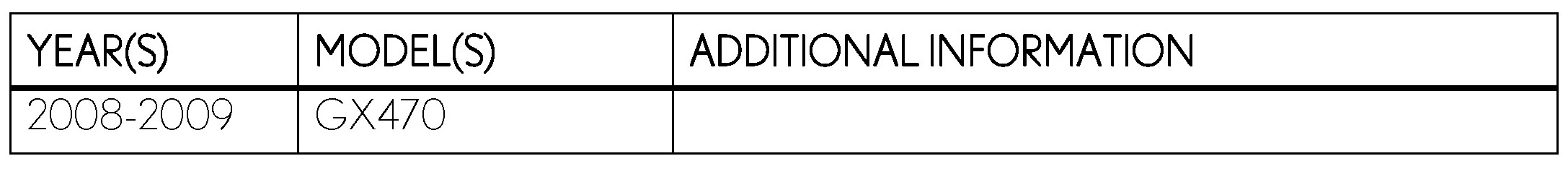

APPLICABILITY:
PRODUCTION CHANGE INFORMATION:

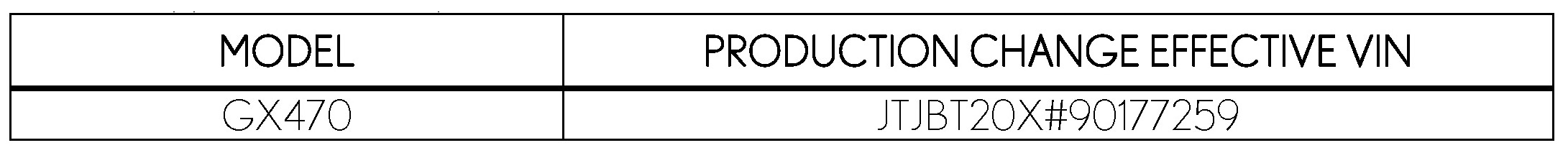

This TSB applies to vehicles produced BEFORE the Production Change Effective VIN shown.

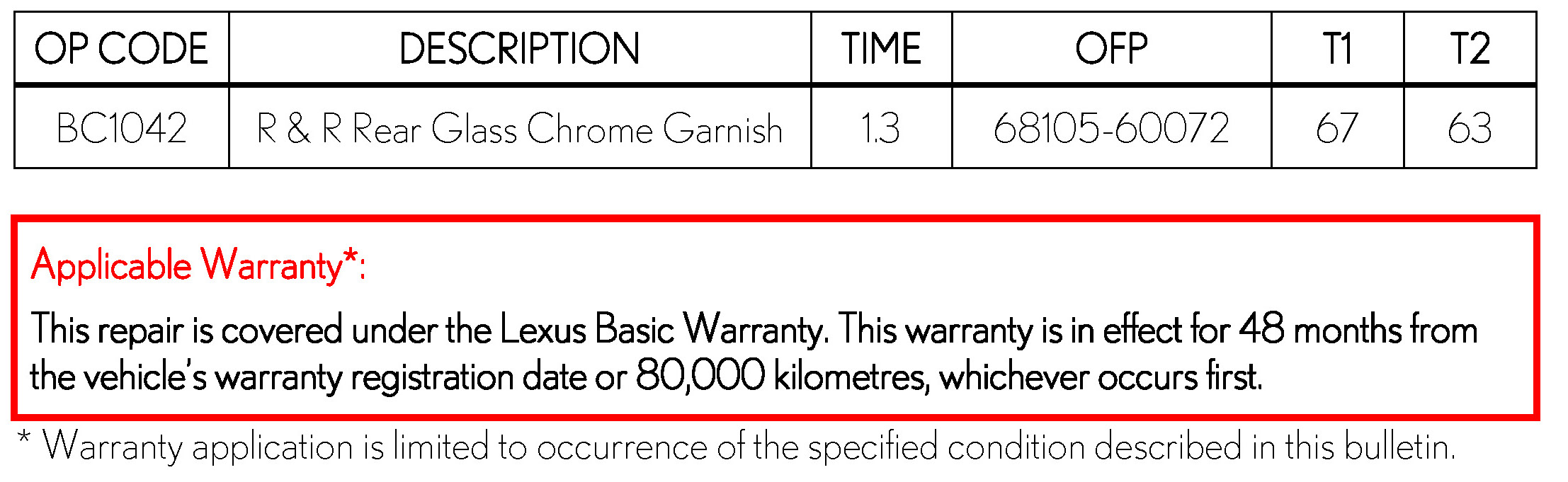

WARRANTY INFORMATION:
PARTS INFORMATION:

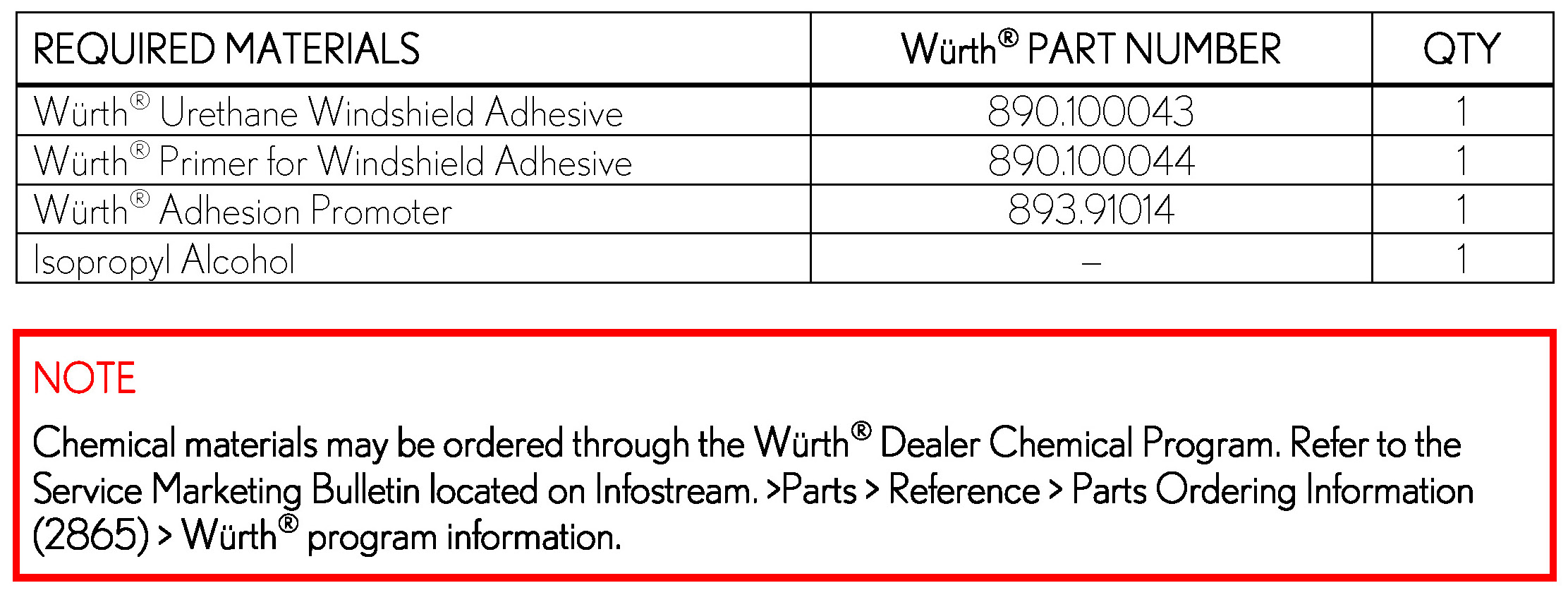

REQUIRED TOOLS & EQUIPMENT:
REPAIR PROCEDURE:
Adhesive Tape Deposit Removal
To remove adhesive tape deposits, follow the procedures below.
1. Clean the moulding with wet cloth in order to remove dust / grime.
2. Wet soft cloth (ie, 3M Perfect-it cloth) with Isopropyl Alcohol.
3. Press the cloth onto the moulding with the adhesive deposit for at least 10 seconds.
4. Gently wipe moulding and remove adhesive deposits.
Replace Moulding
To replace the moulding due to damage or poor appearance, follow the procedures listed below.
NOTICE
Only use the specified adhesive or primer. Using equivalent materials may affect the adhesion performance.
REPAIR PROCEDURE:
1. Apply masking tape and protective sheet on Back Door Panel to prevent it from being scratched and stained.
NOTICE
Assure the back door panel and bumper areas are completely covered by the protective sheet.

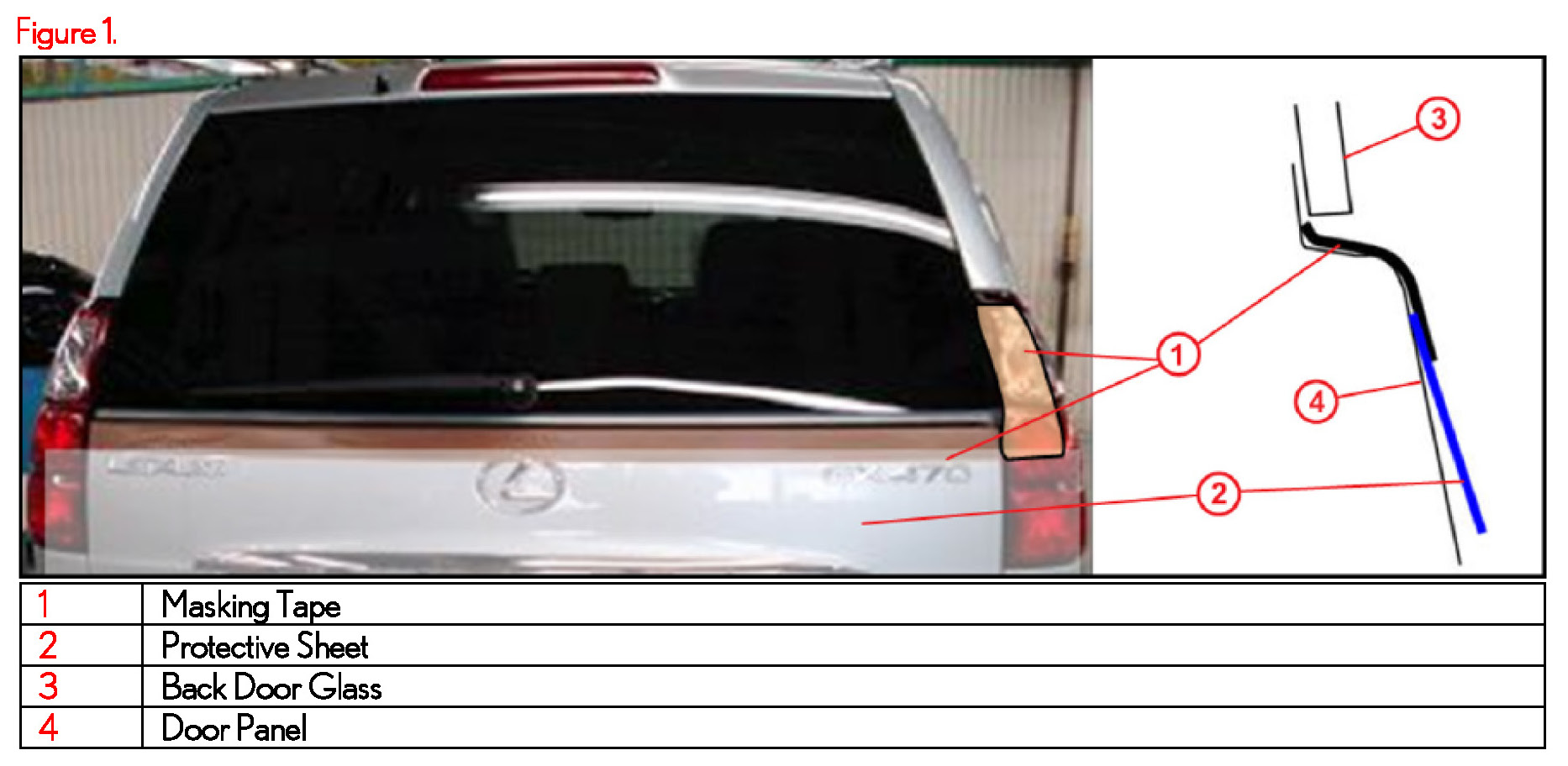

Insert the masking tape under the glass (see Fig. 1).
A. Open the Back Door.

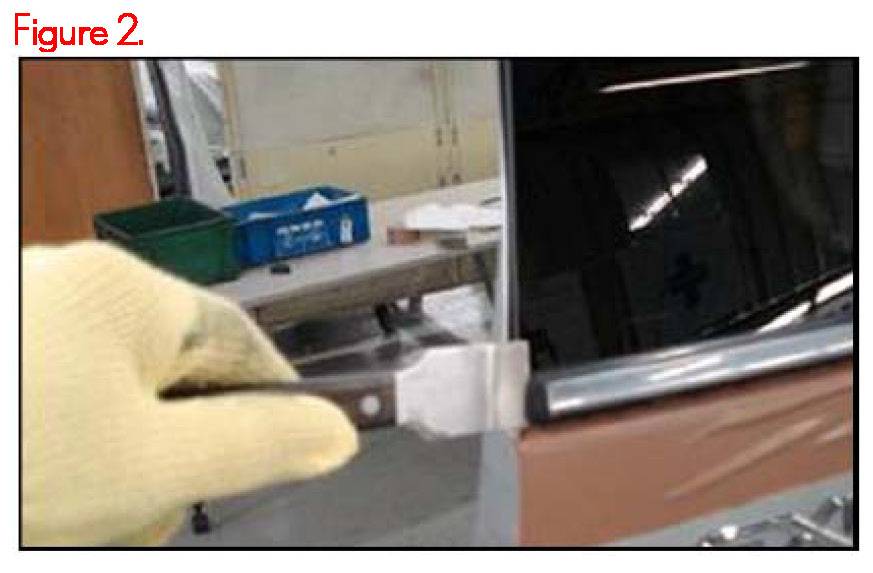

B. Starting from the LH side, insert the scraper/nylon pry tool between the moulding and the glass.
NOTICE
Be careful not to damage the back door glass and body panel.

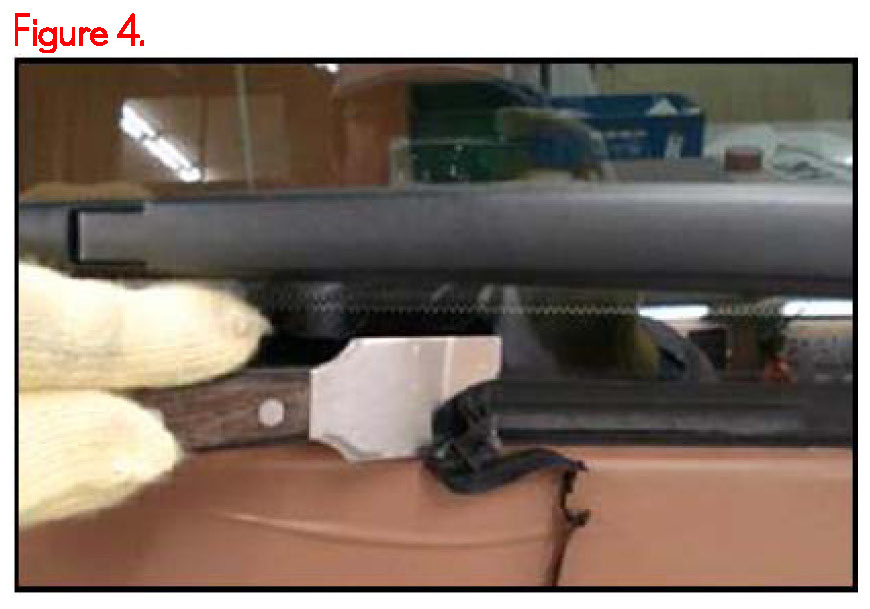

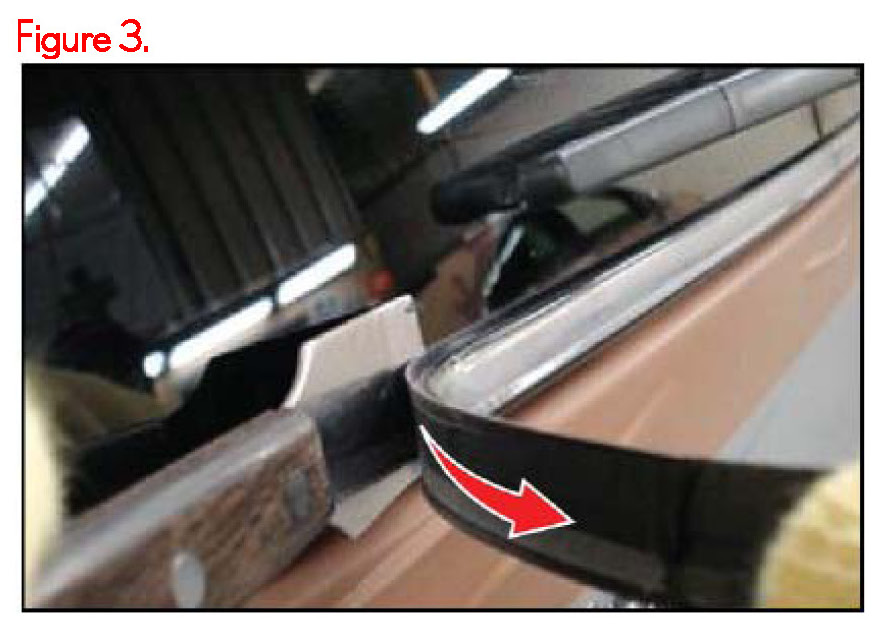

C. Remove the moulding by sliding the scraper/nylon pry tool under the moulding while pulling outward on the moulding.
NOTICE
Be careful not to damage the back door glass and body panel.

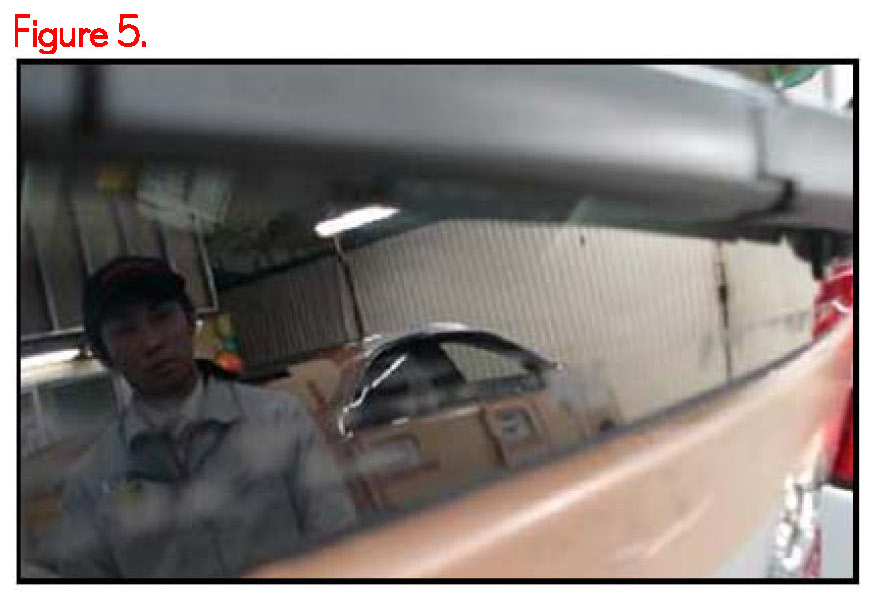

2. Remove all remaining adhesive from the glass
NOTICE
- Be careful not to damage the back door glass and body panel.
- Do not touch the glass surface after cleaning it.

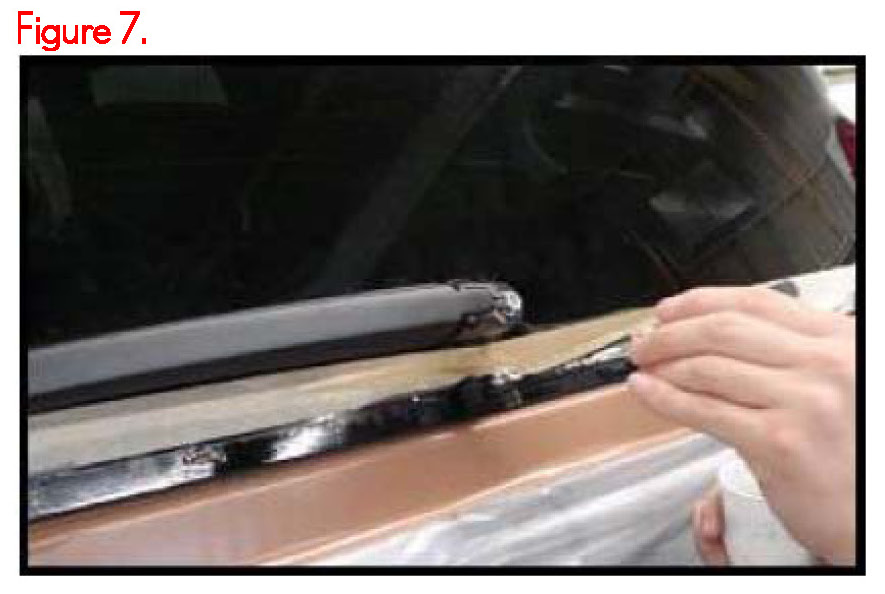

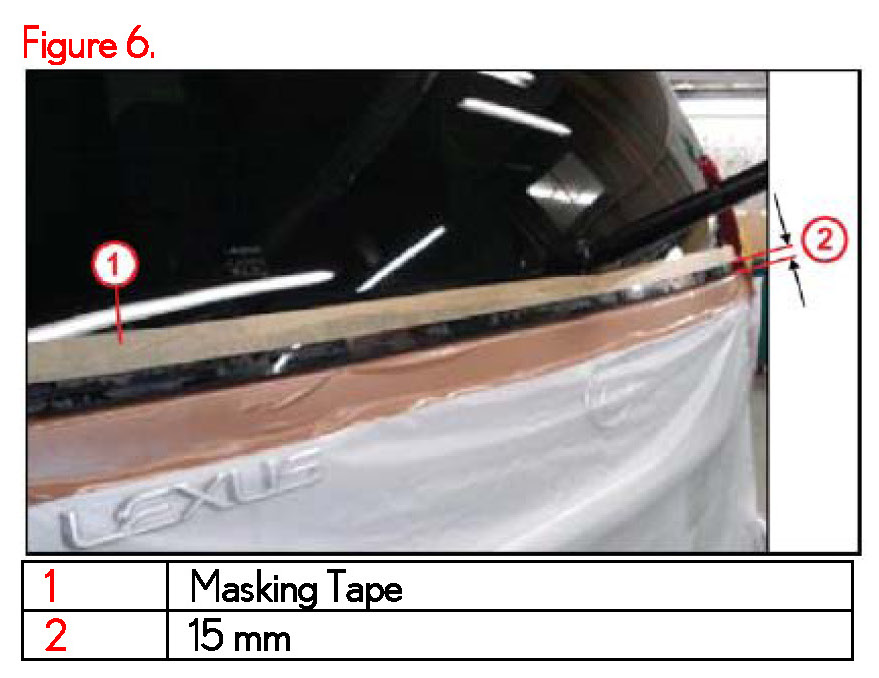

3. Apply masking tape 15 mm above the edge of glass.
4. Using a brush, coat the installation surface on the glass with glass primer(W�rth(R) Primer for Windshield Adhesive 890.100044).
5. Allow the primer coating to dry for 30 seconds or more.
6. Remove the masking tape.

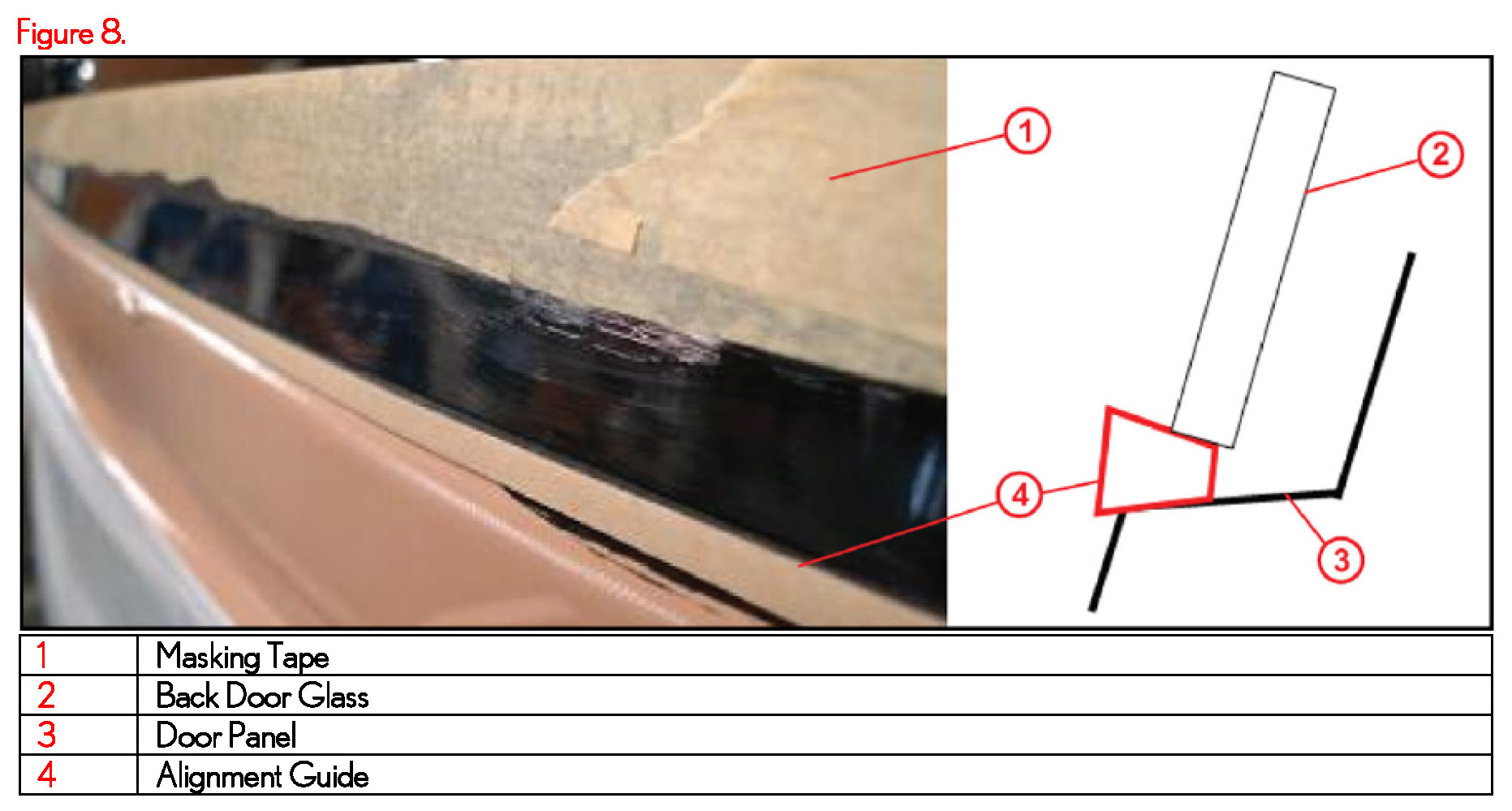

7. Push the alignment guide into the gap between the glass and door panel.

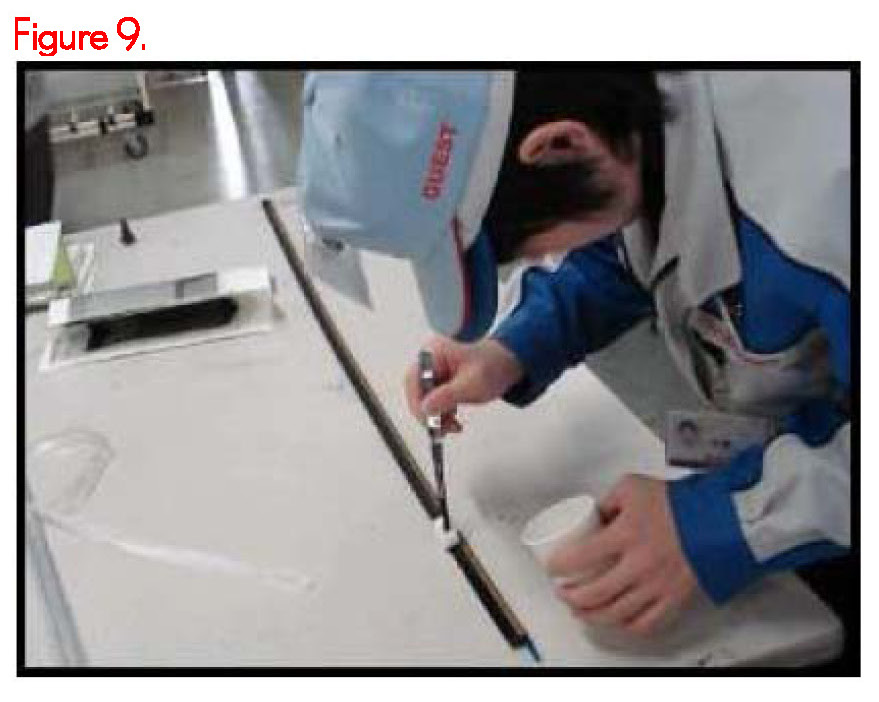

8. Using a brush, coat the installation surface of the moulding with moulding primer (W�rth(R) Adhesion Promoter 893.91014).
9. Apply Urethane adhesive on the moulding (W�rth(R) Urethane Windshield Adhesive 890.100043).
NOTE:
Only apply the required amount. If the adhesive is dripping off the side of the moulding, too much has been applied.
10. Remove the tape backing from the moulding.
11. Adjust the moulding location to right side edge of glass so that there is 2 mm on the left side.

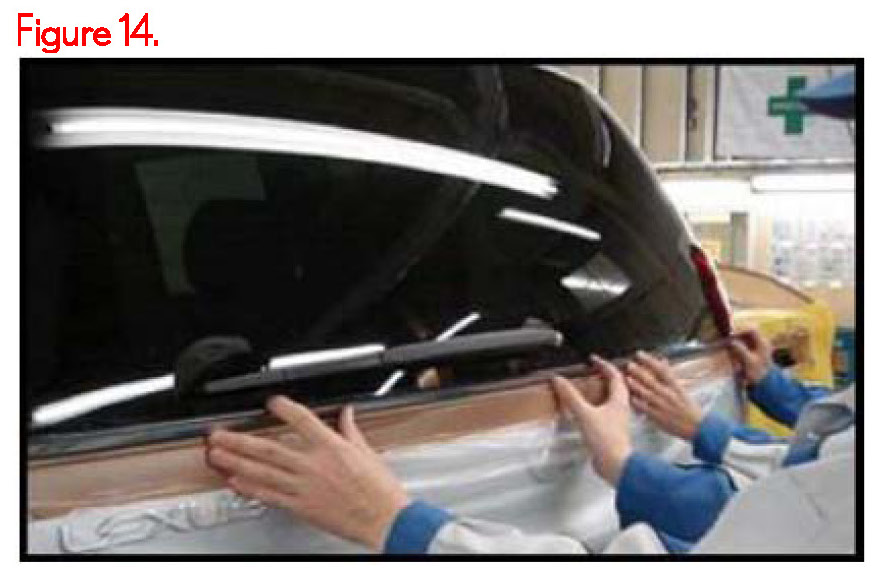

Using the alignment guide, rest the moulding on the guide while pressing the moulding onto the glass.
12. Lightly press the moulding onto the glass to secure the adhesive and tape.

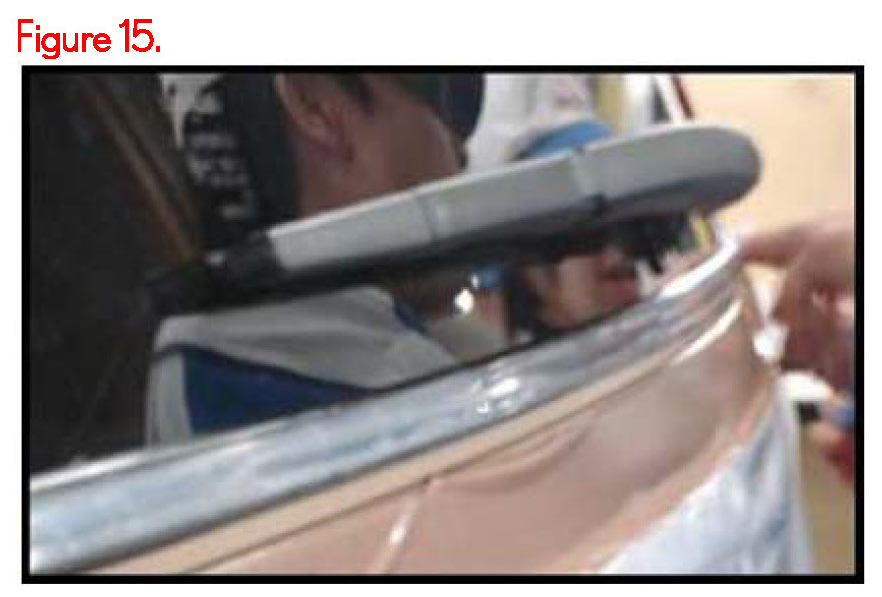

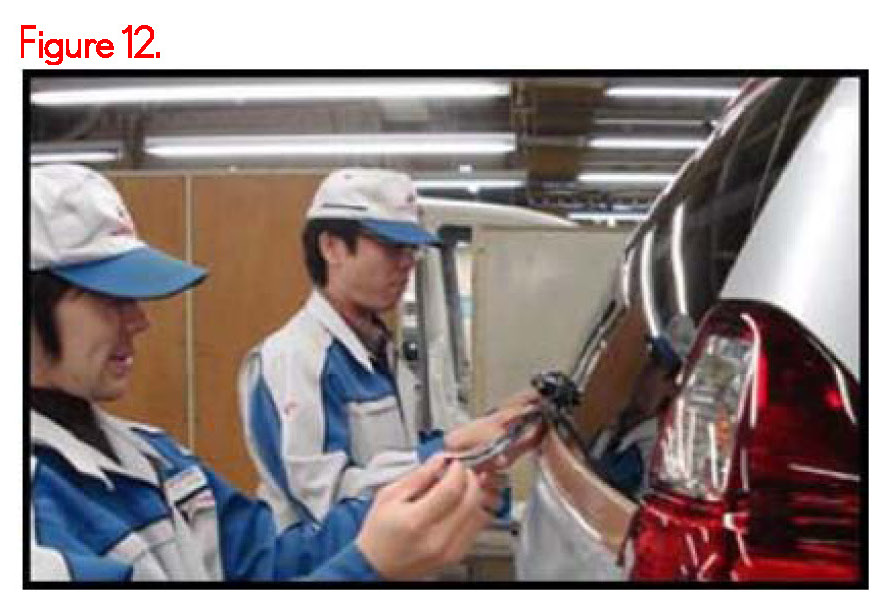

13. Remove the clear protective film from the moulding and off the vehicle.
14. Allow the required time for the adhesive to harden, remove any excess adhesive.
NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
